Simgasm Apex Quad Monitor Stand creates a freestanding layout with one centre display, two side screens and a fourth monitor above. Its 40 x 80 mm aluminium profiles, steel mounting parts and adjustable height, width, side-arm angles and upper-screen position help align the picture. It supports VESA 75 x 75, 100 x 100 and 200 x 200 mm. Choose black MSAS4-BLK or white MSAS4-WIT on one product page. Displays are sold separately.
Simgasm Apex Monitor Stand Legs reinforce the lower section of a compatible freestanding Apex display frame. Their 40 x 80 mm aluminium profiles help reduce movement and improve rigidity in wider or heavier multi-monitor layouts. The 13.1 kg kit ships in one 670 x 220 x 110 mm box. Select black MSALS-BLK or white MSALS-WIT on the same product page. This is a reinforcement accessory for an existing stand, not a complete monitor support.
Simgasm Apex Monitor Stand Legs PREORDER
690.24złYou might also like

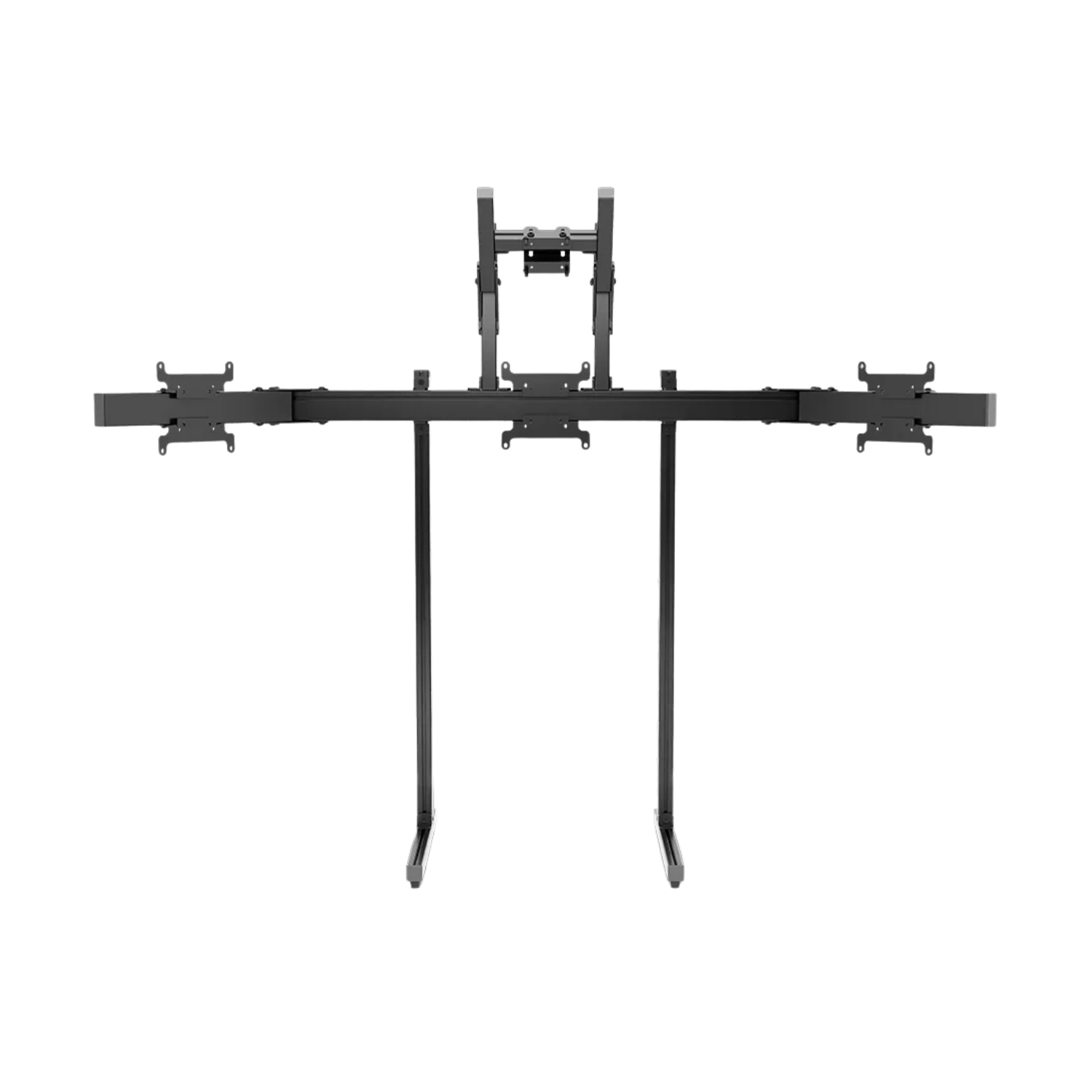

Simgasm Apex Quad Monitor Stand uses a 3+1 display arrangement. A centre panel and two angled side screens create the panoramic layer, while the fourth monitor sits above the middle. As a freestanding quad monitor stand, it does not load the cockpit or desk and can move independently of the driving position.
In a racing simulator, the upper display can carry telemetry, timing, a broadcast preview or streaming tools without interrupting the driving image below. Workstations, trading desks and control spaces gain a similar dedicated information layer. Alternative display frames are listed under TV and monitor stands.

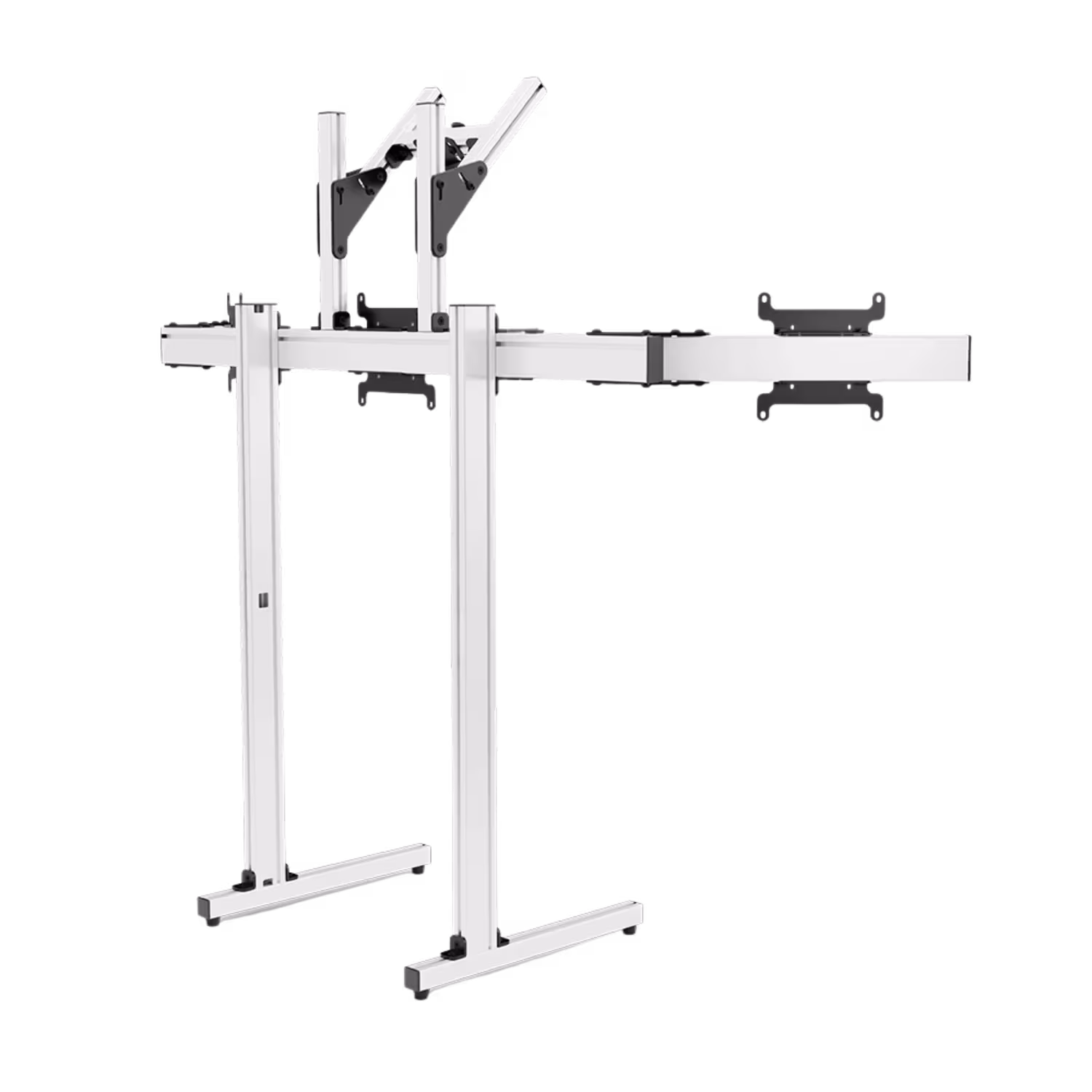

Height and width adjustment establish the position of the complete frame. Both side-arm angles can then wrap the outer displays towards the user, while the separate upper mount controls the screen placed over the centre panel. This provides enough freedom to reduce visible gaps across the lower panorama and keep the fourth display readable.
A staged installation is easier to manage. Begin with the centre screen, align both outer monitors, then position the upper panel. Cable routes, connector access, housing clearance and normal viewing position should all be checked before the adjustable joints receive their final tightening.

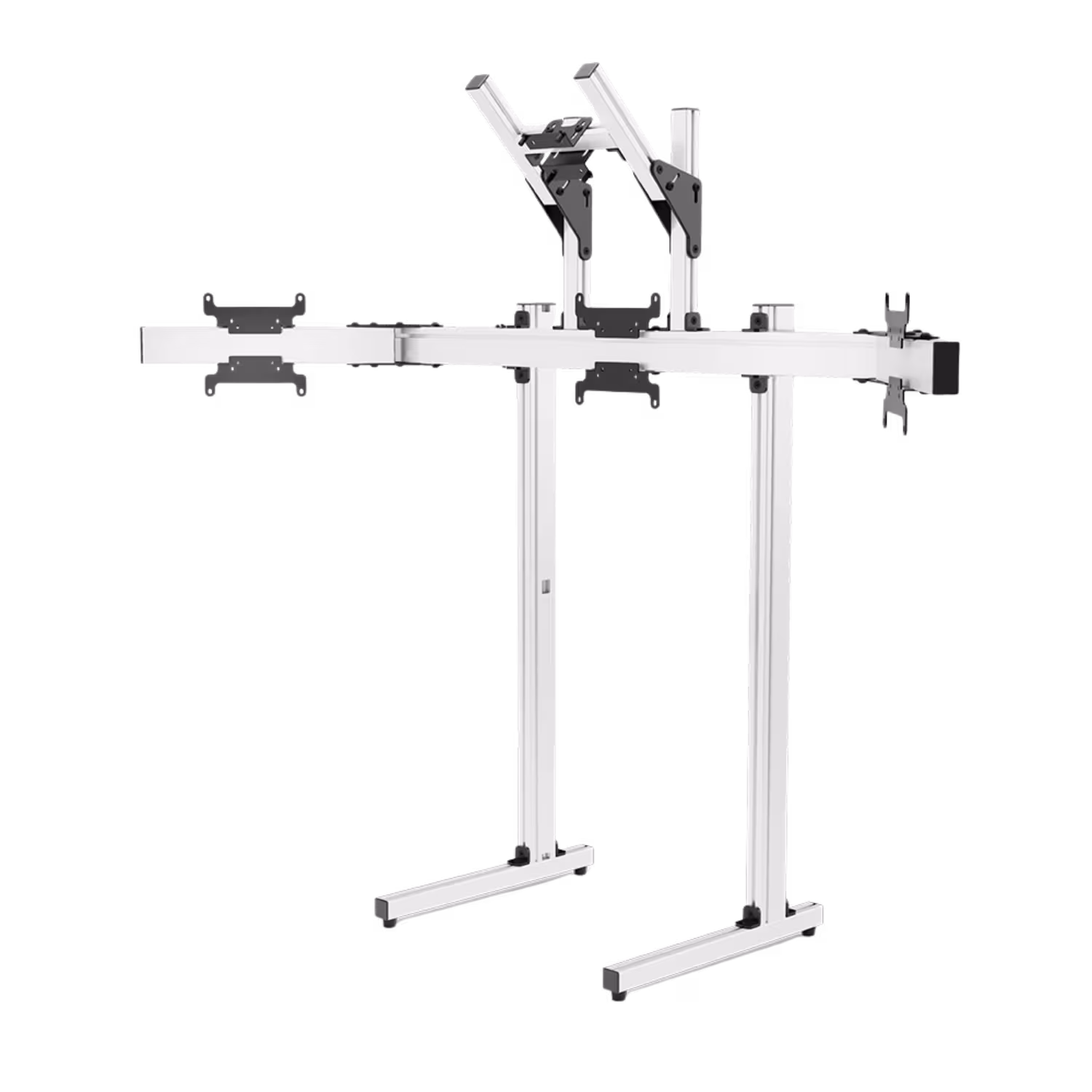

Simgasm Apex Quad Monitor Stand is offered as black MSAS4-BLK and white MSAS4-WIT combinations. Black reduces visual contrast behind dark display housings. White exposes the profile geometry and suits a brighter studio, gaming room or simulator intended for presentation.

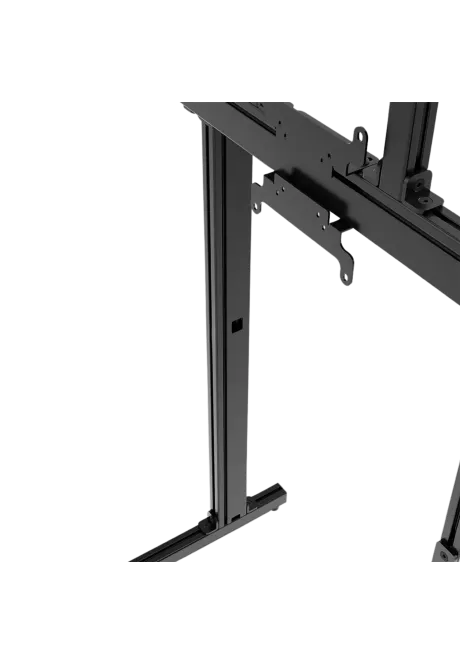

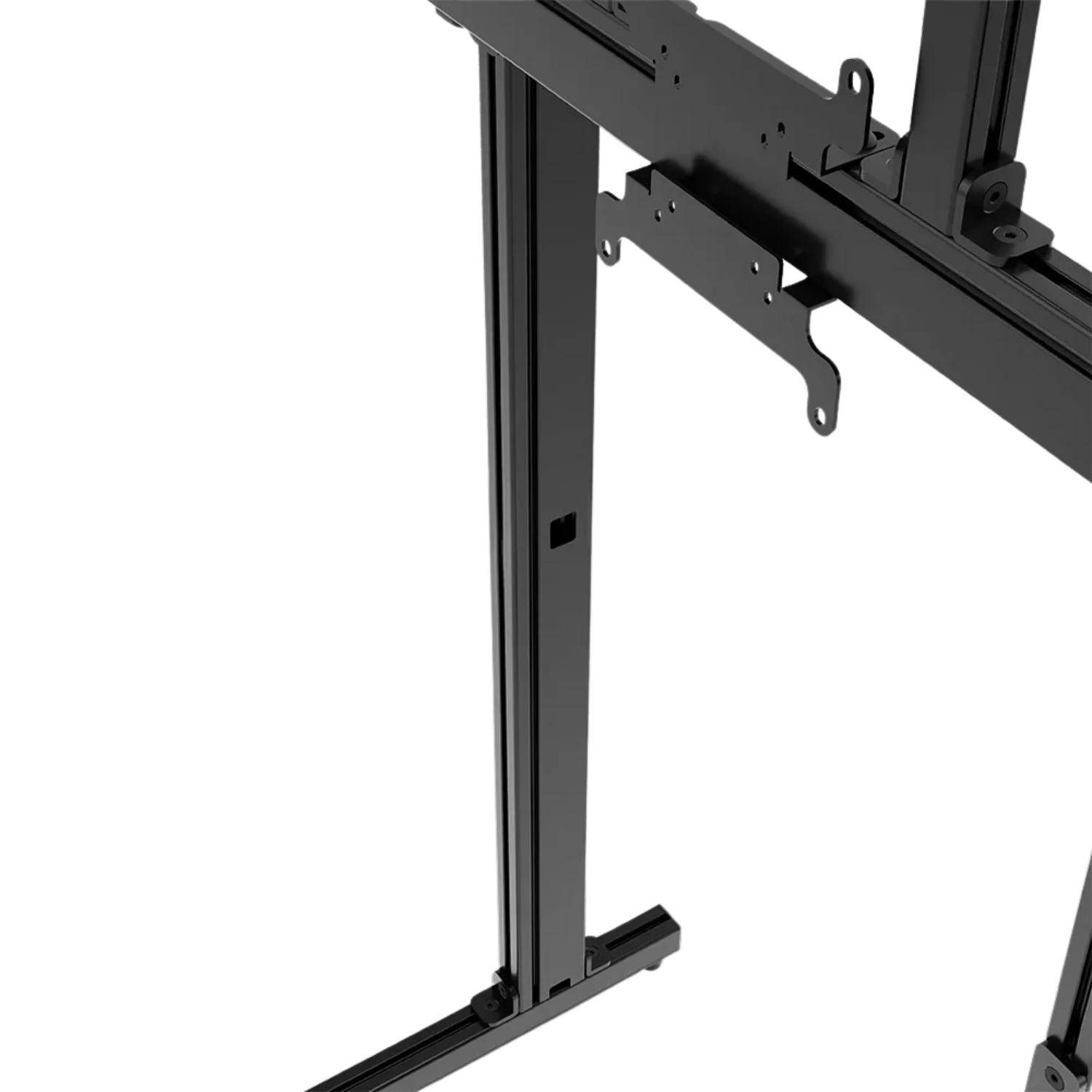

Simgasm Apex Quad Monitor Stand is listed with VESA 75 x 75, 100 x 100 and 200 x 200 mm support. Check each screen individually. Hole spacing, weight, rear-housing shape, connector position and cable clearance matter more than diagonal size alone.
No maximum diagonal or display-load figure is published. One detail also needs confirmation for larger upper screens: the complete stand lists 200 x 200 mm, while its upper component is named as a VESA 75/100 module. Verify the current plate or adapter before fitting a 200 x 200 mm top display. Motion cockpits need additional clearance for their complete travel range.
Simgasm Apex Quad Monitor Stand uses a 3+1 display arrangement. A centre panel and two angled side screens create the panoramic layer, while the fourth monitor sits above the middle. As a freestanding quad monitor stand, it does not load the cockpit or desk and can move independently of the driving position.
In a racing simulator, the upper display can carry telemetry, timing, a broadcast preview or streaming tools without interrupting the driving image below. Workstations, trading desks and control spaces gain a similar dedicated information layer. Alternative display frames are listed under TV and monitor stands.
Height and width adjustment establish the position of the complete frame. Both side-arm angles can then wrap the outer displays towards the user, while the separate upper mount controls the screen placed over the centre panel. This provides enough freedom to reduce visible gaps across the lower panorama and keep the fourth display readable.
A staged installation is easier to manage. Begin with the centre screen, align both outer monitors, then position the upper panel. Cable routes, connector access, housing clearance and normal viewing position should all be checked before the adjustable joints receive their final tightening.
Simgasm Apex Quad Monitor Stand is offered as black MSAS4-BLK and white MSAS4-WIT combinations. Black reduces visual contrast behind dark display housings. White exposes the profile geometry and suits a brighter studio, gaming room or simulator intended for presentation.
Simgasm Apex Quad Monitor Stand is listed with VESA 75 x 75, 100 x 100 and 200 x 200 mm support. Check each screen individually. Hole spacing, weight, rear-housing shape, connector position and cable clearance matter more than diagonal size alone.
No maximum diagonal or display-load figure is published. One detail also needs confirmation for larger upper screens: the complete stand lists 200 x 200 mm, while its upper component is named as a VESA 75/100 module. Verify the current plate or adapter before fitting a 200 x 200 mm top display. Motion cockpits need additional clearance for their complete travel range.
| Technical specification - Simgasm Apex Quad Monitor Stand | |
|---|---|
| Construction | |
| Product type | Freestanding four-monitor stand in a 3+1 arrangement |
| Main material | Aluminium |
| Mounting components | Steel parts for increased joint rigidity |
| Profile size | 40 x 80 mm |
| Displays and adjustment | |
| Number of displays | Up to 4: centre, two sides and upper |
| Listed VESA patterns | 75 x 75 mm, 100 x 100 mm, 200 x 200 mm |
| Adjustment | Height, width, side-arm angles and upper-monitor position |
| Maximum display diagonal | Not stated on the verified product page |
| Maximum display weight | Not stated on the verified product page |
| Variants | |
| Black variant | MSAS4-BLK, listed weight 36 kg |
| White variant | MSAS4-WIT, listed weight 41 kg |
| Kit and packaging | |
| Kit modules | Apex single-monitor floor stand, matching Apex side-arm pair and Core upper-monitor module |
| Number of boxes | 3 |
| Main-stand box | 850 x 260 x 110 mm |
| Side-arm box | 630 x 150 x 130 mm |
| Upper-module box | 450 x 220 x 90 mm |
| Compatibility - Simgasm Apex Quad Monitor Stand | ||
|---|---|---|
| Standard or setup | Compatibility status | Important note |
| VESA 75 x 75 mm | Confirmed on the complete stand page | Check all four displays separately and select screws for their threaded inserts. |
| VESA 100 x 100 mm | Confirmed on the complete stand page | Account for recessed VESA areas, rear housings and connector access. |
| VESA 200 x 200 mm: lower row | Listed for the Apex system | Confirm display weight before fitting larger panels because no stand load limit is published. |
| VESA 200 x 200 mm: upper display | Current plate requires confirmation | The complete page lists 200 x 200 mm, but the upper component is named VESA 75/100. An adapter may be needed. |
| Other VESA pattern | No direct-fit confirmation | Any adapter must suit the display, stand plate and expected load. |
| Sim racing cockpits | Spatial compatibility | The stand uses its own floor base. Plan room for the frame and the full four-display layout. |
| Motion systems | Possible as an independent structure | Maintain clearance for full cockpit, seat, steering and cable travel. |
| Desk, trading or workstation | Supported use | Check desk height, floor space and whether the upper monitor remains comfortable to view. |
| Additional support legs | Not part of the standard kit | Verified bundle contents list the main stand, side arms and upper module. Reinforcement legs are selected separately. |
Three screens form the lower panorama: one centre and two sides. The fourth monitor mounts above the centre display.
No. Apex rests on its own floor base, allowing screen distance to change without disturbing the seat, wheelbase or pedals.
The complete stand page names 75 x 75, 100 x 100 and 200 x 200 mm. Verify the rear pattern on every display individually.
Confirm this before purchase. Although the complete product lists 200 x 200 mm, its upper component is described as a VESA 75/100 module.
No maximum diagonal is published. Housing size, VESA position, weight, connector access and the ability to align all four panels determine suitability.
The verified product page does not provide a load limit. Confirm each mounting position before using particularly heavy monitors or televisions.
Besides finish, the listed weights differ: black MSAS4-BLK is 36 kg and white MSAS4-WIT is 41 kg. Both use 40 x 80 mm profiles and the same 3+1 layout.
Stand height, width, both side-arm angles and upper-screen position can be adjusted. Complete final tightening after checking the entire image layout.
It combines the Apex centre stand, matching side-arm pair and Core upper-monitor module in three boxes. Displays and additional support legs are not listed in this standard bundle.
Browse TV and monitor stands. The range also includes the Simgasm Apex Monitor Stand and Simgasm Apex Triple Monitor Stand.
