The Qubic System QS-220 is a modular motion system based on industrial-grade linear actuators with 100mm of travel. The product page combines the INTRO SET 2DOF starter package, the UPGRADE SET, the complete EXTENDED SET 3DOF and the standalone QS-MC6 motion controller. In a 3DOF configuration, the system can deliver up to 800 mm/s velocity, up to 0.8G acceleration and support up to 350 kg of moving load, depending on the selected operating mode.

QS-220 Variant
  • INTRO SET
  • UPGRADE SET
  • EXTENDED SET
  • QS-MC6

Ask about product
Zapytanie dotyczy produktu: Qubic System QS-220-PL
* - pola obowiązkowe
Send
You will receive an 15.16zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like

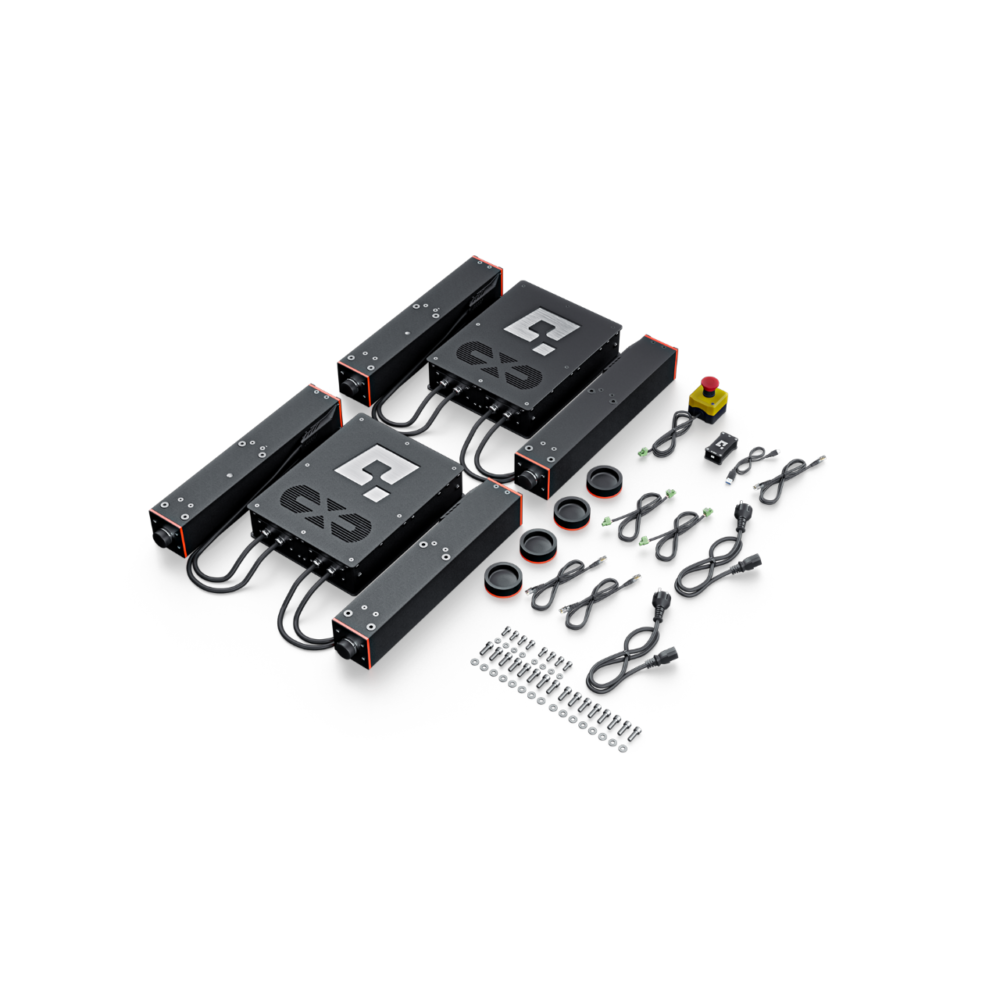

Qubic System QS-220-PL all elements

Choose Your SET

INTRO SET - QS-220-PL includes two high-speed actuators, a dedicated power cabinet and a motion controller (QS-MC6).

UPGRADE SET - includes two high-speed actuators and a dedicated power cabinet for expanding the system to a 3DOF configuration.

QS-MC6 - motion controller.

EXTENDED SET - includes four high-speed actuators, two dedicated power cabinets and a motion controller (QS-MC6).

Modular upgrade path from 2DOF to 3DOF

INTRO SET starts with two actuators positioned at the front or rear of the cockpit. This layout reproduces roll and pitch movement, while 100 mm of actuator travel provides a clear motion range.

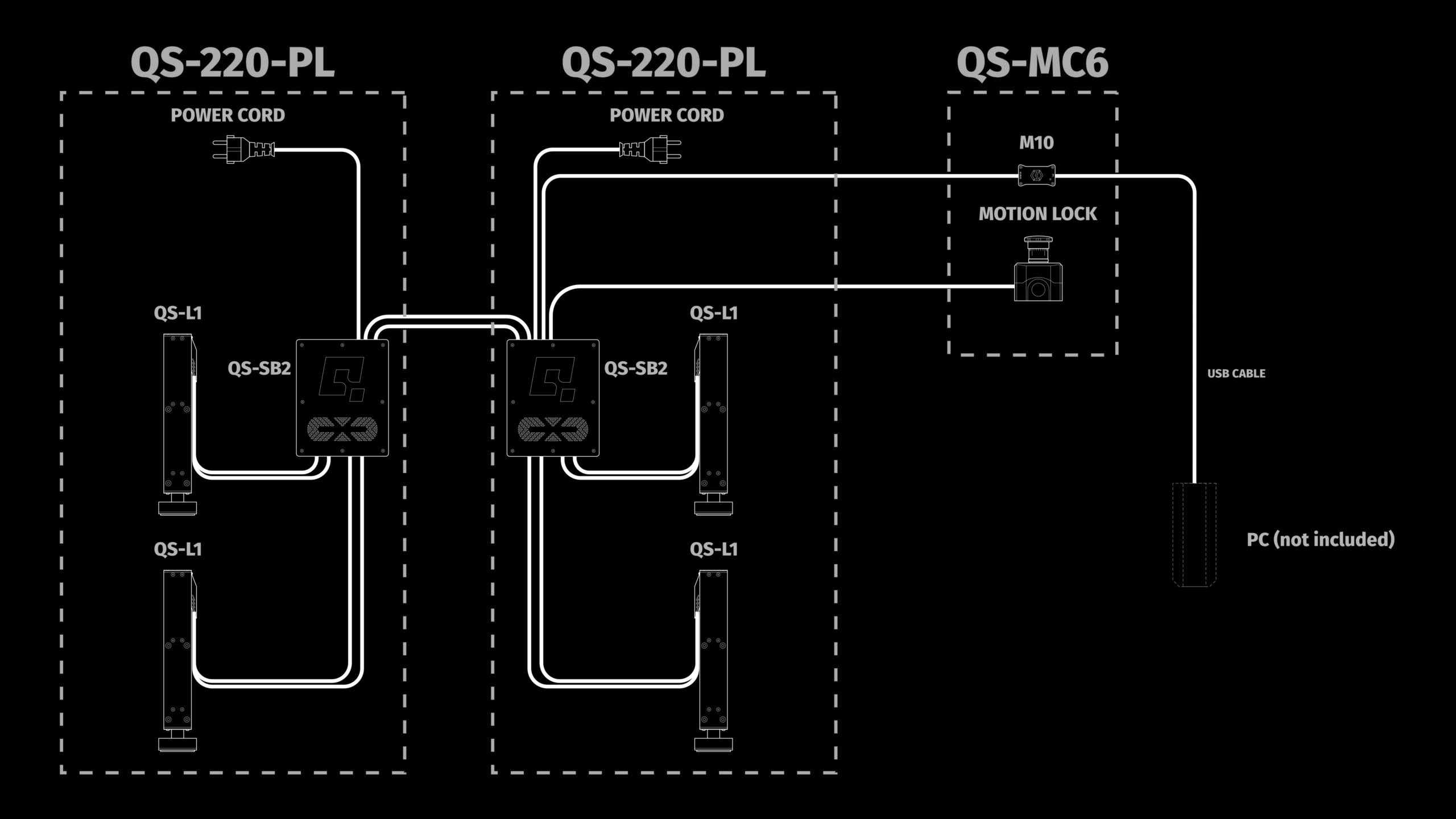

When a full 3DOF layout is required, an UPGRADE SET can be added to the starter package. Four actuators and two power cabinets then form the EXTENDED configuration, while one QS-MC6 continues to connect the whole system to the PC.

Qubic System QS-220-PL marketing baner

Motion, vibration and fast telemetry response

The actuators operate at a control frequency of up to 1000 Hz, generate vibrations across a 0–100 Hz range and respond with less than 8 ms latency. The system can therefore reproduce not only cockpit movement but also short road-surface, engine and kerb effects.

In a 3DOF configuration, users select an operating mode to match the moving load. Q-Mode prioritises velocity and acceleration, Performance balances dynamics and capacity, while Heavy Duty supports the highest moving mass.

Qubic Manager, game profiles and VR support

QS-MC6 connects the system to a PC over USB, while Qubic Manager handles configuration. The application includes profiles for supported games and lets users change the intensity of individual effects without rebuilding the hardware.

VR HeadWay motion compensation is available for virtual-reality headsets. Its role is to limit the effect of physical cockpit movement on headset tracking, keeping platform movement and the VR scene aligned.

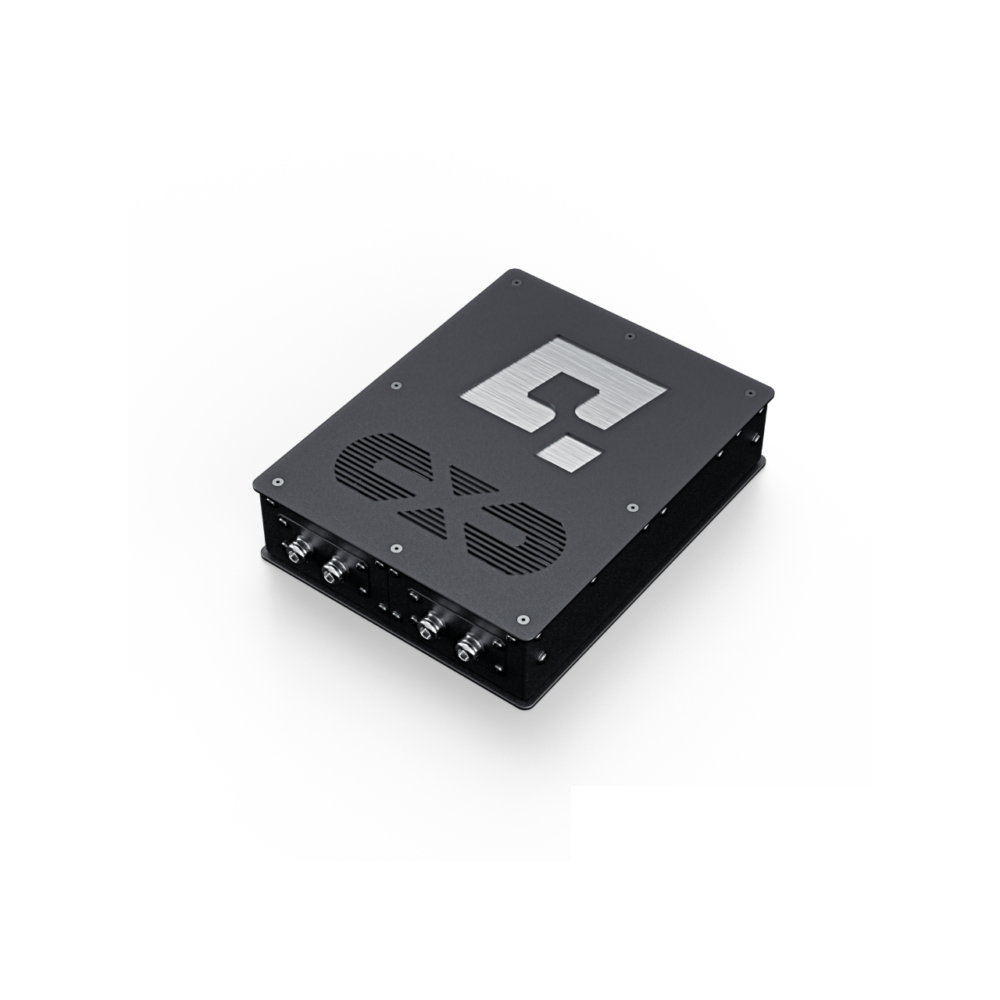

Qubic System QS-220-PL controller

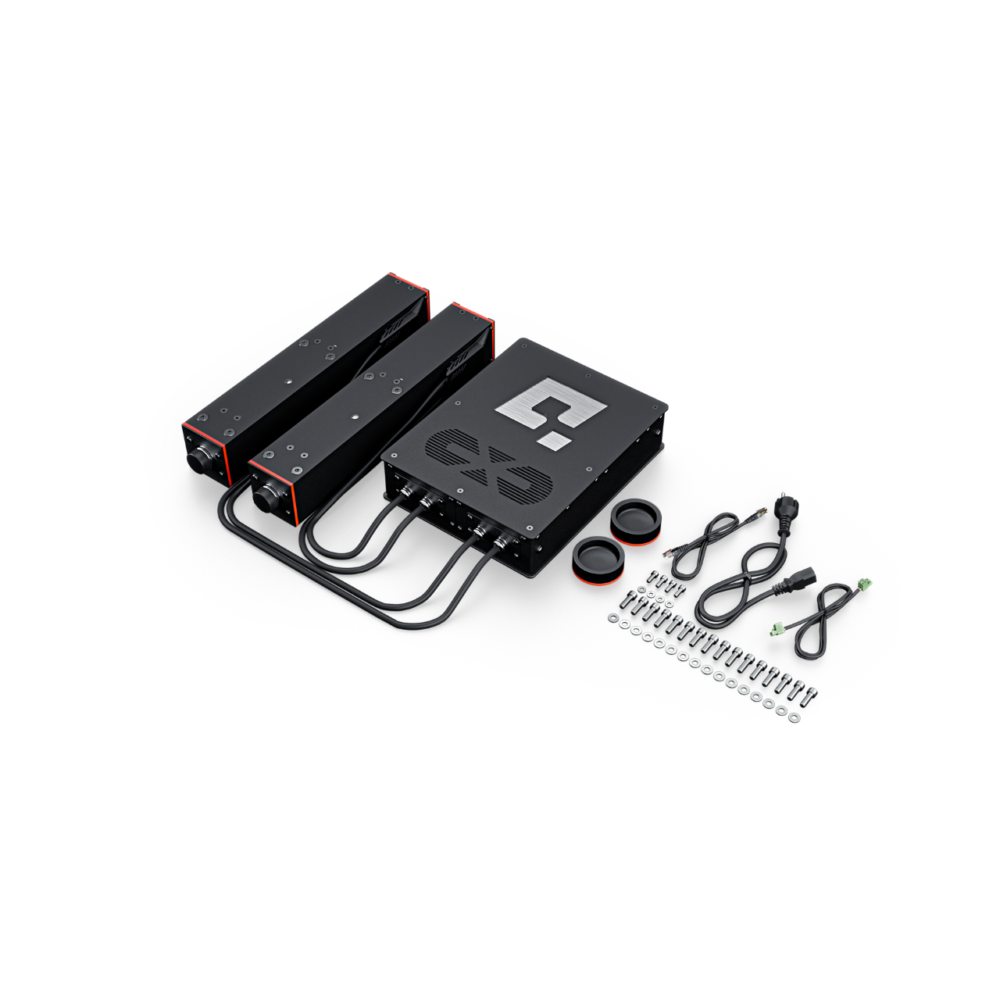

Qubic System QS-220-PL controller and two actuators

Installation, power and rig safety

QS-220 requires a rigid cockpit with mounting points capable of handling dynamic forces. QS-Pivot is not included, so its use or another correctly engineered support solution must be considered when planning a 2DOF configuration.

The system requires single-phase power with neutral, protective earth and suitable residual-current protection. Before each session, check the motion envelope, MOTION-LOCK connections and every mechanical attachment.

Steering Wheels
Direct Drive Wheelbases:

Variant SKU / manufacturer designation Configuration Purpose
INTRO SET QS-220 + QS-MC6 2 actuators, 1 power cabinet and motion controller Complete 2DOF starter set
UPGRADE SET QS-220 2 actuators and 1 power cabinet, without QS-MC6 Upgrade an INTRO SET from 2DOF to 3DOF
EXTENDED SET 2 × QS-220 + QS-MC6 4 actuators, 2 power cabinets and motion controller Complete 3DOF system
QS-MC6 QS-MC6 M10, MOTION-LOCK Switch, M-BUS terminator and cables Standalone motion controller set
Parameter Data
Product name Qubic System QS-220
SKU QS-220; QS-MC6 for the standalone controller
Product type Modular motion system with industrial-grade linear actuators
Product-page configurations 2DOF and 3DOF; standalone QS-MC6 controller
Actuator travel 100 mm / 3.93 in
Maximum control frequency 1000 Hz
Vibration frequency range 0–100 Hz
Latency Below 8 ms
Maximum velocity in 3DOF Q-Mode: 800 mm/s; Performance: 400 mm/s; Heavy Duty: 300 mm/s
Maximum acceleration in 3DOF Q-Mode: up to 0.8 G; Performance: up to 0.6 G; Heavy Duty: up to 0.4 G
Maximum payload in 3DOF Q-Mode: 200 kg; Performance: 250 kg; Heavy Duty: 350 kg
Weight of one QS-220 set 30 kg / 66.1 lb
Single actuator dimensions 106 × 92 × 560–660 mm / 4.17 × 3.62 × 22–26 in
Actuator-to-cabinet cable length 1150 mm / 45.2 in
Power requirements 120/230 VAC ±10%, 50–60 Hz, single phase, neutral and protective earth
PC connection USB through the M10 controller supplied with QS-MC6
Software Qubic Manager; free-of-charge licence according to the manufacturer
Operating environment Indoor use; 5–40°C / 41–104°F; 0–70% humidity without condensation; altitude up to 2000 m / 6561 ft
Country of manufacture Poland, European Union
Item Status Notes
Windows PC Required USB connection and Qubic Manager software
Games supported by Qubic Manager Compatible Support depends on the manufacturer's current game and profile list
VR headsets Compatible Qubic Manager supports VR HeadWay motion compensation
Aluminium-profile cockpits Conditionally compatible The structure and mounting points must withstand the forces generated by the system
QS-Pivot Optional accessory Not included in these variants; QS-220 is supplied without the pivot support
QS-BT1, QS-CH2 and QS-DD-20 Supported within the ecosystem Correct MOTION-LOCK wiring and setup according to the manufacturer's instructions are required

Important: a single 2DOF set operates in Heavy Duty mode only. Q-Mode requires a 230 V supply and is unavailable when QS-220 is paired with QS-CH2. Maximum payload includes the moving cockpit, user and all equipment.

1. What is the Qubic System QS-220?

It is a modular package of industrial-grade linear actuators, power cabinets and an optional motion controller. It adds vertical cockpit movement and telemetry-based effects to a simulator.

2. What is the difference between INTRO SET, UPGRADE SET and EXTENDED SET?

INTRO SET is a complete 2DOF configuration with two actuators and QS-MC6. UPGRADE SET adds two actuators and a second power cabinet to an existing INTRO SET. EXTENDED SET contains four actuators, two cabinets and QS-MC6 for a complete 3DOF system.

3. Can the UPGRADE SET operate on its own?

Not as a complete PC-controlled system. It is intended to expand an existing INTRO SET and does not include another QS-MC6 controller.

4. What are the actuator travel and maximum velocity?

Travel is 100 mm. In a 3DOF configuration, maximum velocity depends on the selected mode: up to 800 mm/s in Q-Mode, 400 mm/s in Performance and 300 mm/s in Heavy Duty.

5. What payload can QS-220 support?

For a 3DOF configuration, the manufacturer specifies up to 200 kg in Q-Mode, 250 kg in Performance and 350 kg in Heavy Duty. This value includes the entire moving mass, not only the user.

6. Can the 2DOF set be upgraded later?

Yes. An UPGRADE SET can be added to the INTRO SET. The power cabinets connect directly to each other, so a second USB connection to the PC is not required.

7. Is QS-Pivot included?

No. INTRO, UPGRADE and EXTENDED variants are supplied without QS-Pivot. It is a separate accessory required for a 2DOF layout when the cockpit design uses one pivot point opposite the actuators.

8. Which software controls the system?

Qubic Manager is the primary application and includes profiles for supported games. The manufacturer provides the licence free of charge and also offers SDK tools for integration projects.

9. Does QS-220 support VR?

Yes. Qubic Manager supports VR HeadWay, a function designed to compensate for physical platform movement in virtual reality.

10. Can the system be fitted to any cockpit?

Universal fit should not be assumed. The cockpit, mounting points and floor must withstand the system's mass and dynamic forces. Verify the structure and use suitable brackets before installation.

11. How long is the warranty for Qubic Systems products?

Simline is the largest authorised distributor of Qubic Systems in Poland and Europe. As an authorised Qubic Systems partner, all products from this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with Qubic Systems warranty terms.

12. How do I submit a warranty claim for a Qubic Systems product?

Simline.eu is an authorised Qubic Systems partner, so we act as an intermediary in the warranty process and handle submissions. Please email support@simline.eu or qubicsystem@simline.eu with photos and videos showing the defect, a description of the issue, and pack the equipment for collection.

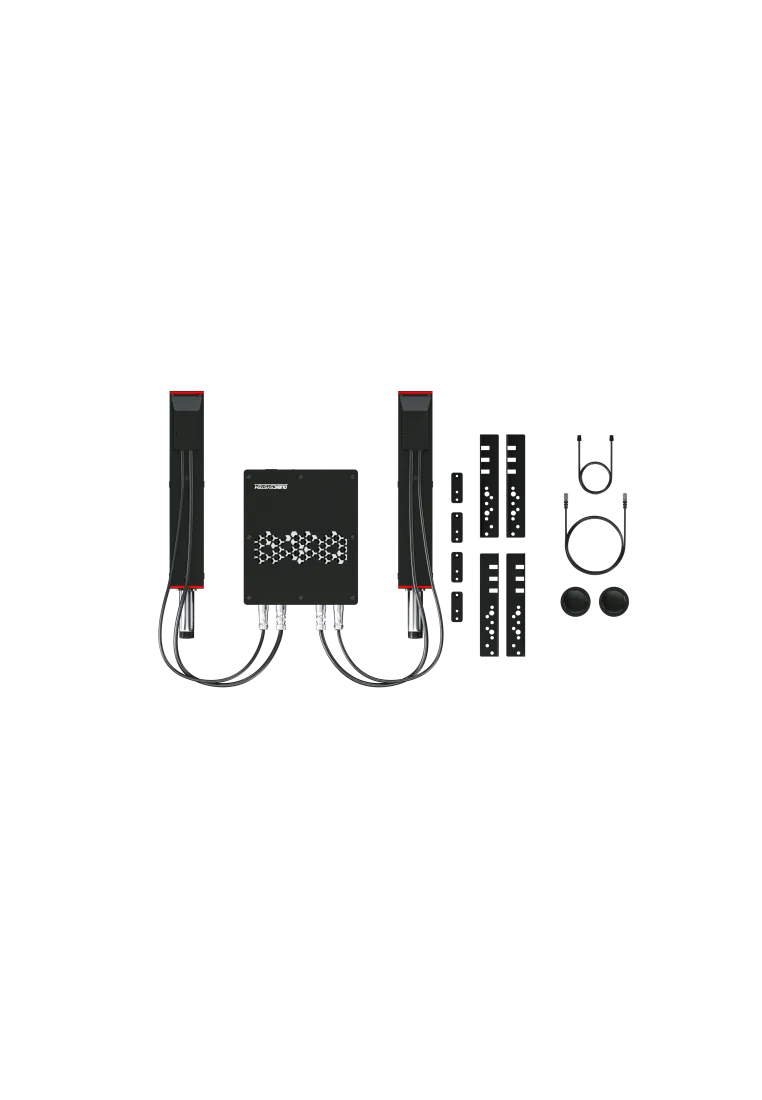

INTRO SET

  • 2 × QS-220 linear actuator
  • 1 × QS-220 power cabinet
  • 2 × stabilisation plate
  • 1 × power cable
  • 1 × M-BUS communication cable
  • 1 × MOTION-LOCK interlink cable
  • 4 × power cabinet mounting plate
  • Hardware set listed in the manufacturer manual
  • 1 × QS-MC6 set: M10 controller, MOTION-LOCK Switch, M-BUS terminator, M-BUS cable and USB cable

UPGRADE SET

  • 2 × QS-220 linear actuator
  • 1 × QS-220 power cabinet
  • 2 × stabilisation plate
  • 1 × power cable
  • 1 × M-BUS communication cable
  • 1 × MOTION-LOCK interlink cable
  • 4 × power cabinet mounting plate
  • Hardware set listed in the manufacturer manual

EXTENDED SET

  • 4 × QS-220 linear actuator
  • 2 × QS-220 power cabinet
  • 4 × stabilisation plate
  • 2 × power cable
  • 2 × M-BUS communication cable
  • 2 × MOTION-LOCK interlink cable
  • 8 × power cabinet mounting plate
  • Hardware set listed in the manufacturer manual
  • 1 × QS-MC6 set: M10 controller, MOTION-LOCK Switch, M-BUS terminator, M-BUS cable and USB cable

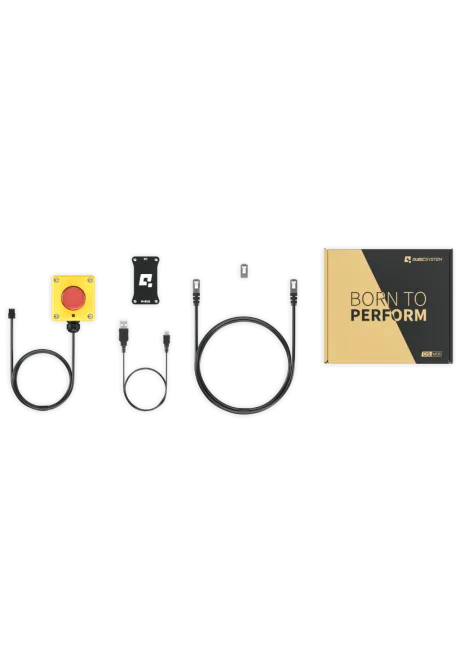

QS-MC6

  • 1 × M10 controller
  • 1 × MOTION-LOCK Switch
  • 1 × M-BUS terminator
  • 1 × M-BUS communication cable
  • 1 × USB cable
