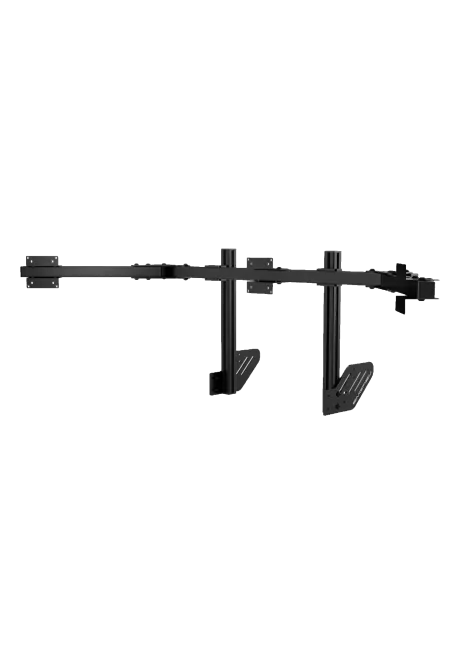

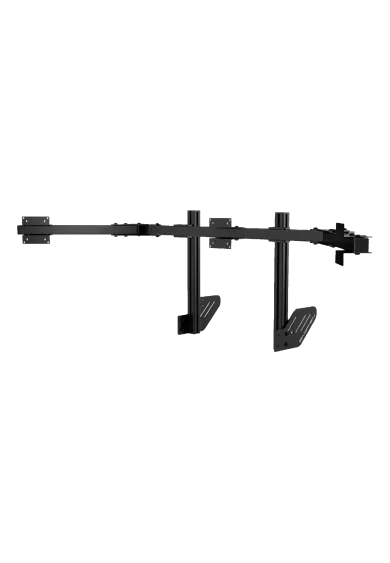

Simgasm Core Integrated Triple Monitor Stand black front right view

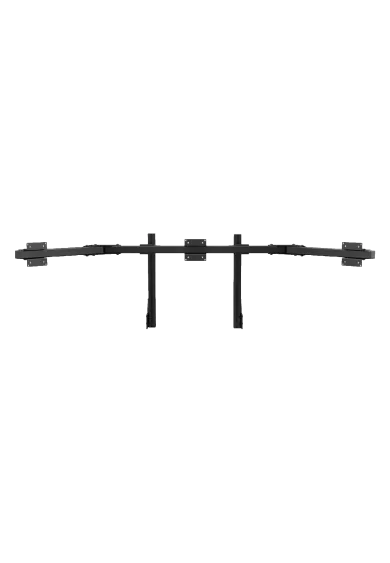

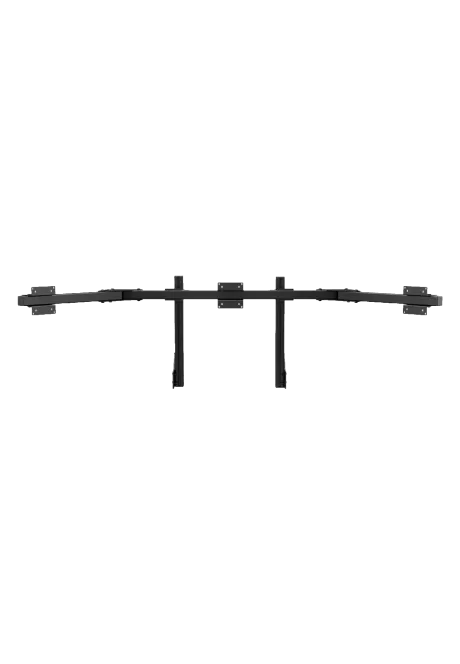

Simgasm Core Integrated Triple Monitor Stand black front view

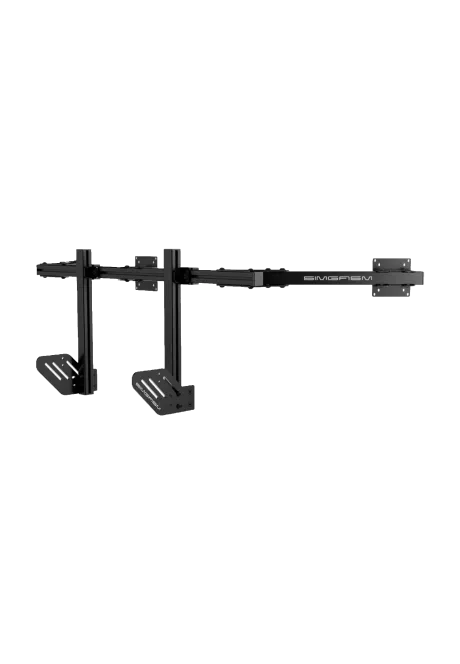

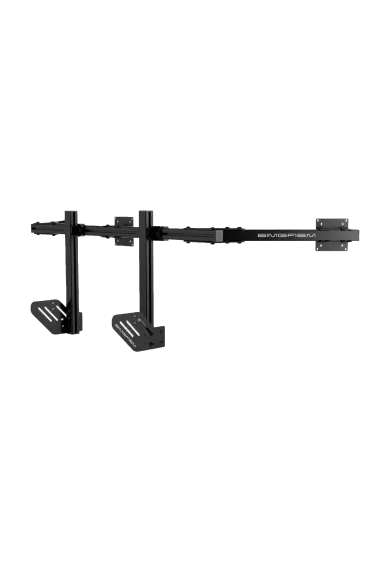

Simgasm Core Integrated Triple Monitor Stand black rear view

Simgasm Core Integrated Triple Monitor Stand

Name: Simgasm Core Integrated Triple Monitor Stand
Brand: SIMGASM
SKU: 1430
Price: 852.85 PLN
Availability: InStock

Reference SG-MSCI3-BLK

852.85zł

Ready to send

Simgasm Core Integrated Triple Monitor Stand creates a three-screen panorama attached to the cockpit, avoiding separate stand feet behind the rig. Its 40 x 40 mm profile structure supports VESA 75 x 75, 100 x 100 mm. Black and white are offered as variants on one product page. Adjustment simplifies screen positioning. It is a practical sim racing solution. The profile structure helps preserve alignment. The finish can match the cockpit.

Color Variant

Black
White

Ask about product

You will receive an 8.53zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Three monitors in the compact Core system

This model builds a three-screen setup on Core profiles and connects it directly to the cockpit. The driver gains useful vision on both sides while the floor behind the rig remains free from additional stand feet.

The Core range aims this configuration at users moving to three monitors in a more compact form. Side vision becomes available for close racing without adding a separate stand behind the cockpit. This is especially convenient when the complete rig is moved as one unit.

A well-built panorama is not only a visual feature of the rig. Its purpose is to deliver useful information in the side areas, so arm angles and viewing distance should follow the driver's position and the geometry settings of the selected simulator.

A wider view without a heavy floor stand

Its compact structure suits computer monitors with VESA 75 x 75 or 100 x 100 mm. It is aimed at users who want a panorama without the broader VESA range and heavier profiles of the Apex system.

Three monitors with the same diagonal, resolution and active-panel height usually create the most continuous picture. Different models may be mechanically possible after individual checks, but colour and geometry calibration can become harder. Mounting compatibility and visual consistency should therefore be treated as separate decisions.

Adjustment is easier with a test image or the game already running. This reveals horizon-height differences, uneven gaps and areas where the virtual cockpit geometry fails to continue naturally from one panel to another.

Adjustable arms for a continuous perspective

Side-arm angle and display position can follow the driver's eye distance. Carefully aligned panels carry track lines more naturally across the bezels and make the outer screens feel like part of one view.

Lighter profiles preserve the compact character but do not remove the need to check total weight. Outer screens load the arms and their connection to the centre cross-member. Correct tightening, balanced panel placement and compatible cockpit mounting points matter as much as the VESA pattern.

Profile colour can be selected independently of the monitor model. Black remains discreet in a dark room, while white can emphasise the shape of the setup. Correct and even tightening of every connection remains essential in both versions.

Display compatibility is more than diagonal size

Three matching monitor models usually simplify calibration, but they are not the only requirement. Check weight, VESA, bezel width, connector position and the available cockpit attachment points.

Mark the intended screen-centre height and measure eye distance from the driving position before hanging the displays. The centre monitor becomes the reference for the remaining two. After adding the sides, correct bezel gaps, arm angles and in-game field of view, then secure the cables against movement.

For future expansion, compare Simgasm Core Integrated Monitor Stand, Simgasm Core Monitor Stand Side Arms, Simgasm Core Integrated Quad Monitor Stand. The wider range is available under monitor stands, with other products listed on the Simgasm brand page.

Simgasm Core Integrated Triple Monitor Stand: side arm joined to the centre cross-member

Three monitors in the compact Core system

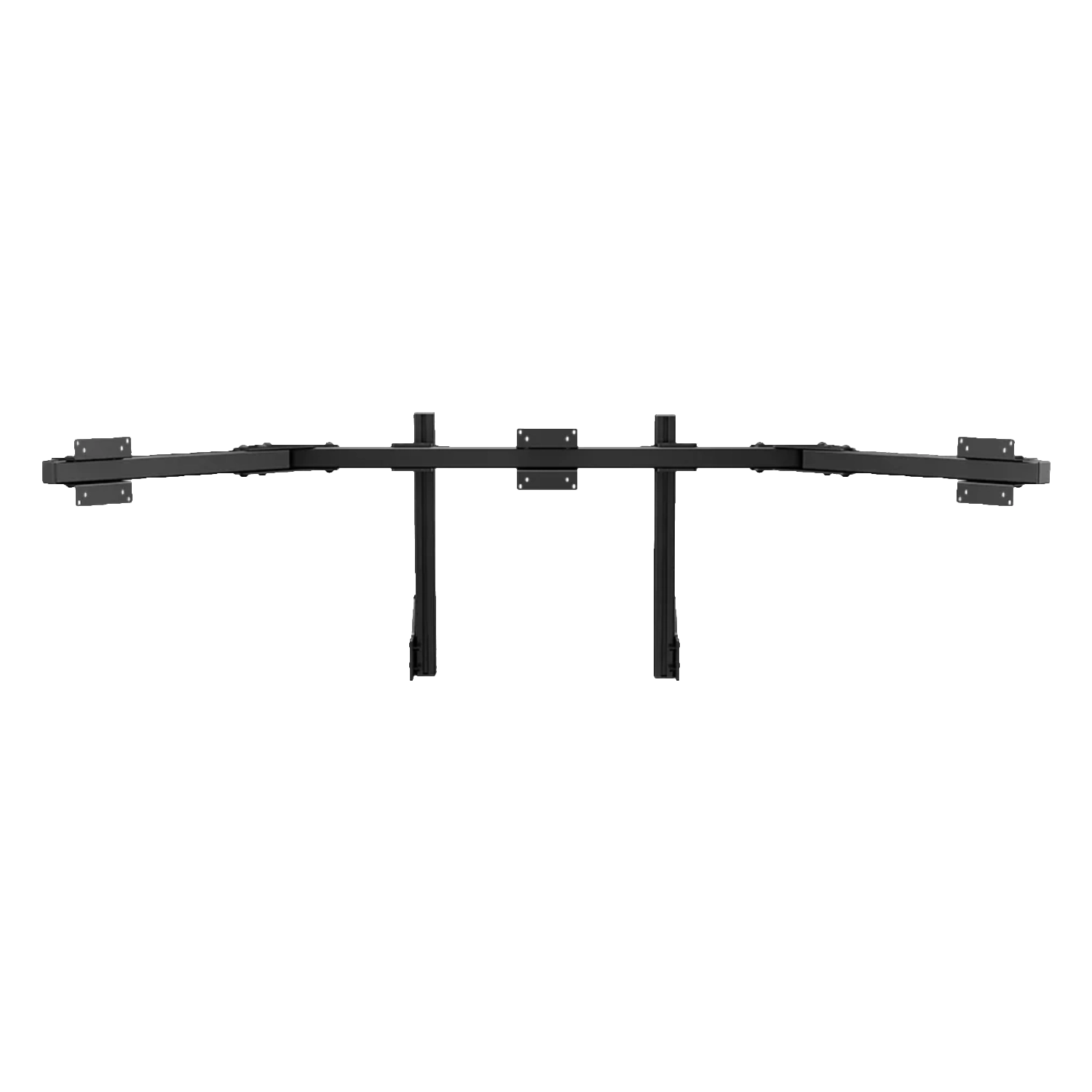

Simgasm Core Integrated Triple Monitor Stand: monitor edges meeting at the selected angle

A wider view without a heavy floor stand

Its compact structure suits computer monitors with VESA 75 x 75 or 100 x 100 mm. It is aimed at users who want a panorama without the broader VESA range and heavier profiles of the Apex system.

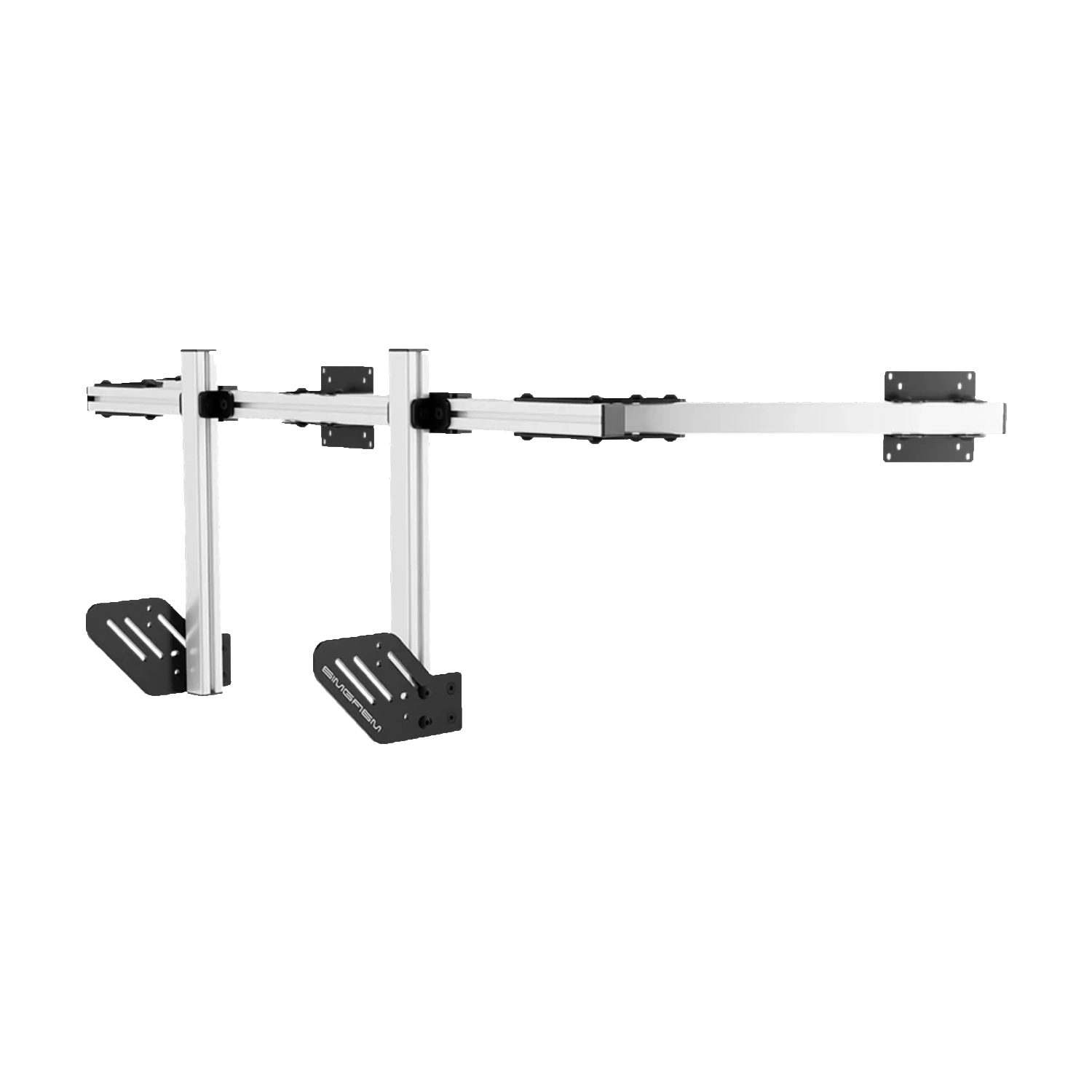

Simgasm Core Integrated Triple Monitor Stand: rear VESA brackets across three screens

Adjustable arms for a continuous perspective

Simgasm Core Integrated Triple Monitor Stand: cables routed along both side profiles

Display compatibility is more than diagonal size

Three matching monitor models usually simplify calibration, but they are not the only requirement. Check weight, VESA, bezel width, connector position and the available cockpit attachment points.

Konstruction: Aluminium profiles
Type of accesories: Monitor/TV mount

Simgasm Core Integrated Triple Monitor Stand - specifications
Variants
Colour	black or white, selected on one product page
Black SKU	MSCI3-BLK
White SKU	MSCI3-WIT
Construction
Aluminium profile	40 x 40 mm
Mounting components	steel
VESA standard	75 x 75, 100 x 100 mm
Set weight	12.20 kg
Package
Contents	Core integrated main support and a pair of Core side arms
Number of boxes	2
Box dimensions	2 boxes, each 530 x 170 x 100 mm

Simgasm Core Integrated Triple Monitor Stand - compatibility
Compatibility and important notes
Colour	Black and white variants share the same technical layout; the selection changes finish and SKU.
Three displays	Each position requires VESA 75 x 75, 100 x 100 mm plus suitable weight and casing geometry.
Cockpit	As an integrated stand, it needs a compatible cockpit-profile connection.
Alignment	Set arm angles and height around display width and eye distance.
Important note	There is no single published maximum diagonal. Weight, bezels, ports and cockpit space also determine compatibility.

Simgasm Core Integrated Triple Monitor Stand - questions and answers

1. What is Simgasm Core Integrated Triple Monitor Stand designed to do?

It builds a cockpit-mounted three-screen panorama.

2. Are black and white versions included on the same page?

Yes. Create black SKU MSCI3-BLK and white SKU MSCI3-WIT as colour combinations on one product page. Their technical specification is the same.

3. Which VESA patterns are supported?

The confirmed range is 75 x 75, 100 x 100 mm. Apex systems using a Core upper module have a separate, smaller VESA range at the top position.

4. Is matching VESA enough to confirm a display?

No. Also check weight, casing dimensions, port locations, cable clearance and the permitted load of the complete connection.

5. Does SIMGASM publish a maximum screen diagonal?

There is no single published value that can safely cover every configuration. Full monitor geometry and weight remain part of the compatibility check.

6. Is this a freestanding monitor stand?

No. This product is part of an integrated system and requires a compatible cockpit or base-module connection.

7. What is the benefit of cockpit integration?

It saves floor space and keeps screen position tied to the rig. Cockpit vibration may also reach the display, which matters on stronger haptic or motion setups.
