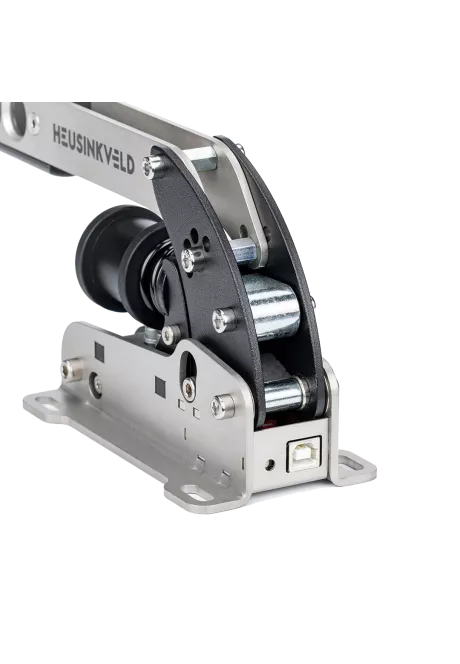

Heusinkveld Ultimate+
4,092.96zł

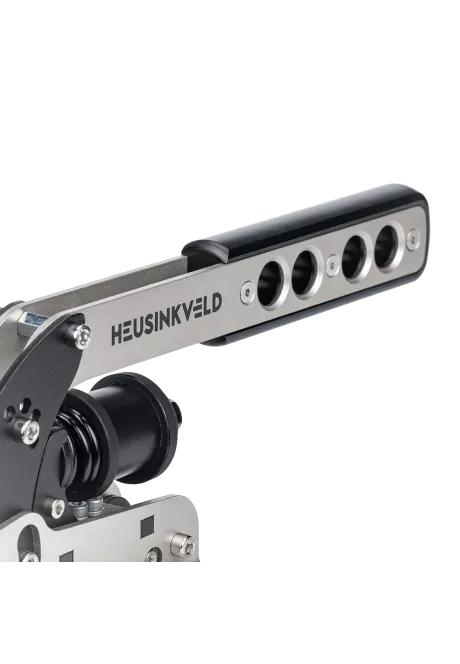

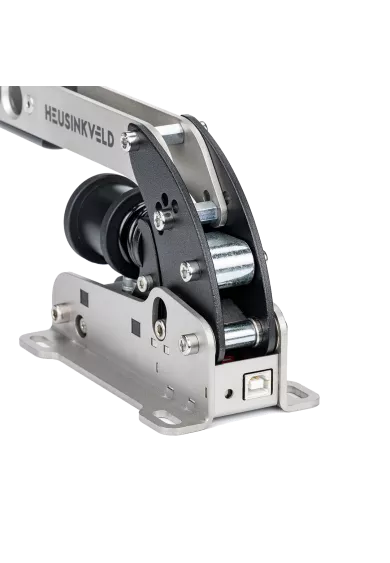

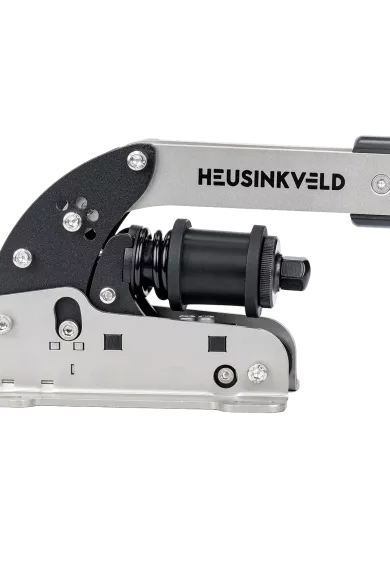

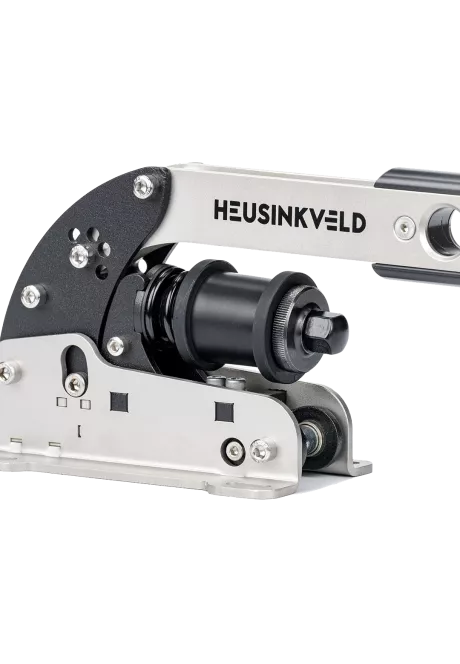

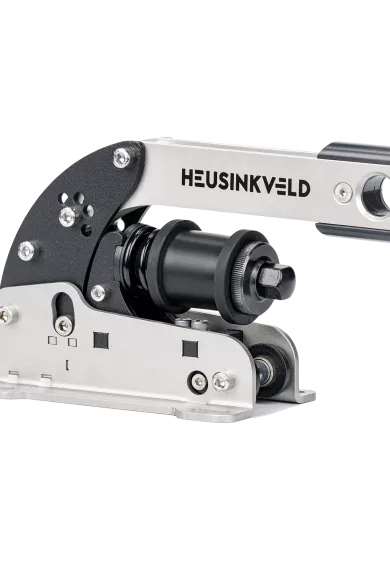

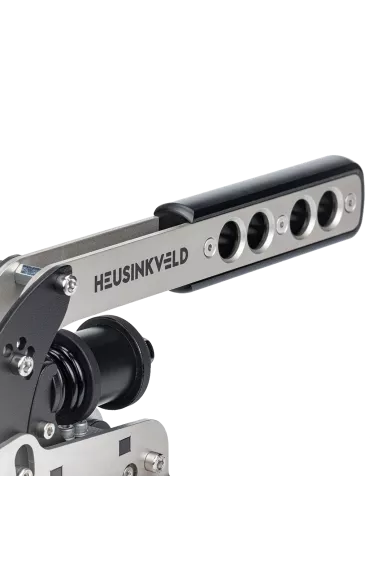

Heusinkveld Handbrake
HE-HBV2B
1,176.85zł
1,176.85zł
Ready to send

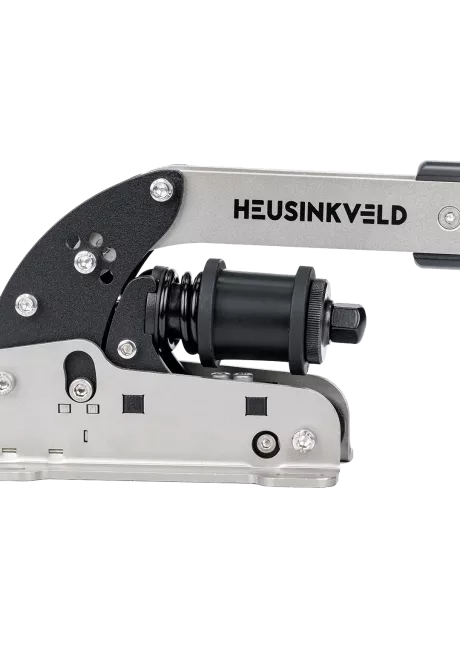

When rallying or drifting, you want full control. The Heusinkveld Handbrake is a highly adjustable, pressure sensitive USB handbrake using load cell technology. A wide range of options to set your preferred mechanical feel. Complete freedom to shape the output curve using Heusinkveld SmartControl, adjust controller settings and profiles while driving with our all new SmartControl Live software.
Ask about product
You will receive an 11.77zł for each item of this product to use on your next purchase.
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0
You might also like
Heusinkveld Handbrake
When In Doubt, Flat Out
Full Control
The Heusinkveld Handbrake is a highly adjustable,
pressure sensitive USB handbrake using load cell technology.
A wide range of options to set your preferred mechanical feel.
pressure sensitive USB handbrake using load cell technology.
A wide range of options to set your preferred mechanical feel.
Highest Quality
Designed with CAD and FEA, all structural parts are CNC precision laser cut steel
with a bead blasted or Black fine-structured powder coat finish.
It is strong, compact and incredibly durable.
with a bead blasted or Black fine-structured powder coat finish.
It is strong, compact and incredibly durable.
Adjustability

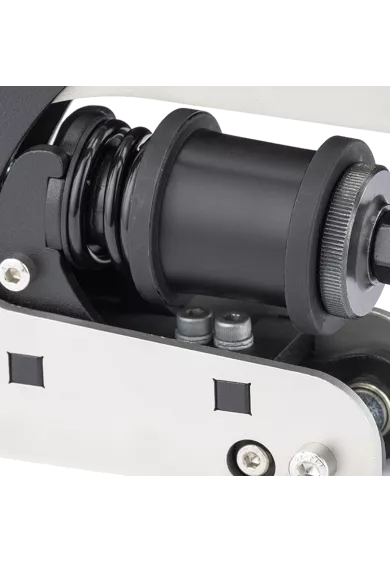

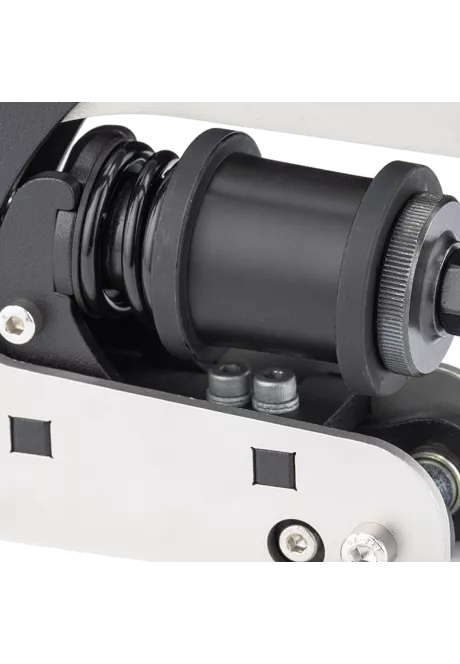

A 2-stage spring system provides resistance when pulling the lever. An initial metal coil spring simulates the pad-to-disc gap and/or slack on the handbrake cable. The travel and preload on this spring are adjustable. You can also remove this initial coil spring if you wish to do so.
Sensors And Output
The lever actuates a 120kg load cell, resulting in up to 22kg of actual force measured at the lever. The measurement of the handbrake force is linear. Using Heusinkveld SmartControl software, you have complete freedom to set custom non-linear output curves.
Plug And Play
The handbrake is pre-calibrated (plug-and-play). If you want to use SmartControl to recalibrate or adjust certain handbrake settings, you need to run Windows 10.
Smartcontrol Live: Configuration Tool
Heusinkveld SmartControl is a powerful software configuration tool allowing you to set up your handbrake in ways not previously possible. SmartControl allows for instant mapping of (non-linear) output curves, deadzone and handbrake force.
Direct Drive Wheelbases:
- Brake Sensor
- LC 120 kg
PC/Windows10 compatible. Not Designed for Play Station or Xbox usage.
| Technical Specifications – Heusinkveld Sim Handbrake | |
|---|---|
| Model | HE-HBv2 (Sim Handbrake V2) |
| Brake sensor | Load cell 120 kg |
| Max. lever force | Up to 22 kg |
| Force measurement | Linear (non-linear curves configurable in SmartControl) |
| Spring system | Dual-stage | initial coil spring (adjustable travel & preload) + elastomer compression |
| Elastomers included | 3 pcs (soft / medium / hard) |
| Lever position | Horizontal or vertical | ±26 degrees fine adjustment |
| Base tilt | Up to 22.5 degrees |
| Mounting | Adapter plate + T-bolt and T-nut kit | aluminium profile rig |

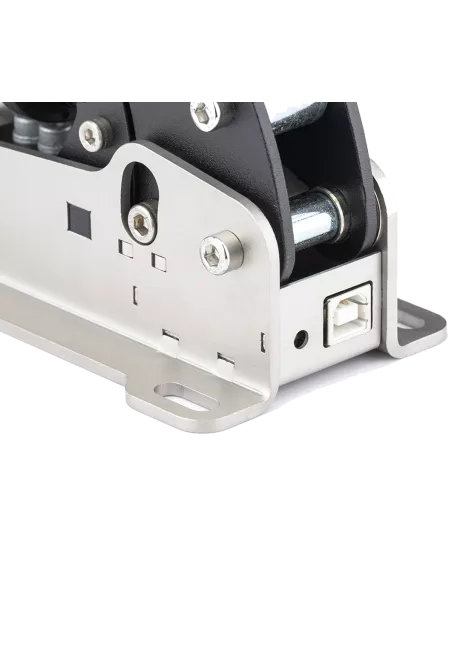

| Connection | USB (plug & play, pre-calibrated) |
| Software | Heusinkveld SmartControl (output curves, dead zone, calibration) |
| Platform | PC – Windows 10 |
| Compatibility | PC only | PlayStation and Xbox not supported |
FAQ – Frequently Asked Questions
Why does the Heusinkveld Sim Handbrake use a load cell instead of a potentiometer?
A load cell measures the actual force applied to the lever rather than its angular position. This means the handbrake input is proportional to how hard you pull — not how far — exactly as in a real racing car. The result is far more precise and natural control during rally and drift scenarios.
What is the dual-stage spring system and how do I adjust it?
The dual-stage system consists of an initial coil spring that simulates handbrake cable slack and brake pad clearance, followed by the main resistance generated by elastomer compression. The coil spring's travel and preload are both adjustable. You can also remove the initial coil spring entirely if you prefer a direct feel from the very first millimetre of lever travel.
What do the three elastomers included with the handbrake do?
The three elastomers (soft, medium, hard) are a patented Heusinkveld solution and provide the main source of lever resistance. They simulate progressive brake feel — the harder you pull, the greater the resistance. Swapping elastomers takes just a few seconds and completely changes the character of the handbrake without any tools required.
How do I mount the Heusinkveld Sim Handbrake to my cockpit?
The kit includes T-bolts and T-nuts that allow mounting to most aluminium profile cockpits via the adapter plate. The adapter plate also enables tilting the handbrake base up to 22.5 degrees to achieve the most ergonomic lever position. The lever itself can be set horizontally or vertically with ±26 degrees of fine-tuning in each orientation.
Does the Heusinkveld Sim Handbrake require setup before use?
No — the handbrake is factory pre-calibrated and works plug & play straight out of the box. If you want to adjust non-linear output curves, dead zone or recalibrate the force settings, you can do so in the Heusinkveld SmartControl application. SmartControl requires Windows 10 and is only needed when you wish to make custom adjustments.
What does Heusinkveld SmartControl software do?
SmartControl is Heusinkveld's configuration software that allows precise mapping of non-linear output curves, dead zone adjustment and maximum force calibration — giving you full control over how the handbrake responds at every stage of lever travel. All changes take effect in real time and are immediately visible during a session.
Does the Heusinkveld Sim Handbrake work with PlayStation or Xbox?
No. The Heusinkveld Sim Handbrake is compatible with PC (Windows 10) only. It does not support PlayStation or Xbox consoles. The device is designed exclusively for PC-based sim racing environments.
