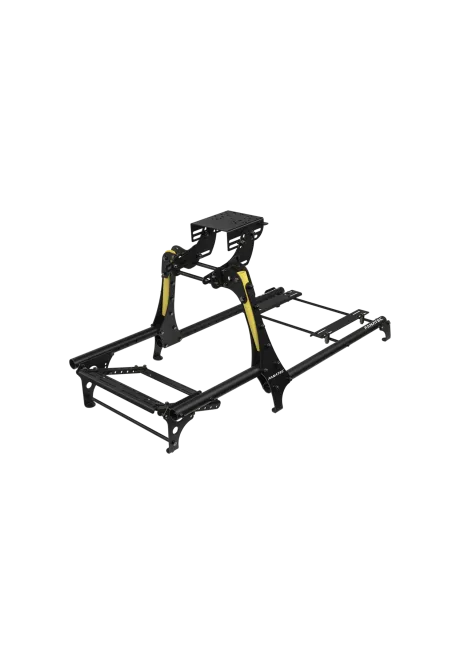

Fanatec CSL Cockpit V1.5 front side view
Fanatec CSL Cockpit V1.5 side view

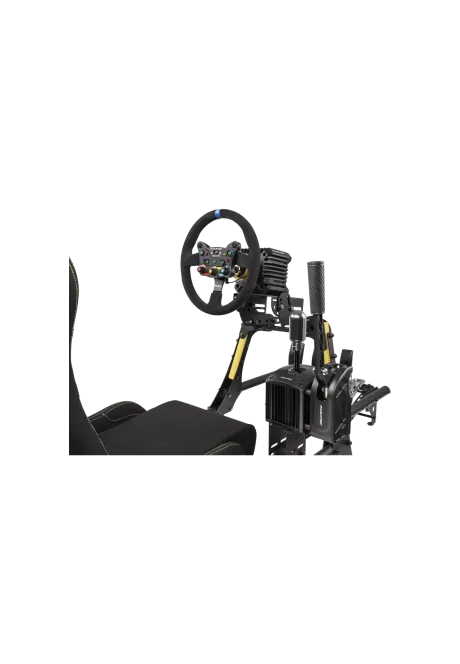

Fanatec CSL Cockpit V1.5 zoom of example peripherials

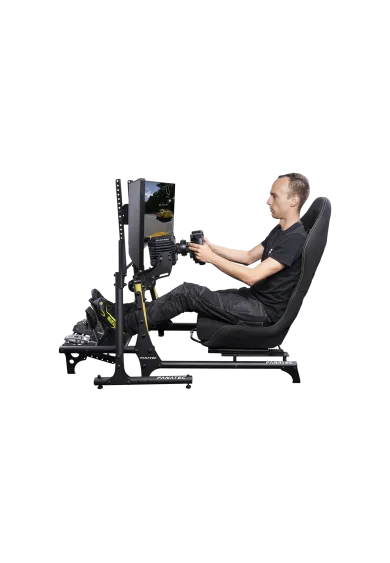

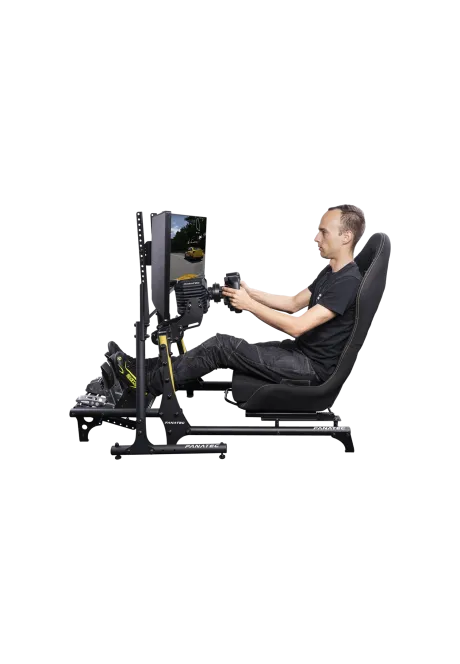

Fanatec CSL Cockpit V1.5 example use

Fanatec CSL Cockpit V1.5

CRD-9010009-WW
893.50zł

893.50zł
Lowest price in the last 30 days before the price reduction: 1,699.00zł
PREORDER

Available from: 2026-10-22

Fanatec CSL Cockpit V1.5 is a compact aluminium and steel rig for Direct Drive wheel bases, load-cell pedals and hardware from multiple brands. Its wheel-base mount provides three heights, a 0-30 degree angle and 80 mm of travel, while the pedal section supports GT or karting-style positions. Hardware Electronics not included, check what's included card below.


Ask about product
Zapytanie dotyczy produktu: Fanatec CSL Cockpit V1.5
* - pola obowiązkowe
Send
You will receive an 8.93zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Additional accessories

Fanatec CSL Cockpit Shifter Holder

Fanatec CSL Cockpit Shifter Holder

247.15zł
Fanatec CSL Cockpit Shelf

Fanatec CSL Cockpit Shelf

459.35zł
Fanatec CSL Cockpit Uchwyt Na Monitor

Fanatec CSL Cockpit Uchwyt Na Monitor

494.31zł
Fanatec CSL Cockpit Monitor Stand

Fanatec CSL Cockpit Monitor Stand

882.93zł

You might also like



Trapezoidal frame for powerful wheel bases

Angled uprights route loads through aluminium tubes and steel brackets. The structure supports all current Fanatec Direct Drive wheel bases, including high-torque models.

The pedal assembly is designed to hold position under strong load-cell braking. Angle and distance adjustment set leg position without rebuilding the complete frame.

GT or karting-style position

The standard layout provides a classic GT position for road racing, rally, drift and oval use. Inverting the wheel-base brackets lowers the wheel and increases its angle for a karting-style setup.

A geometry change requires the seat and pedals to be readjusted together. Knees should remain slightly bent at maximum brake travel while shoulders stay against the seat.

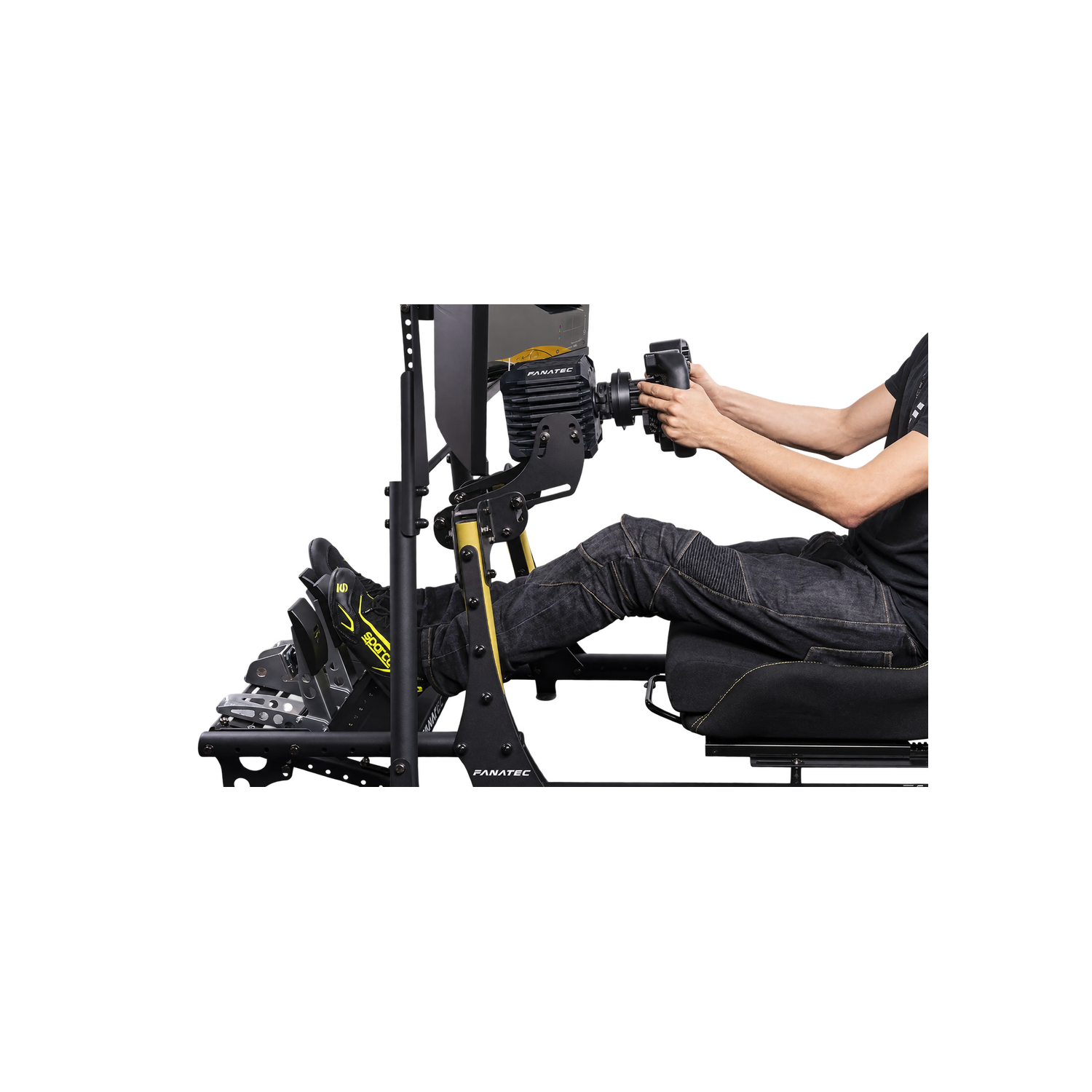

Pedal section of the Fanatec CSL Cockpit V1.5

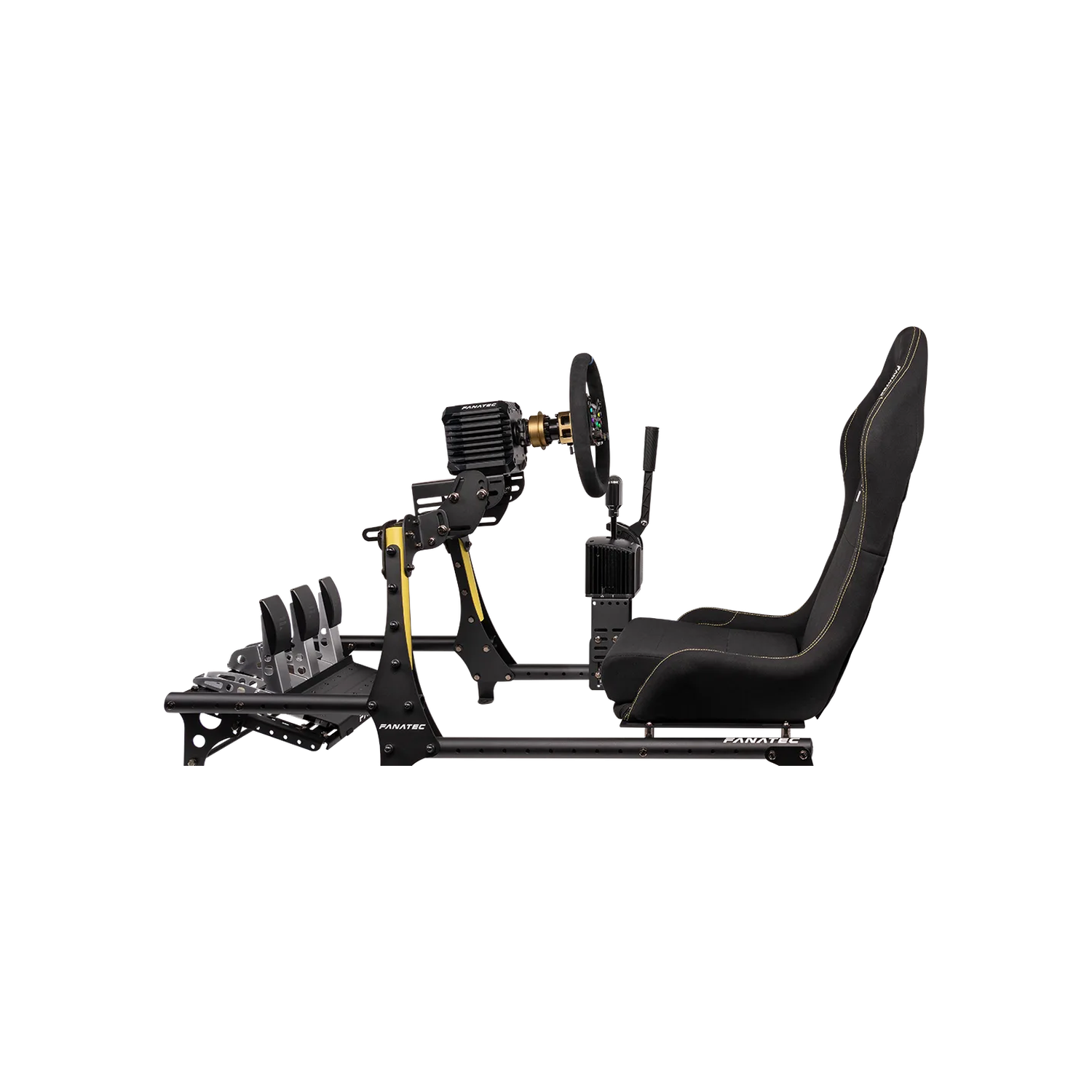

Complete Fanatec CSL Cockpit V1.5 frame configuration

Adjustable wheel-base mounting

The base bracket has three height positions, continuous adjustment from 0 to 30 degrees and 80 mm of fore-aft travel. Fanatec Direct Drive bases use side mounting.

The included bottom plate is drilled for many third-party bases and legacy Fanatec belt-drive units. Hole spacing should be checked against the hardware manual before installation.

Seat, display and accessory expansion

The frame accepts the dedicated CSL Cockpit Seat or most standard racing seats. Sliders, seat, monitor mounting, shelf and peripheral holders are optional accessories.

Hollow tubes support internal cable routing, with cable-pass and closed caps included. Two foot-pad types suit hard floors or carpet.

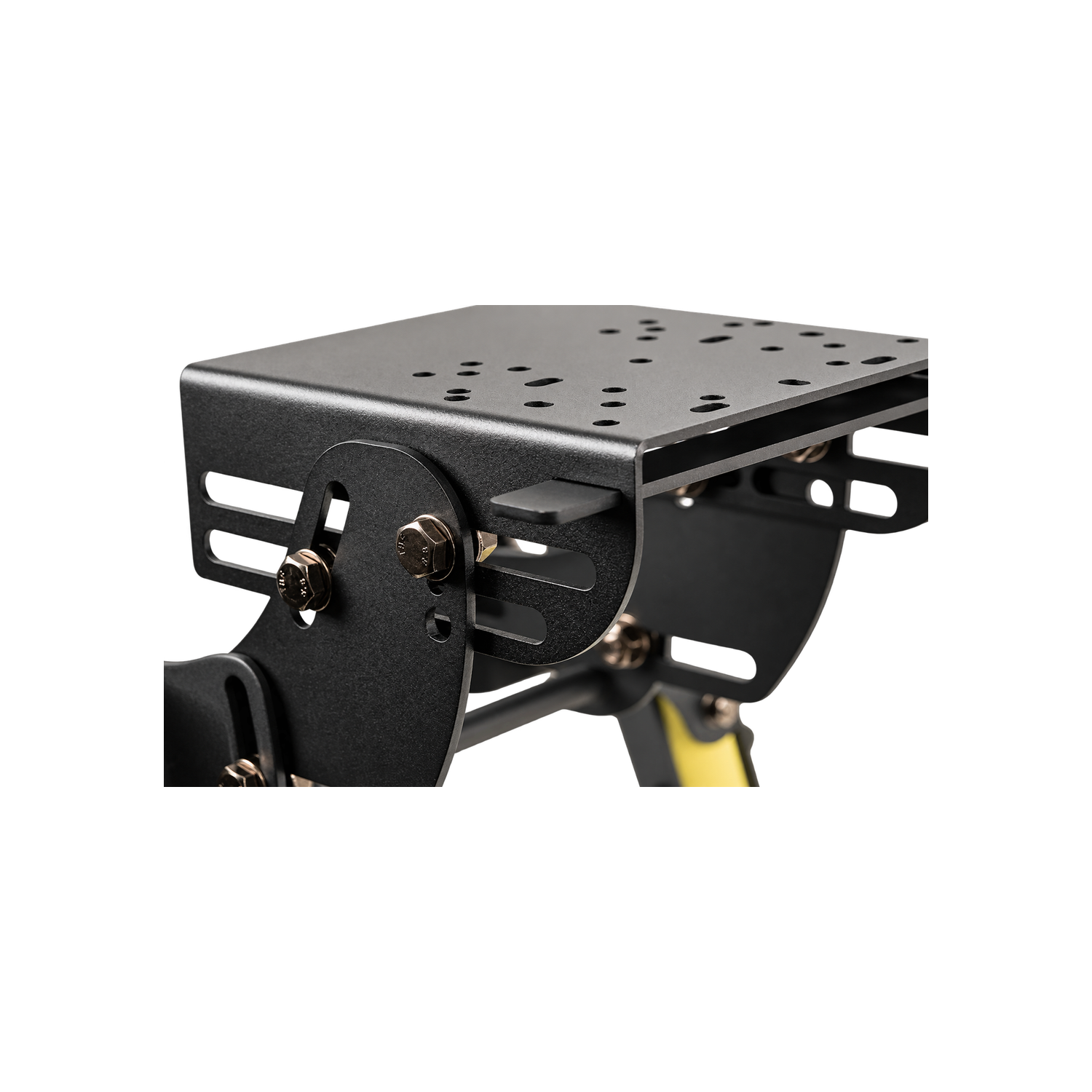

Adjustable wheel-base mount on the CSL Cockpit V1.5
Seat
Excluded
Monitor/TV mount
Excluded
Shifter/Handbrake mount
Excluded
Konstruction
Tubes/Pipes
Parameter Details
Manufacturer Fanatec
Type Compact sim racing cockpit
Construction Aluminium tubing and steel brackets
Finish Black and yellow powder coating
Driving position GT; optional karting-style layout
Wheel-base mount Side mount for Fanatec DD plus adjustable bottom plate
Base adjustment 3 heights, 0-30 degree angle, 80 mm travel
Pedal adjustment Angle and distance
Seat Sold separately
Cable routing Inside hollow tubes
In the box Frame, base plate, tube caps, hard-floor and carpet pads, bolts, tools and guide
Component or configuration Status Information
CSL Elite Wheel Base Compatible Mounts to the included plate
CSL DD and Gran Turismo DD Pro Compatible Optimised side mounting
ClubSport Wheel Base V1-V2.5 Compatible Bottom-plate mounting
ClubSport DD and DD+ Compatible Side mounting
Podium DD1, DD2 and Podium DD 2026 Compatible Frame supports high-torque bases
CSL, CSL Elite and ClubSport pedals Compatible Pedal section supports load-cell forces
CSL Cockpit Seat Compatible Direct mounting or optional sliders
75 x 75 and 100 x 100 displays With optional holder Up to 34-inch 16:9 or 49-inch ultrawide

1. Is a seat included?

No. The seat and sliders are sold separately.

2. Can the frame handle a Direct Drive wheel base?

Yes. Fanatec confirms all of its DD bases, including Podium models.

3. Are load-cell pedals supported?

Yes. The pedal section is designed for high braking forces.

4. What is the wheel-base angle range?

0 to 30 degrees.

5. How far can the wheel base move?

Across an 80 mm range relative to the seat.

6. Can it create a karting-style position?

Yes, by inverting the wheel-base brackets and readjusting the remaining components.

7. Do third-party wheel bases fit?

Many fit the included plate, but hole spacing must be checked before purchase.

8. Can a monitor mount to the frame?

Yes, with the optional CSL Cockpit Monitor Holder.

9. Can cables run inside the frame?

Yes. The tubes are hollow and cable-pass caps are included.

10. Are tools included?

Yes. Assembly hardware and the required tools are supplied.

11. How long is the warranty on Fanatec products?

Simline.eu is the largest authorised Fanatec partner in Poland and Europe. All Fanatec products are covered by full warranty protection for up to five years within the European Union, in accordance with Fanatec's warranty terms.

12. How is the warranty for Fanatec products handled?

As an official Fanatec partner within the European Union, we handle valid warranty claims using a Door-to-Door service. Collection and return of the equipment are arranged according to the instructions provided by our support team.

13. How do I submit a warranty claim for a Fanatec product?

Simline.eu is an authorised Fanatec partner, so we act as an intermediary in the warranty process and handle customer claims. Email support@simline.eu or fanatec@simline.eu with a description of the fault and photos or videos showing the problem, then prepare and pack the equipment.

  • 1 × Fanatec CSL Cockpit V1.5 frame with Wheel Base mount and pedal mounting assembly
  • 4 × open tube caps for cable management
  • 2 × closed tube caps
  • 6 × hard-floor protective pads
  • 6 × carpet protective pads
  • Bolts and fasteners
  • Assembly tools
  • 1 × Quick Guide

The seat, seat sliders, optional mounts, and shelves are not included.
