RS048
1,698.84zł

1,698.84zł

 1,739.84zł -41.00zł
Lowest price in last 30 days : 1,698.84zł
Ready to send

The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

Ask about product
Zapytanie dotyczy produktu: Moza R12
* - pola obowiązkowe
Send
Close
MOZA variant:
Shipping within 24 hours
Secure payments
Return within 14 days
Delivery from PLN 0

Available accessories

+ Steering Wheels

+ Pedals



Moza R12 Direct Drive

Moza R12 Direct Drive

12 Nm Peak Torque

Direct Drive Servo Motor

Ultra-low FFB Latency & Steering Response

Aviation-grade Aluminum

Industrial Conductive Slip Ring

New Generation FFB Filtering Algorithm

MOZA Pit House Control Software

Cloud-based Mobile App Control

12Nm DD Power

The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

Direct Drive Servo Motor

Slanted-pole Design

The R12 motor incorporates cutting-edge technology derived from the R21 base, utilizing a unique slanted-pole design. The rotor is intelligently segmented into three sections with precisely calculated angles, resulting in a revolutionary motor design that significantly reduces cogging torque, torque ripple, electromagnetic vibration, and noise levels compared to conventional motors. With its innovative design, the R12 motor runs seamlessly and quietly, offering unparalleled smoothness and minimal noise and vibration during operation.

The Maximum & Minimum Design Philosophy

The R12 DD base is designed with a high-slot fill rate, utilizing high-permeability magnetic cores and high-strength neodymium iron boron magnets to achieve high energy and low current density characteristics. With its compact body and low power consumption, it delivers maximum torque output, significantly enhancing convenience and temperature control performance.

Ultra-low Torque Ripple

The motor in the R12 DD base utilizes a 18-slot, 16-pole high-slot design, which features the highest number of poles in its class. This design results in ultra-low torque ripple and exceptional shock absorption performance, delivering a smooth and seamless steering experience.

Wide High-torque Speed Range

The R12 DD base utilizes a low back-electromotive force design, which allows for a broad speed range even during high-torque operation. This feature enables high torque output at high speeds and eliminates torque dropouts when quickly correcting direction, ensuring a smooth and consistent steering experience.

New Generation FFB Filtering Algorithm

The R12 DD base is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that renders oversteer and understeer with greater clarity and richness.

Ultra-low FFB Latency & Steering Response

Enjoy ultra-low force feedback latency and steering response with our system's 280MHz processor chip and optimized algorithms. This advanced technology makes it easy for drivers to control their vehicles with precision and ease, delivering an immersive and responsive driving experience.

Intelligent Temperature Control System

Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Aviation-grade Aluminum

Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.

Industrial Conductive Slip Ring

The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Compact Design

The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.

Ultra Low Static Torque

Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.

Superior Temperature Control

The R16 encoder gives exceptional understanding of the wheel position, allowing for accurate, clear communication when racing.

Hands-off Protection

This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel.

Speed-dependent Force Feedback Dampening

This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.

Control Software

MOZA Pit House

Dedicated software with almost unlimited customization possibilities, clear, intuitive, with precise suggestions.

Image alt
Image alt
Image alt
Image alt
Image alt

Force Feedback Equalizer

MOZA’s FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.

One-click Launching

Save your game configuration in the MOZA Pit House launcher to quickly launch into a game from within the Pit House.

Cloud-based Mobile App Control

Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings and more can all be changed in real-time, meaning no more reaching for the keyboard and mouse.

Multiple Connection Ports

With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

Which steering wheel suits you?

Maybe you prefer one of our replicas:

Check out our best racing car steering wheel replicas, this is our specialty:

Braking is equally important, check out our offer:

Max torque
12
Max Torque Slew Rate
4,8Nm/ms
8Nm/ms
Encoder
15 bit
E-stop button
No
QR Included
No
Warranty
24 months
Fixing method
Bottom
Wheelbase weight
7,5 kg
MOZA variant
MOZA R12
850062761056
6973137270209
Platform PC
Drive Type Direct Drive
Communication Method Wireless
Max Wheel Rotation Limitless
Housing Material Aviation Grade Aluminum Alloy
Housing Color Black
Peak Torque 12 Nm
Peak Power 216W
USB Refresh Rate 1000Hz
V-shaped Struts –
Encoder Resolution 32768ppr (15-bits)

Indicator

YES

App Functions

Supported
Quick Release Supported
Connection Ports Power, DC Input, E-stop, USB (Pogo pins for RM dash )
Accessories User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method Bottom mount
Side Mount Option With an optional side/front mount bracket
Desk Clamp Optional
Emergency Stop Switch Optional
Online Firmware Upgrade Applicable
Firmware Update Applicable
Dimension (L x W x H)（mm） 226*157*124
Weight 7,5kg

Wheel Base R12

Power supply

Power cord – AC cable (1.5m) & DC cable (1.8m)

USB cable (1.8m)

Quick start guide & Warranty card

KS Steering Wheel

ES Steering Wheel

CS V2

RS V2

GS Alcantara V1

GS Alcantara V2

GS Microfiber Leather V2

FSR Formula Wheel

SR-P Pedals

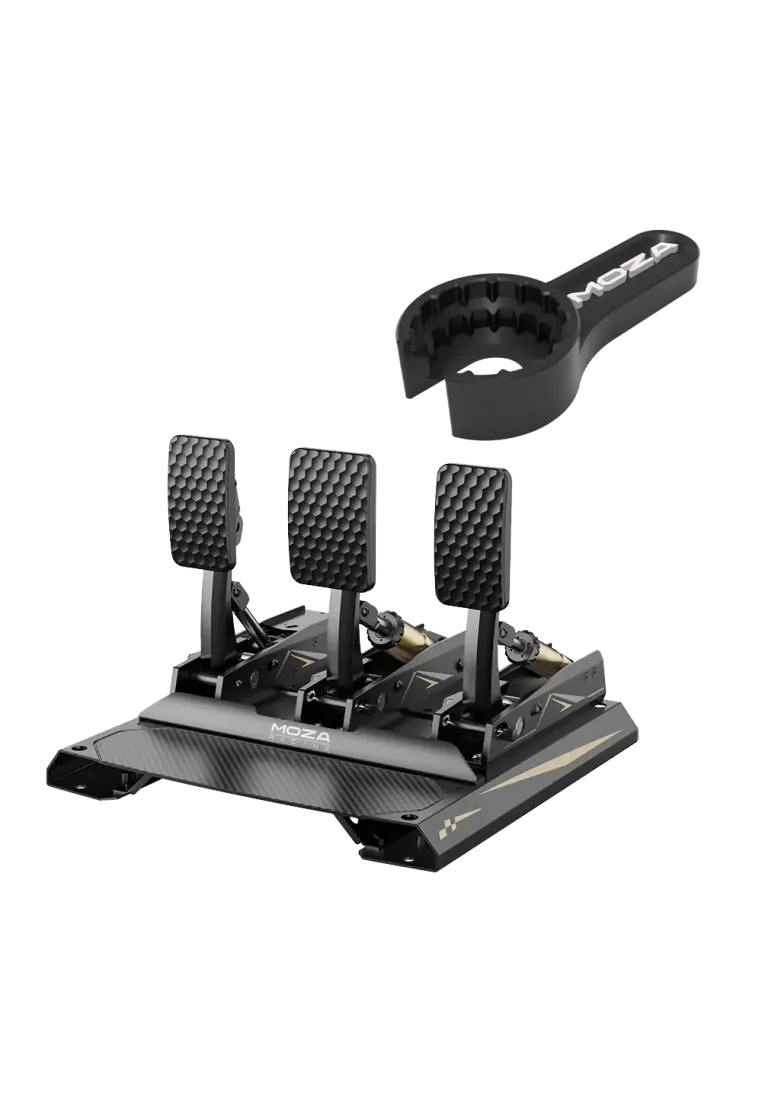

CRP Pedals

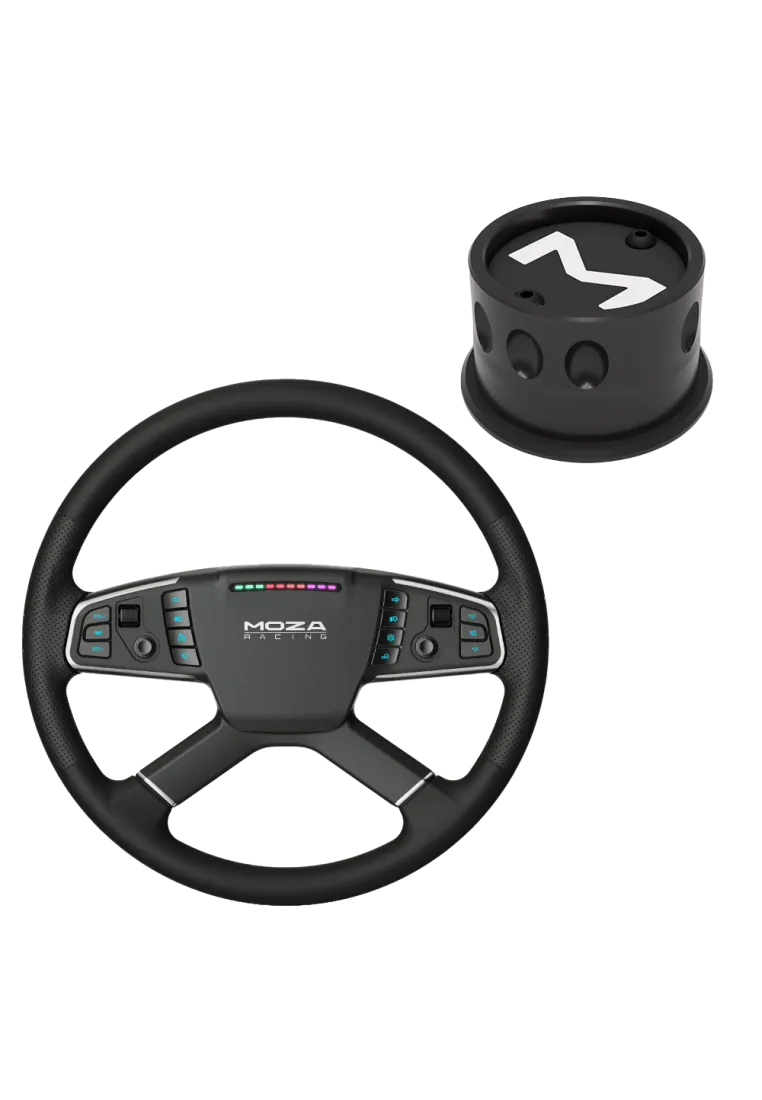

TSW Steering wheel
