Conspit Ares Apex Desk Clamp

Name: Conspit Ares Apex Desk Clamp
Brand: Conspit
SKU: CP130
Price: 153.66 PLN
Availability: InStock

Reference CP130

153.66zł

Lowest price in the last 30 days before the price reduction: 346.00zł

Ready to send

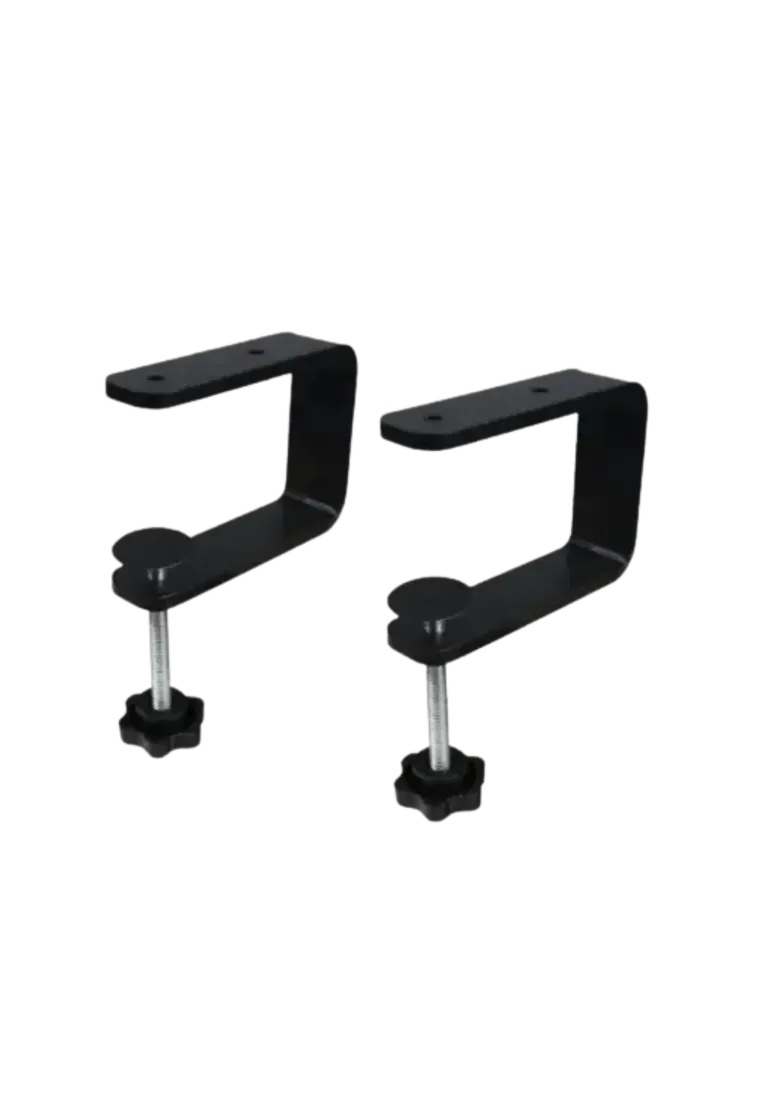

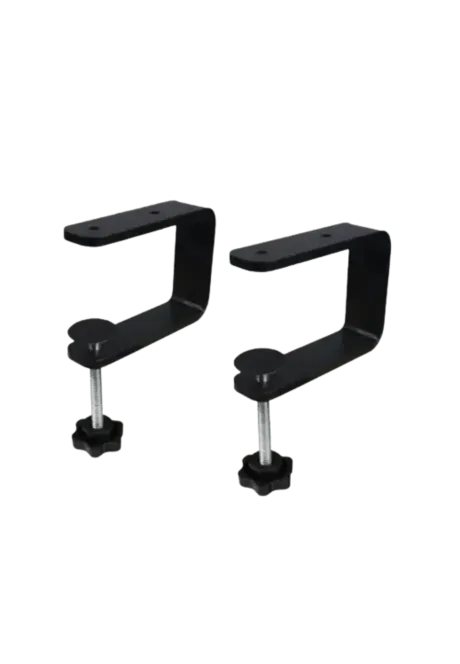

Conspit ARES APEX Desk Mount secures the ARES APEX wheel base to the edge of a desk without requiring a separate cockpit. Two independent clamps tighten from underneath, while the upper arms connect to the four bottom M6 mounting points on the wheel base. This mount is designed exclusively for ARES APEX. Explore more CONSPIT accessories available from Simline.eu.

Ask about product

You will receive an 1.54zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Wheelbase

Conspit ARES Platinum 20

2,869.11zł

Conspit ARES 12

2,039.02zł

Conspit ARES 12

2,039.02zł

Conspit ARES Platinum 20

2,869.11zł

Conspit PW1

6,506.50zł

Conspit MAX 01

2,765.04zł

Conspit 290 GP

2,487.80zł

Conspit CPP LITE

2,072.36zł

Conspit CPP APEX

1,169.92zł

ARES APEX desk mounting

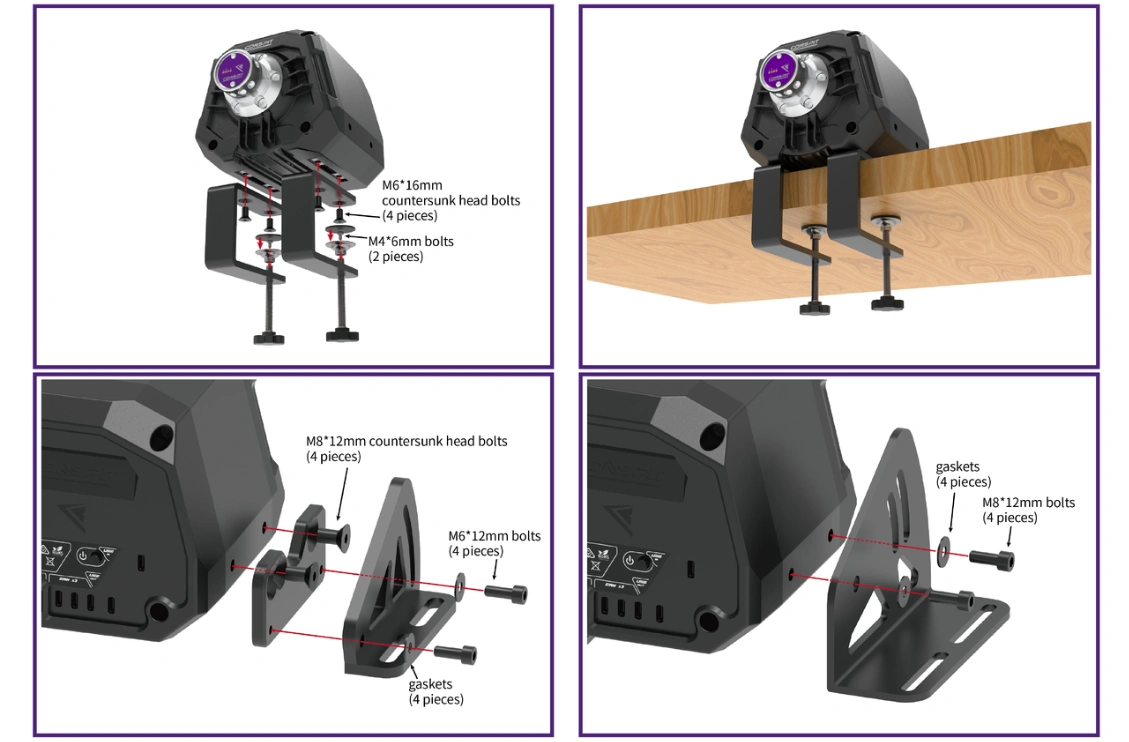

The Conspit ARES APEX Desk Mount allows the wheel base to be installed on a desk or table without drilling through the worktop. Two separate clamps attach directly to the four M6 mounting points on the bottom of the ARES APEX housing. Each clamp uses a threaded pressure screw with a hand knob operated from below the desk.

Before tightening, start all mounting bolts by hand and align both brackets in parallel. Place the assembly over a flat and rigid desk edge, then tighten both knobs gradually and alternately. The underside of the worktop must remain accessible, and the pressure pads must not rest against drawers, crossbars, or irregular surfaces.

CONSPIT does not publish the maximum compatible desk thickness, load rating, or angle-adjustment range. Check the clamps again after the first driving sessions, especially when using higher Force Feedback settings. This product includes the desk-mounting hardware only. The wheel base, steering wheel, and other cockpit components are sold separately.

Fixing method: Bottom

Parameter	Details
Manufacturer	CONSPIT
Product name	Conspit ARES APEX Desk Mount
Type	Direct Drive wheel-base desk mount
Dedicated wheel base	Conspit ARES APEX
Wheel-base interface	Four bottom M6 mounting points on ARES APEX
Number of clamps	2
Desk attachment	Two pressure screws with hand knobs, tightened from below
Angle adjustment	No adjustment range published by the manufacturer
Maximum desk thickness	Not published by the manufacturer
Dimensions	Not published by the manufacturer
Net weight	Not published by the manufacturer
Colour	Black

1. What is the Conspit ARES APEX Desk Mount used for?

It secures an ARES APEX Direct Drive wheel base to the edge of a desk or table without requiring a separate cockpit.

2. Which wheel base is compatible with the mount?

It is designed for the Conspit ARES APEX wheel base.

3. Does it fit ARES 12 or ARES Platinum 20?

CONSPIT does not confirm compatibility with those models. Select a mounting solution intended for their construction and torque level.

4. How does the mount attach to the wheel base?

It uses the four bottom M6 mounting points in the ARES APEX housing.

5. How is the mount secured to the desk?

Two clamps wrap around the worktop edge, while hand-operated screws apply pressure from below.

6. Does the desk need to be drilled?

No. The mount uses screw clamps around the edge of the worktop.

7. What is the maximum supported desk thickness?

CONSPIT does not publish a maximum value. Compare the desk edge with the available clamp opening before installation.

8. Can the wheel-base angle be adjusted?

The manufacturer does not publish an angle-adjustment range for this model. Driving position must be refined through desk, chair, and seat-height adjustment.

9. What type of desk is suitable?

Use a rigid worktop with a flat edge and unobstructed access underneath both clamp screws.

10. Is the ARES APEX wheel base included?

No. The product includes the desk-mounting solution, while the Direct Drive wheel base is sold separately.

Wheel base or mounting location	Compatibility
Conspit ARES APEX	Yes, the mount is designed for this wheel base
Conspit ARES 12	No official compatibility confirmation
Conspit ARES Platinum 20	No official compatibility confirmation
Other manufacturers' wheel bases	No, this is not a universal mount
Desk or table	Requires a rigid, flat edge and access below the worktop; the maximum thickness is not published
Aluminium-profile cockpit	Use appropriate profile mounting brackets instead of the desk clamps
