Conspit Ares 8Nm + 300 GT CDR + CPP Apex2 Bundle

Conspit Ares 8Nm + 300 GT CDR + CPP Apex2P Bundle

Name: Conspit Ares 8Nm + 300 GT CDR + CPP Apex2P Bundle
Brand: Conspit
SKU: CP132
Price: 3910.57 PLN
Availability: OutOfStock

Reference CP132

3,910.57zł

PREORDER

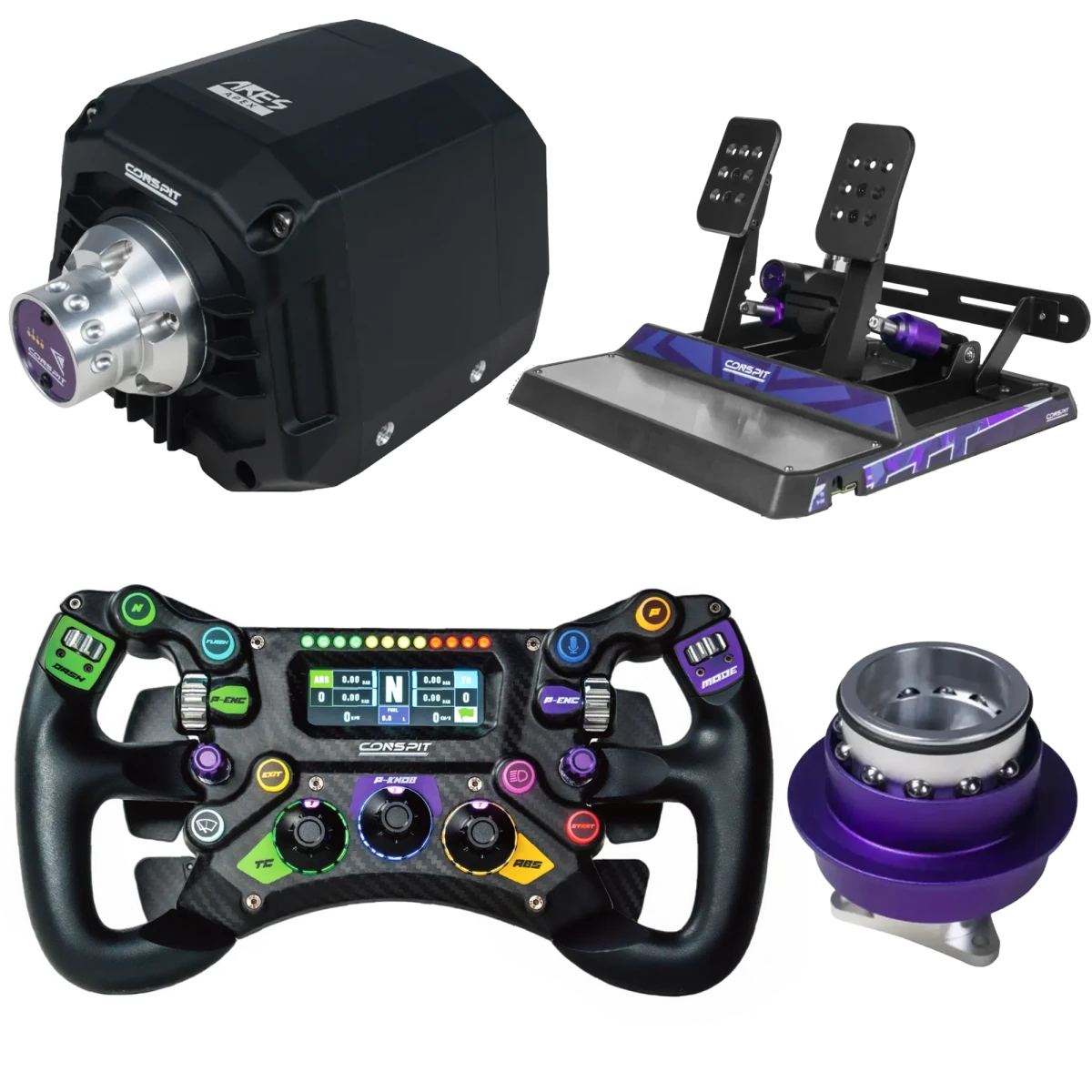

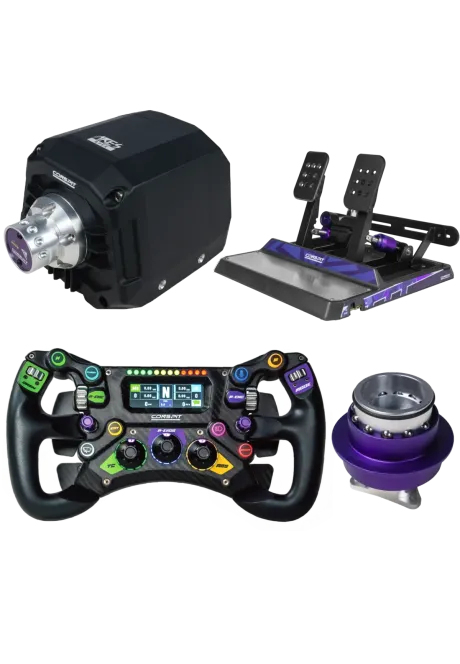

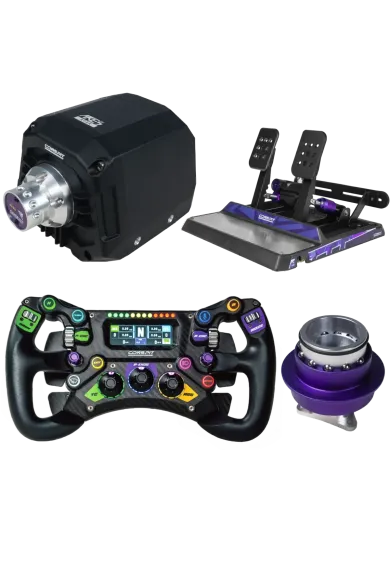

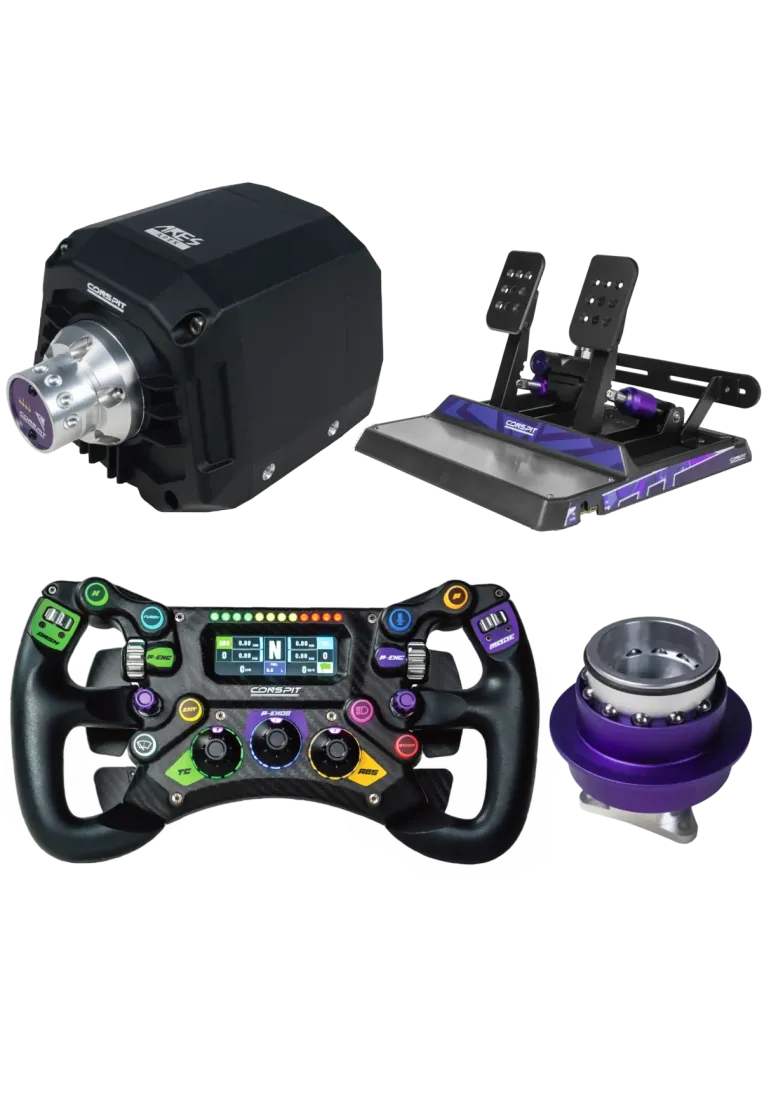

CONSPIT ARES 8Nm + 300 GT CDR + APEX 2P Bundle combines the ARES APEX 8 Nm Direct Drive wheelbase, CONSPIT 300 GT wheel, CDR Quick Release and CPP APEX 2P hydraulic pedals. This PC package includes a 2.99-inch display, shift paddles and a throttle and brake set. The wheel provides 48 RGB indicator LEDs, eight illuminated buttons and two analogue clutch paddles.

Ask about product

You will receive an 39.11zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

MOZA R5 bundle

1 Reviews

1,243.09zł 1,389.43zł

SIMAGIC Alpha Mini

1,361.79zł 1,722.76zł

Moza R9 v3

1 Reviews

1,064.23zł 1,113.01zł

Conspit ARES 12

2,039.02zł

Conspit ARES Platinum 20

2,869.11zł

Conspit 290 GP

2,487.80zł

ARES APEX 8 Nm: compact Direct Drive wheelbase

The ARES APEX sends motor torque directly to the steering shaft. It delivers 8 Nm of holding torque and a torque slew rate of up to 4 Nm/ms. A 21-bit magnetic encoder tracks shaft position, while two processors handle Force Feedback calculations.

The housing measures 134 x 150 x 196 mm and weighs 5.9 kg. Four M6 mounting points are located underneath, with four M8 points available for side mounting. CONSPIT Link 2.0 provides adjustment of force, filters, steering range and end-stop behaviour.

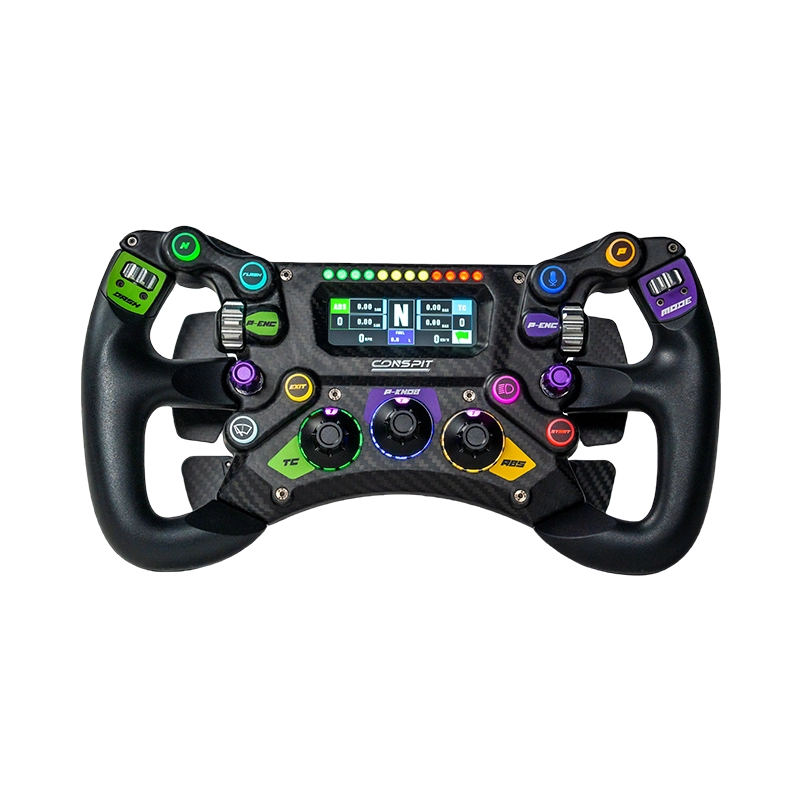

300 GT: display wheel with extensive controls

The CONSPIT 300 GT is 300 mm wide and combines a carbon-fibre front plate with a one-piece aluminium rear housing. Its 2.99-inch, 800 x 268 display presents telemetry data, while 48 RGB indicator LEDs cover rev and setting feedback. Eight additional RGB buttons can be assigned to in-car functions.

Four thumb encoders, three 12-position rotary switches and two seven-way joysticks provide access to setup changes. The rear assembly includes magnetic Hall-sensor shift paddles and two analogue Hall-sensor clutch paddles. Wheel weight is approximately 1150 g without the quick release or adapter.

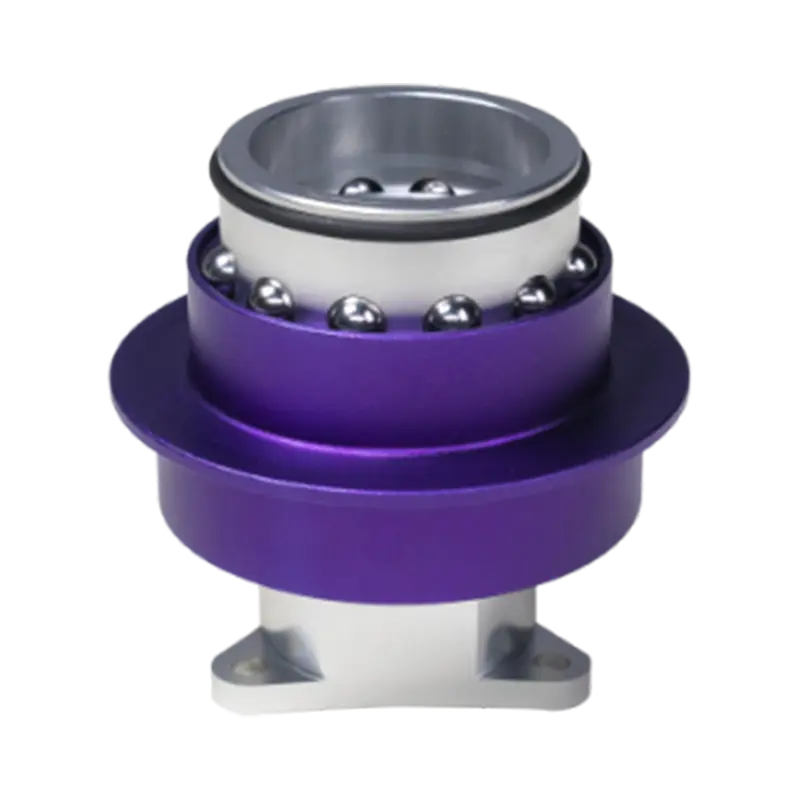

CDR Quick Release: wheel-to-base connection

The CDR Quick Release connects the 300 GT wheel to the ARES APEX wheelbase. Its automatic locking mechanism seats the wheel without an additional retaining bolt, while the release collar supports quick removal. Spring-loaded contacts carry power and data between the wheel and wheelbase.

The wheel-side part is made from aluminium alloy. It measures 81 x 83 x 83 mm, weighs 0.315 kg and uses three 5 mm holes on a 50 mm PCD. In this bundle, the CDR is matched to the 300 GT and the wheelbase-side interface fitted to the ARES APEX.

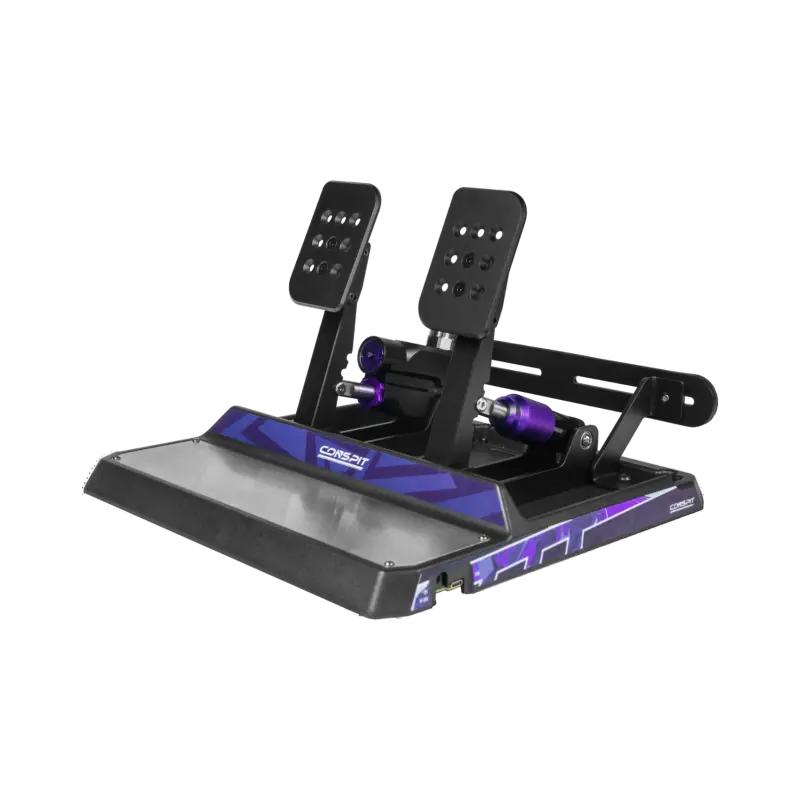

CPP APEX 2P: hydraulic brake and throttle

CPP APEX 2P contains a throttle pedal and a hydraulic brake pedal. Its vertical brake system combines a hydraulic chamber with an elastomer, creating a distinct transition between initial movement and increasing brake resistance. A 10 MPa pressure sensor measures braking input, while a Hall sensor reads throttle position.

The set measures 328 x 333 x 227 mm and uses aluminium alloy and carbon steel. It can connect directly to the PC through USB or to the ARES APEX through CONSPIT CAN. The optional clutch and vibration motor kit are not included in this 2P configuration.

EAN13 6977068961137

Component	Parameter	Details
Bundle	Platform	Windows PC
Bundle	Software	CONSPIT Link 2.0; SimHub for supported wheel functions and optional pedal haptics
ARES APEX	Type	Direct Drive wheelbase
ARES APEX	Torque	8 Nm holding torque
ARES APEX	Torque slew rate	Up to 4 Nm/ms
ARES APEX	Encoder	21-bit magnetic encoder
ARES APEX	Dimensions	134 x 150 x 196 mm
ARES APEX	Net weight	5.9 kg
ARES APEX	Mounting	4 x M6 underneath; 4 x M8 on the sides
300 GT	Dimensions	300 x 165 x 90 mm
300 GT	Net weight	1150 g without QR or adapter
300 GT	Materials	Carbon fibre, aluminium alloy and TPU grips
300 GT	Display	2.99-inch, 800 x 268 pixels
300 GT	Lighting	48 RGB indicator LEDs and 8 RGB buttons
300 GT	Controls	8 buttons, 4 encoders, 3 twelve-position switches and 2 seven-way joysticks
300 GT	Paddles	2 magnetic shift paddles and 2 analogue clutch paddles with Hall sensors
CDR QR	Dimensions	81 x 83 x 83 mm
CDR QR	Net weight	0.315 kg
CDR QR	Material	Aluminium alloy
CDR QR	Wheel-side mounting	3 x 5 mm holes, 50 mm PCD
CPP APEX 2P	Configuration	Throttle and hydraulic brake pedal
CPP APEX 2P	Dimensions	328 x 333 x 227 mm
CPP APEX 2P	Materials	Aluminium alloy and carbon steel
CPP APEX 2P	Brake sensor	10 MPa pressure sensor, up to 100 bar
CPP APEX 2P	Throttle sensor	Hall sensor
CPP APEX 2P	Connection	Direct USB to PC or CONSPIT CAN through the wheelbase

Area	Compatibility	Notes
Windows PC	Yes	Primary platform for the bundle
PlayStation	Not confirmed	The manufacturer does not claim PlayStation support
Xbox	Not confirmed	The manufacturer does not claim Xbox support
ARES APEX and 300 GT	Yes	Connection through the included CDR Quick Release
CPP APEX 2P through USB	Yes	Direct pedal connection to the PC
CPP APEX 2P through CONSPIT CAN	Yes	Pedal connection to the ARES APEX wheelbase
Optional CPP APEX vibration motors	After expansion	Not included; direct pedal-to-PC connection is required for SimHub control
Wheelbase cockpit mounting	Check mounting points	4 x M6 underneath or 4 x M8 on the sides
Pedal cockpit mounting	Check hole spacing	A rigid pedal plate is recommended

Item	Quantity	Scope
CONSPIT ARES APEX 8 Nm wheelbase	1	Direct Drive wheelbase with power supply and connection cable
CONSPIT 300 GT steering wheel	1	Wheel with display, shift paddles and dual clutch paddles
CONSPIT CDR Quick Release	1	Wheel-side part matched to the ARES APEX wheelbase-side interface
CONSPIT CPP APEX 2P	1 set	Throttle and hydraulic brake pedal
Cables and mounting accessories	As packed with each device	Standard cables and items supplied with the wheelbase, wheel, QR and pedals

1. What is included in the CONSPIT ARES 8Nm + 300 GT CDR + APEX 2P Bundle?

It contains the ARES APEX 8 Nm wheelbase, 300 GT steering wheel, CDR Quick Release and the two-pedal CPP APEX set with throttle and brake.

2. Is the 8 Nm figure peak torque?

CONSPIT specifies 8 Nm as the ARES APEX holding torque. Maximum torque slew rate is 4 Nm/ms.

3. Does the bundle work on consoles?

PlayStation and Xbox support is not confirmed. The bundle is designed for a Windows PC.

4. Is the CDR Quick Release included?

Yes. The CDR QR connects the 300 GT to the wheelbase-side interface used by the ARES APEX.

5. Does the 300 GT have a display and dual clutch paddles?

Yes. It has a 2.99-inch, 800 x 268 display, magnetic shift paddles and two analogue Hall-sensor clutch paddles.

6. How many pedals are included in the APEX 2P version?

Two: a throttle and a hydraulic brake. The clutch pedal is a separate expansion.

7. How can the CPP APEX 2P pedals be connected?

They can connect directly to the PC through USB or to the ARES APEX wheelbase through CONSPIT CAN.

8. Are pedal vibration motors included?

No. The CPP APEX vibration motor kit is optional. For SimHub control, the pedals must be connected directly to the PC.

9. Can the wheelbase be mounted from below or from the sides?

Yes. The ARES APEX has four M6 points underneath and four M8 side points. Compare their spacing with the cockpit or bracket before installation.

10. Is a desk clamp included?

It is not listed in the standard contents of this configuration. Desk installation requires a compatible ARES APEX mount and a worktop with suitable thickness and rigidity.
