4,299.19zł
4,422.76zł -2.79%Instead of 4,422.76zł

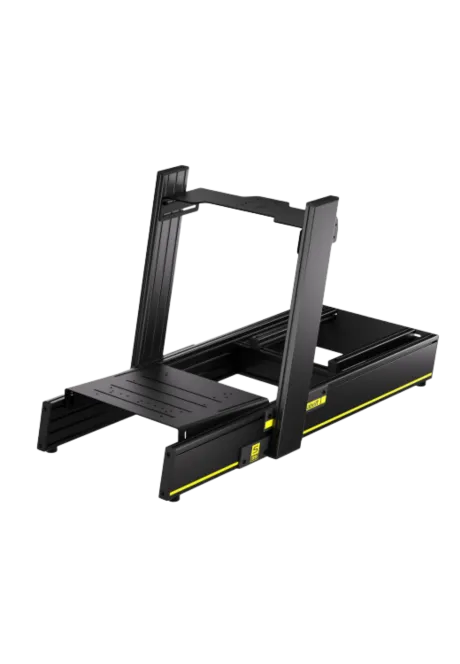

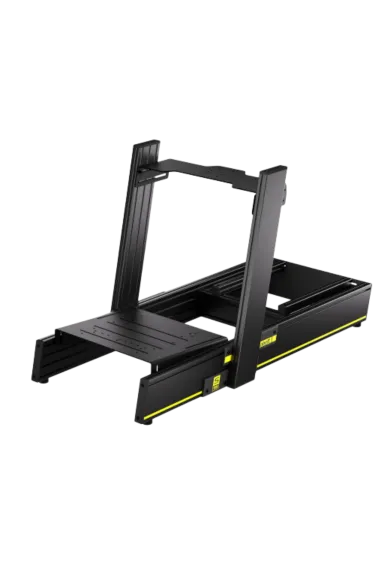

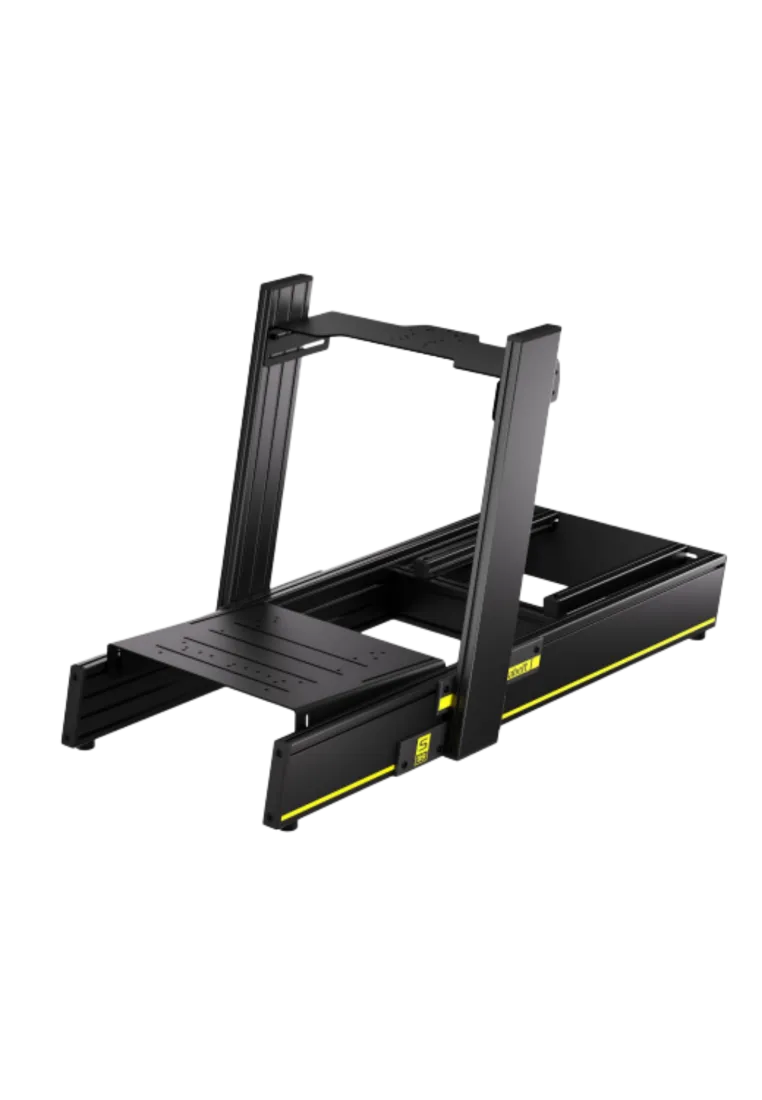

Sabelt S99-E combines the Sabelt S99 V2 GT cockpit with the Lite Wheel Deck and Lite Pedal Mount. The package provides a bottom-mount wheelbase plate and a full pedal platform. The seat, wheelbase, steering wheel and pedals are sold separately.
You might also like

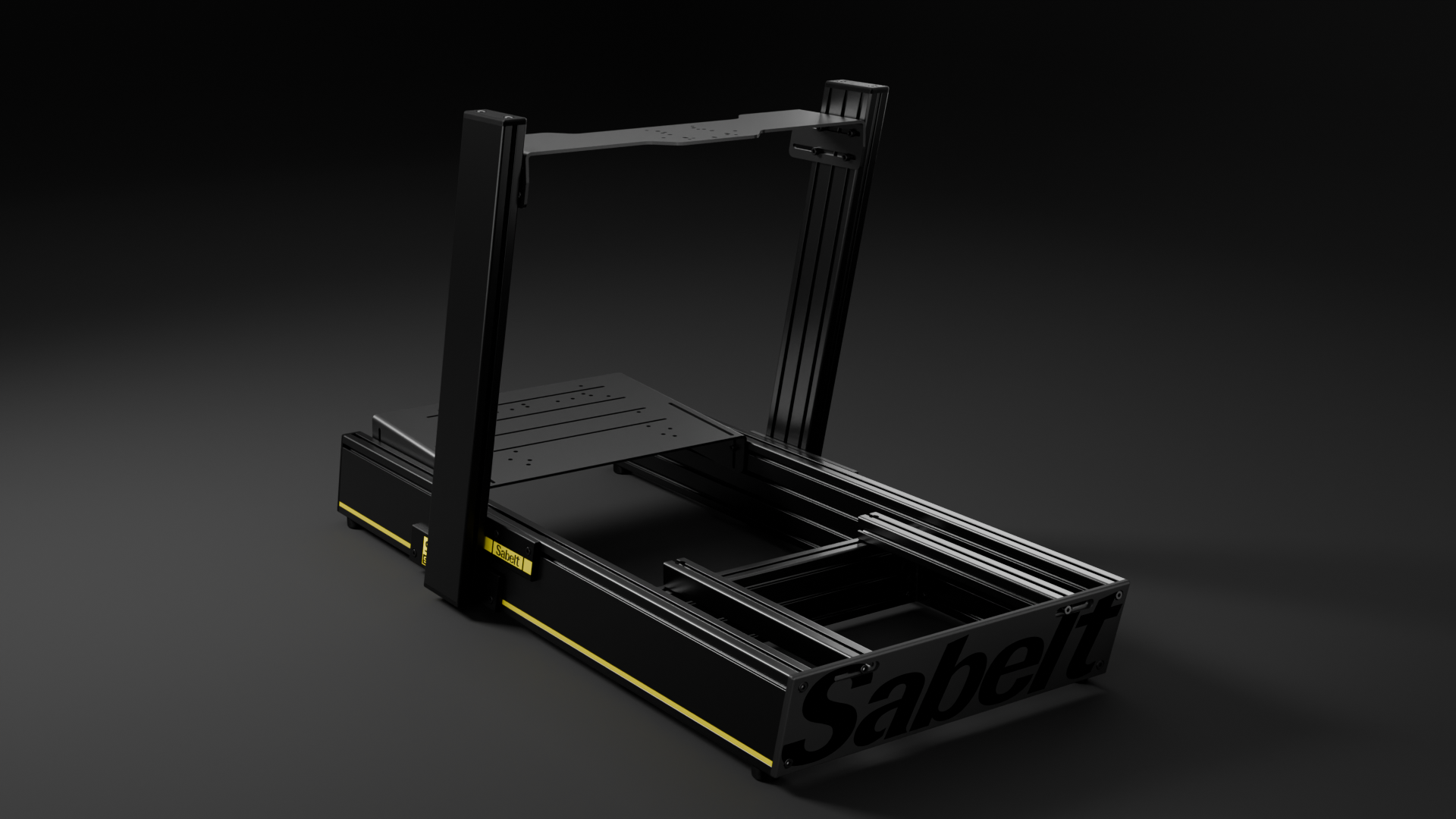

Sabelt S99-E is a ready-defined configuration based on the Sabelt S99 V2 frame. The package adds the Sabelt Lite Wheel Deck and Lite Pedal Mount, removing the need to order the basic wheelbase plate and pedal platform separately. It provides a clear foundation for a GT-style sim racing station.
The Sabelt S99 cockpit remains modular, but the S99-E version already covers the two main control mounting areas. Completing the simulator still requires a seat and its brackets, a wheelbase, steering wheel, pedal set and the remaining electronic equipment.
_1.png)

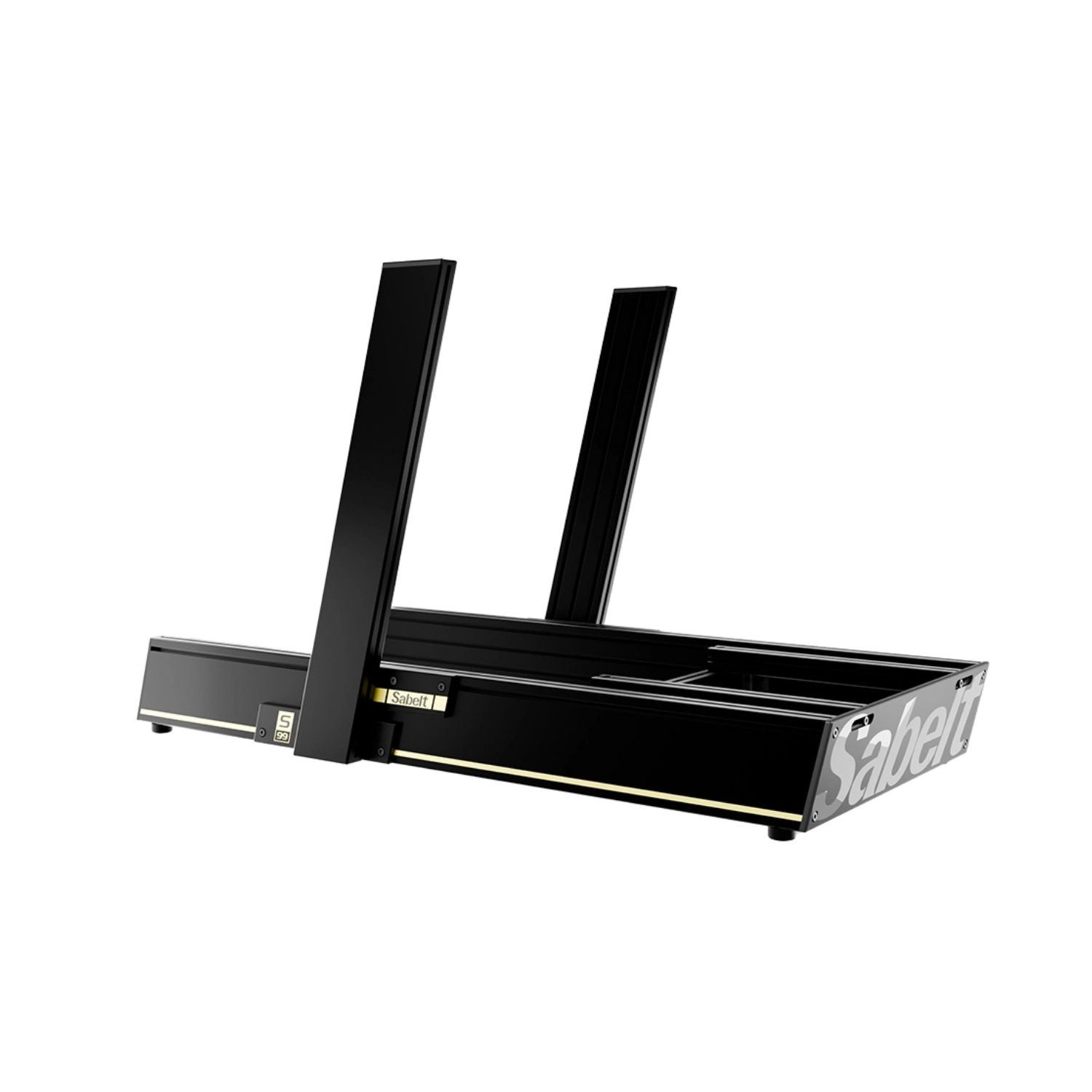

At the centre of the Sabelt S99-E is the Sabelt S99 V2, an aluminium-profile cockpit from the S Series. Its layout is intended for a GT or touring-car seating position. The main frame uses 160 × 40 mm profiles, while the wheelbase uprights measure 120 × 40 mm.
The profiles receive Sabelt's Zero-X anodised treatment and a Matt Black Moon finish with a sandblasted, soft-touch texture. CNC-machined 10 mm aluminium side plates carry yellow Sabelt detailing, while the 10 mm rear plate uses a restrained black tone-on-tone design.
Manufactured in Italy, the frame allows the relationship between the seat, steering wheel and pedals to be established during assembly. The final position is therefore shaped by the selected seat and hardware rather than one fixed factory layout.

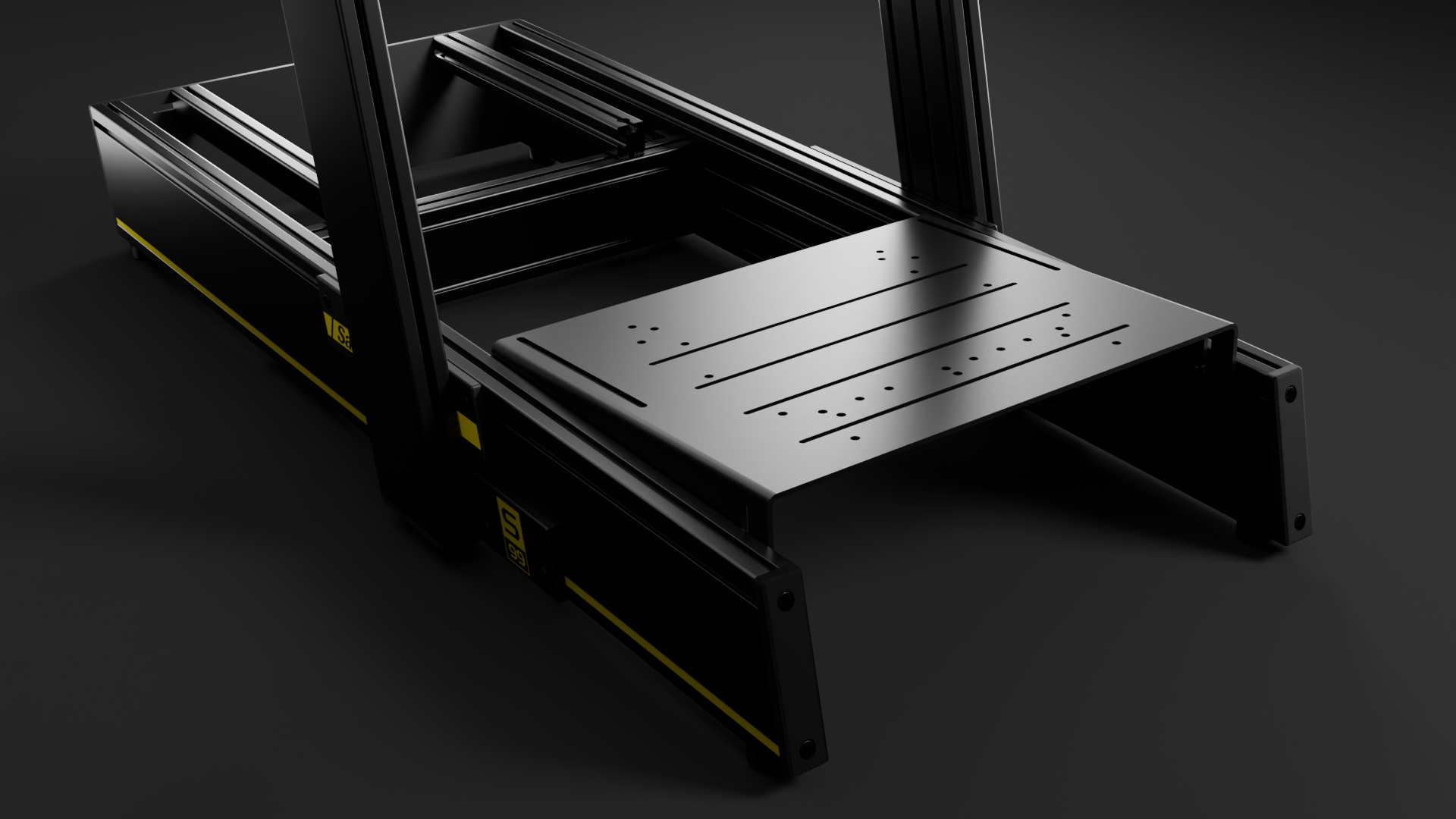

The third major component of the Sabelt S99-E is the Sabelt Lite Pedal Mount. Its broad platform combines long slots with smaller mounting holes for a compatible accelerator, brake and optional clutch. Side slots connect the assembly to the S99 V2 frame.
Pedal placement is selected while assembling the cockpit, allowing the distance and platform position to be coordinated with the seat. Check the pedal bolt pattern and cable exit points before installation. Less common designs may require a separate adapter.
Sabelt S99-E supplies the cockpit structure and its two basic control mounts, but it is not a drive-ready simulator. The seat, brackets or sliders, display, monitor stand, computer, wheelbase, steering wheel and pedals must be selected separately.
.png)

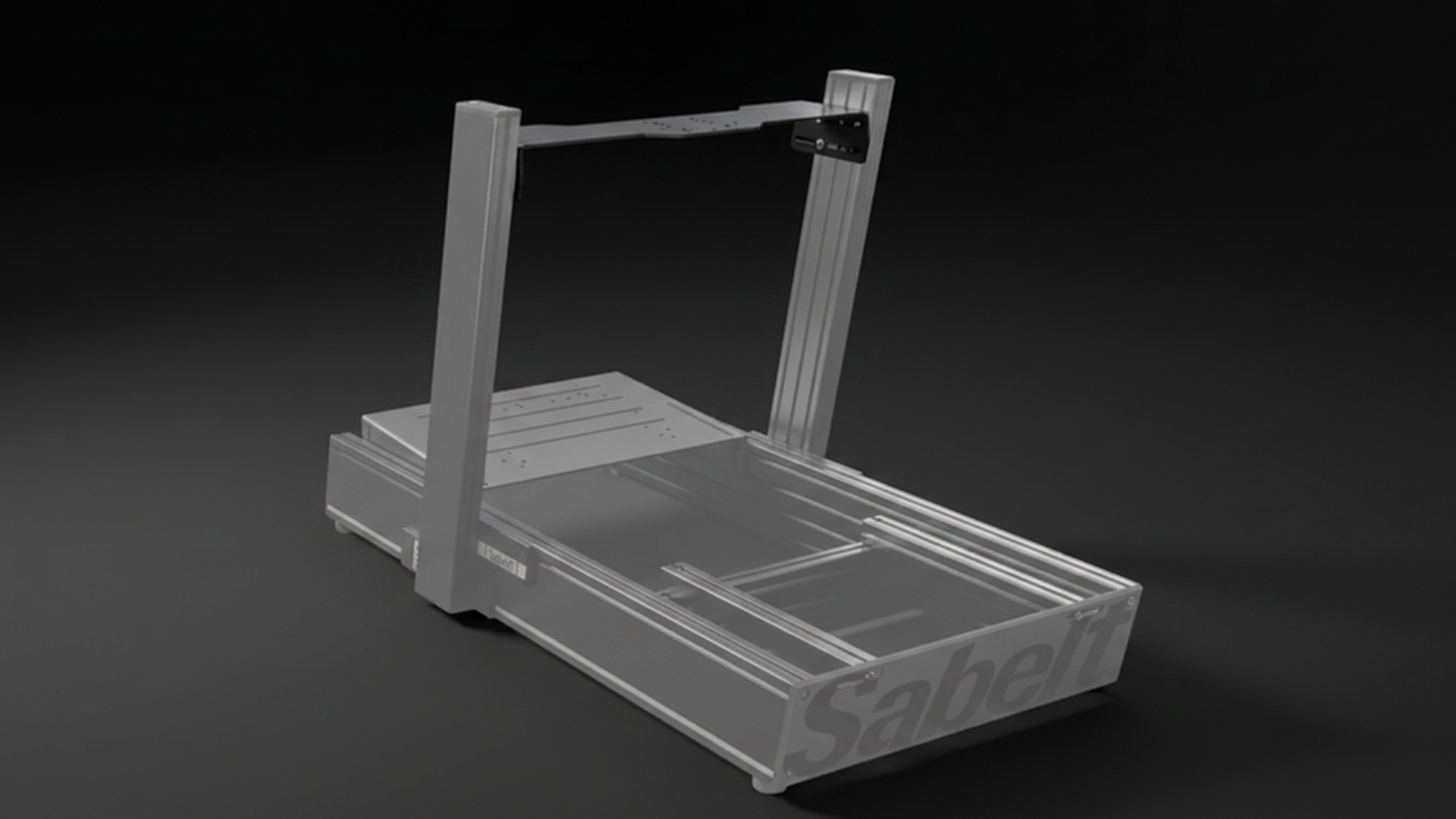

The Sabelt S99-E includes the Sabelt Lite Wheel Deck. Its wide upper surface carries a compatible bottom-mounted wheelbase. Several groups of mounting holes provide a choice of positions without requiring the user to drill the plate.
Long slots in the bent side sections connect the deck between the cockpit uprights. Height, reach and wheel angle can be set during assembly to suit the seat position and the driver's build.
Lite Wheel Deck is not a front-mount bracket. Before choosing a Direct Drive wheelbase, confirm that it supports bottom installation and that its bolt pattern matches the available holes.
_1.avif)

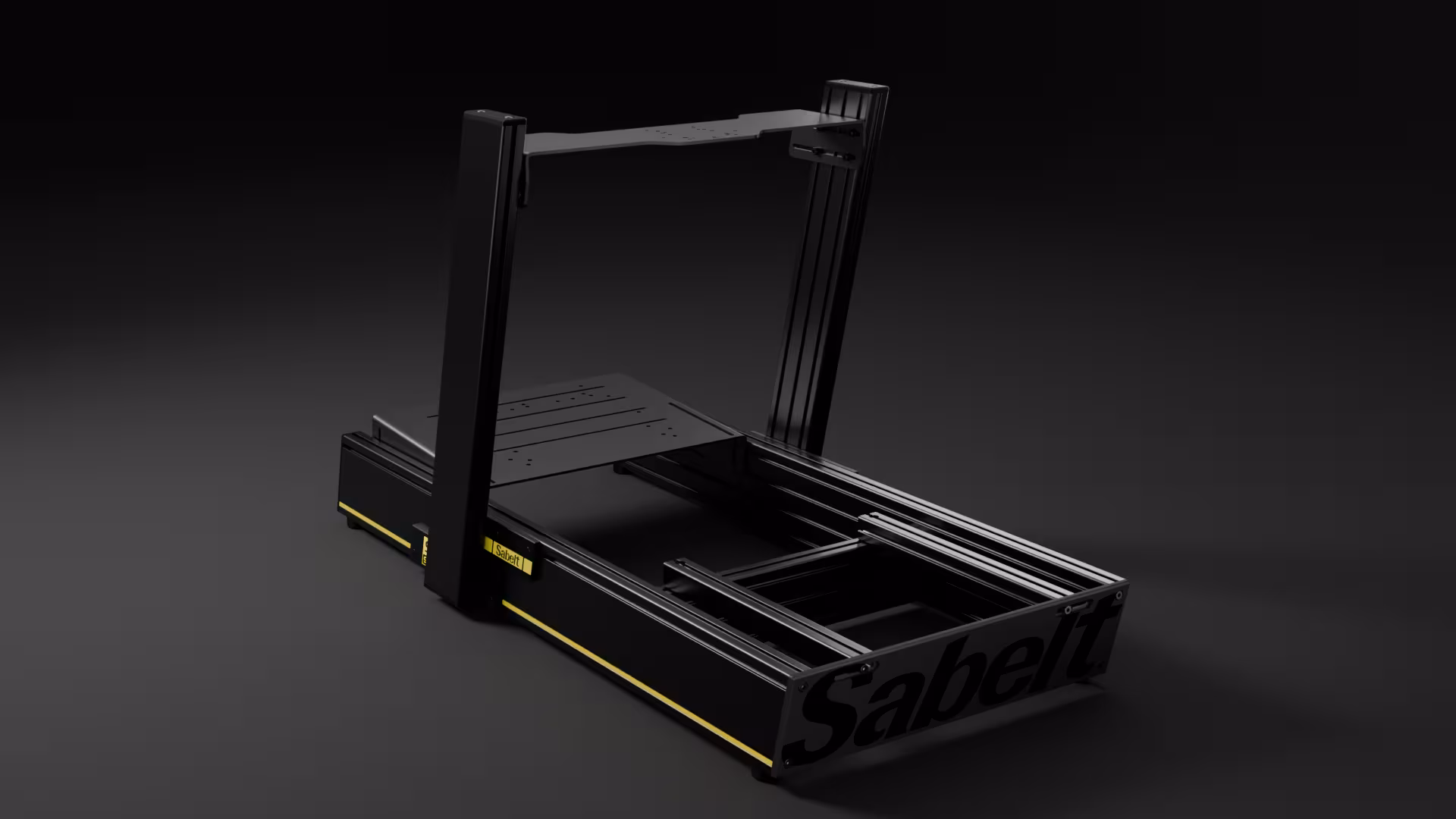

Sabelt S99-E is a ready-defined configuration based on the Sabelt S99 V2 frame. The package adds the Sabelt Lite Wheel Deck and Lite Pedal Mount, removing the need to order the basic wheelbase plate and pedal platform separately. It provides a clear foundation for a GT-style sim racing station.
The Sabelt S99 cockpit remains modular, but the S99-E version already covers the two main control mounting areas. Completing the simulator still requires a seat and its brackets, a wheelbase, steering wheel, pedal set and the remaining electronic equipment.
At the centre of the Sabelt S99-E is the Sabelt S99 V2, an aluminium-profile cockpit from the S Series. Its layout is intended for a GT or touring-car seating position. The main frame uses 160 × 40 mm profiles, while the wheelbase uprights measure 120 × 40 mm.
The profiles receive Sabelt's Zero-X anodised treatment and a Matt Black Moon finish with a sandblasted, soft-touch texture. CNC-machined 10 mm aluminium side plates carry yellow Sabelt detailing, while the 10 mm rear plate uses a restrained black tone-on-tone design.
Manufactured in Italy, the frame allows the relationship between the seat, steering wheel and pedals to be established during assembly. The final position is therefore shaped by the selected seat and hardware rather than one fixed factory layout.
The third major component of the Sabelt S99-E is the Sabelt Lite Pedal Mount. Its broad platform combines long slots with smaller mounting holes for a compatible accelerator, brake and optional clutch. Side slots connect the assembly to the S99 V2 frame.
Pedal placement is selected while assembling the cockpit, allowing the distance and platform position to be coordinated with the seat. Check the pedal bolt pattern and cable exit points before installation. Less common designs may require a separate adapter.
Sabelt S99-E supplies the cockpit structure and its two basic control mounts, but it is not a drive-ready simulator. The seat, brackets or sliders, display, monitor stand, computer, wheelbase, steering wheel and pedals must be selected separately.
The Sabelt S99-E includes the Sabelt Lite Wheel Deck. Its wide upper surface carries a compatible bottom-mounted wheelbase. Several groups of mounting holes provide a choice of positions without requiring the user to drill the plate.
Long slots in the bent side sections connect the deck between the cockpit uprights. Height, reach and wheel angle can be set during assembly to suit the seat position and the driver's build.
Lite Wheel Deck is not a front-mount bracket. Before choosing a Direct Drive wheelbase, confirm that it supports bottom installation and that its bolt pattern matches the available holes.
| Specifications - Sabelt S99-E | |
|---|---|
| Package configuration | |
| Product type | Aluminium-profile GT sim racing cockpit |
| Base cockpit | Sabelt S99 V2 |
| Wheelbase mount | Sabelt Lite Wheel Deck |
| Pedal mount | Sabelt Lite Pedal Mount |
| Driving position | GT / touring car |
| S99 V2 construction | |
| Base profiles | Aluminium, 160 × 40 mm |
| Upright profiles | Aluminium, 120 × 40 mm |
| Profile finish | Zero-X anodising, Matt Black Moon |
| Side plates | 10 mm CNC aluminium with yellow Sabelt detailing |
| Rear plate | 10 mm CNC aluminium with black finish |
| Country of manufacture | Italy |
| Hardware installation | |
| Wheelbase installation | Bottom mounting to the Lite Wheel Deck |
| Pedal installation | Long slots and additional holes in the Lite Pedal Mount |
| Not included | Seat, seat brackets or sliders, wheelbase, steering wheel, pedals, monitor or electronics |
It is a package based on the Sabelt S99 V2 cockpit, supplied with the Lite Wheel Deck for a wheelbase and the Lite Pedal Mount for pedals.
S99 V2 is the base cockpit structure. The S99-E package adds a bottom-mount wheelbase deck and the platform required to install a compatible pedal set.
The package combines the Sabelt S99 V2, Sabelt Lite Wheel Deck and Sabelt Lite Pedal Mount.
It belongs to the S Series developed around GT and touring-car layouts. The final seating posture also depends on the selected seat and mounting brackets.
A compatible wheelbase is bolted from underneath to the Lite Wheel Deck. Its mounting pattern should be compared with the available holes before purchase.
No. It is a conventional plate for bottom-mounted wheelbases. Hardware designed solely for front installation requires a different compatible mounting system.
The slots accommodate several mounting arrangements, but support for every model cannot be guaranteed. Unusual hardware may need an additional adapter plate.
Their positions are selected during assembly using the cockpit profiles and mounting slots. The available range depends on the hardware and the chosen component placement.
No. The seat, side brackets and seat sliders must be selected separately, allowing the driver to choose a shell suited to their build and preferred GT position.
No. It supplies the cockpit structure and two control mounts. The wheelbase, steering wheel, pedals, seat, display, computer and remaining electronics are sold separately.
