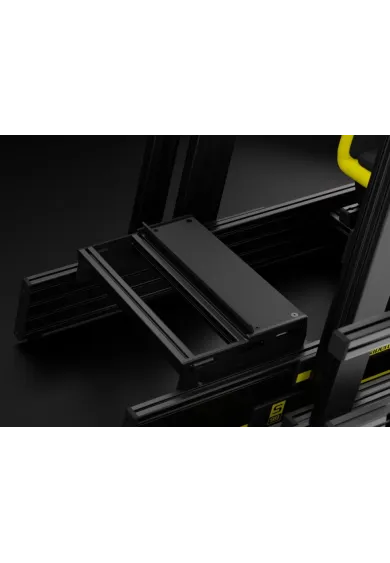

Sabelt Pedal Heel Rest

Name: Sabelt Pedal Heel Rest
Brand: Sabelt Sim Racing
SKU: 1030
Price: 343.9 PLN
Availability: InStock

Reference 00104-09-00

343.90zł

Ready to send

Sabelt Pedal Heel Rest is a 10 mm CNC-machined aluminium plate that provides a fixed resting point for the heels in front of the pedals. One product page covers Pedal Heel Rest and Pedal Heel Rest EVO 1. Both variants have a powder-coated finish and up to 30 mm of depth adjustment. Match the selected version to your Sabelt pedal mount.

Heel Rest variant

Pedal Heel Rest EVO 1
Pedal Heel Rest

Ask about product

You will receive an 3.44zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Sabelt Adjustable Pedal Mount

691.87zł

Sabelt Ultra Pedal Mount

1,003.25zł

Sabelt X99 Evo 1

2,974.31zł 3,717.89zł

Sabelt P99 Evo 1

2,974.31zł 3,717.89zł

Sabelt S99 Evo 1

3,441.46zł

Sabelt Adapter Mount for Simucube...

310.57zł

Sabelt S99-E

4,299.19zł 4,422.76zł

Sabelt P99-E

4,299.19zł 4,422.76zł

Sabelt X99-E

4,299.19zł 4,422.76zł

More regulation

In sim racing, milliseconds depend not only on driving technique but also on comfort. The Sabelt Pedal Heel Rest was designed to reduce foot fatigue and provide stable support during long races. Its black anodised aluminium construction blends naturally with profile-based rigs while delivering extremely high rigidity.

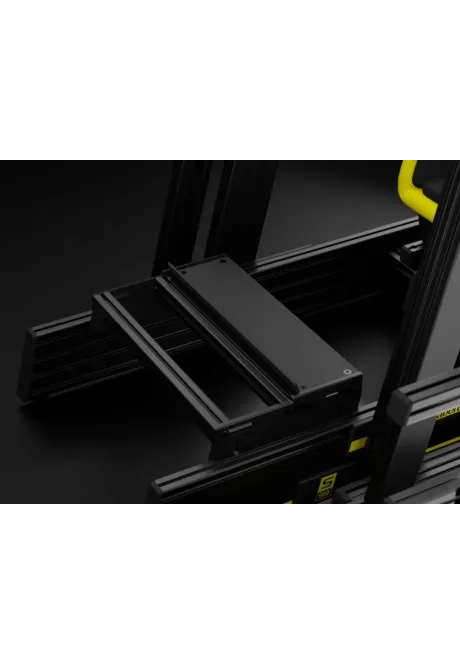

This is more than a simple piece of metal. The surface is designed to provide good grip whether you race in shoes or socks. Its flexible mounting options allow installation on many pedal plates or directly onto structural profiles. The adjustment system raises the heels, supporting a more natural ankle position and improving control over applied force, particularly with firm Load Cell brakes. It is a small addition that can make a noticeable difference to lap-time consistency.

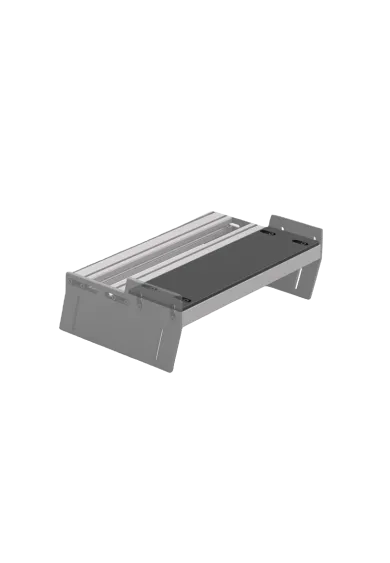

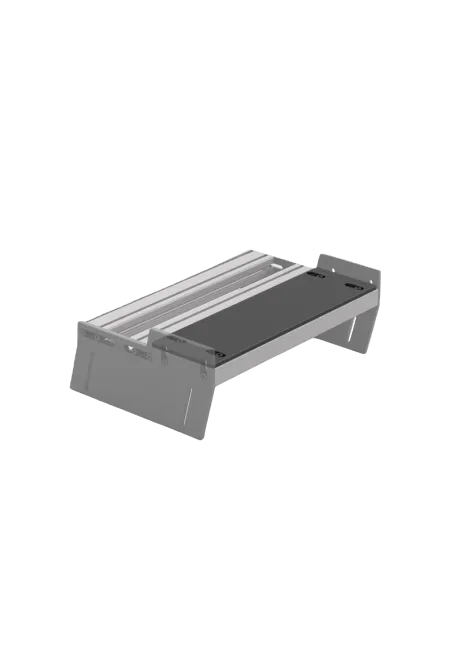

A fixed reference point in front of the pedals

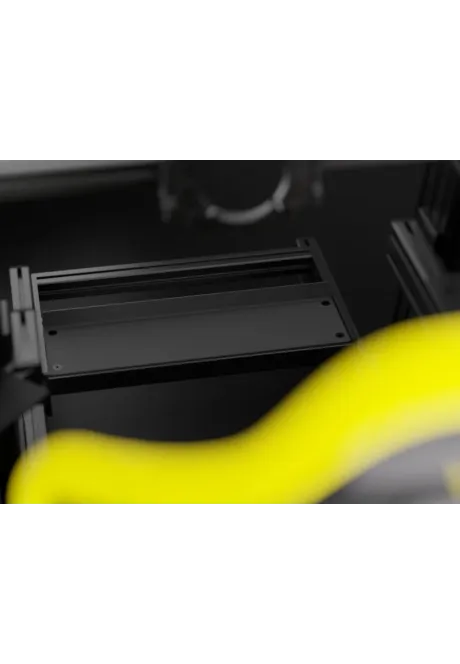

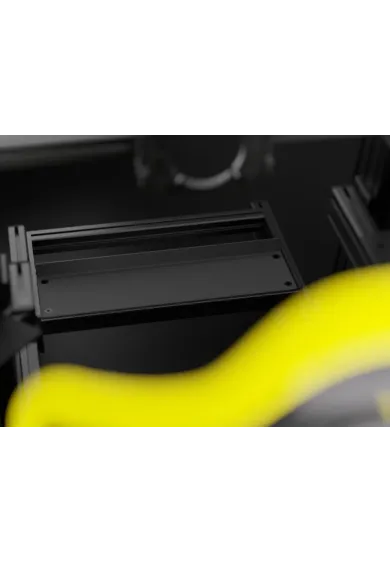

Sabelt Pedal Heel Rest creates a level surface for supporting the heels while using the throttle, brake and clutch. It lets the feet return to the same place instead of resting on a cockpit profile or on an unsuitable edge of the pedal platform.

Set the plate position after adjusting the seat and pedals. Both heels should rest naturally, while each foot must still reach the complete pedal travel without locking the knees or catching footwear on the edge of the plate.

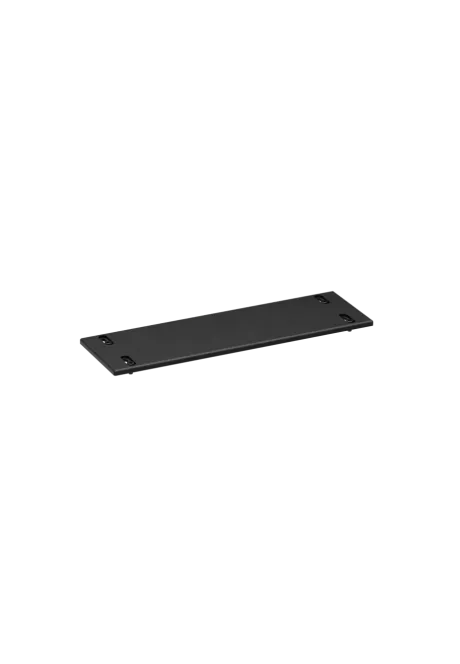

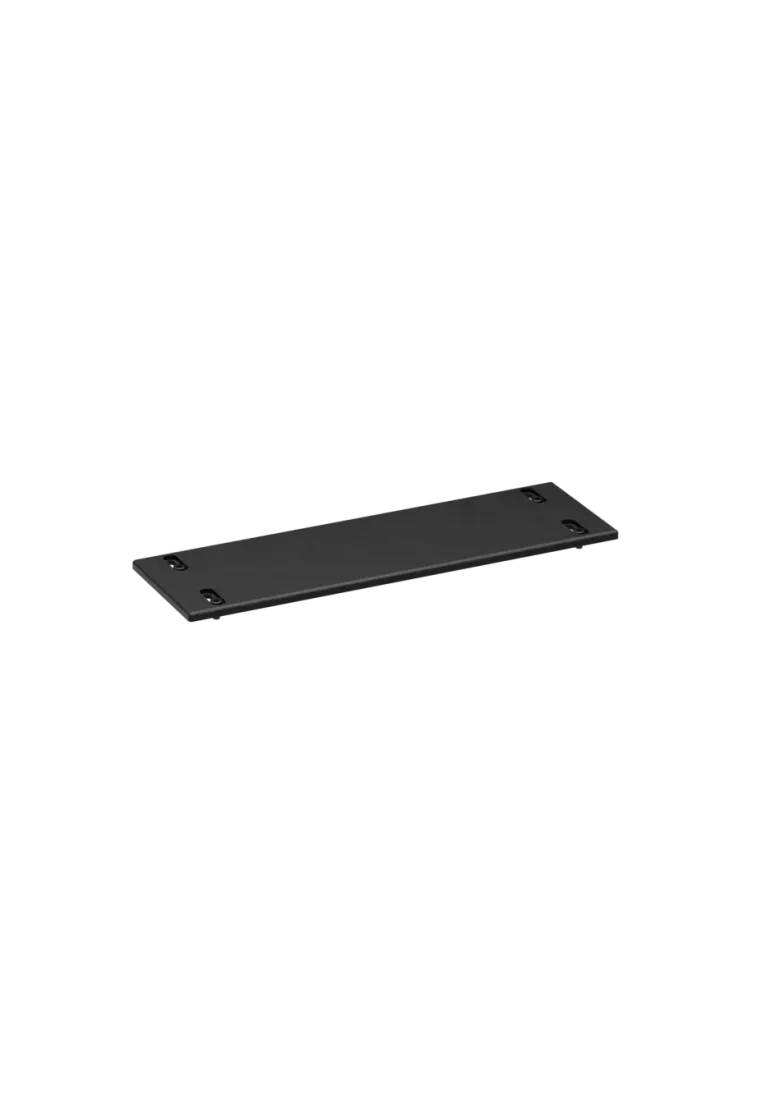

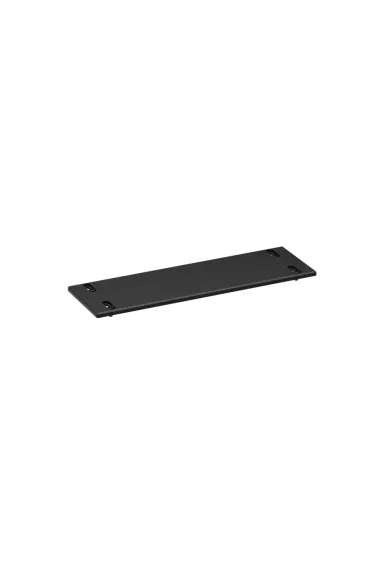

Ten-millimetre CNC aluminium plate

The heel rest is made from a 10 mm CNC-machined aluminium plate. Its surface is powder coated, so the specification should not be expanded with anodising or other finishing methods that Sabelt does not state.

This plate is a separate part of the pedal area. It does not replace the platform used to mount the pedals, and the pedals themselves are not included. Sabelt does not publish a maximum load, so the product should not be used as a step when entering the cockpit.

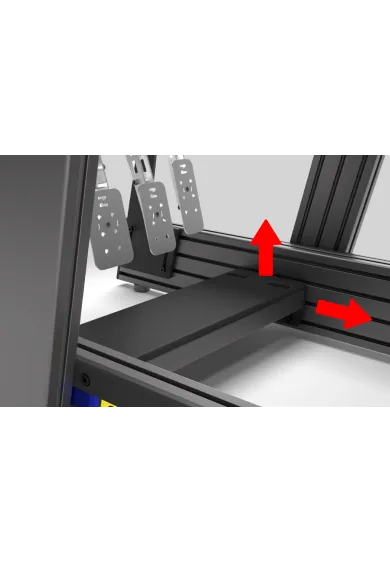

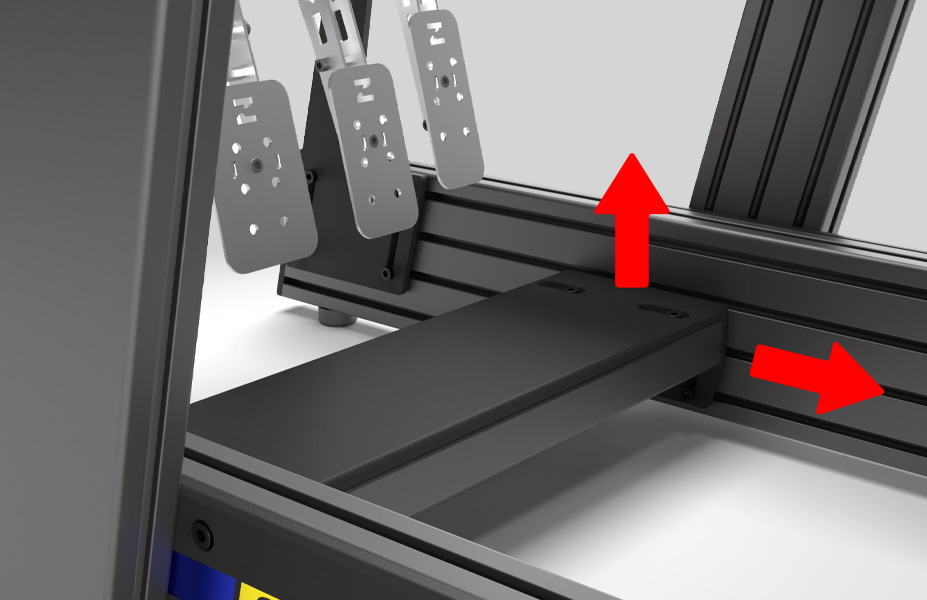

Up to 30 mm of depth adjustment

Precision-milled slots allow the heel rest to move through a range of up to 30 mm. This is depth adjustment, changing the distance between the plate and pedals. Sabelt does not specify a separate height or tilt range for the Pedal Heel Rest itself.

The correct setting supports the heel at rest while letting the toes reach the pedal face without effort. After repositioning the plate, check the complete travel of the throttle, brake and clutch, then retighten every mounting point.

Two variants on one product page

The product page combines Sabelt Pedal Heel Rest and Sabelt Pedal Heel Rest EVO 1. Published materials for both versions provide the same core information: a 10 mm CNC aluminium plate, a powder-coated finish and up to 30 mm of depth adjustment.

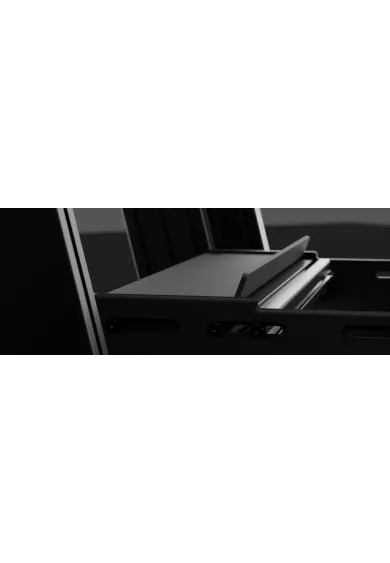

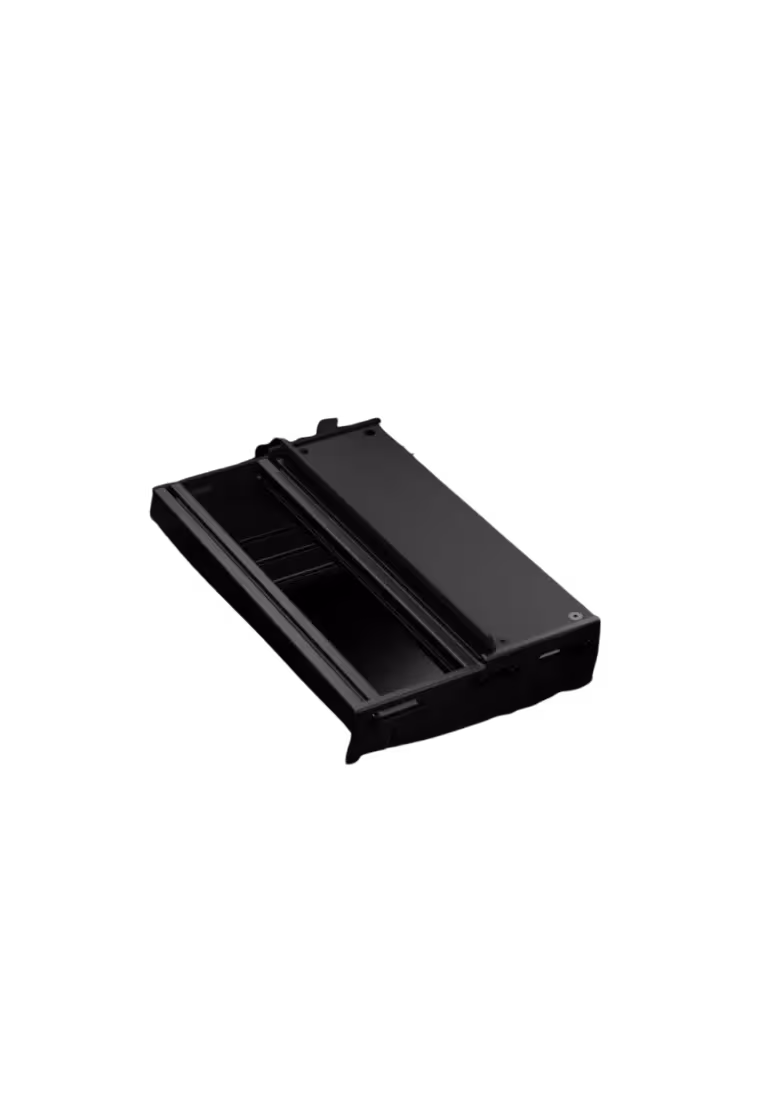

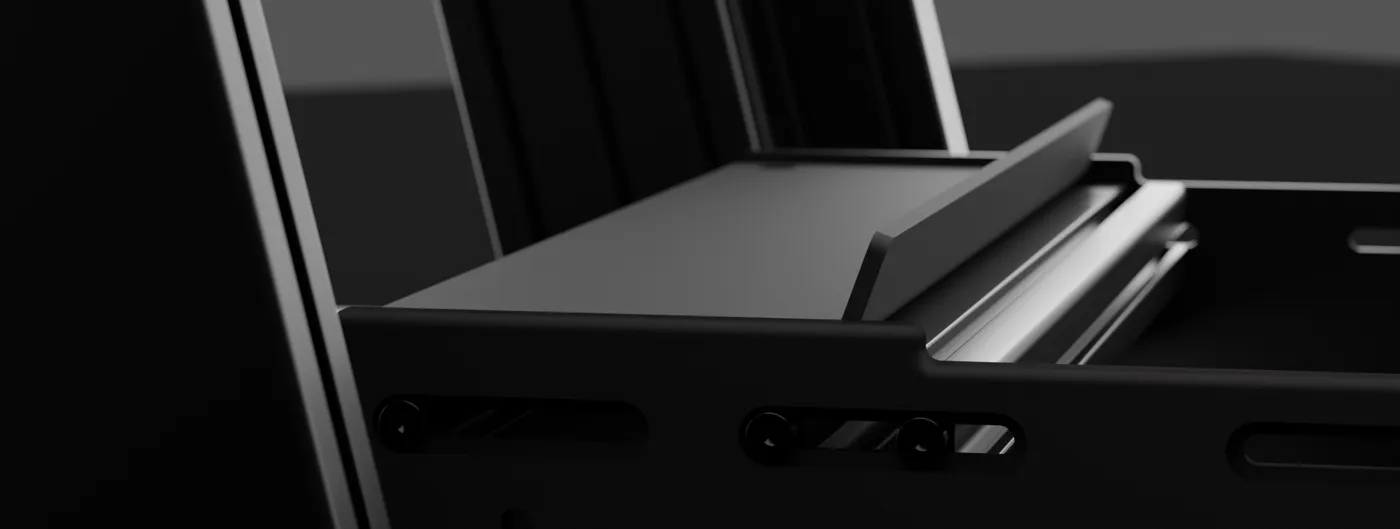

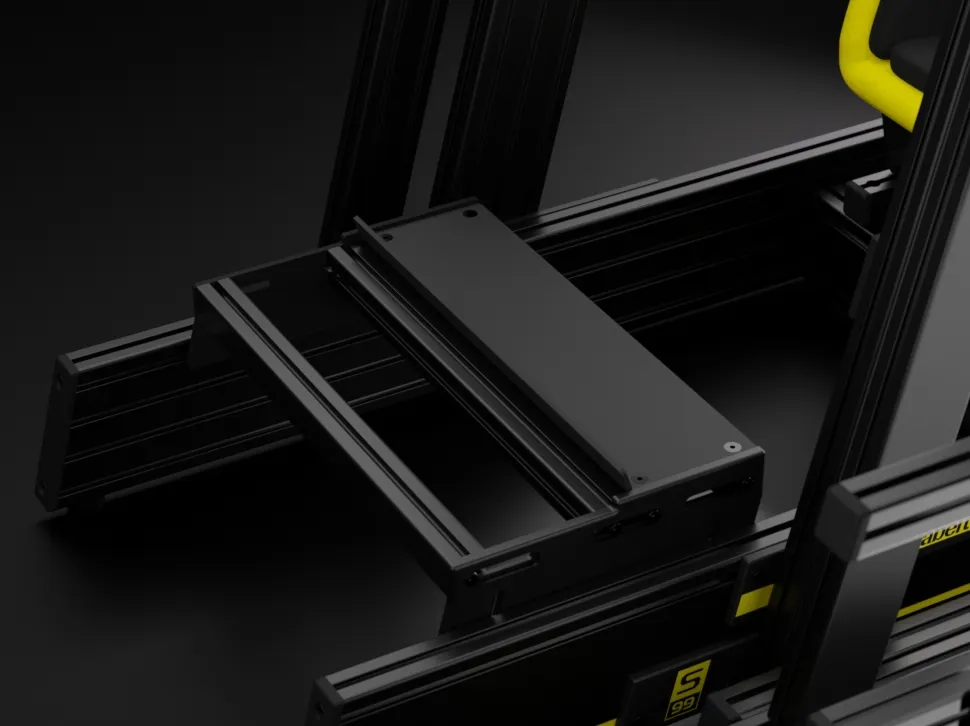

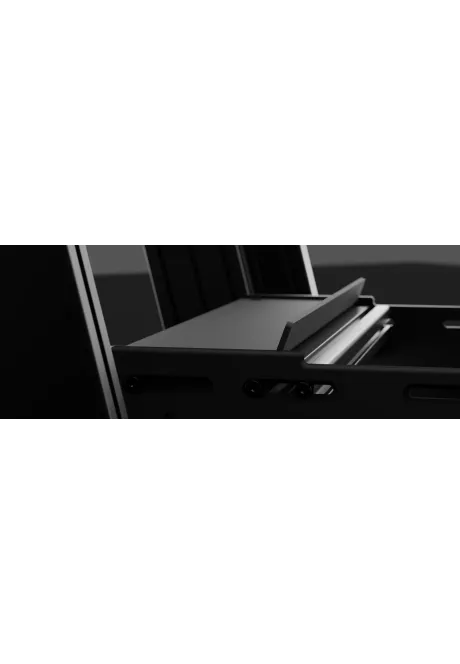

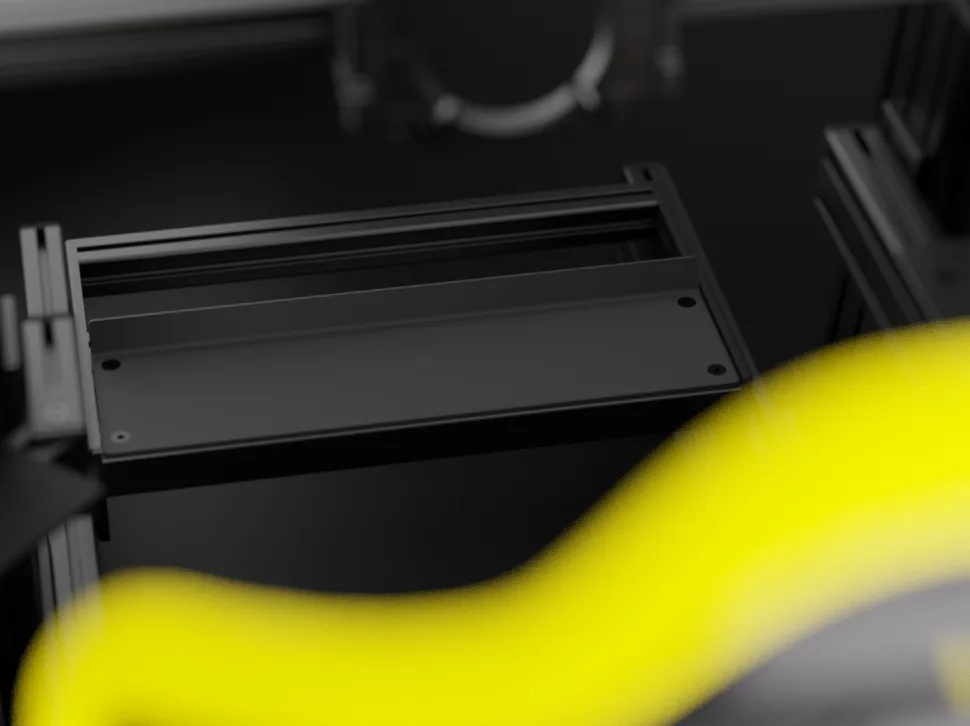

Official images show revised side-bracket geometry and a different hole layout on EVO 1. Sabelt does not explain how these changes affect installation or adjustment and does not provide one shared technical drawing. Match the version to the existing system, or compare its mounting points and contact Simline.eu before ordering.

Product needed for use

Simrigs accesories

Sabelt Adjustable Pedal Mount

Sabelt Sim Racing

00104-05-00

691.87zł

The Sabelt Adjustable Pedal Mount is the foundation of your on-track precision. This advanced pedal plate is engineered to eliminate even the slightest flex, even when using professional Load Cell brakes with pressures exceeding 100kg. Thanks to its intelligent rail and bracket system, it offers an almost unlimited range of height, tilt, and depth...

EAN13 8059772411820

Parameter	Details
Manufacturer	Sabelt Sim Racing
Product type	Heel-rest plate for a sim racing cockpit pedal area
Available variants	Sabelt Pedal Heel Rest, Sabelt Pedal Heel Rest EVO 1
Material	CNC-machined aluminium
Plate thickness	10 mm
Finish	Powder coated
Adjustment	Up to 30 mm in depth
Compatible cockpit families	Pedal Heel Rest: Sabelt P Series, S Series and X Series. Sabelt does not publish a separate list for EVO 1.
Product dimensions	Not published by the manufacturer
Net weight	Not published by the manufacturer
Manufacturer warranty	2 years

System or component	Compatibility information
Sabelt Pedal Heel Rest with P, S and X Series	The European manufacturer page confirms the standard variant for these three cockpit families.
Sabelt Pedal Heel Rest EVO 1	Sabelt does not publish a separate compatible-family list or mounting-pattern comparison. Confirm fit before purchase.
Sabelt Adjustable Pedal Mount	The heel rest is purchased separately. Sabelt explicitly states that it is not included with the Adjustable Pedal Mount.
Sabelt Ultra Pedal Mount	Sabelt lists this mount as a recommended match for Pedal Heel Rest. Confirm the required variant before purchase.
Sabelt Inverted Pedal Mount	Sabelt lists this as a related system. Check the exact kit contents and variant compatibility to avoid ordering a second plate unnecessarily.
Third-party cockpits and mounts	Not officially confirmed. Compare the mounting pattern and installation method before purchase.

Item	Quantity
Sabelt heel-rest assembly in the selected variant	1 set

Sabelt does not publish one shared mounting-hardware list for both variants. Confirm the contents of both packages before adding bolts, brackets or spacers to the public product listing.

1. What is Sabelt Pedal Heel Rest used for?

It creates a fixed surface for the heels in front of the pedals, helping both feet return to a repeatable position while using the throttle, brake and clutch.

2. Which variants are available?

The same product page offers Sabelt Pedal Heel Rest and Sabelt Pedal Heel Rest EVO 1.

3. What is the difference between the two variants?

Their core specifications are the same. Official images show revised brackets and a different hole layout on EVO 1, but Sabelt does not provide a shared mounting drawing or claim an additional adjustment range.

4. What is the plate made from?

It is made from CNC-machined aluminium. The plate is 10 mm thick and has a powder-coated finish.

5. How much adjustment does it provide?

The milled slots provide up to 30 mm of depth adjustment. Sabelt does not state a separate height or tilt range.

6. Does it fit Sabelt P, S and X Series cockpits?

Sabelt confirms these series for the standard Pedal Heel Rest. It does not publish a separate list for EVO 1, so compatibility with the specific mount should be checked before purchase.

7. Is the heel rest included with Sabelt Adjustable Pedal Mount?

No. Sabelt's official contents list identifies the Pedal Heel Rest as a separate item that is not supplied with that mount.

8. Can it be installed on another brand's cockpit?

Sabelt does not confirm third-party compatibility. Compare the hole spacing, available room and fixing method before attempting installation.

9. What is included?

One heel-rest assembly in the selected variant. Sabelt does not publish one shared list of bolts, brackets and other hardware for both versions, so the detailed contents should be verified from the package.
