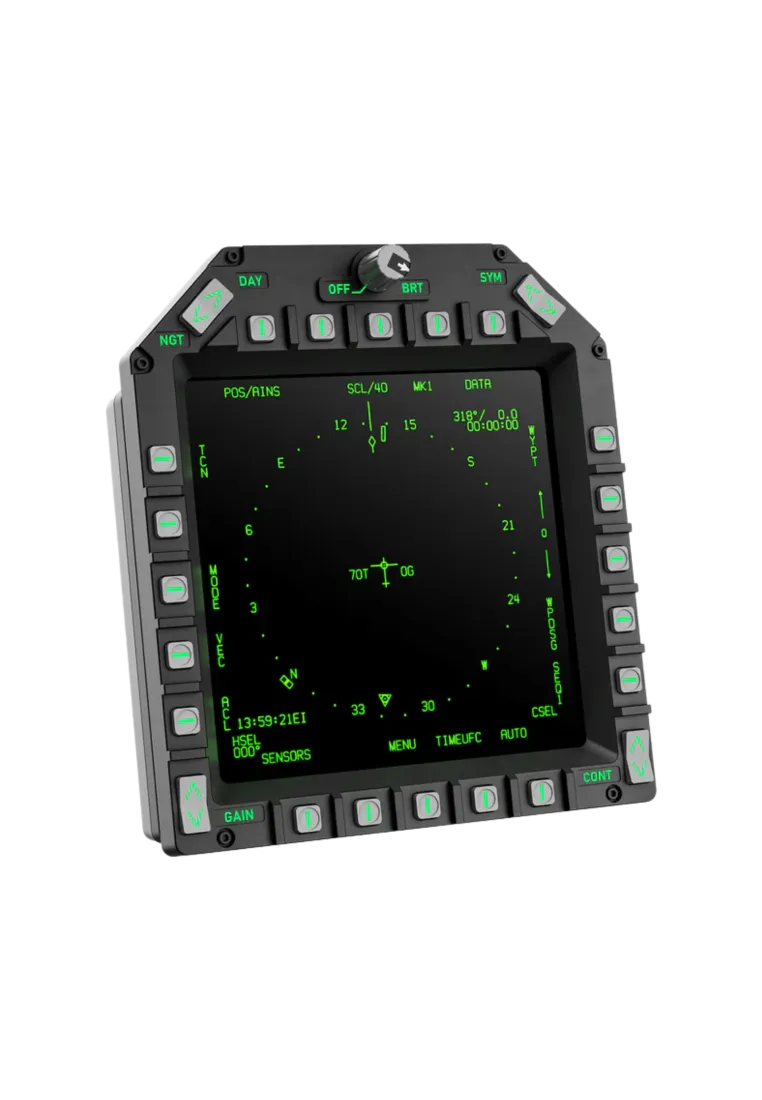

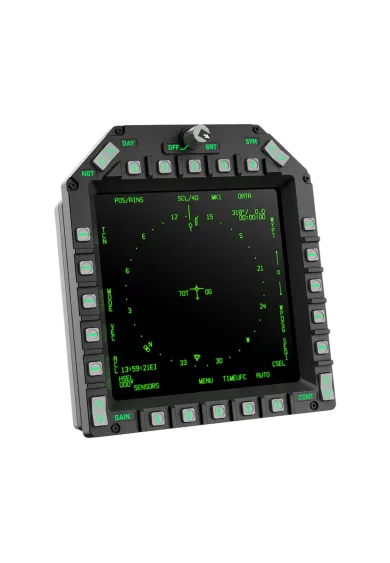

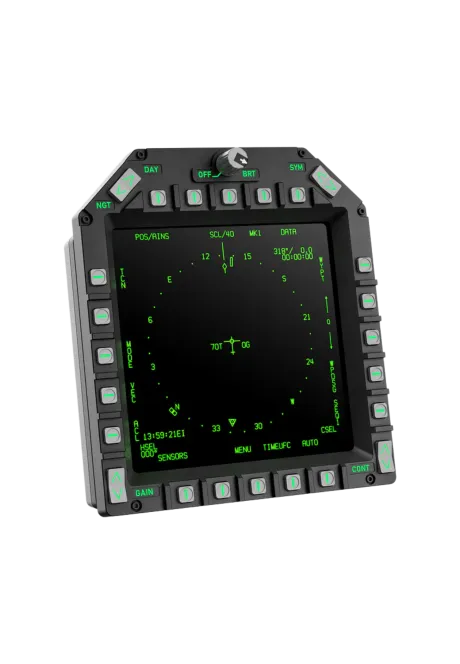

Moza AMPCD Display Panel front view

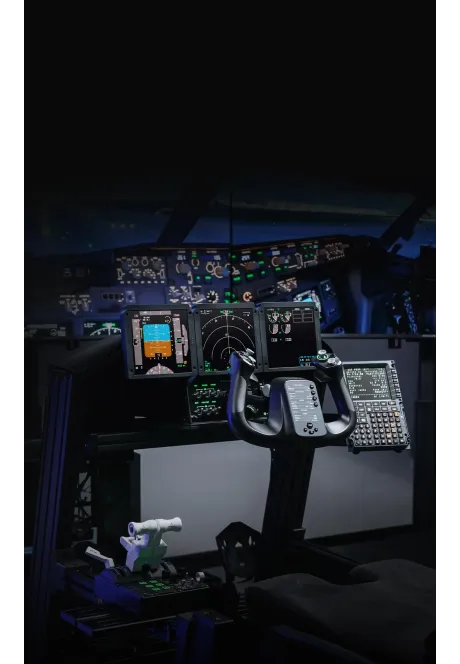

Moza AMPCD Display Panel example of use in civil plane simulation

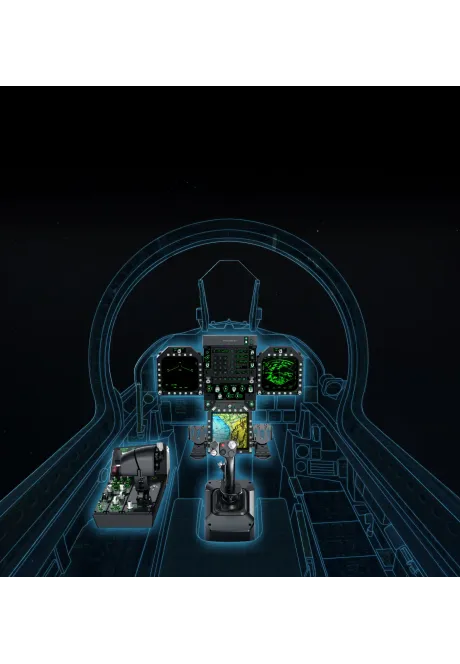

Moza AMPCD Display Panel example of use in military jet simulation
  • New
Moza AMPCD Display Panel front view
Moza AMPCD Display Panel example of use in civil plane simulation
Moza AMPCD Display Panel example of use in military jet simulation

Moza AMPCD Display Panel

735.77zł

735.77zł
PREORDER

The MOZA AMPCD Display Panel is a square 7.1" panel designed for realistic military and civilian cockpits. It works well as a central display in F/A-18 and F-16 cockpits, and thanks to its magnetic frame and modular design, it can also be used as a base for buttons and controls in the style of a Boeing 737 or Airbus A320.


Ask about product
Zapytanie dotyczy produktu: Moza AMPCD Display Panel
* - pola obowiązkowe
Send
You will receive an 7.36zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like

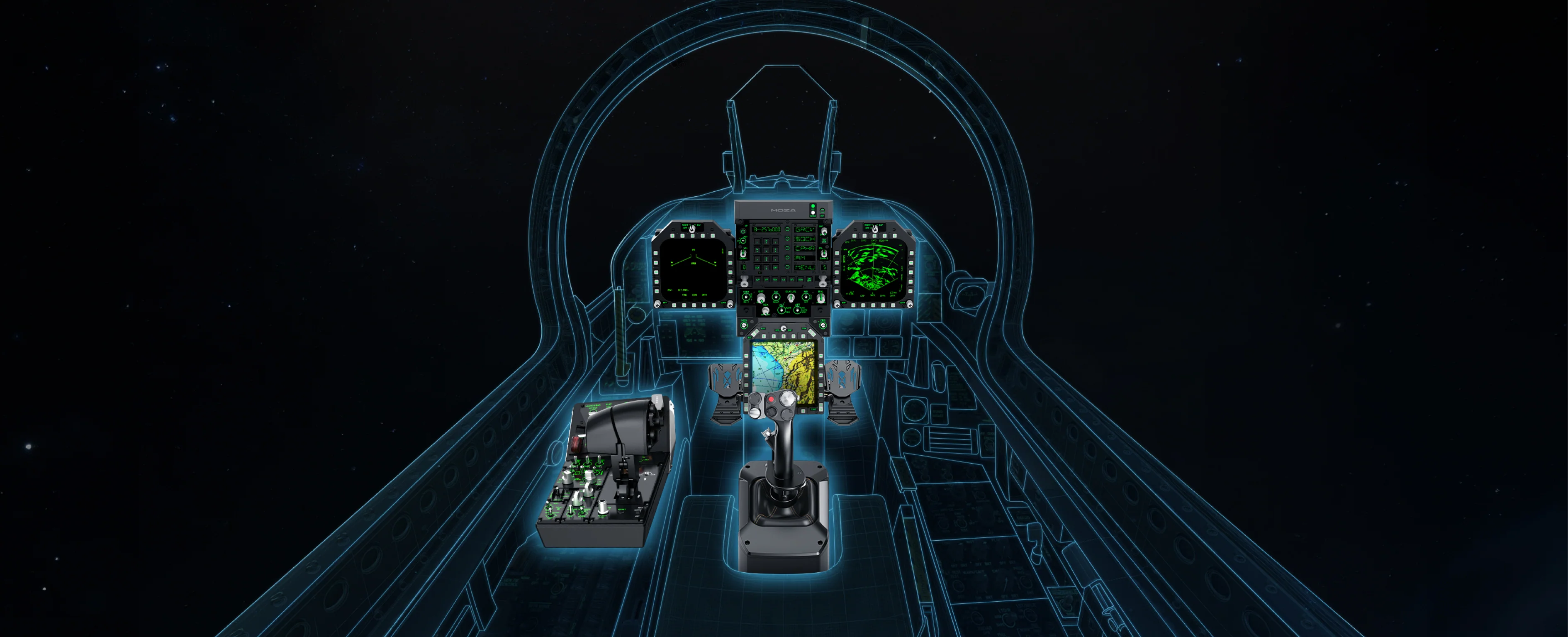

Panel Display MOZA AMPCD - example of use for DCS WORLD
Advanced Multipurpose Color Display Replica from F/A-18

As real as it get from F/A-18

The MOZA AMPCD Display Panel is best suited for designs inspired by military aviation, particularly F/A-18 and F-16 systems. The square 7.1" format and 800 x 800 resolution perfectly capture the character of the central display in such cockpits. This solution is for those who are building a workstation focused on authenticity, not just general multimedia.

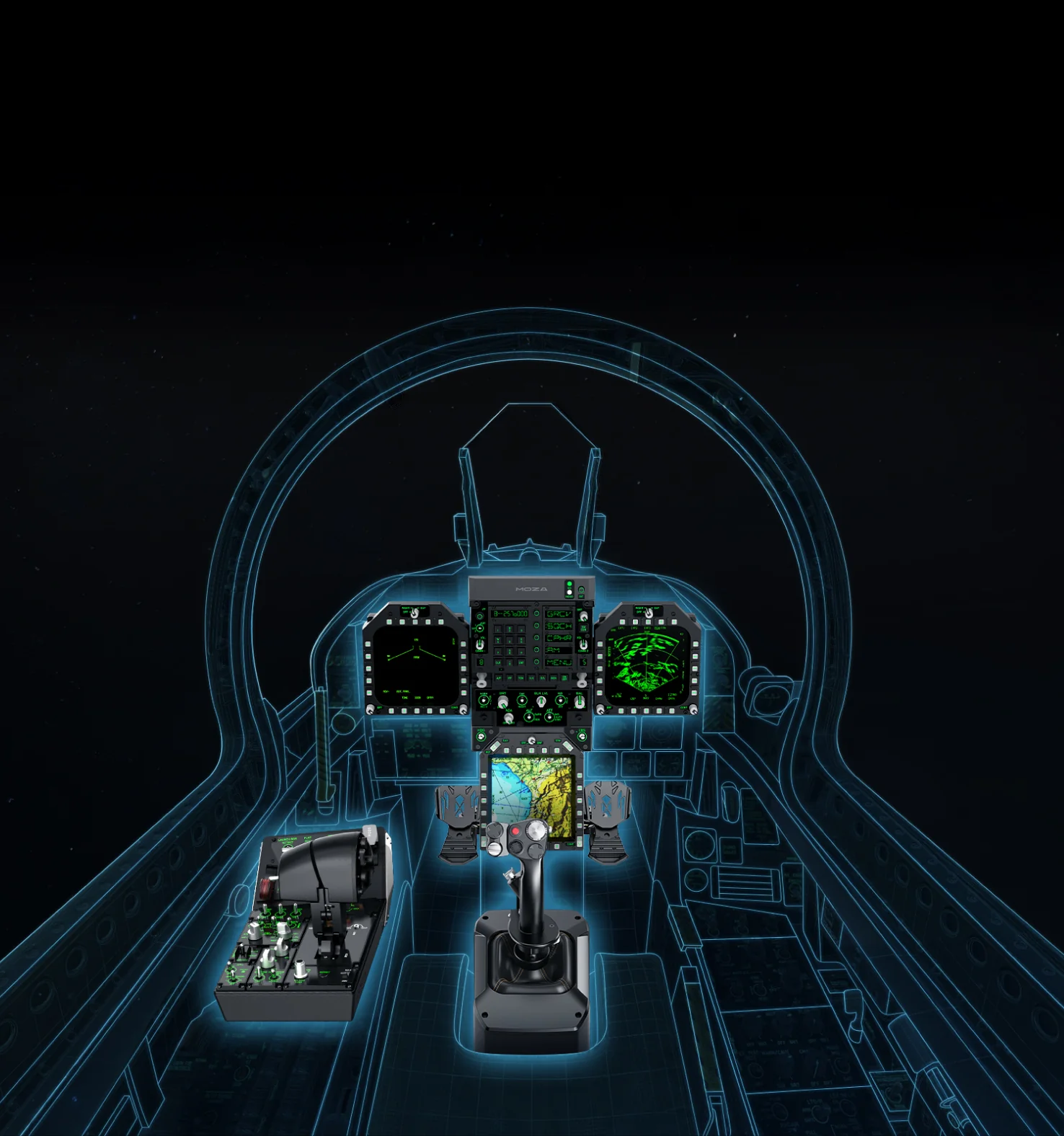

Panel Display MOZA AMPCD - example of use for F18
Advanced Multipurpose Color Display Replica from F/A-18

As real as it get from F/A-18

The MOZA AMPCD Display Panel is best suited for designs inspired by military aviation, particularly F/A-18 and F-16 systems. The square 7.1" format and 800 x 800 resolution perfectly capture the character of the central display in such cockpits. This solution is for those who are building a workstation focused on authenticity, not just general multimedia.

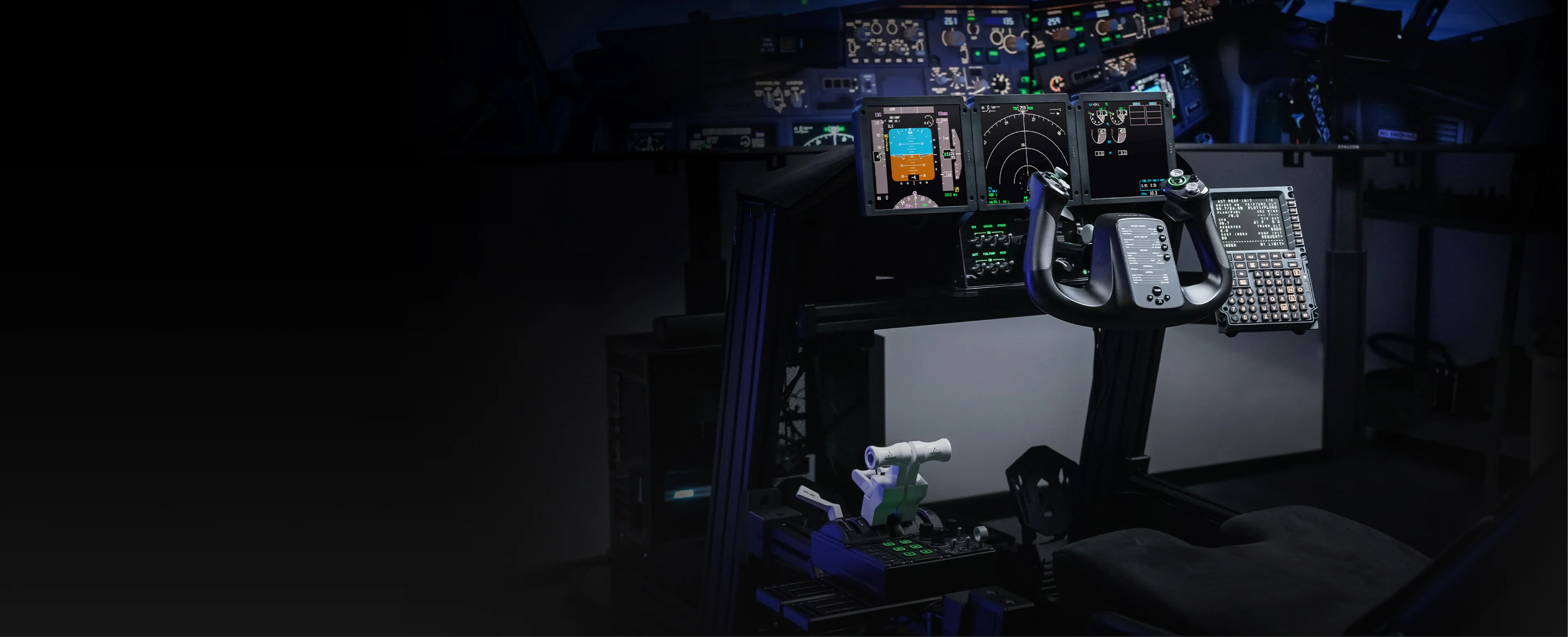

Panel Display MOZA AMPCD - example of use for XPLANE AND MSFS
Panel also for civil aviation

Panel for Boeing 737 & Airbus A320

While the product is naturally associated with aircraft, its format can also be used in civilian projects where a clear central panel with buttons and a screen is essential. It can function as a module inspired by the cockpits of a Boeing 737 or Airbus A320, especially where the user wants to build their own control set around the screen and button frame. In practice, this allows for considerable freedom in creating both military and passenger simulators.

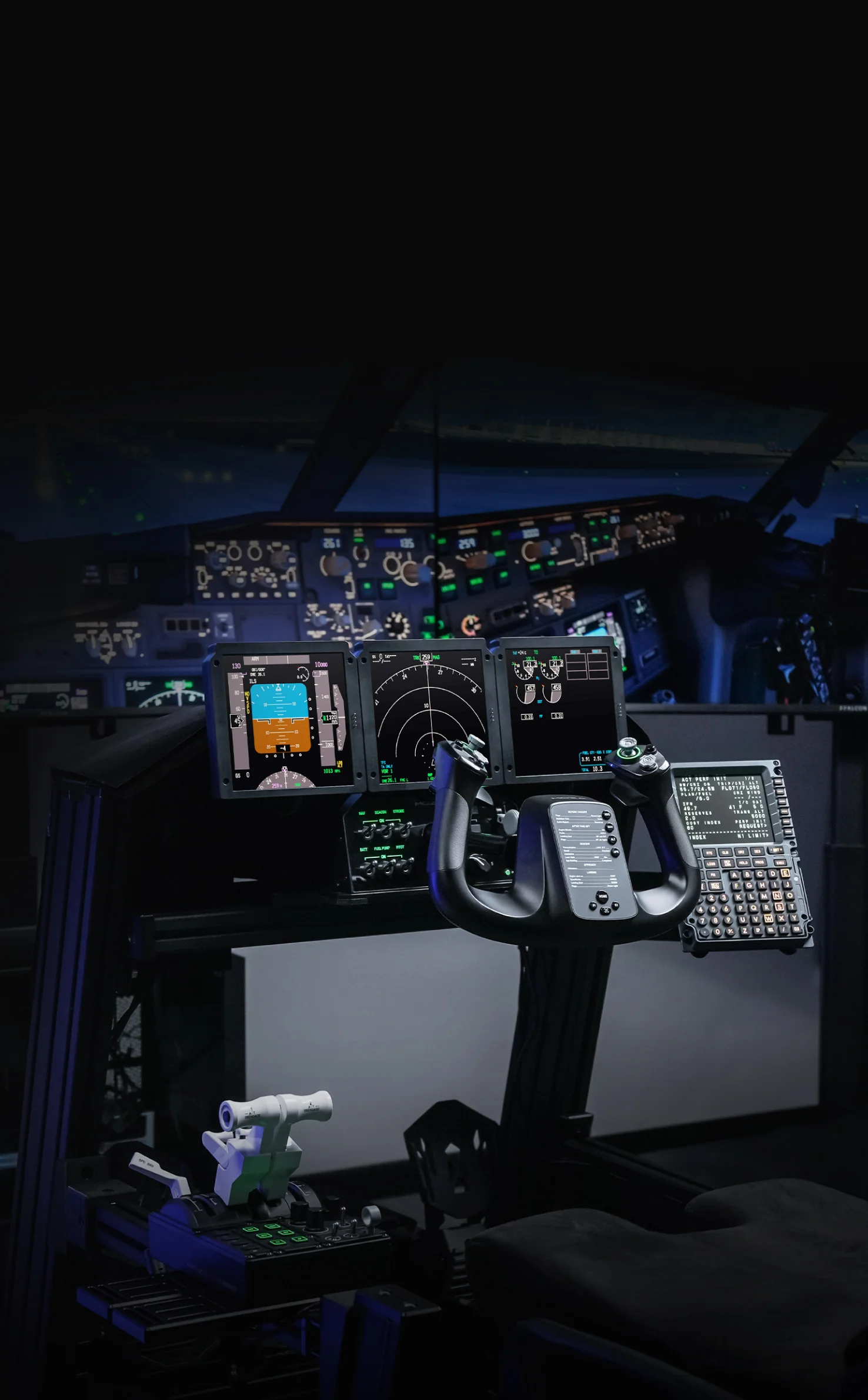

Panel Display MOZA AMPCD - example of use for BOEING and AIRBUS
Panel also for civil aviation

Panel for Boeing 737 & Airbus A320

While the product is naturally associated with aircraft, its format can also be used in civilian projects where a clear central panel with buttons and a screen is essential. It can function as a module inspired by the cockpits of a Boeing 737 or Airbus A320, especially where the user wants to build their own control set around the screen and button frame. In practice, this allows for considerable freedom in creating both military and passenger simulators.

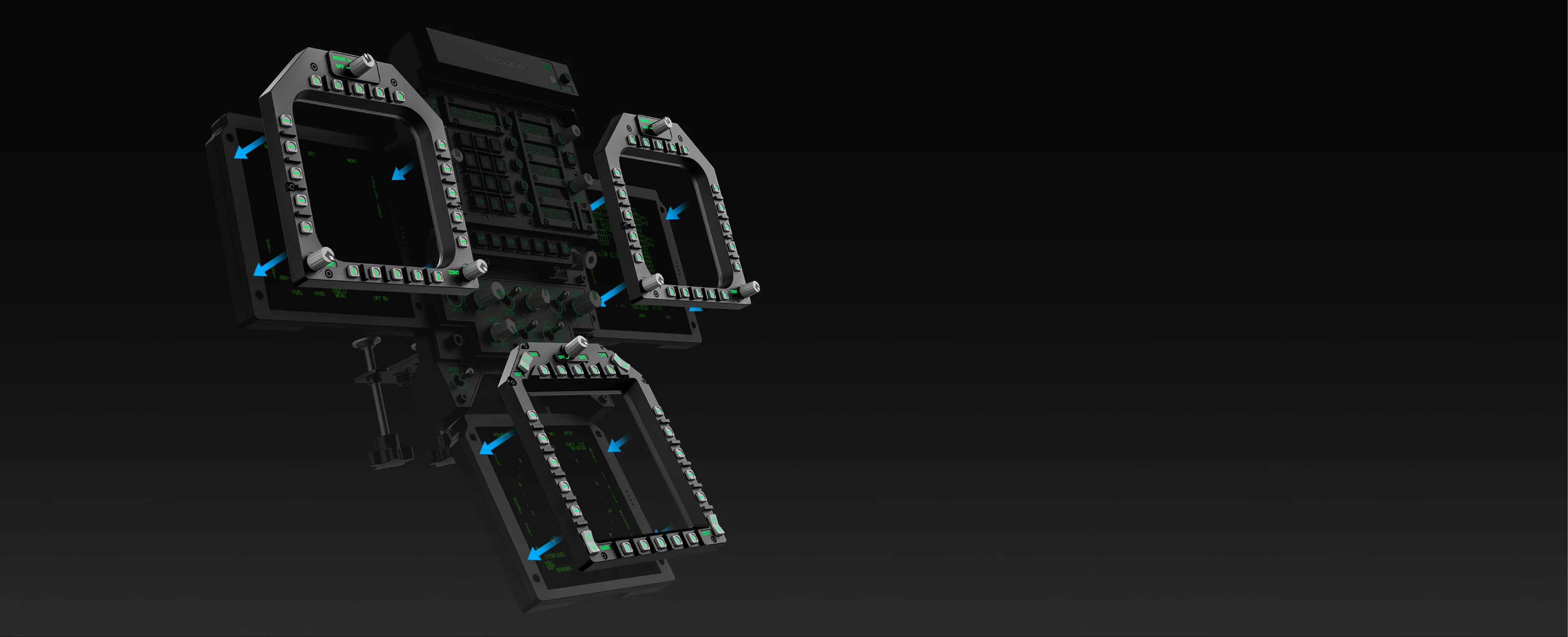

Panel Display MOZA AMPCD - magnetic buttons plate
CHANGE FROM FIGHTER PANEL TO LINER PANEL IN ONE MOVE

Magnetic frame and modular operation

One of the panel's most interesting features is its magnetic frame with a pogo-pin connection, which facilitates assembly, disassembly, and reconfiguration. This is important for users who want to build a display base once and then later adapt the button layout to suit a different aircraft type. This design allows the panel to be used not only as a display but also as a flexible control module for various flight sim projects.

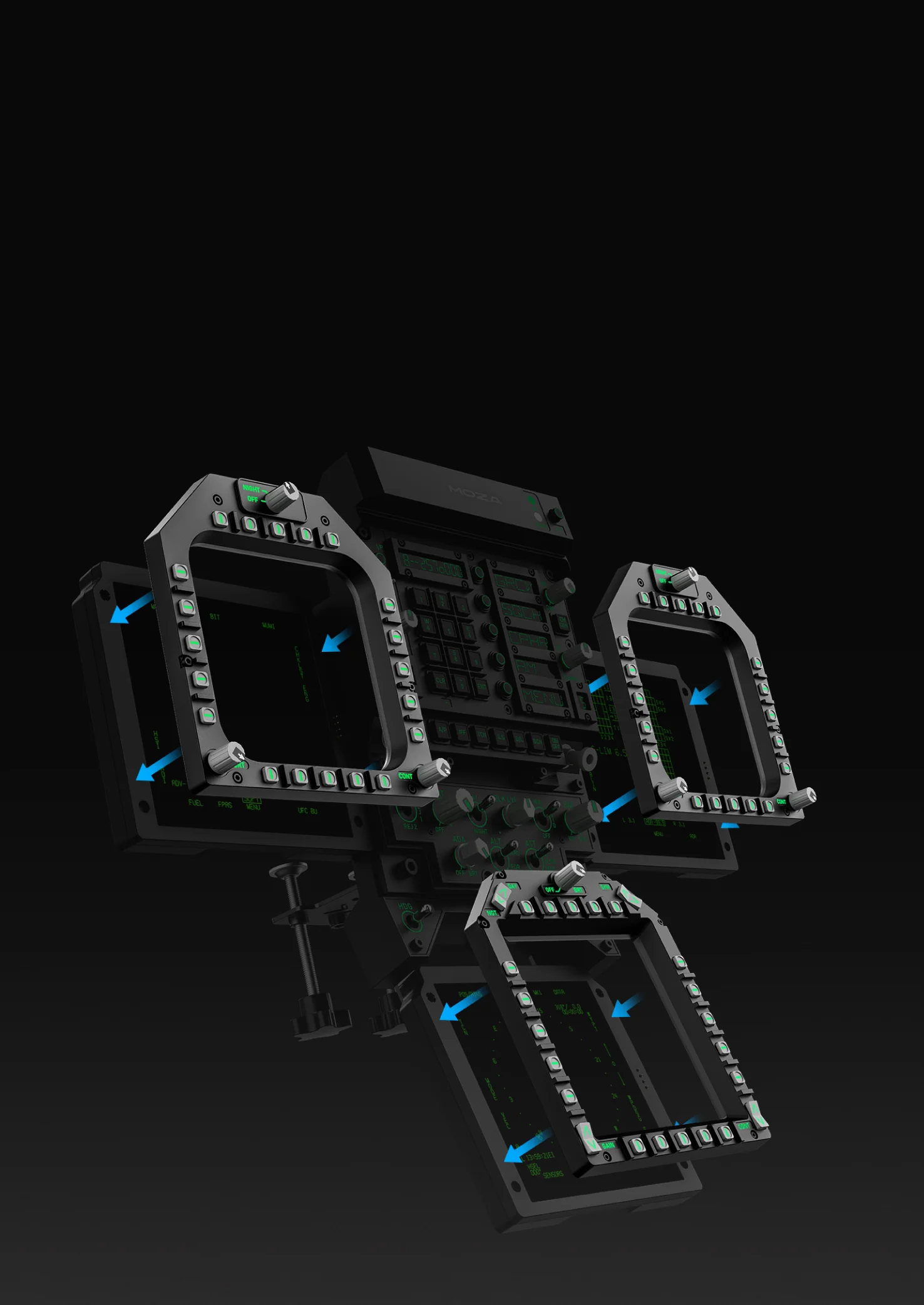

Panel Display MOZA AMPCD - magnetic use of buttons plate
CHANGE FROM FIGHTER PANEL TO LINER PANEL IN ONE MOVE

Magnetic frame and modular operation

One of the panel's most interesting features is its magnetic frame with a pogo-pin connection, which facilitates assembly, disassembly, and reconfiguration. This is important for users who want to build a display base once and then later adapt the button layout to suit a different aircraft type. This design allows the panel to be used not only as a display but also as a flexible control module for various flight sim projects.

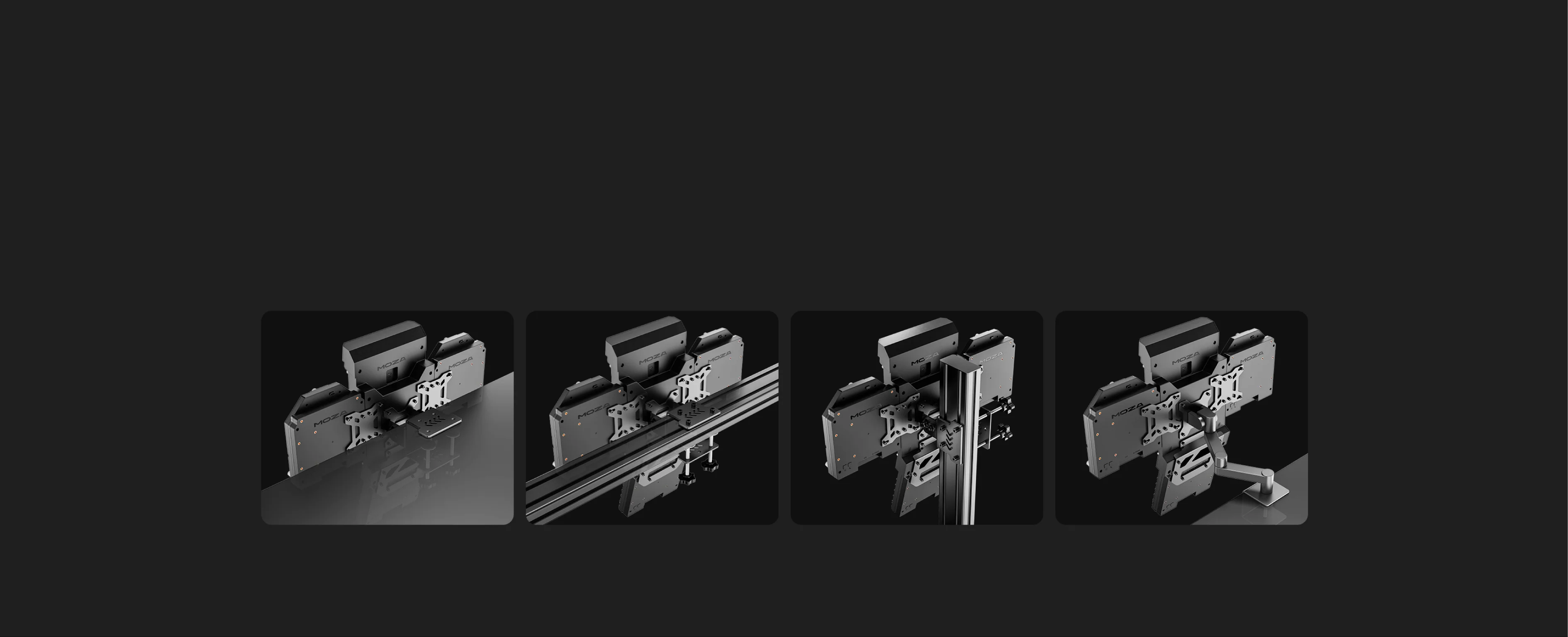

Panel Display MOZA AMPCD - mounting variants
MOUNT ON A DESK OR USE A VESA MOUNT

Cockpit assembly and integration

The panel works with a PC, communicates via USB, and can be mounted on a desk, an aluminum frame using keyways, or a standard 75 x 75 mm VESA mount. This simplifies integration with an existing cockpit without having to create custom electronics from scratch. In practice, this means faster setup and greater flexibility for future layout changes.

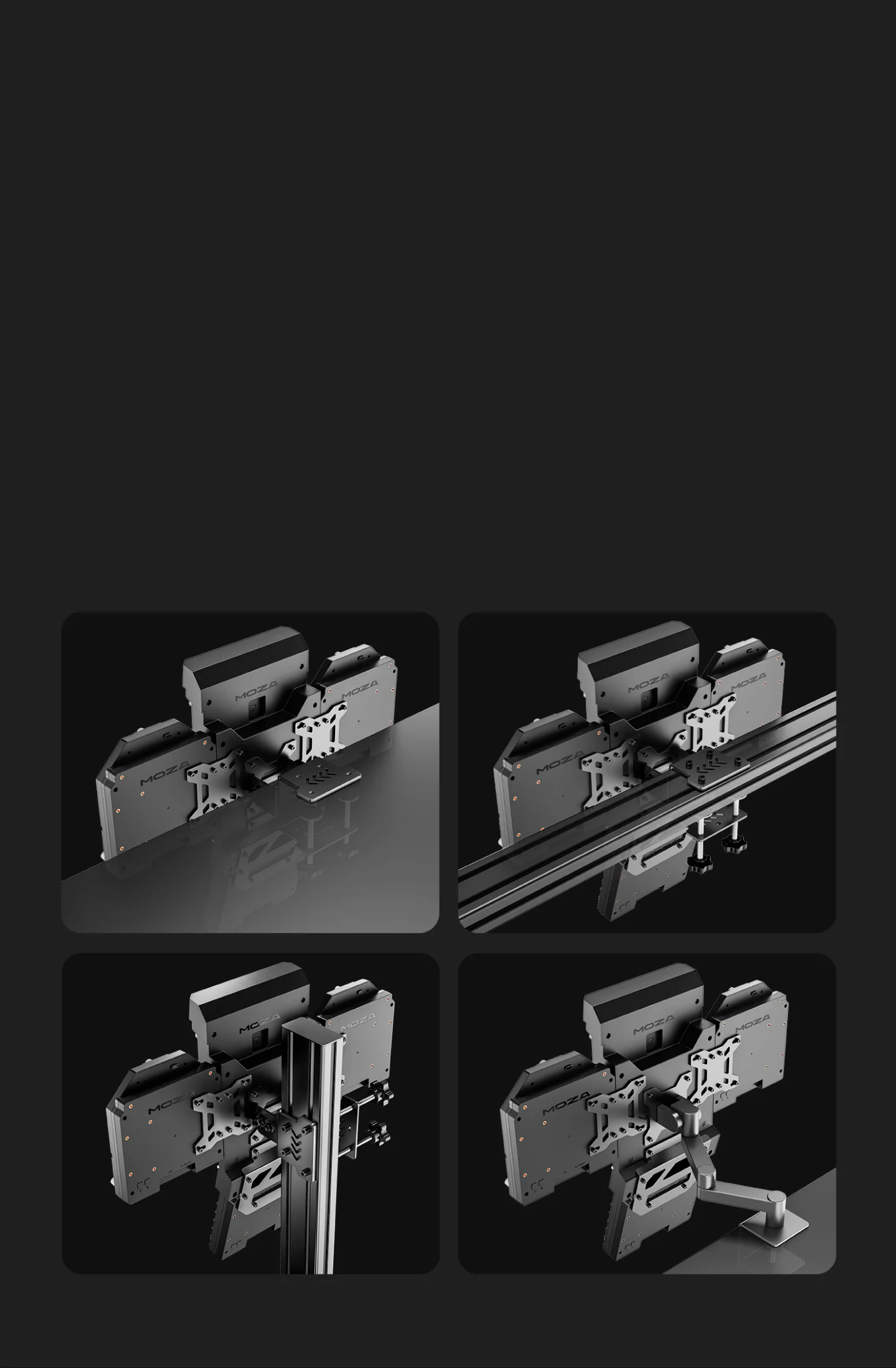

Panel Display MOZA AMPCD - how to mount
MOUNT ON A DESK OR USE A VESA MOUNT

Cockpit assembly and integration

The panel works with a PC, communicates via USB, and can be mounted on a desk, an aluminum frame using keyways, or a standard 75 x 75 mm VESA mount. This simplifies integration with an existing cockpit without having to create custom electronics from scratch. In practice, this means faster setup and greater flexibility for future layout changes.
Technical Specifications – MOZA AMPCD Display Panel
General Information
Product name MOZA AMPCD Display Panel
Device type Advanced Multipurpose Color Display panel for flight simulation
Recreated module Lower centre AMPCD from the F/A-18 Hornet cockpit
Module construction Display with a detachable magnetic control bezel
Material Composite materials
Display
Full display size 7.5 inches
Viewable area with bezel fitted 7.1 inches
Display format Square, 1:1 aspect ratio
Resolution 800 × 800 px
Refresh rate 60 Hz
Display brightness adjustment 10 levels
Controls and Backlighting
Control bezel Magnetic quick-release design
Bezel-to-display connection Integrated pogo-pin contacts
Buttons Physical controls with clear tactile actuation feedback
Control backlighting 15 adjustment levels
Lighting adjustment Independent display-brightness and bezel-backlight adjustment
Connectivity and Software
PC connection 1 × USB Type-C
Data and power Supplied through a USB 3.0 connection
USB polling rate 1000 Hz
Software MOZA Cockpit
Configuration options Button mapping, lighting control and display-position assignment
Compatibility
Supported platform PC
Primary application DCS World – AMPCD operation through a two-way MOZA Cockpit data link
Additional simulators Microsoft Flight Simulator 2020 / 2024 and X-Plane 11 / 12 in display or universal-controller mode
Modular system Compatible with the DDI and FPP modules from the MOZA FMP18 system
Console support No
Mounting and Package Contents
Mounting standard VESA 75 × 75 mm
Recommended screws M4 × 10 mm
Mounting options MOZA desk clamp, aluminium-profile rigs and compatible third-party VESA mounts
Angle adjustment Available with a compatible MOZA adjustable desk clamp
Panel included MOZA AMPCD Display Panel × 1
Cable included USB-A to USB-C cable × 1
