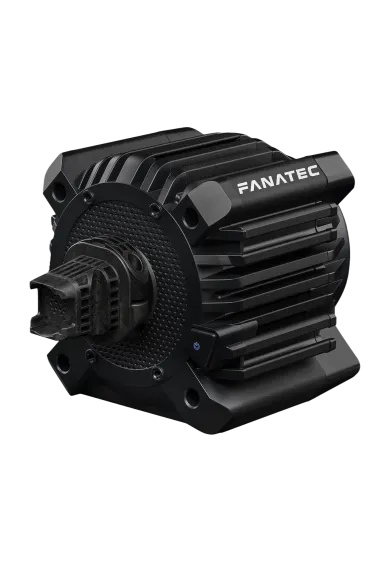

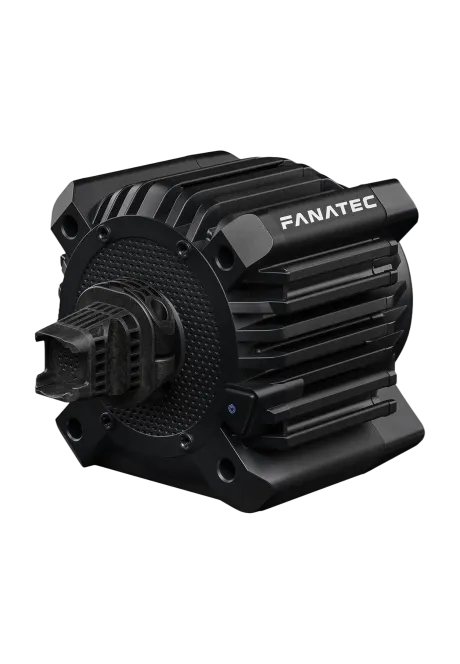

Fanatec Gran Turismo DD PRO wheelbase front view

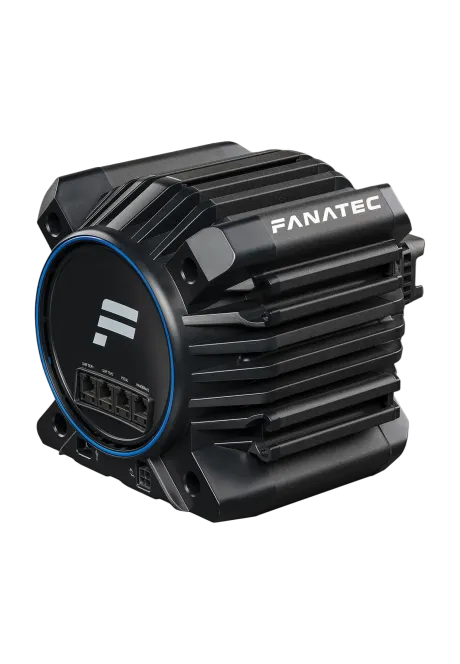

Fanatec Gran Turismo DD PRO wheelbase rear view

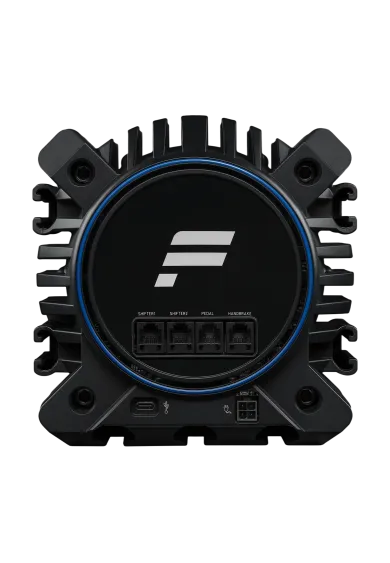

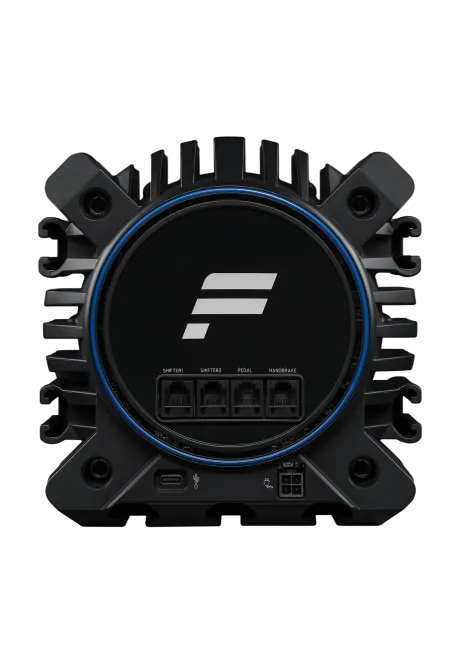

Fanatec Gran Turismo DD PRO wheelbase rear centered view

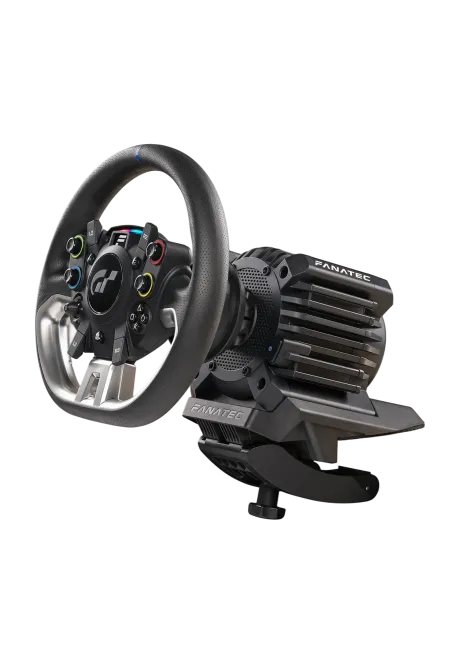

Fanatec Gran Turismo DD PRO wheel and wheelbase view

Fanatec Gran Turismo DD PRO wheelbase clip

Fanatec Gran Turismo DD PRO

Name: Fanatec Gran Turismo DD PRO
Brand: Fanatec
SKU: 1459
Price: 2281.3 PLN
Availability: OutOfStock

Reference CRD-9020007-EU

2,281.30zł

PREORDER

The Fanatec Gran Turismo DD Pro QR2 Lite is a complete Direct Drive sim-racing bundle for PlayStation 5, PlayStation 4 and PC. It includes a 5 or 8Nm wheel base, a 280 mm Gran Turismo steering wheel, a two-pedal CSL Pedals set, preinstalled QR2 Lite components and a table clamp. Choose 5 or 8nm variant with stronger power unit

Power Unit Variant (Torque)

5NM TORQUE (90W PSU)
8NM TORQUE (180W PSU)

Ask about product

You will receive an 22.81zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

MOZA R5 bundle

1 Reviews

1,243.09zł 1,389.43zł

MOZA R3 bundle PC

2 Reviews

1,031.71zł

Conspit Ares + Apex 310 + QR

3,531.98zł

Moza R5 PRO Bundle

1,462.60zł

Direct Drive with 5 Nm peak torque

The Gran Turismo DD Pro transfers forces directly from the motor to the steering shaft without a belt or gear stage. With the included 5 Nm power supply, this version delivers 5 Nm of peak torque. A high-resolution contactless Hall sensor monitors shaft position, while Fanatec's FluxBarrier technology is designed to improve motor efficiency and smoothness.

The aluminium housing serves as both the structural chassis and a passive heatsink, so the base does not require a cooling fan. The Standard Tuning Menu provides a simplified starting point, while Advanced mode offers more detailed control of force-feedback behaviour. The separately sold Boost Kit 180 raises peak torque to 8 Nm; it is not included with this 5 Nm bundle.

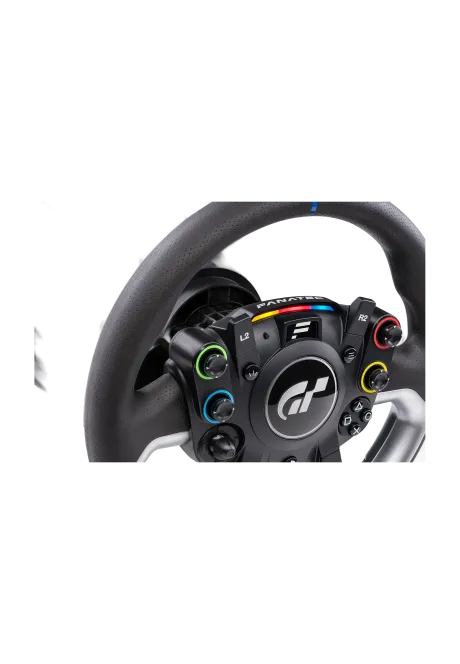

A steering wheel designed for Gran Turismo

The round steering wheel was designed by Polyphony Digital specifically for Gran Turismo. Its 280 mm diameter and low weight support a responsive steering feel, while the tactile rubber grip creates a consistent contact surface. A blue centre stripe helps the driver track the wheel's position.

The front carries controls arranged around the PlayStation interface, including a main five-way directional stick and four additional five-way inputs. A white OLED shows Tuning Menu settings and supported telemetry, while the diffused RevLED strip provides engine-speed information. Ergonomic shift paddles are fitted behind the wheel, and a preinstalled QR2 Lite Wheel-Side connects it to the base.

QR2 Lite, table mounting and ecosystem expansion

The wheel base comes with a QR2 Lite Base-Side Type-C, matched to the preinstalled QR2 Lite Wheel-Side on the steering wheel. The tapered quick-release geometry creates a tight connection between the wheel and shaft. A clamp for tabletops between 5 and 60 mm thick is also included.

Side and bottom T-nut rails support hard mounting, with four M6 T-nuts supplied in the box. The wheel base provides connections for power, USB-C, pedals, handbrake and two shifters; the second shifter port supports sequential devices only. It works with Fanatec CSL, ClubSport and Podium steering wheels according to the installed quick release, as well as compatible Fanatec pedals, shifters and handbrakes.

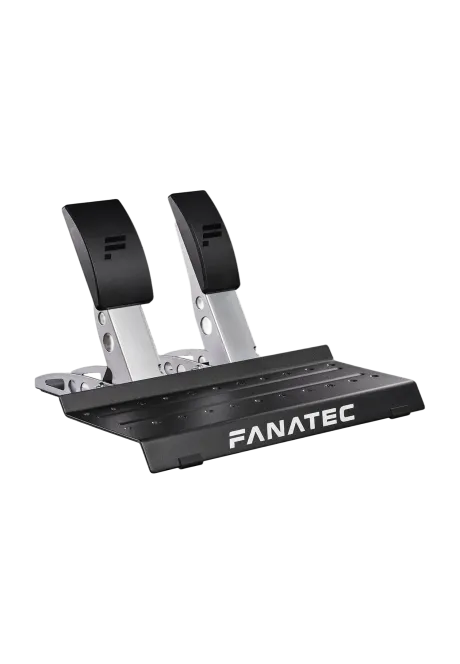

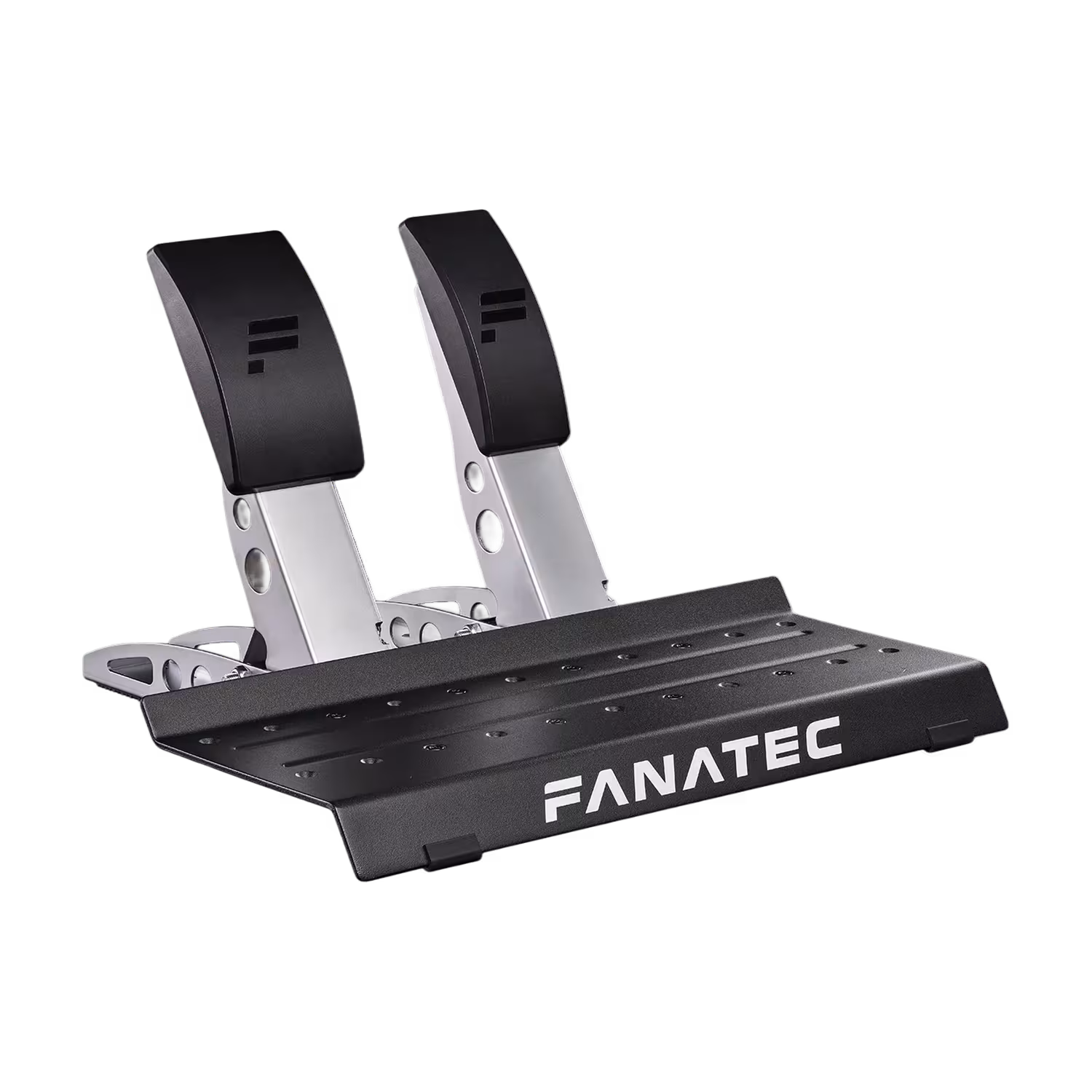

Steel pedals with contactless sensors

The bundle includes two pedals: throttle and brake. Their arms and bases are made from steel, and both axes use contactless 12-bit Hall sensors. The brake has a stiffer spring than the throttle and a PU-foam damper that adds progressive resistance through the pedal travel.

Pedal-module spacing can be adjusted along the heel rest, and the pedal faces offer height adjustment. The modular construction also permits inverted installation in a suitable cockpit. A CSL Pedals Clutch Kit or CSL Pedals Load Cell Kit can expand the set to three pedals. The latter replaces the standard brake with a pressure-sensing module, upgrades the electronics and allows the original brake pedal to become the clutch.

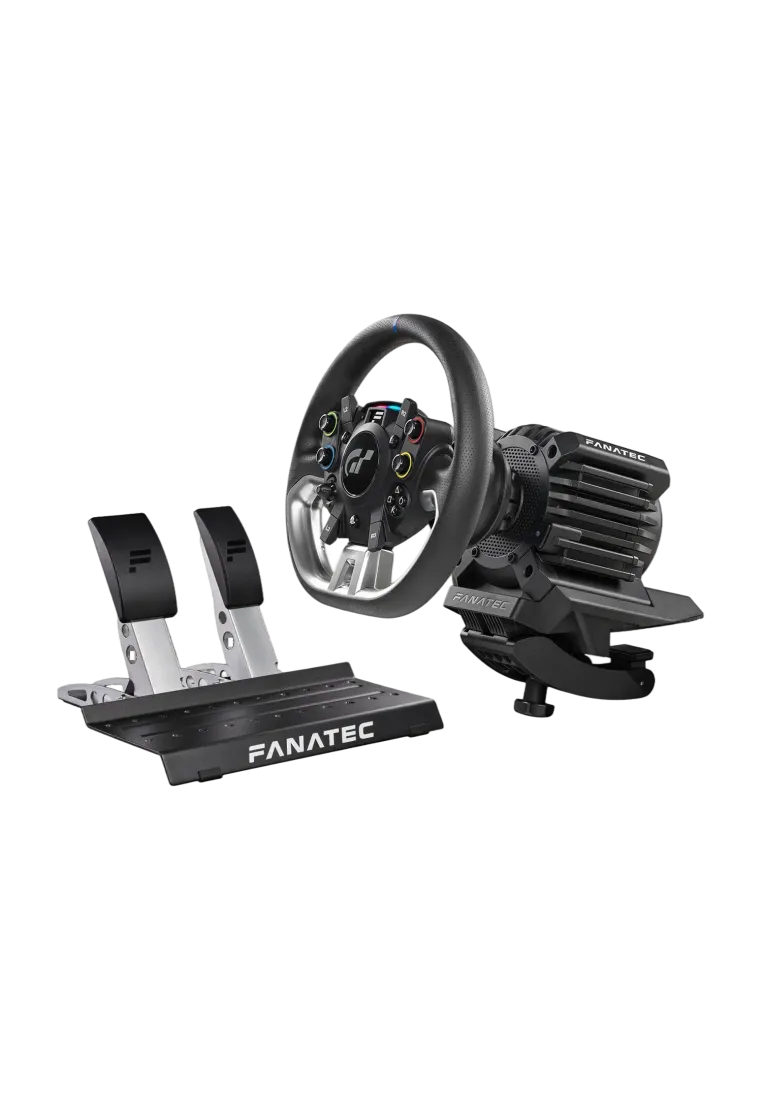

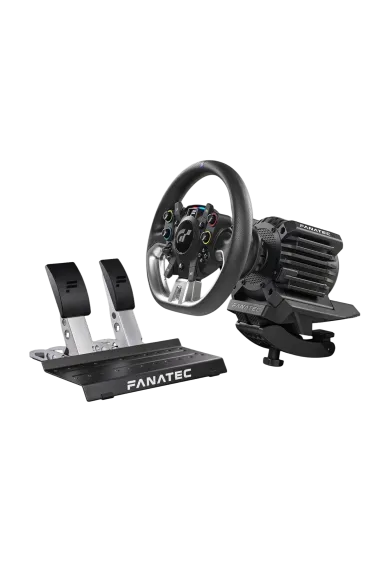

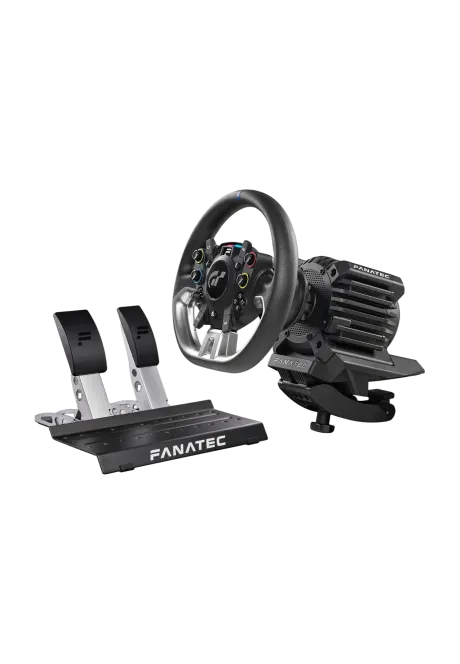

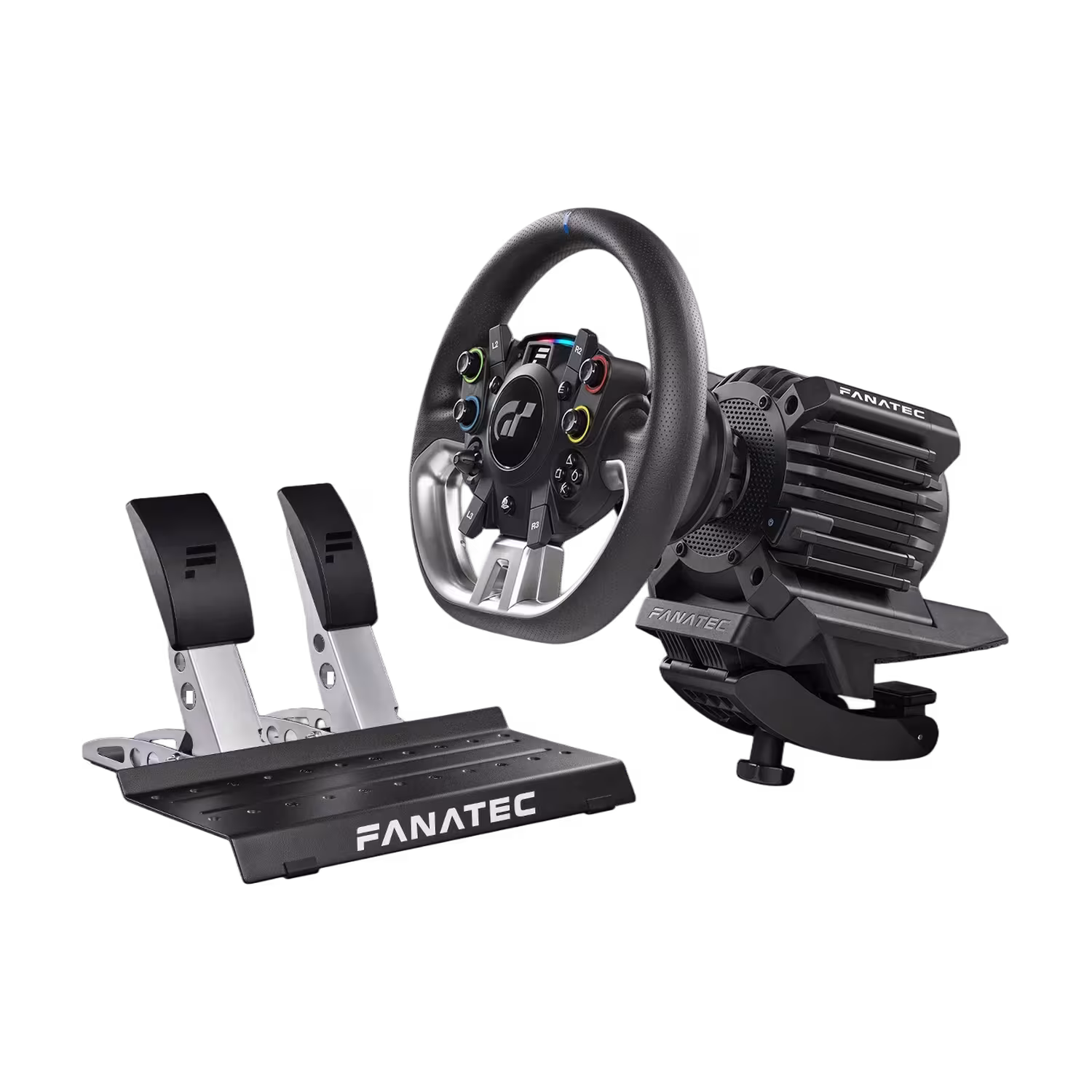

Gran Turismo DD Pro bundle with Direct Drive base, steering wheel and pedals

Direct Drive with 5 Nm peak torque

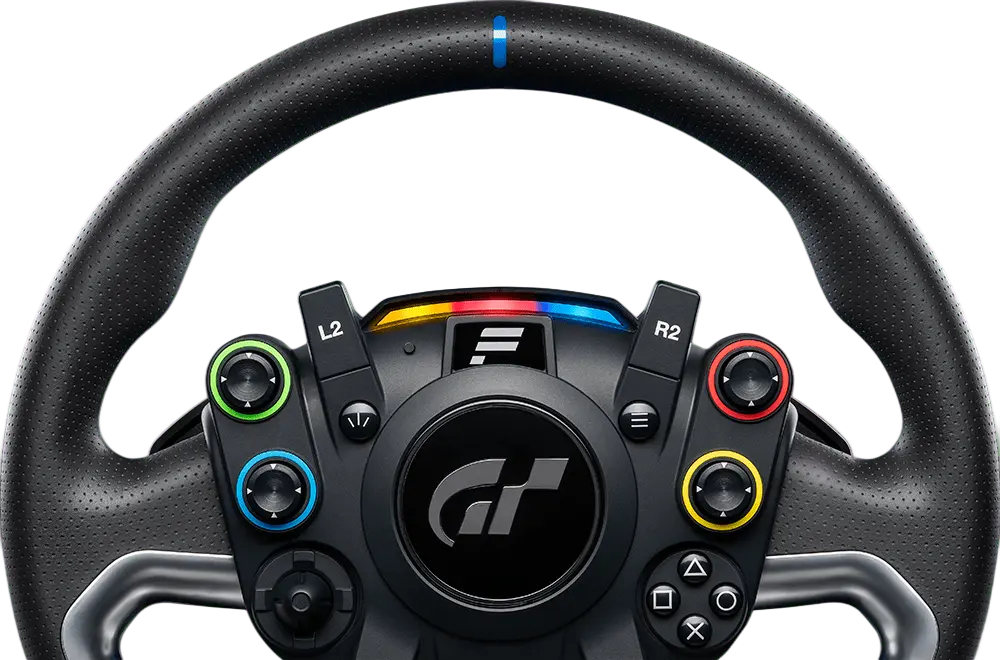

PlayStation controls, OLED and RevLED on the Gran Turismo DD Pro wheel

A steering wheel designed for Gran Turismo

QR2 Lite, table mounting and ecosystem expansion

Steel pedals with contactless sensors

Wheel size: 280
Steering wheel type: D-Shape
Grip material: PU
Display: Yes
RPM Leds: Yes
Max torque: 5 nm
8 nm
QR Included: Yes
Type of pedals: Standard
Position of pedals: Standard

Parameter	Details
Product name	Fanatec Gran Turismo DD Pro 5 Nm QR2 Lite
Type	Complete Direct Drive sim-racing bundle
Platforms	PlayStation 5, PlayStation 4 and PC
Official licence	Gran Turismo and PlayStation 5 / PlayStation 4
Wheel-base drive	Direct Drive
Peak torque	5 Nm with the included power supply from base variant
Torque upgrade	Up to 8 Nm in the variant with stronger power unit 180w
FullForce	Yes; requires firmware 1.5.1.2 or later and implementation by the game
Wheel-base position sensor	High-resolution contactless Hall sensor
Cooling	Fanless passive cooling; aluminium housing acts as a heatsink
Base-side quick release	QR2 Lite Base-Side Type-C, preinstalled
Wheel-side quick release	QR2 Lite Wheel-Side, preinstalled
Steering-wheel diameter	280 mm
Steering-wheel shape	Round
Grip material	Tactile rubber with a blue centre stripe
Steering-wheel construction	Fibreglass-reinforced plastic
Display and LEDs	White OLED and diffused RevLED strip
Controls	11 PlayStation-interface buttons, one five-way directional stick, four additional five-way inputs and shift paddles
Pedals	Two-pedal throttle and brake set
Pedal construction	All-metal construction excluding the pedal faces; steel arms and bases
Pedal sensors	Contactless 12-bit Hall sensors on throttle and brake axes
Pedal adjustment	Module spacing, pedal-face height and inverted-mounting capability
Table clamp	Included; supports tabletops from 5 to 60 mm thick
Wheel-base hard mounting	Side and bottom T-nut rails; four M6 T-nuts included
Ports	Power, USB-C, Shifter 1, Shifter 2 — sequential only, Pedals and Handbrake
What's included	Gran Turismo DD Pro wheel base, QR2 Lite Base-Side Type-C, Gran Turismo steering wheel, QR2 Lite Wheel-Side, two pedals, table clamp, four T-nuts, USB-C to USB-A cable, RJ12 pedal cable, hard-mount pedal spacers, Torx key, 5 Nm power supply and Quick Guide

Platform or accessory	Status	Notes
PlayStation 5	Compatible	Platform compatibility is provided by the licensed wheel base
PlayStation 4	Compatible	Platform compatibility is provided by the licensed wheel base
PC	Compatible	Feature support also depends on the individual game and configuration
Xbox	Not with the included wheel	Other-platform compatibility depends on the steering wheel; an Xbox-licensed Fanatec wheel is required
Fanatec CSL, ClubSport and Podium steering wheels	Conditionally compatible	A matching wheel-side quick release is required
Fanatec pedals	Compatible	Older models without RJ12 may require a cable or adapter
Fanatec shifters	Compatible	Shifter 2 supports sequential operation only
Fanatec handbrakes	Compatible	The wheel base provides a dedicated Handbrake port
Boost Kit 180	Compatible, sold separately	Raises peak torque from 5 to 8 Nm
CSL Pedals Load Cell Kit	Compatible, sold separately	Adds a load-cell brake, third pedal and upgraded electronics
CSL Pedals Clutch Kit	Compatible, sold separately	Adds a third pedal without load-cell braking
CSL Pedals Tuning Kit	Compatible, sold separately	Replaces the standard faces with anodised-aluminium parts
CSL DD Table Clamp	Included	Supports tabletops from 5 to 60 mm thick
ClubSport Table Clamp V2	Compatible	Alternative table-mounting system
Podium Mounting Brackets	Compatible	Require M6 bolts and washers; the base supplies M6 T-nuts for its side rails
Fanatec cockpits	Compatible	Install according to the cockpit instructions and wheel-base hard-mount plan
Third-party cockpits	Verify individually	Compare the mounting holes and required hardware with the official GT DD Pro hard-mount plan

1. What is included with the Fanatec Gran Turismo DD Pro 5 Nm?

A Direct Drive wheel base with QR2 Lite Base-Side, Gran Turismo steering wheel with QR2 Lite Wheel-Side, two pedals, table clamp, 5 Nm power supply, cables, mounting parts and Quick Guide.

2. Which platforms are supported?

PlayStation 5, PlayStation 4 and PC. Support for individual functions also depends on the game.

3. Does the included steering wheel work with Xbox?

It does not enable Xbox compatibility. Within the Fanatec ecosystem, Xbox support requires a steering wheel licensed for that platform.

4. Can the wheel base be upgraded from 5 to 8 Nm?

Yes. If You choose 5nm variant it can be uograded in future. The separately sold Boost Kit 180 is required. The standard power supply included in this bundle enables 5 Nm peak torque.

5. Does the Gran Turismo DD Pro support FullForce?

Yes. It requires firmware 1.5.1.2 or later and a game that implements the FullForce protocol. Firmware is updated through the Fanatec App.

6. Is QR2 Lite already installed?

Yes. The bundle has a preinstalled QR2 Lite Base-Side Type-C on the wheel base and QR2 Lite Wheel-Side on the steering wheel.

7. Do the pedals include a load-cell brake?

No. The standard brake uses a Hall sensor, spring and PU-foam damper. A load-cell brake is available as a separate upgrade.

8. Can a clutch pedal be added?

Yes. Use the CSL Pedals Clutch Kit or the Load Cell Kit, which adds a new brake and allows the original brake pedal to become the clutch.

9. Can the wheel base be installed without a cockpit?

Yes. The supplied clamp supports tabletops between 5 and 60 mm thick. The base can also be hard-mounted through its bottom or side rails.

10. Which accessories connect directly to the wheel base?

Compatible Fanatec pedals, a handbrake and two shifters. The second shifter port supports sequential operation only.

Gran Turismo DD Pro Direct Drive wheel base
QR2 Lite Base-Side (Type-C), preinstalled
Steering wheel for Gran Turismo DD Pro
QR2 Lite Wheel-Side, preinstalled
Pedals for Gran Turismo DD Pro — two-pedal set
Table clamp
4 T-nuts for the rail-mount system
USB cable (Type-C to Type-A)
RJ12 connection cable for the pedals
Pedal spacers for hard-mounting
Torx key
Boost Kit 180 power supply — regional version, packaged separately; 90 W power supply not included
Quick Guide
