Model:

Xcite XBS100-4

Name: Xcite XBS100-4
Brand: Xcite
SKU: XBS100-4
Price: 418.7 PLN
Availability: InStock

Reference XBS100-4

418.70zł

Ready to send

Xcite XBS100-4 is a passive 4-ohm bass shaker for powerful tactile feedback in sim racing, gaming and home cinema. It provides ±12 mm excursion, 324 N peak force and an 11 Hz - 1 kHz range. The aluminium enclosure measures 156 mm across and 48.5 mm high. An external amplifier is required.

Ask about product

You will receive an 4.19zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

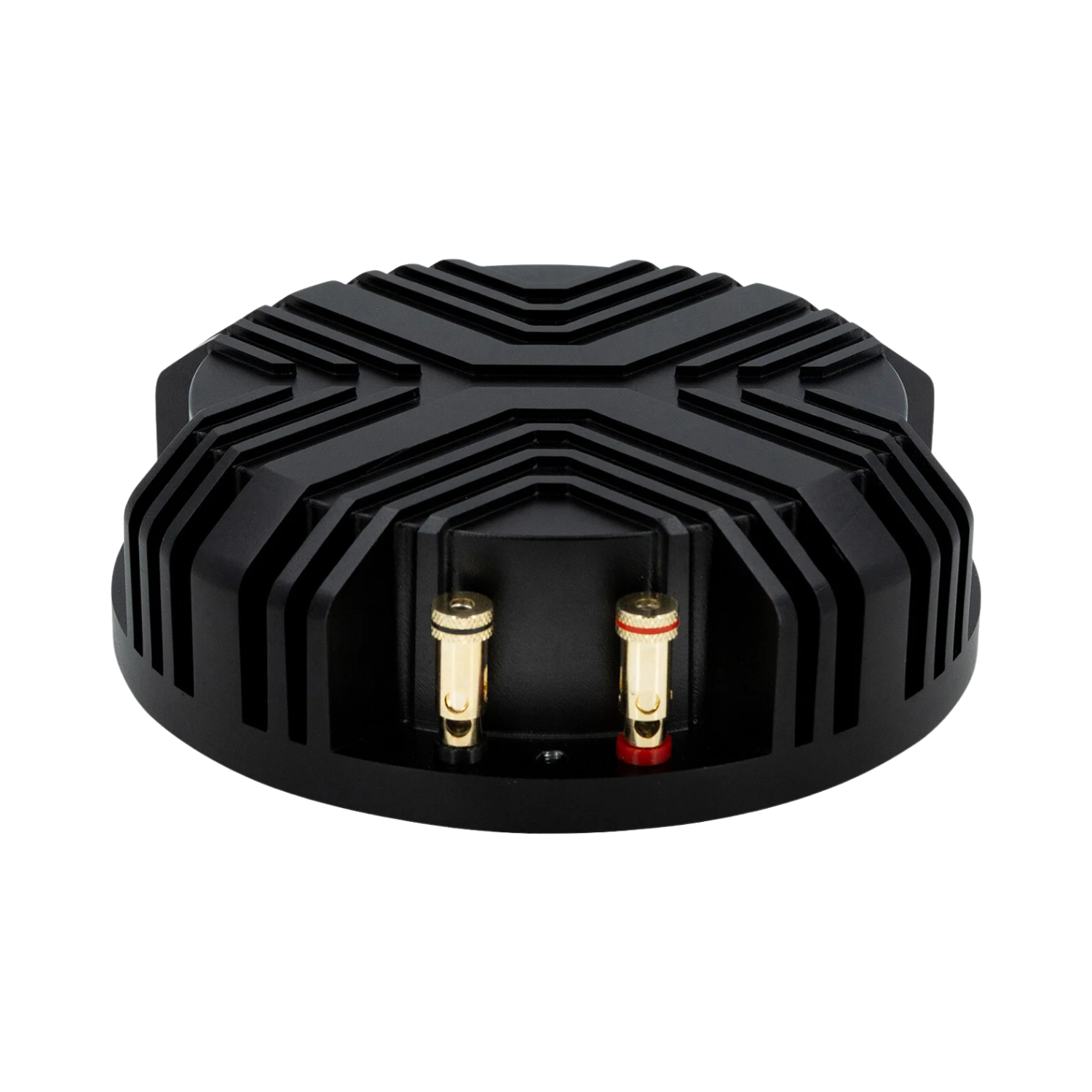

Powerful tactile feedback for a seat or cockpit

Xcite XBS100-4 converts an amplified audio signal into mechanical movement transferred to a seat, platform or cockpit structure. In sim racing, it makes engine speed, gear shifts, kerbs, surface texture, wheel slip and ABS physically perceptible without increasing speaker volume.

The ±12 mm excursion, 324 N peak force and 215 N average force provide clear feedback through heavier rig components. This model suits installations where one transducer needs to move a seat, solid platform or larger part of an aluminium-profile cockpit.

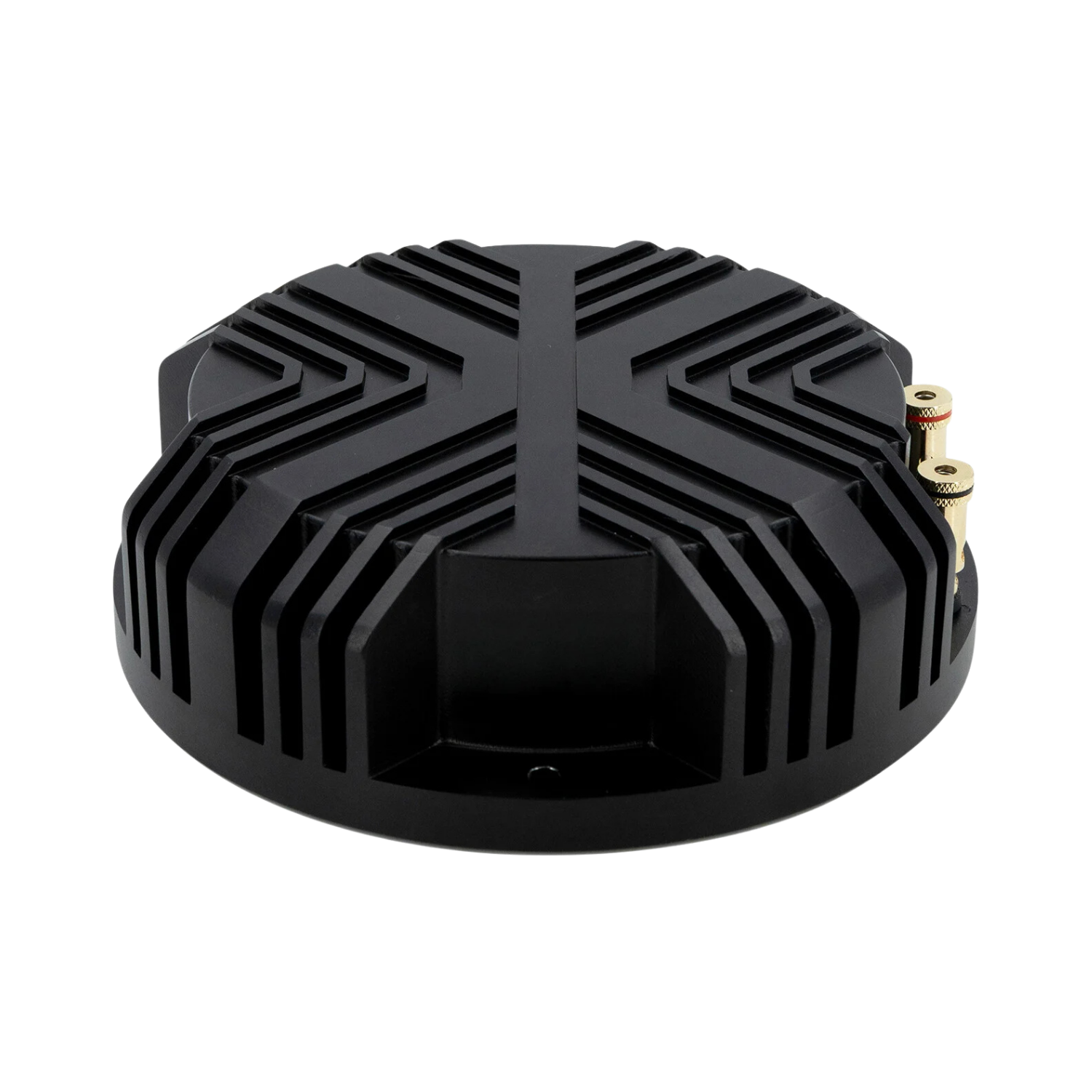

SpiderCore, a large voice coil and response from 11 Hz

The SpiderCore architecture integrates the suspension into the motor core. A neodymium motor, four-layer 114 mm voice coil and double steel suspension provide fast, controlled movement despite the considerable moving mass.

The 11 Hz - 1 kHz range covers very deep impacts and shorter details. A 22.1 Hz resonant frequency supports low-frequency effects, while force sensitivity of 8.2 N/W helps produce a clear response at lower signal levels. The aluminium enclosure assists with heat dissipation.

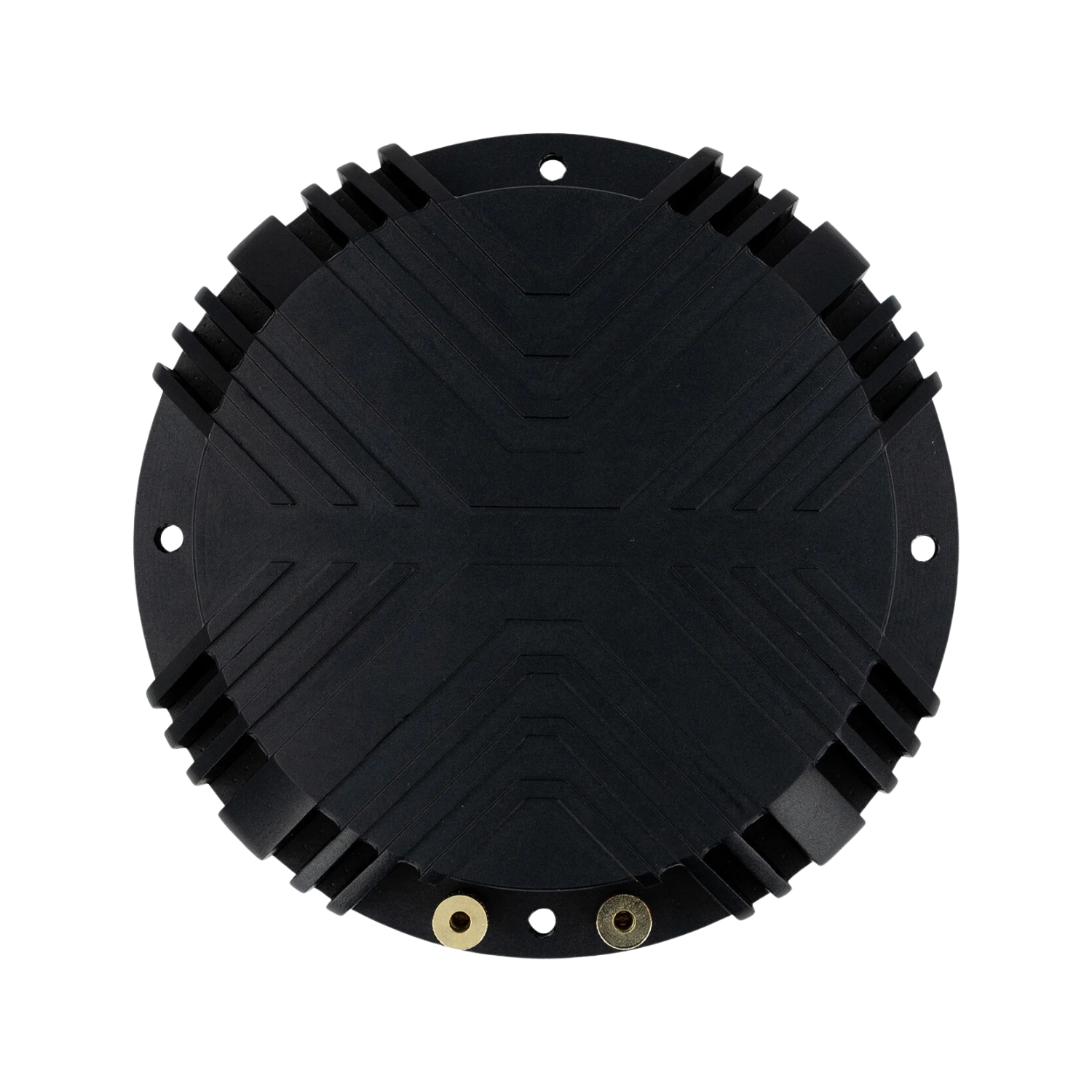

Rigid mounting and a 48.5 mm high enclosure

The XBS100-4 has a 156 mm outer diameter, 48.5 mm height and 1570 g total weight. Its official datasheet states a 142.2 mm mounting diameter. Attach the transducer to a rigid plate, bracket or profile because flexible mounts and soft upholstery absorb energy and reduce effect definition.

Transfer the hole positions from the technical drawing or delivered unit before drilling. Allow access to the terminals and choose screws suitable for the bracket thickness. The IP66 rating applies to the transducer itself, not to the wiring, amplifier or other system components.

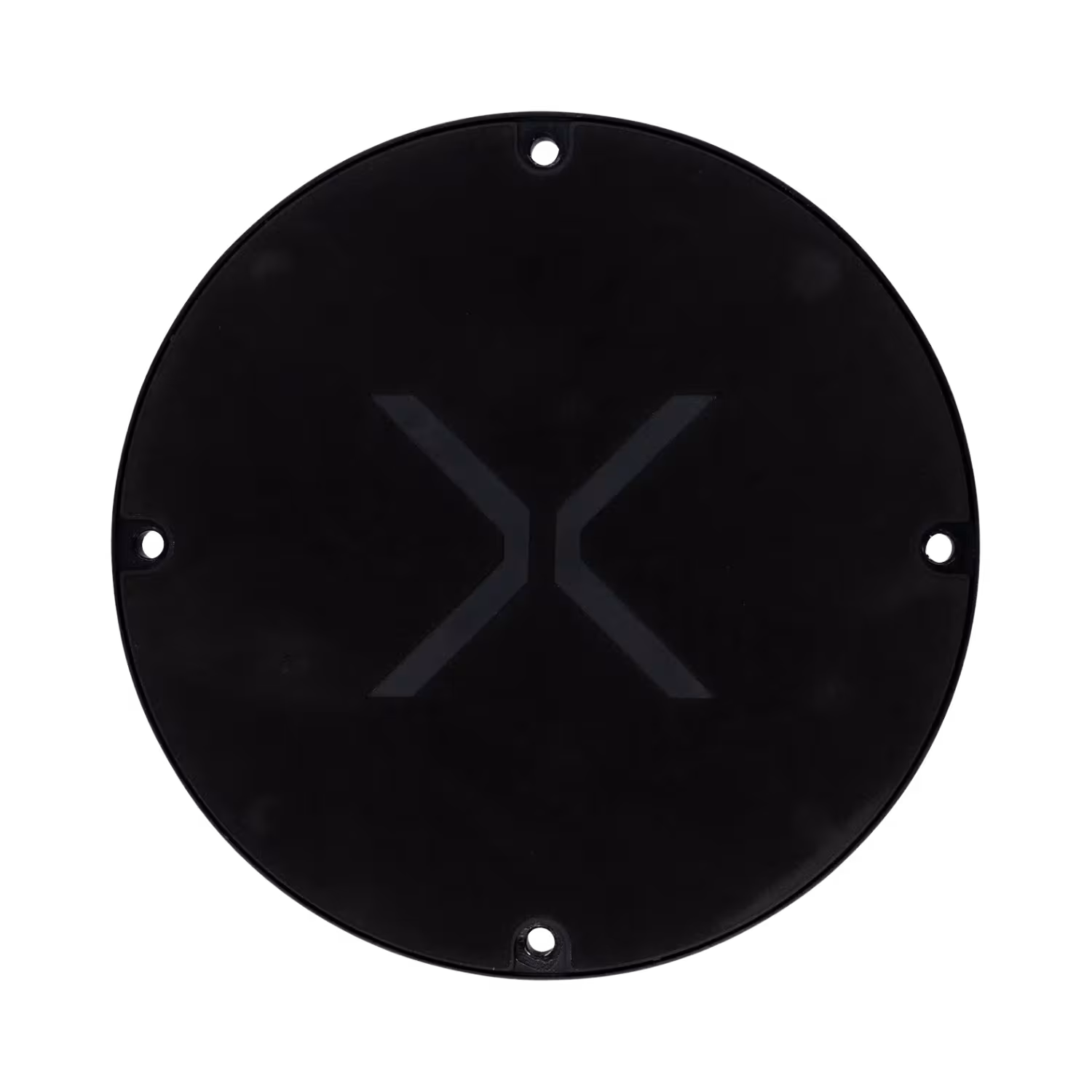

A passive 4-ohm transducer in a SimHub system

The XBS100-4 has no internal power supply, USB connection, sound card or telemetry controller. It requires an external amplifier stable with a 4-ohm load, speaker cable and an audio source. The amplifier and cables are not included.

In a sim-racing system, SimHub generates effects from telemetry, the sound card passes the signal to the amplifier and the amplifier drives the bass shaker. Begin with a low output level, enable effects one at a time and raise intensity gradually while monitoring temperature and distortion.

Powerful tactile feedback for a seat or cockpit

SpiderCore, a large voice coil and response from 11 Hz

Rigid mounting and a 48.5 mm high enclosure

A passive 4-ohm transducer in a SimHub system

Xcite XBS100-4 Datasheet

Download (1.11MB)

Technical specification - Xcite XBS100-4
Performance
Product type	Passive bass shaker / tactile transducer
Nominal impedance	4 ohms
Rms Noise Test	100 W, IEC 60268-5
Long-term maximum power	500 W, IEC 60268-5
Frequency range	11 Hz - 1 kHz, -10 dB
Resonant frequency Fs	22.1 Hz
Mechanical Xmax	±12.0 mm
Peak / average force	324 N / 215 N
Force sensitivity	8.2 N/W, average 10-100 Hz
Electrical and mechanical data
DC resistance Re	3.89 ohms
Inductance Le	0.31 mH
Stiffness Kms	13.4 N/mm
Force factor Bl	14.6 N/A
Moving mass Mms	695 g
Mechanical damping Rms	16.7 kg/s
Qts / Qms / Qes	1.35 / 5.77 / 1.76
Construction and mounting
Outer diameter	156 mm
Total height	48.5 mm
Total weight	1570 g
Mounting diameter	142.2 mm
Voice coil	Ø114 mm, 4 layers
Materials	Aluminium basket, steel suspension
IP rating	IP66

Xcite XBS100-4 - questions and answers

1. What is the Xcite XBS100-4?

It is a passive 4-ohm bass shaker that converts an amplifier signal into vibration in a seat, platform or another rigid structure.

2. Is the XBS100-4 rated at 100 W or 500 W?

The figures describe different IEC 60268-5 tests. Xcite specifies 100 W for the Rms Noise Test and 500 W as Long-term Max Power. The 500 W value must not be described as 500 W RMS.

3. Does the XBS100-4 require an amplifier?

Yes. This is a passive transducer and requires an external amplifier compatible with a 4-ohm load. An amplifier is not included in this offer.

4. Does the bass shaker connect directly to a computer?

No. The XBS100-4 has no USB connection or internal sound card. The computer passes its signal to an external amplifier through a suitable audio output or interface.

5. Does the XBS100-4 work with SimHub?

Yes, as part of an audio chain. SimHub generates effects from telemetry, while a sound card and amplifier deliver the signal to the bass shaker.

6. Where can the XBS100-4 be mounted?

Typical locations include a seat bracket, rigid platform, cockpit plate or another component intended to vibrate. The connection must be secure and stiff.

7. What are the dimensions of the XBS100-4?

The enclosure is 156 mm in diameter and 48.5 mm high. Total weight is 1570 g, so the supporting bracket should be suitably rigid.

8. What is the mounting diameter?

The official datasheet states a 142.2 mm mounting diameter. Transfer the actual hole positions from the technical drawing or delivered unit before drilling.

9. What does the IP66 rating mean?

IP66 applies to the transducer itself. It does not make the amplifier, cables, terminals or other system components resistant to dust or water.

10. What is included?

The offer covers one Xcite XBS100-4. Amplifier, sound card, cables and mounting parts are not included unless the sales page explicitly states otherwise.

Component	Role in the system
Xcite XBS100-4	Converts an amplified audio signal into vibration in the structure.
External amplifier	Must support a 4-ohm load and be selected for the transducer's specifications. It is not included.
Audio source	Passes the effect signal from a computer, interface or audio system to the amplifier.
SimHub, optional	Generates audio effects from telemetry provided by a supported game.
Speaker cable	Connects the amplifier output to the XBS100-4 terminals.
Rigid mount	Transfers energy into a seat, platform or cockpit component.
