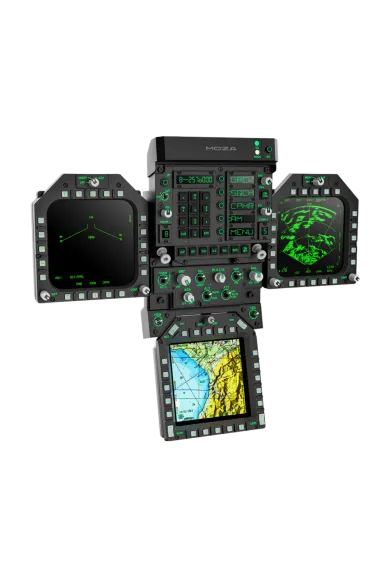

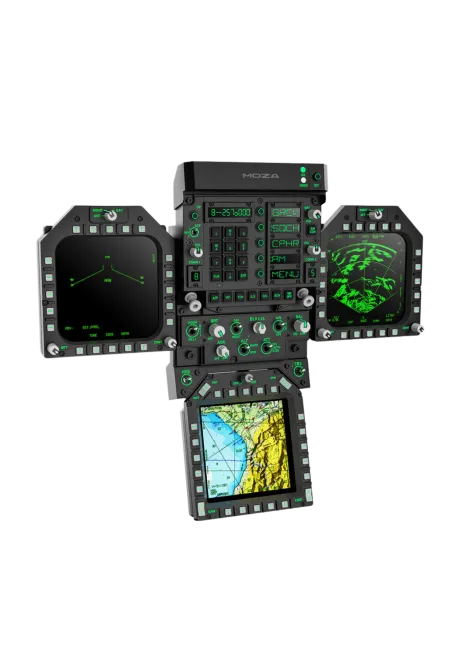

Moza FMP18 Bundle front left view

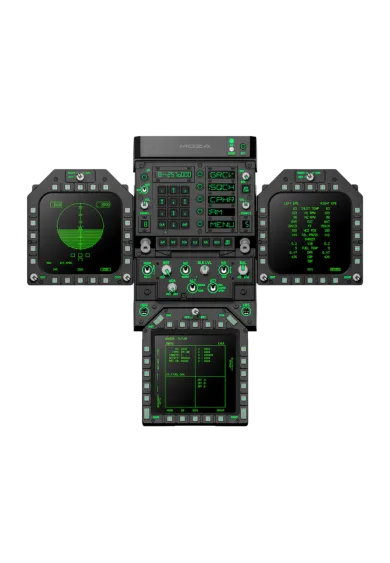

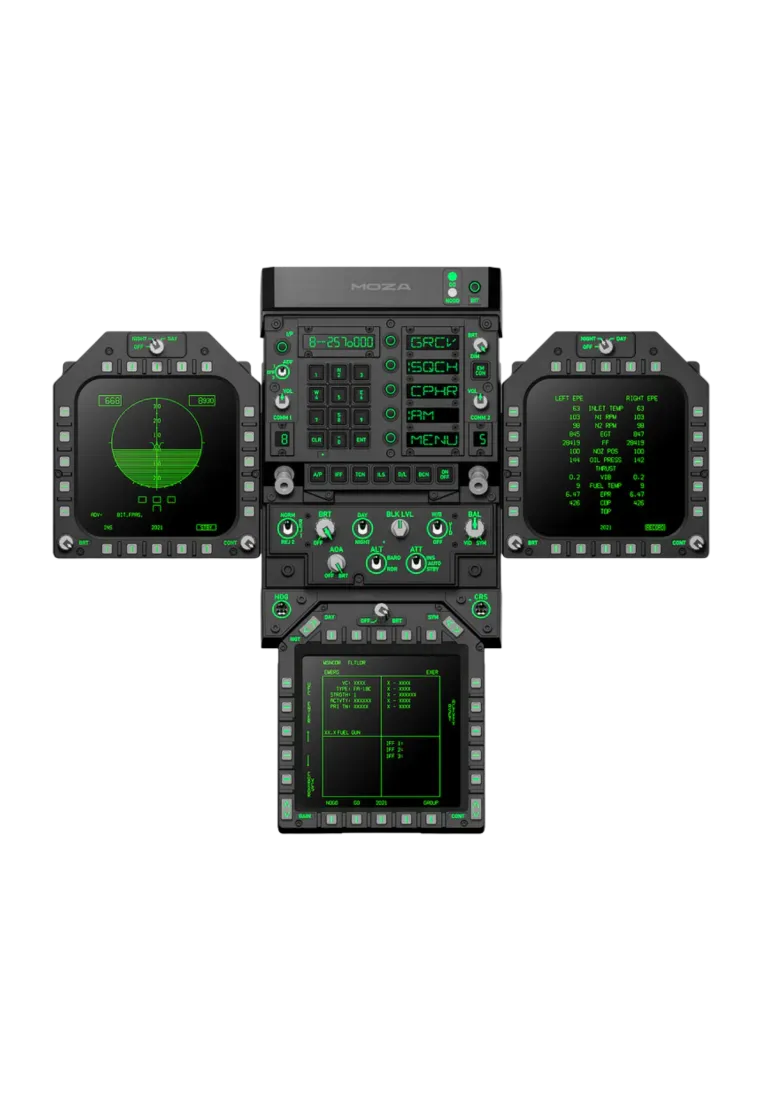

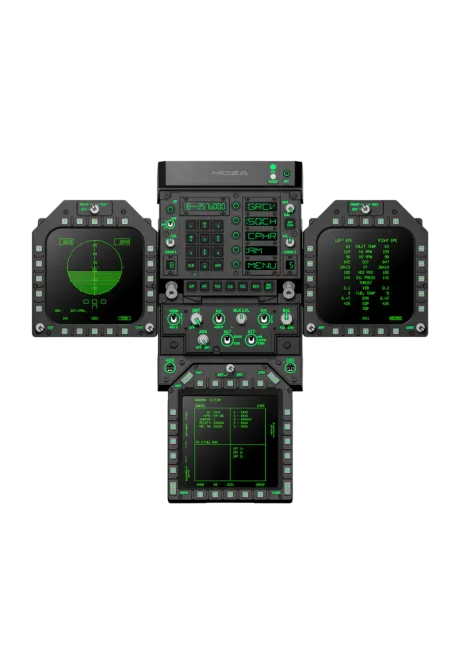

Moza FMP18 Bundle front view

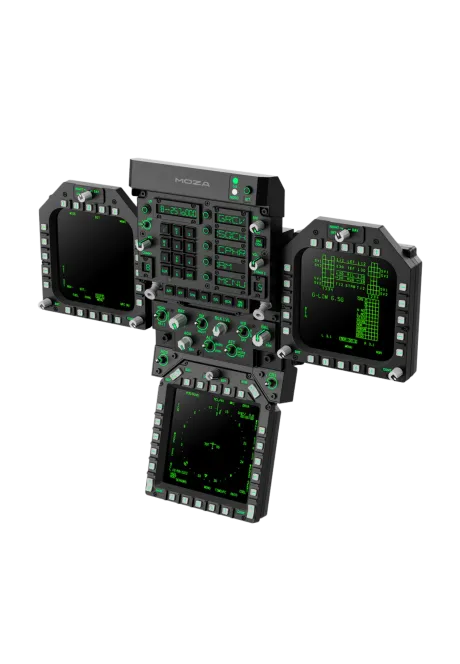

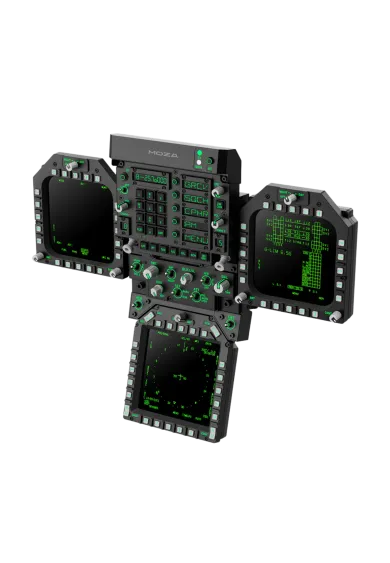

Moza FMP18 Bundle front right view

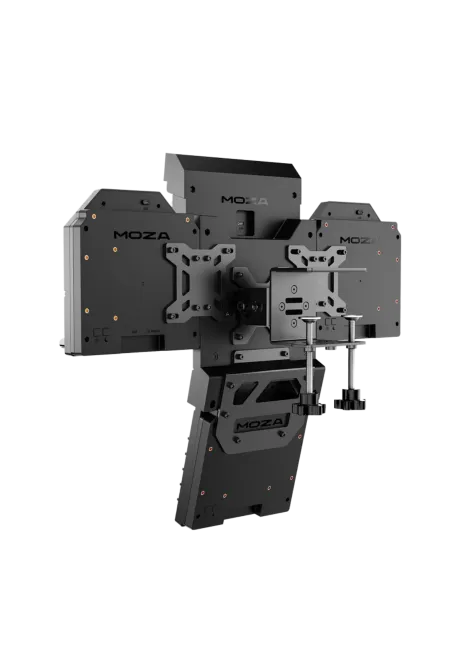

Moza FMP18 Bundle rear view
  • New
Moza FMP18 Bundle front left view
Moza FMP18 Bundle front view
Moza FMP18 Bundle front right view
Moza FMP18 Bundle rear view

Moza FMP18 Panel Bundle

3,130.89zł

3,130.89zł
PREORDER IS COMING

The MOZA FMP18 Panel Bundle is a modular flight cockpit panel with three square 7.1-inch displays, physical controls, magnetic bezels and adjustable lighting. MOZA Cockpit keeps configuration straightforward and reduces mouse use. Ideal combined with MOZA MTP throttle and MOZA MTLP panel to create F/A-18C HORNET simulation cockpit at home.


Ask about product
Zapytanie dotyczy produktu: Moza FMP18 Panel Bundle
* - pola obowiązkowe
Send
You will receive an 31.31zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

You might also like

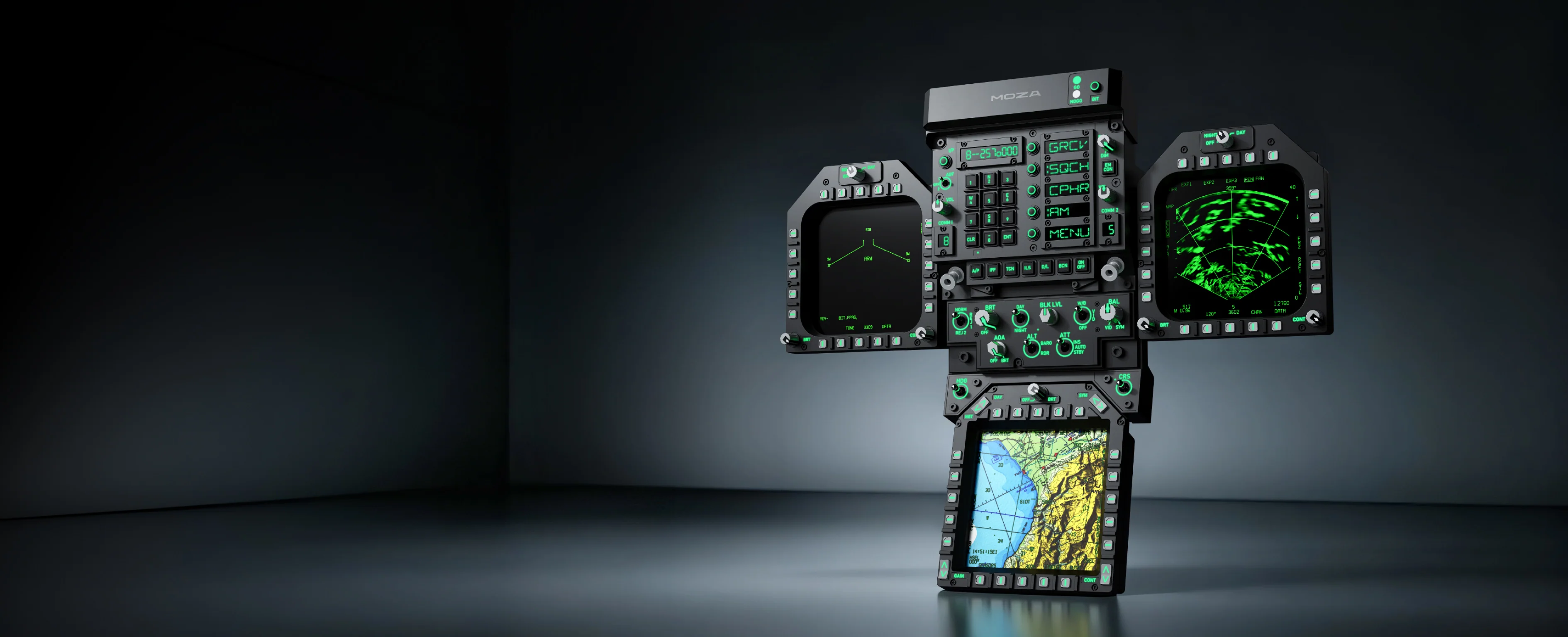

Moza FMP18 Bundle - improve immersion

MOZA FMP18 Bundle – a physical front panel for your simulator

The MOZA FMP18 Panel Bundle moves key displays and controls away from the virtual cockpit and places them directly in front of the pilot. It reduces the need to reach for a mouse when changing pages, entering commands or checking flight information.

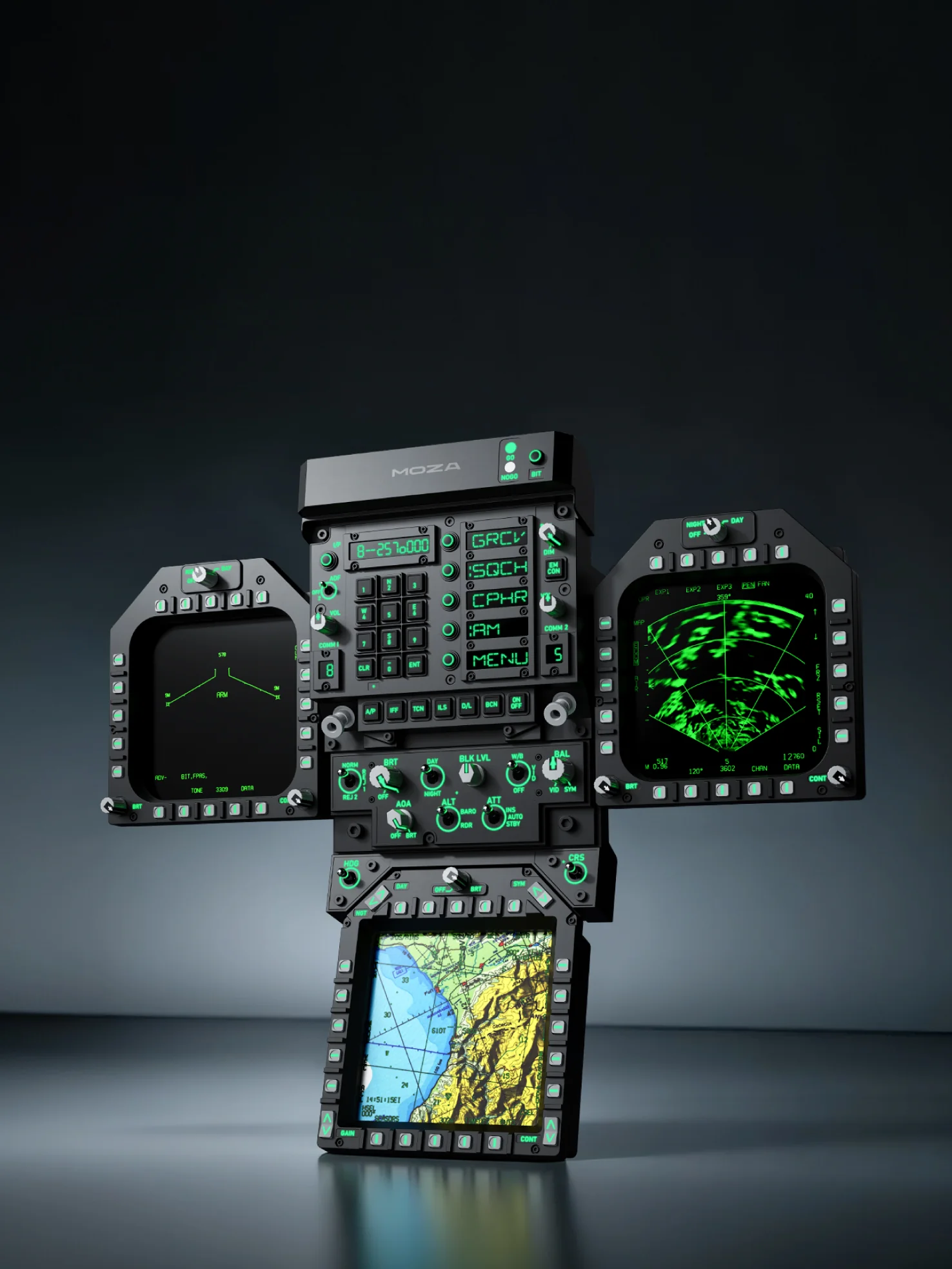

Moza FMP18 Bundle - less mouse and keyboard

MOZA FMP18 Bundle – a physical front panel for your simulator

The MOZA FMP18 Panel Bundle moves key displays and controls away from the virtual cockpit and places them directly in front of the pilot. It reduces the need to reach for a mouse when changing pages, entering commands or checking flight information.

Proffesional replica of F/A-18C cockpit

7.1 inch display

Snap-On Magnetic buttons bezel

Signal and Power with one USB-C per display

Quick angle change

Expanded functionality mode

Proffesional replica of F/A-18C cockpit

7.1 inch display

Snap-On Magnetic buttons bezel

Signal and Power with one USB-C per display

Quick angle change

Expanded functionality mode

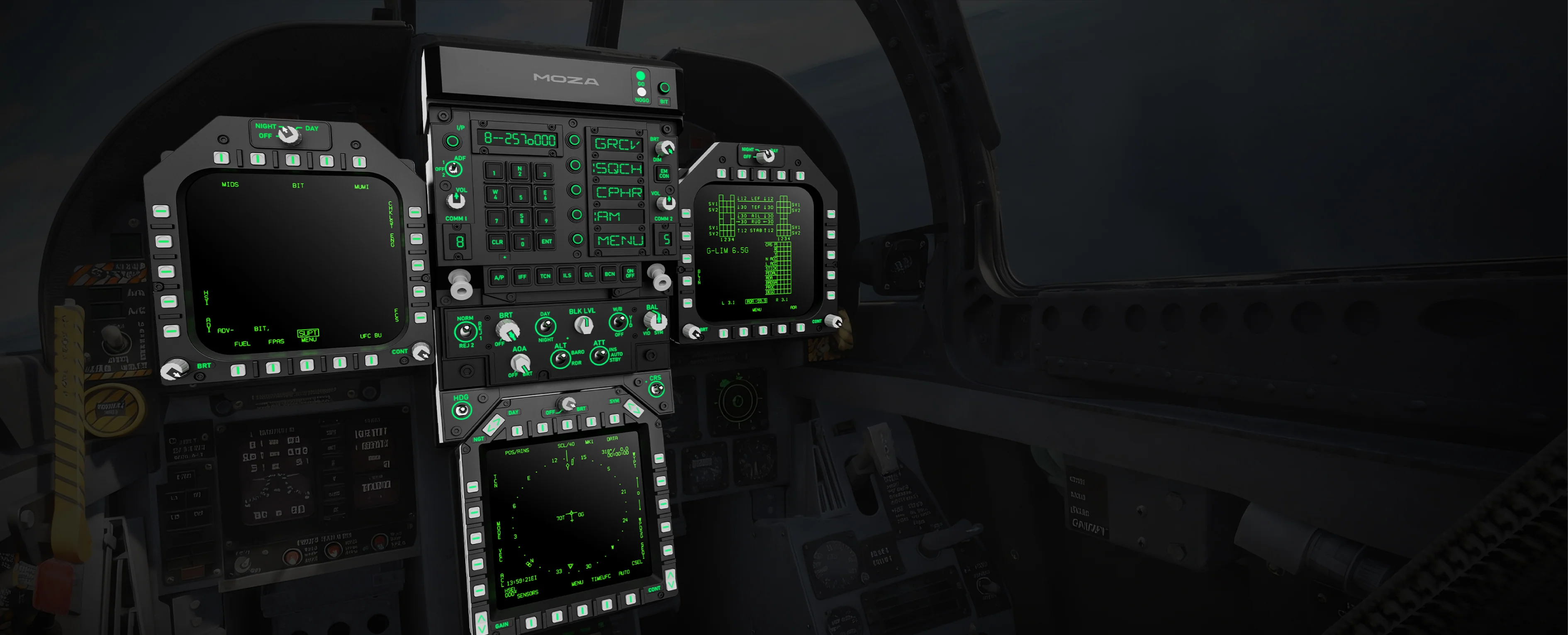

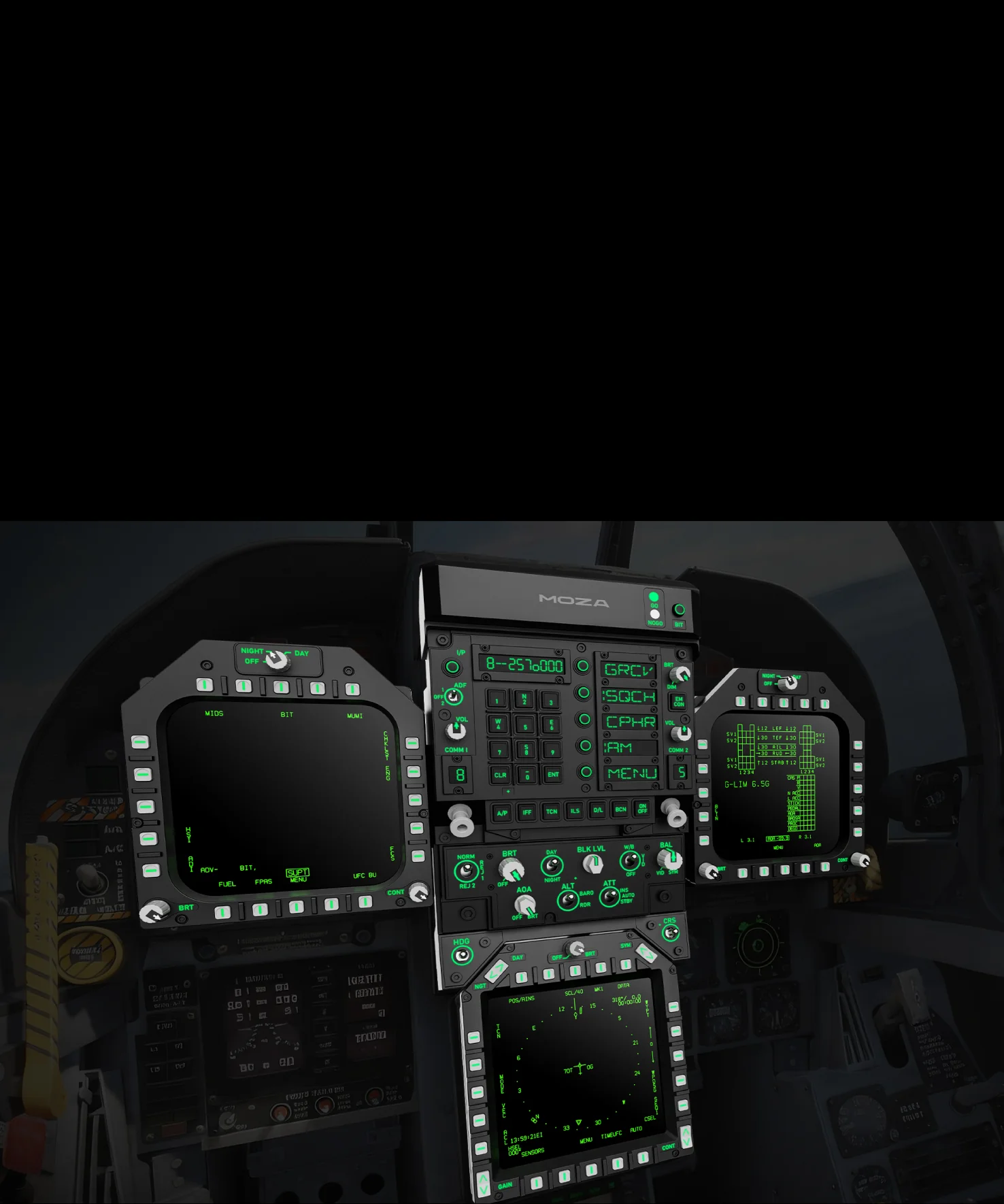

Moza FMP18 Bundle - panel arrangement

Inspired by real aircraft F/A-18C HORNET

The position of the screens, switches and front control panel takes its cues from classic carrier-based aircraft. More than a visual addition, the arrangement creates a cockpit that feels organised and makes individual functions easier to locate during a busy flight.
Moza FMP18 Bundle - panel arrangement

Inspired by real aircraft F/A-18C HORNET

The position of the screens, switches and front control panel takes its cues from classic carrier-based aircraft. More than a visual addition, the arrangement creates a cockpit that feels organised and makes individual functions easier to locate during a busy flight.

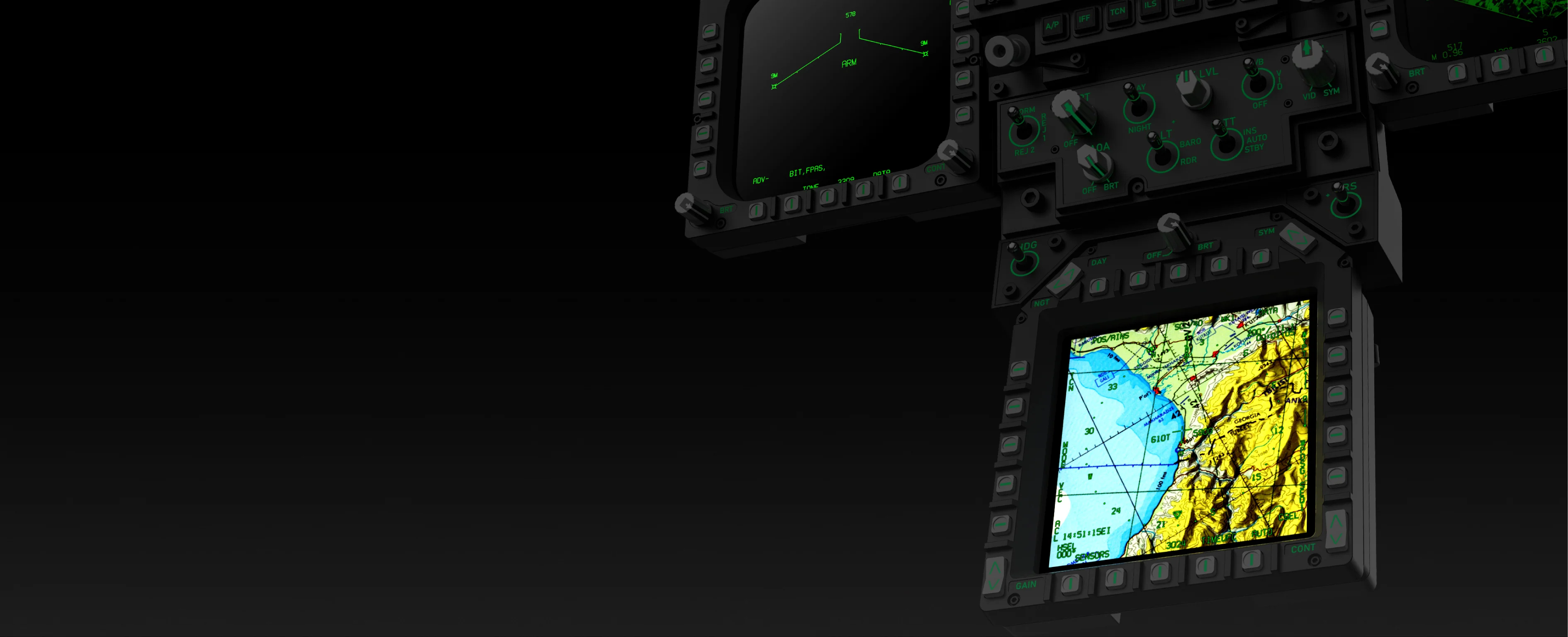

Moza FMP18 Bundle - display specification

Three square displays without awkward cropping

The DDI and AMPCD modules use 7.1-inch visible display areas with an 800 × 800 px resolution. Their square shape is better suited to aircraft instruments than a conventional widescreen panel. Each display operates at a 60 Hz refresh rate.

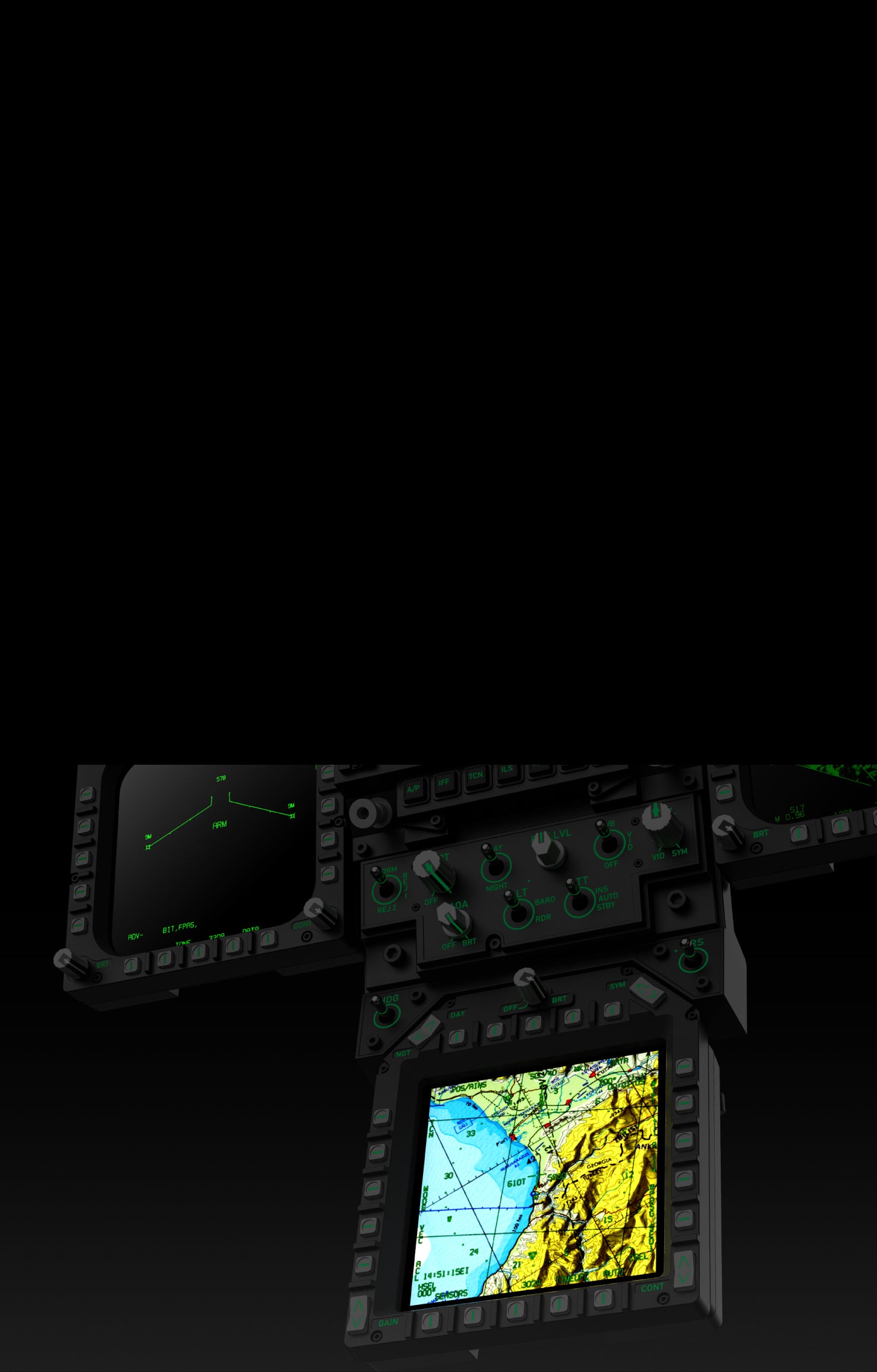

Moza FMP18 Bundle - display specification

Three square displays without awkward cropping

The DDI and AMPCD modules use 7.1-inch visible display areas with an 800 × 800 px resolution. Their square shape is better suited to aircraft instruments than a conventional widescreen panel. Each display operates at a 60 Hz refresh rate.

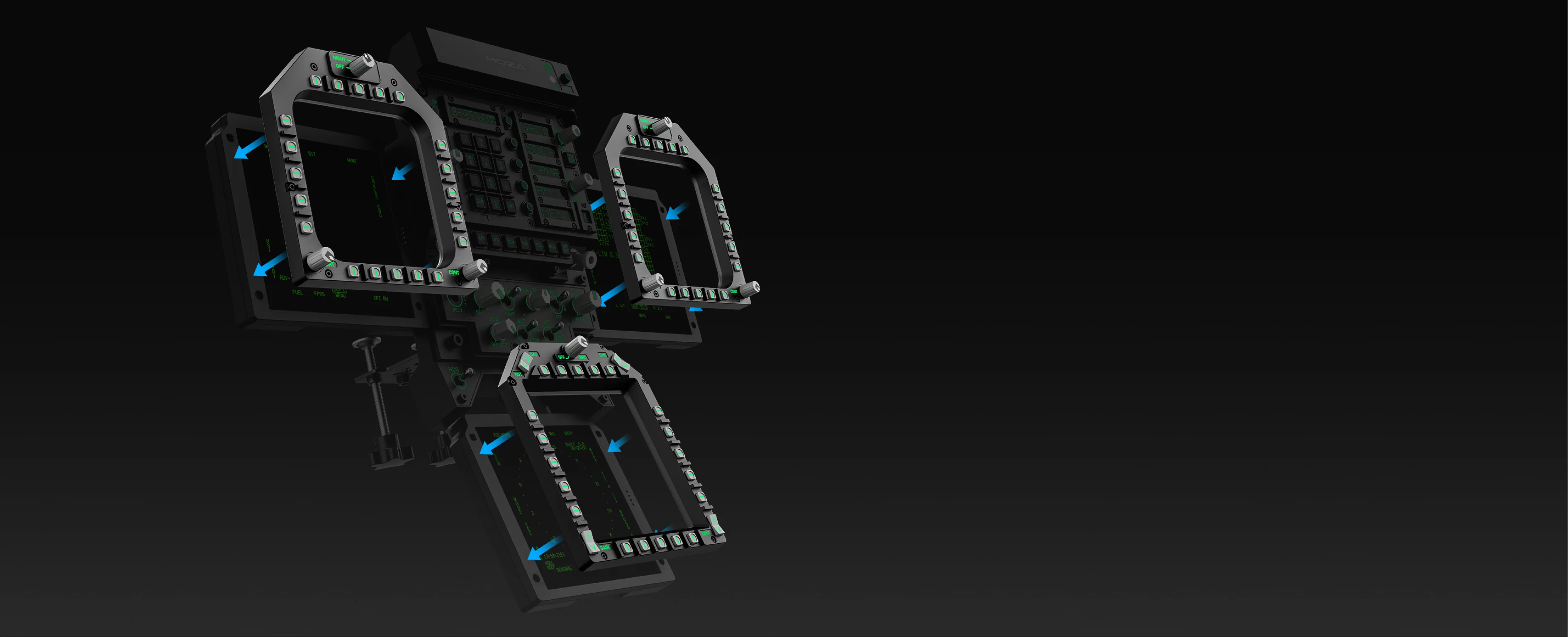

Moza FMP18 Bundle - magnetic button front

Magnetic bezels make changes quick

Each control bezel attaches magnetically and communicates with the display through pogo-pin contacts. It can be removed, repositioned or refitted without undoing screws, making it much easier to alter the panel layout or use an individual screen elsewhere.

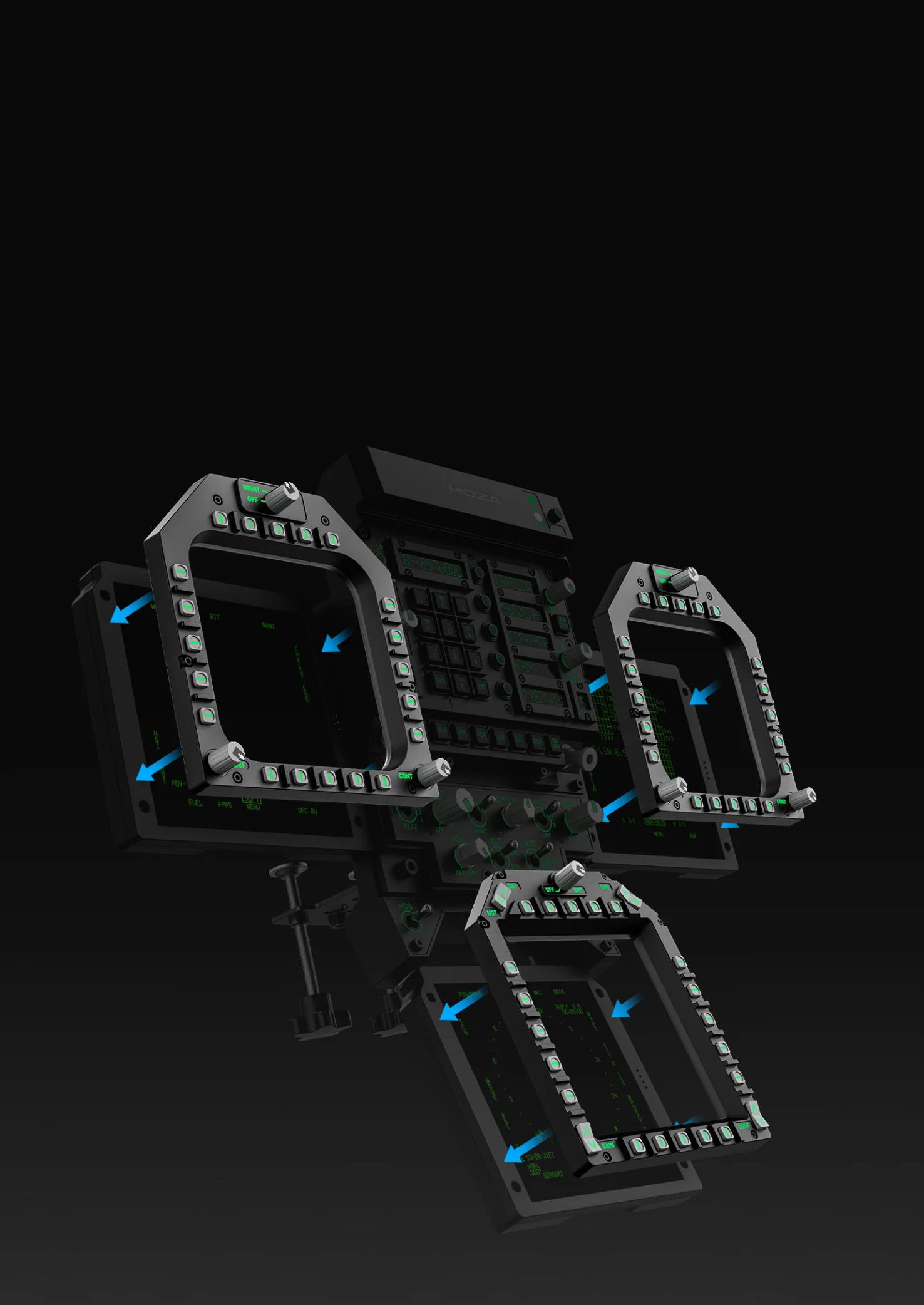

Moza FMP18 Bundle - snap-on magnetic bezels

Magnetic bezels make changes quick

Each control bezel attaches magnetically and communicates with the display through pogo-pin contacts. It can be removed, repositioned or refitted without undoing screws, making it much easier to alter the panel layout or use an individual screen elsewhere.

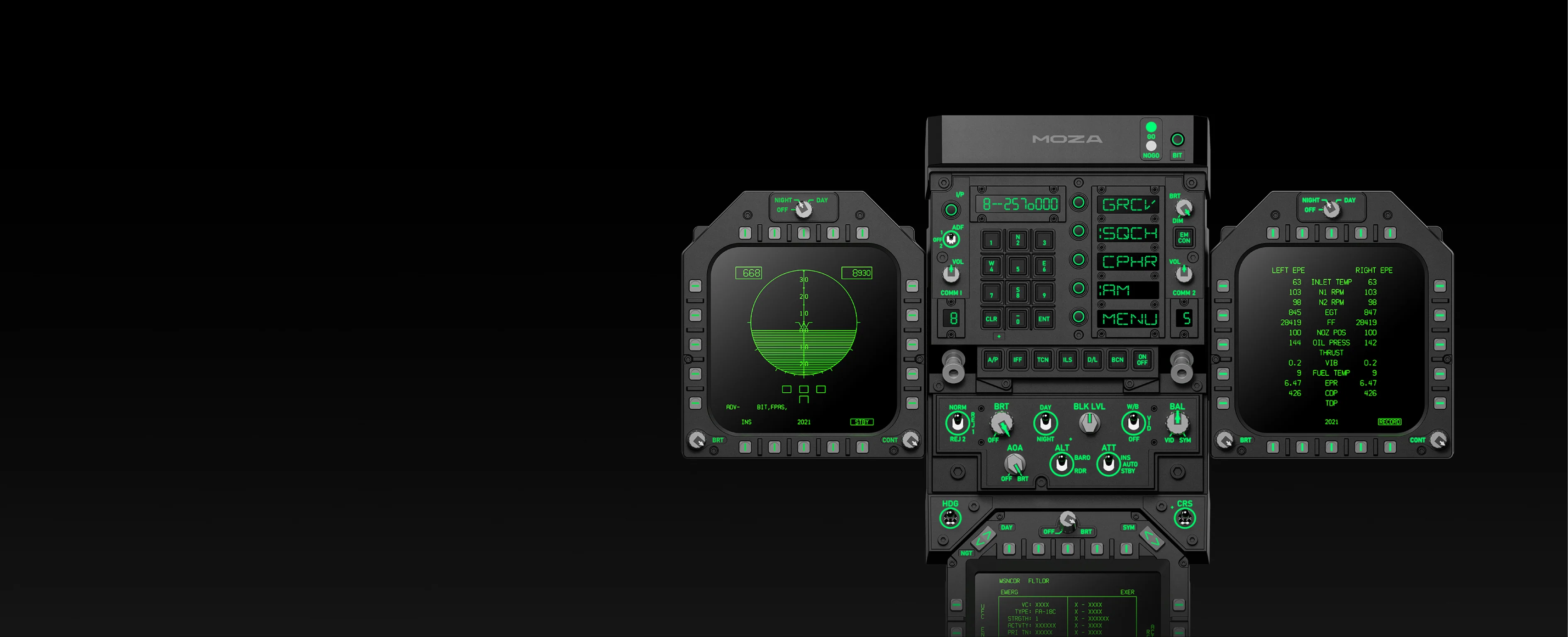

Moza FMP18 Bundle - adjustable lighting for night and day

Lighting for bright rooms and night flights

Display brightness can be adjusted across 10 levels, while the buttons and rotary controls offer 15 backlight settings. The panel remains easy to read in daylight but can also be dimmed enough for a comfortable night flight.

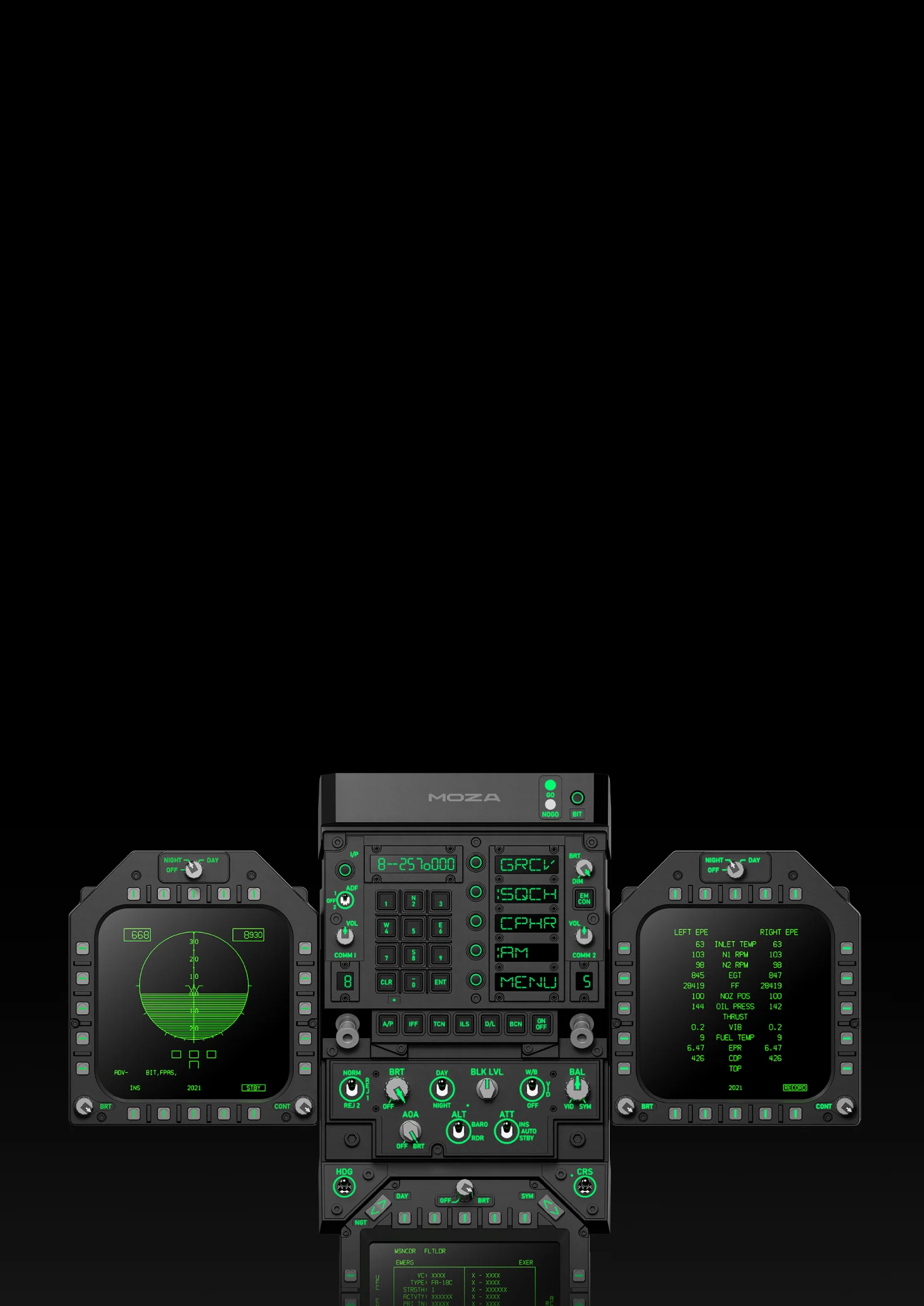

Moza FMP18 Bundle - lighting adjustment

Lighting for bright rooms and night flights

Display brightness can be adjusted across 10 levels, while the buttons and rotary controls offer 15 backlight settings. The panel remains easy to read in daylight but can also be dimmed enough for a comfortable night flight.

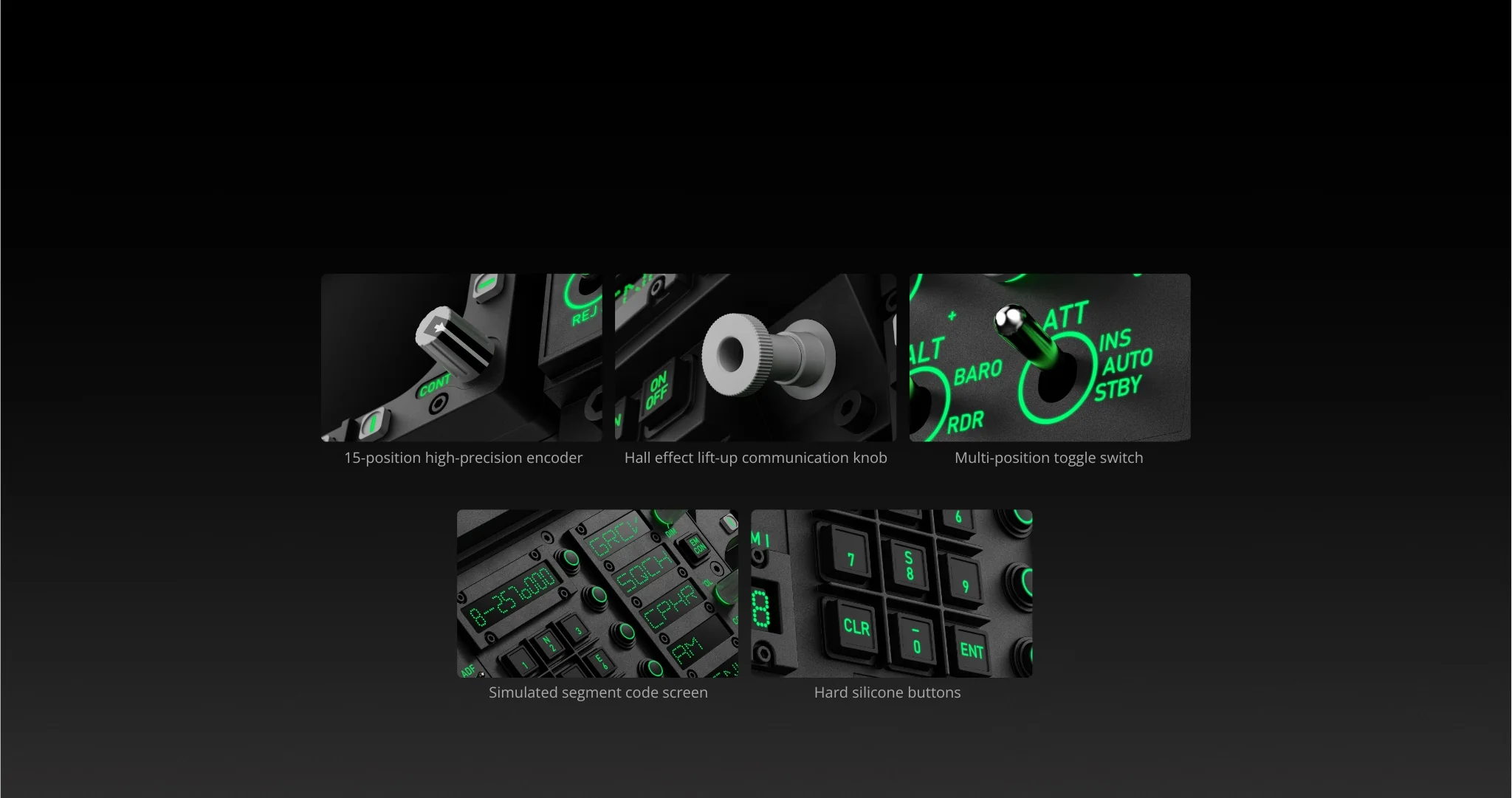

Moza FMP18 Bundle - how it's controlled
Satisfying *CLICK*

Controls with a definite response

The complete panel includes 95 buttons, 16 rotary controls and 7 toggle switches. Their tactile response provides clear confirmation under the fingers, helping the pilot operate familiar functions without having to look down after every input.
Moza FMP18 Bundle - buttons, switches and encoders
Satisfying *CLICK*

Controls with a definite response

The complete panel includes 95 buttons, 16 rotary controls and 7 toggle switches. Their tactile response provides clear confirmation under the fingers, helping the pilot operate familiar functions without having to look down after every input.

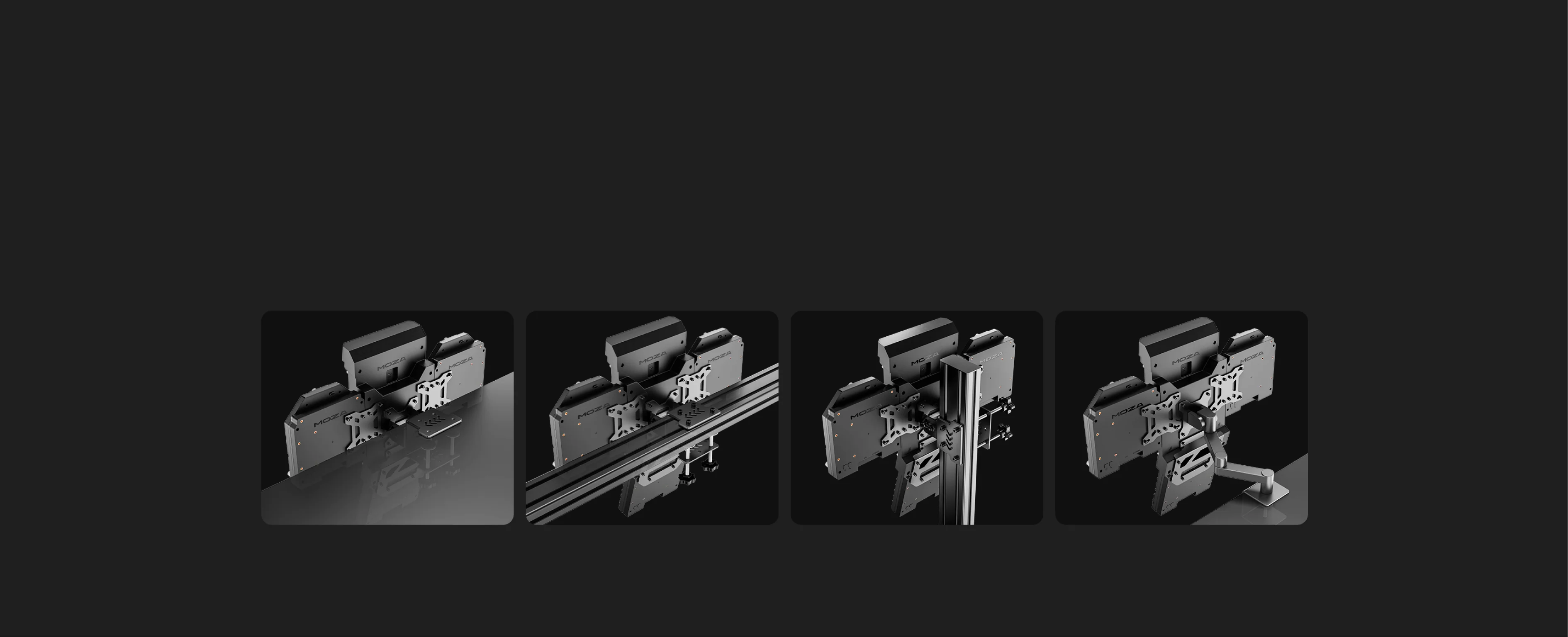

Moza FMP18 Bundle - vesa mount

VESA mounting keeps the cockpit flexible

The DDI, AMPCD and FPP modules use a standard 75 × 75 mm VESA pattern designed for M4 × 10 mm screws. They can be fitted to the MOZA mounting system, an aluminium-profile cockpit or another compatible desktop, wall or suspended VESA mount.

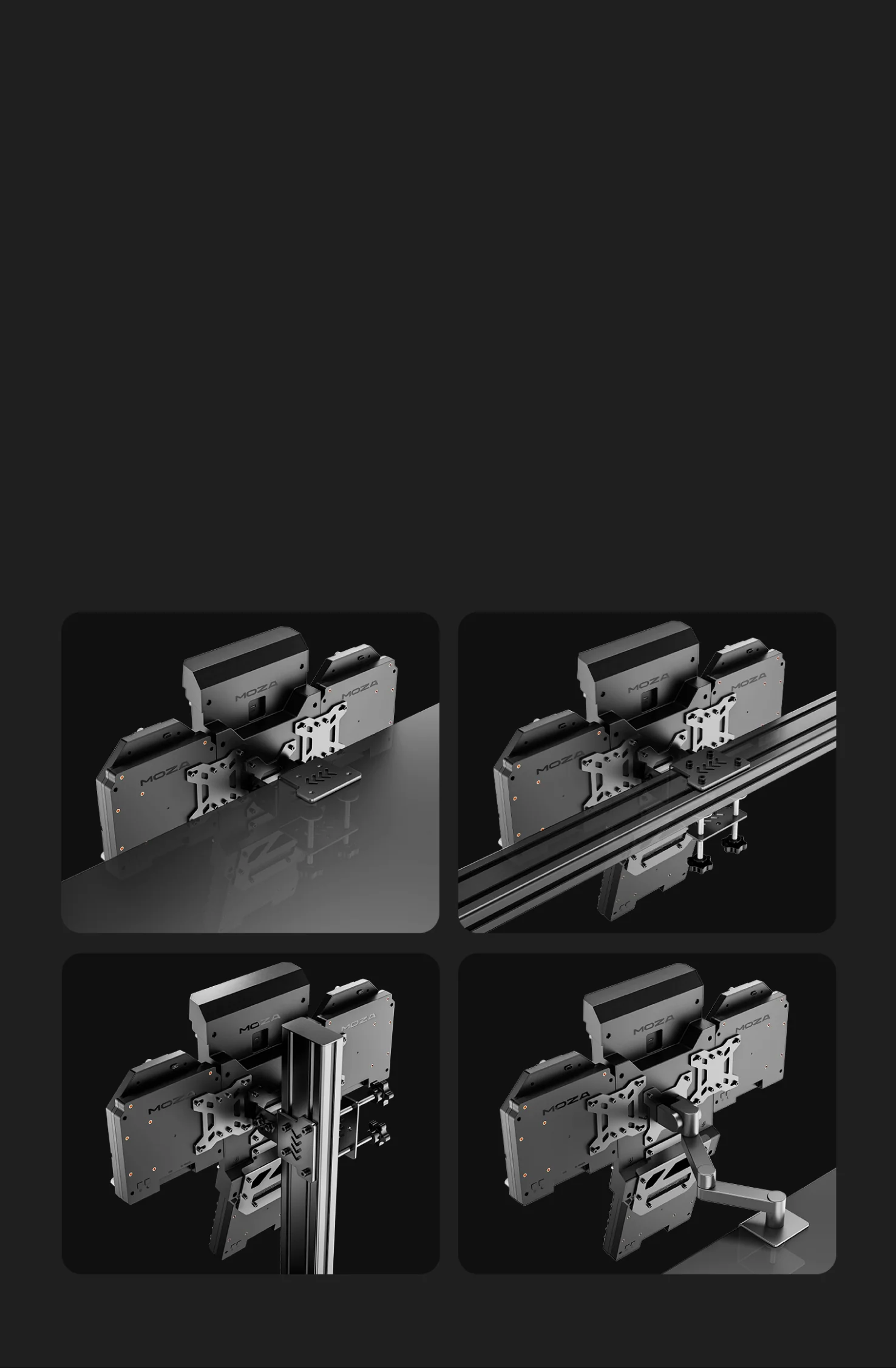

Moza FMP18 Bundle - mounting options

VESA mounting keeps the cockpit flexible

The DDI, AMPCD and FPP modules use a standard 75 × 75 mm VESA pattern designed for M4 × 10 mm screws. They can be fitted to the MOZA mounting system, an aluminium-profile cockpit or another compatible desktop, wall or suspended VESA mount.

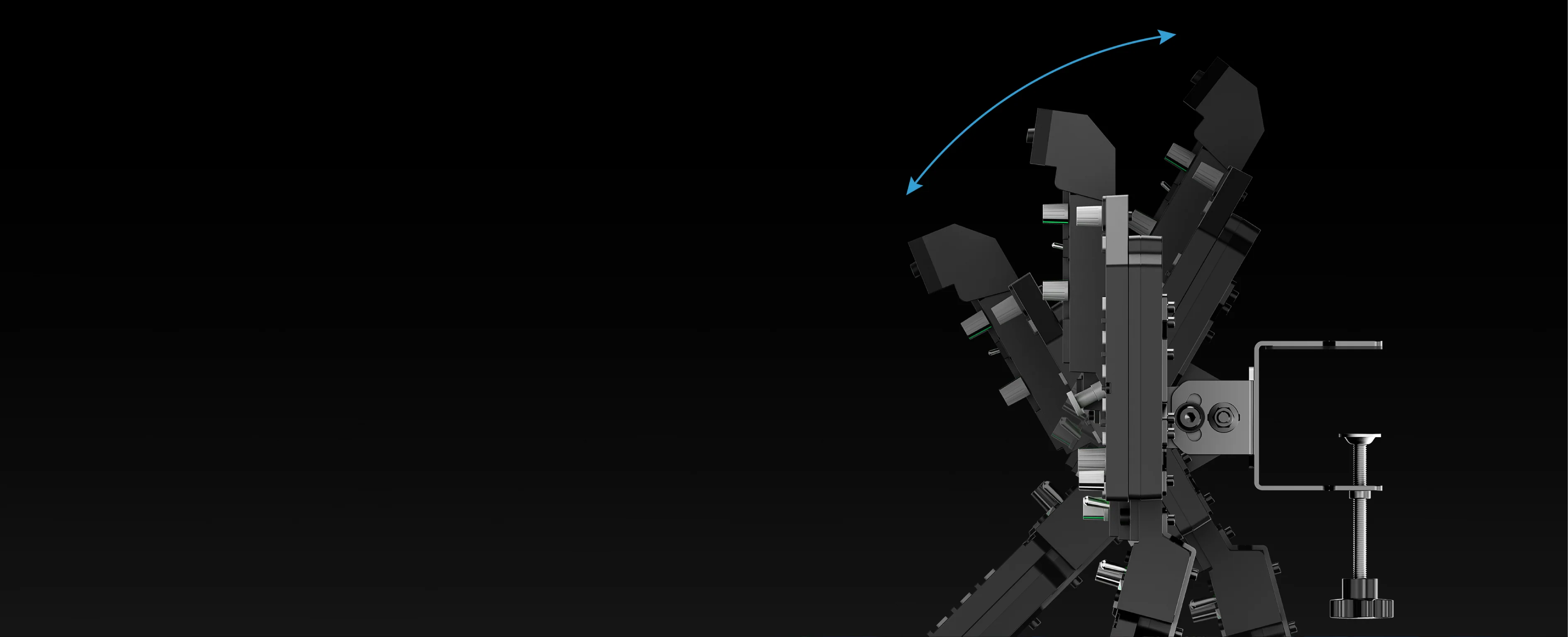

Moza FMP18 Bundle - angle adjustability

Stable mounting with quick angle adjustment

The supplied desk clamp allows the complete assembly or an individual module to be repositioned using an M8 wrench. With the clamp installed, the system measures 527 × 456 × 212 mm and weighs 5.4 kg. Composite materials keep the structure rigid without adding unnecessary weight.

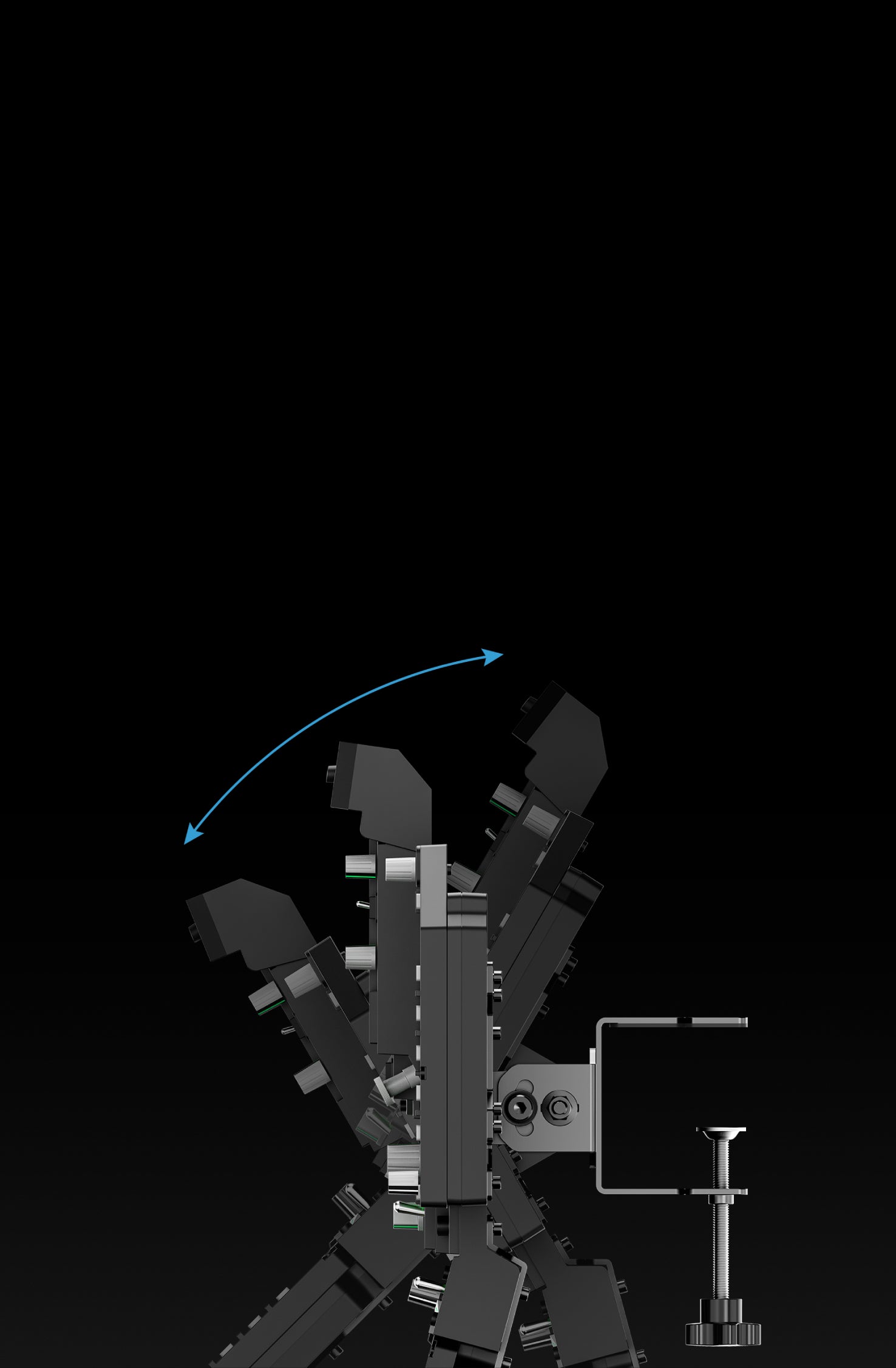

Moza FMP18 Bundle - fast angle adjustment

Stable mounting with quick angle adjustment

The supplied desk clamp allows the complete assembly or an individual module to be repositioned using an M8 wrench. With the clamp installed, the system measures 527 × 456 × 212 mm and weighs 5.4 kg. Composite materials keep the structure rigid without adding unnecessary weight.

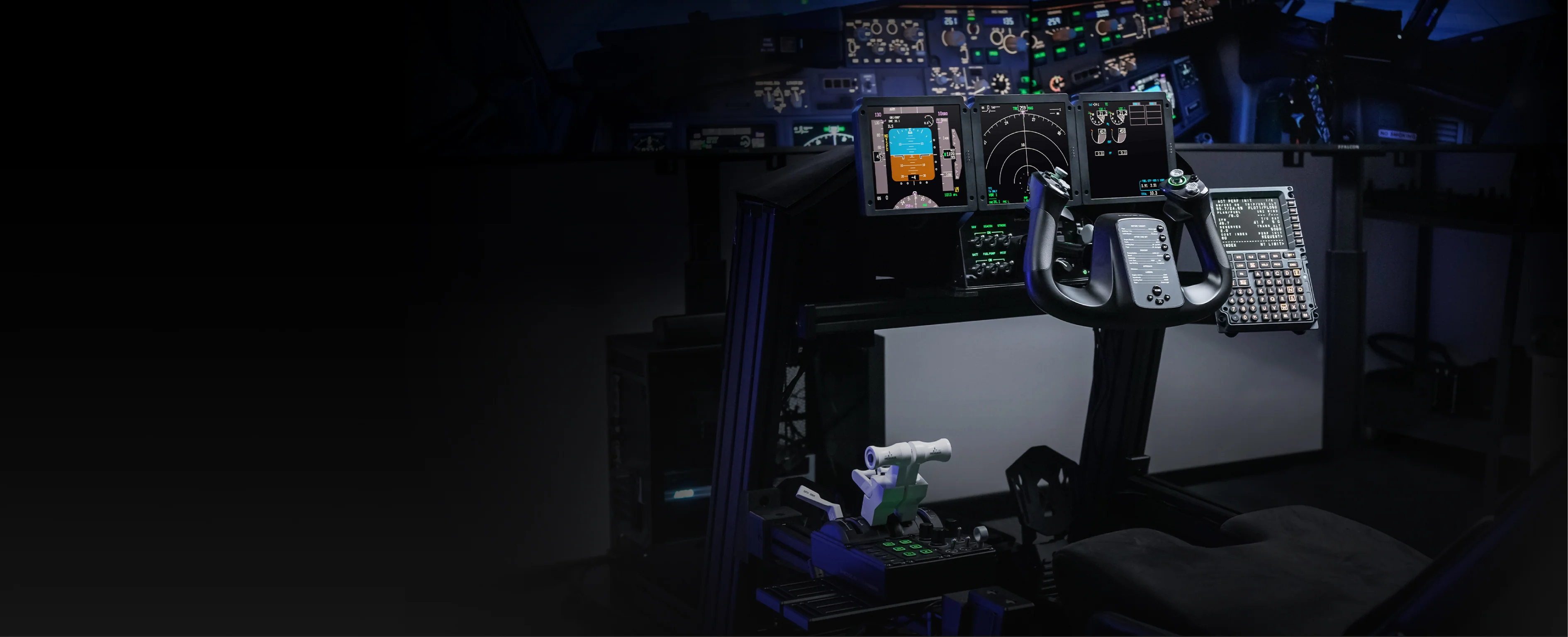

Moza FMP18 Bundle - compatible also with boeing and airbus planes simulation

One bundle with several possible layouts

The components do not have to remain in their original arrangement. Displays, magnetic bezels and the front panel can be combined in different ways or used separately. With the bezel removed, a screen can also present instruments from civilian aircraft or other combat aircraft.

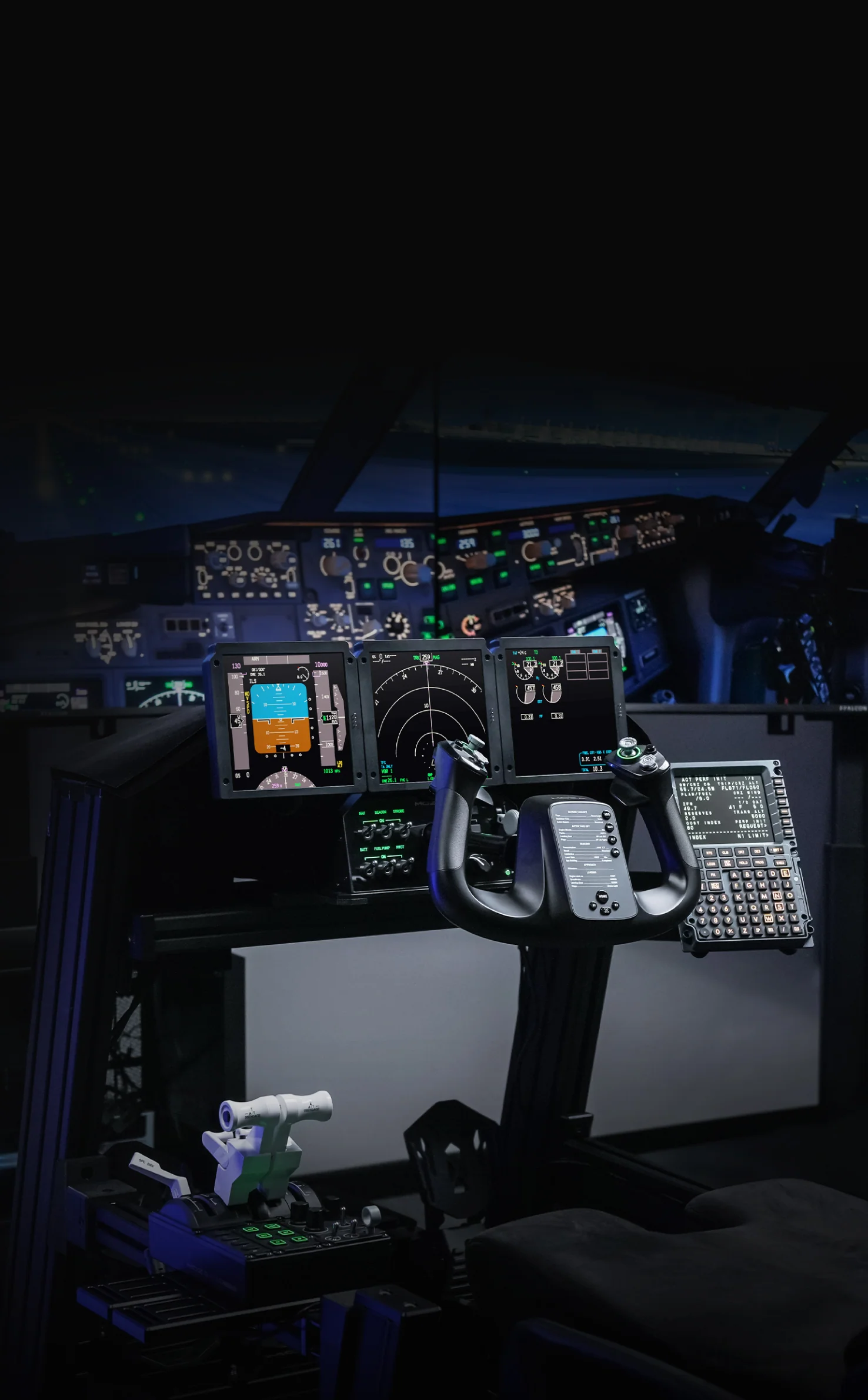

Moza FMP18 Bundle - universal use, also in civil aviation simulation

One bundle with several possible layouts

The components do not have to remain in their original arrangement. Displays, magnetic bezels and the front panel can be combined in different ways or used separately. With the bezel removed, a screen can also present instruments from civilian aircraft or other combat aircraft.

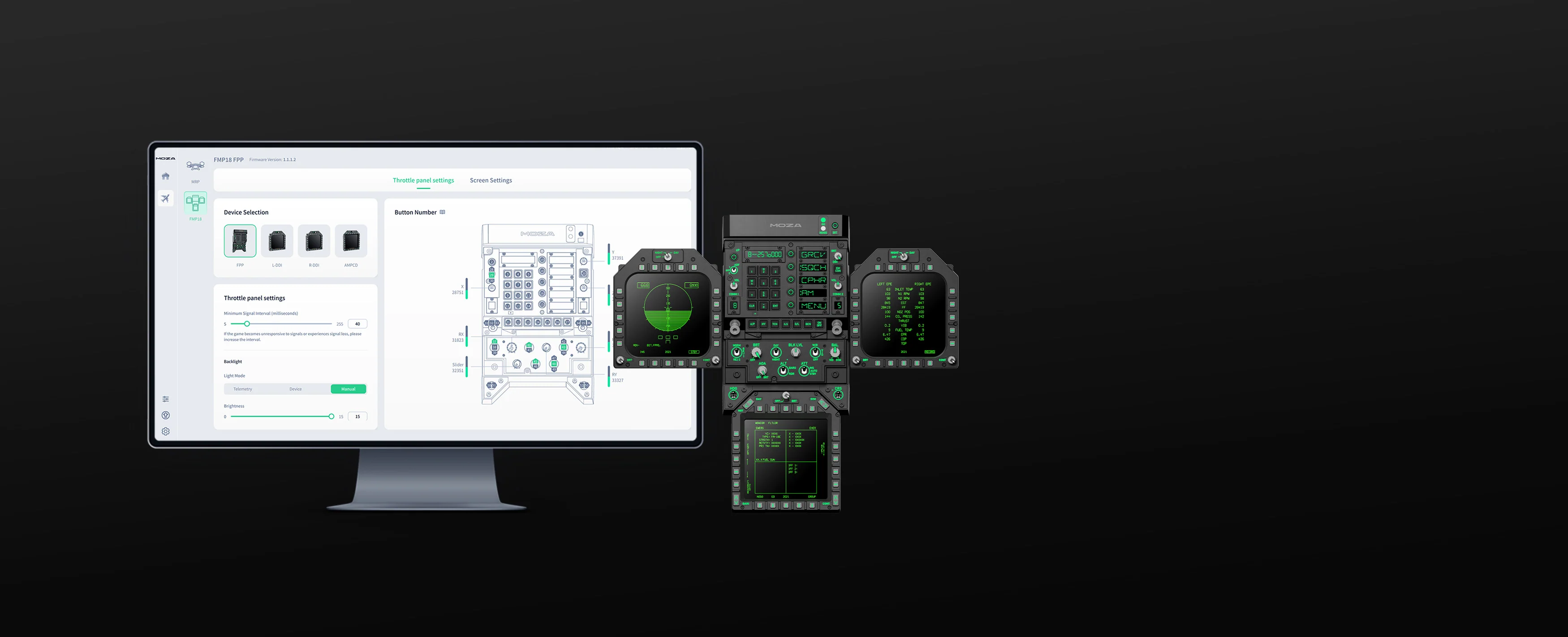

Moza FMP18 Bundle - moza software

Set everything up in MOZA Cockpit

MOZA Cockpit allows buttons and rotary controls to be assigned to the required simulator functions. Display positions can also be configured as left, centre or right, making it easier to match the software layout to the physical arrangement of the cockpit.

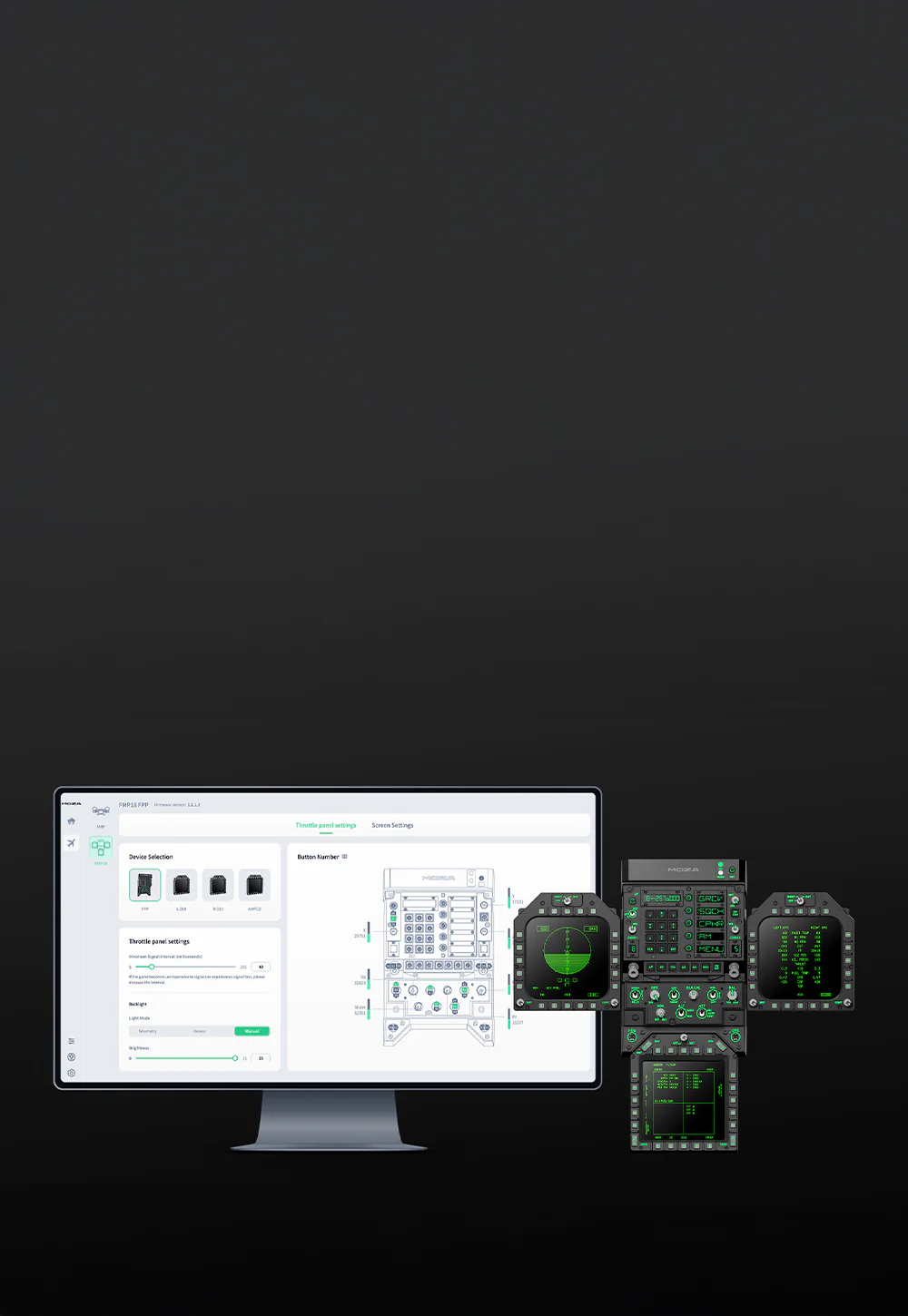

Moza FMP18 Bundle - moza cockpit compatibility

Set everything up in MOZA Cockpit

MOZA Cockpit allows buttons and rotary controls to be assigned to the required simulator functions. Display positions can also be configured as left, centre or right, making it easier to match the software layout to the physical arrangement of the cockpit.

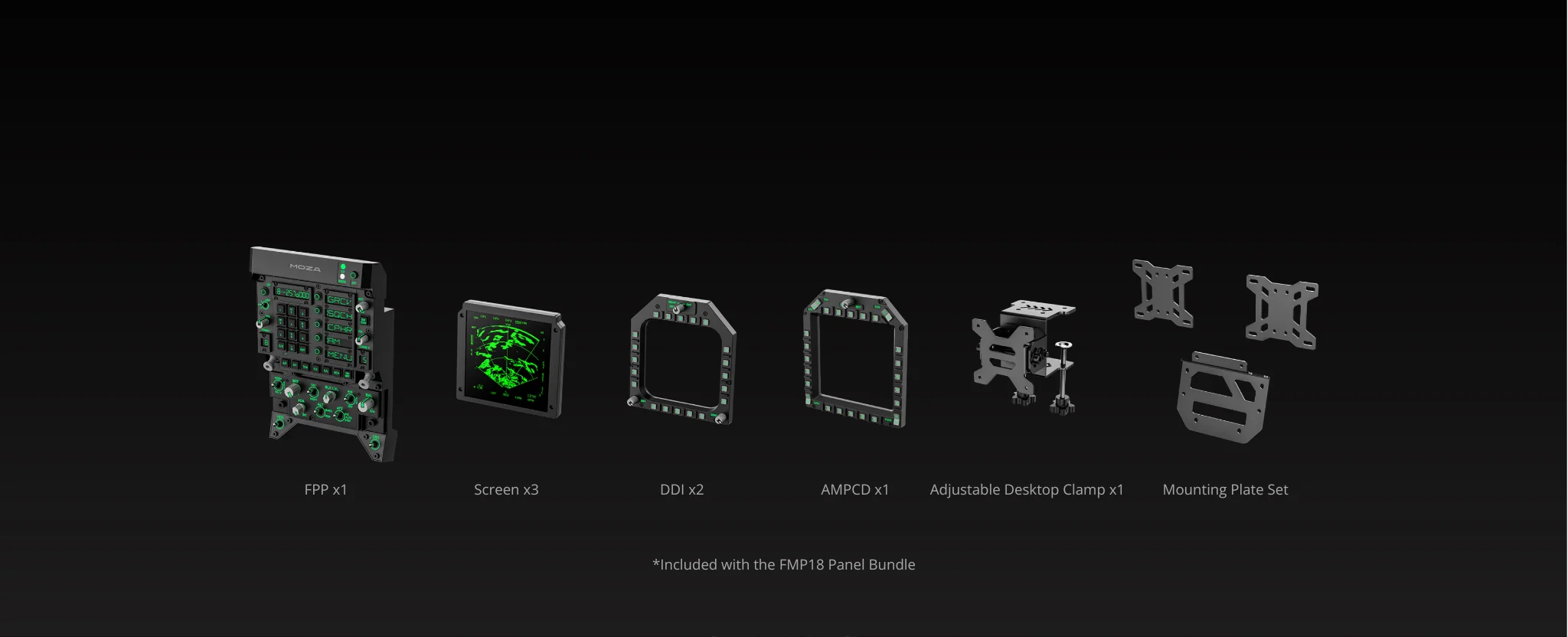

Moza FMP18 Bundle - what's included and how it works

What's included and how it works

The FMP18 uses three USB 3.0 Type-A ports and four USB Type-C connections for data transfer and power. Its USB polling rate reaches 1000 Hz, while the included Type-A and Type-C cables each measure 1.5 metres.

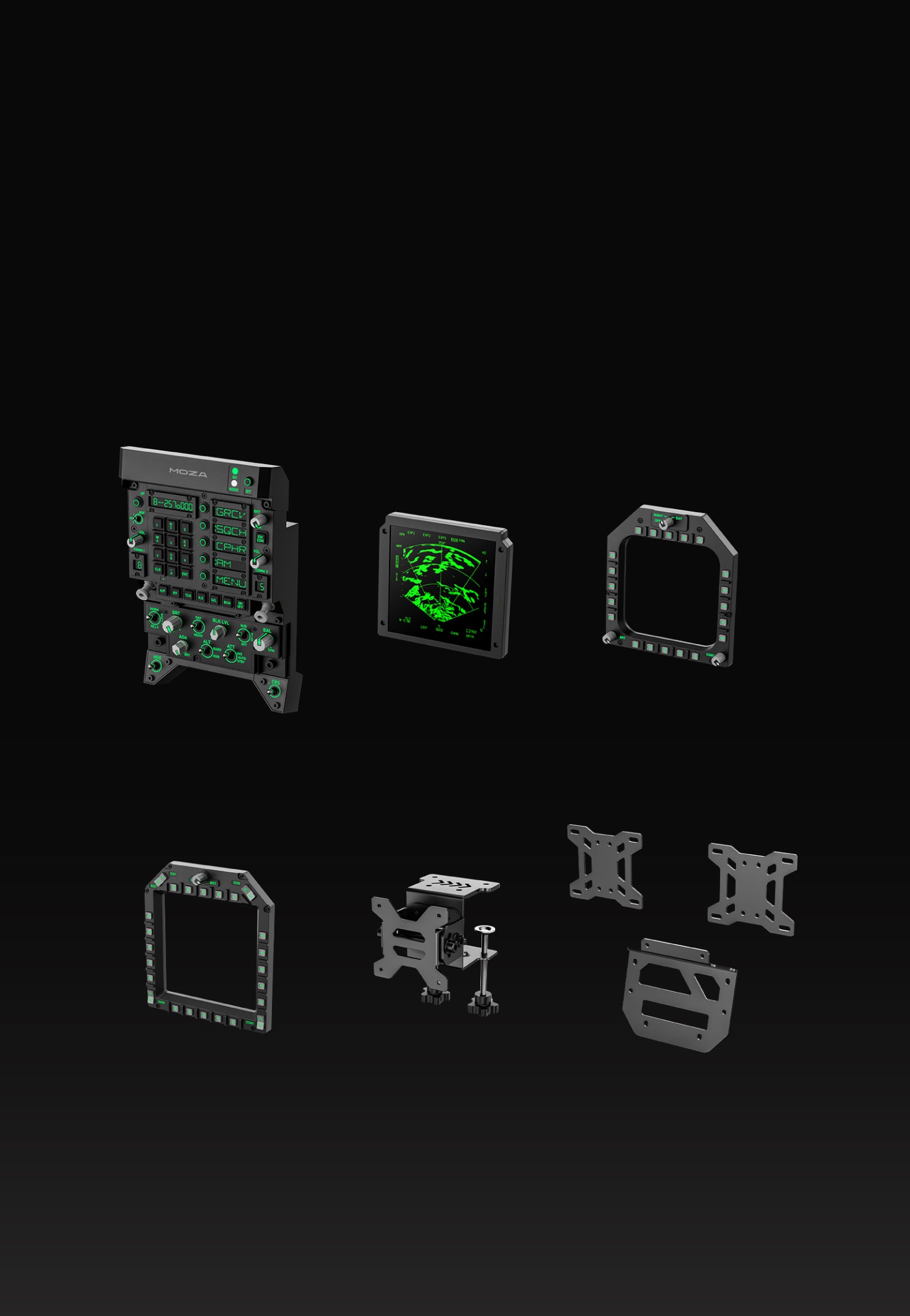

Moza FMP18 Bundle - what's included

What's included and how it works

The FMP18 uses three USB 3.0 Type-A ports and four USB Type-C connections for data transfer and power. Its USB polling rate reaches 1000 Hz, while the included Type-A and Type-C cables each measure 1.5 metres.
Moza FMP18 Bundle - example of configuration using product
FLYING IN DCS WORLD?

Build Your own F/A-18C Home Cockpit

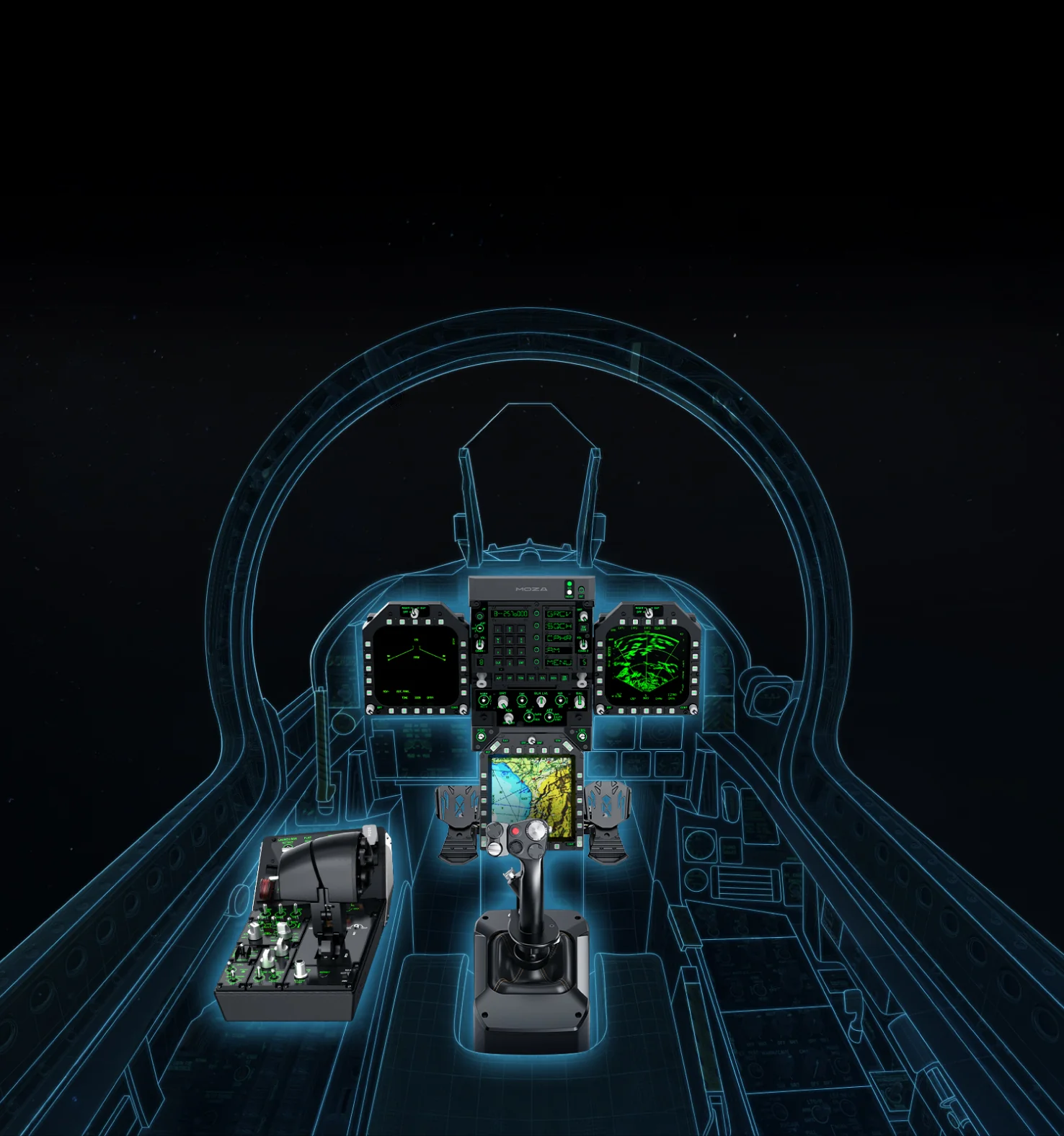

Moza FMP18 Bundle - example of product use
FLYING IN DCS WORLD?

Build Your own F/A-18C Home Cockpit

Technical Specifications – MOZA FMP18 Panel Bundle
Construction and General Information
Product name MOZA FMP18 Panel Bundle
Device type Modular flight simulator cockpit panel
Panel layout Inspired by the front cockpit of a carrier-based aircraft
Dimensions 527 × 456 × 212 mm, including clamp
Material Composite materials
Weight 5.4 kg
Supported platform PC
Displays and Backlighting
Display arrangement 2 × DDI and 1 × AMPCD
Display type Square IPS displays
Full display size 7.5 inches
Viewable area with bezel 7.1 inches
Resolution 800 × 800 px
Refresh rate 60 Hz
Display brightness adjustment 10 levels
Control backlighting 15 adjustment levels
Controls and Modular System
Buttons 95 tactile buttons
Rotary controls 16
Toggle switches 7
Control bezel mounting Magnetic quick-release system
Bezel connection Integrated pogo-pin contacts
Module configuration Displays, control bezels and the FPP panel can be combined or used independently
Connectivity and Software
Connection ports 3 × USB 3.0 Type-A and 4 × USB Type-C
Data and power Supplied through USB 3.0 connections
USB polling rate 1000 Hz
Software MOZA Cockpit
Configuration options Button and rotary-control mapping, lighting adjustment and display-position assignment
Mounting
Module mounting standard VESA 75 × 75 mm
Recommended VESA screws M4 × 10 mm
Desk clamp Adjustable desk clamp included
Angle adjustment M8-wrench adjustment without removing the mounting hardware
Installation options Desktop, aluminium-profile cockpit and compatible third-party VESA mounts
Package Contents
Front panel FPP Front Panel Module × 1
DDI panels DDI Display Panel × 2
AMPCD panel AMPCD Display Panel × 1
Cables USB-A to USB-A × 3 and USB-A to USB-C × 1
Cable length 1.5 m
Clamp Adjustable desk clamp × 1
Mounting brackets Side mounting brackets × 2 and bottom mounting bracket × 1
Additional equipment Tool kit
