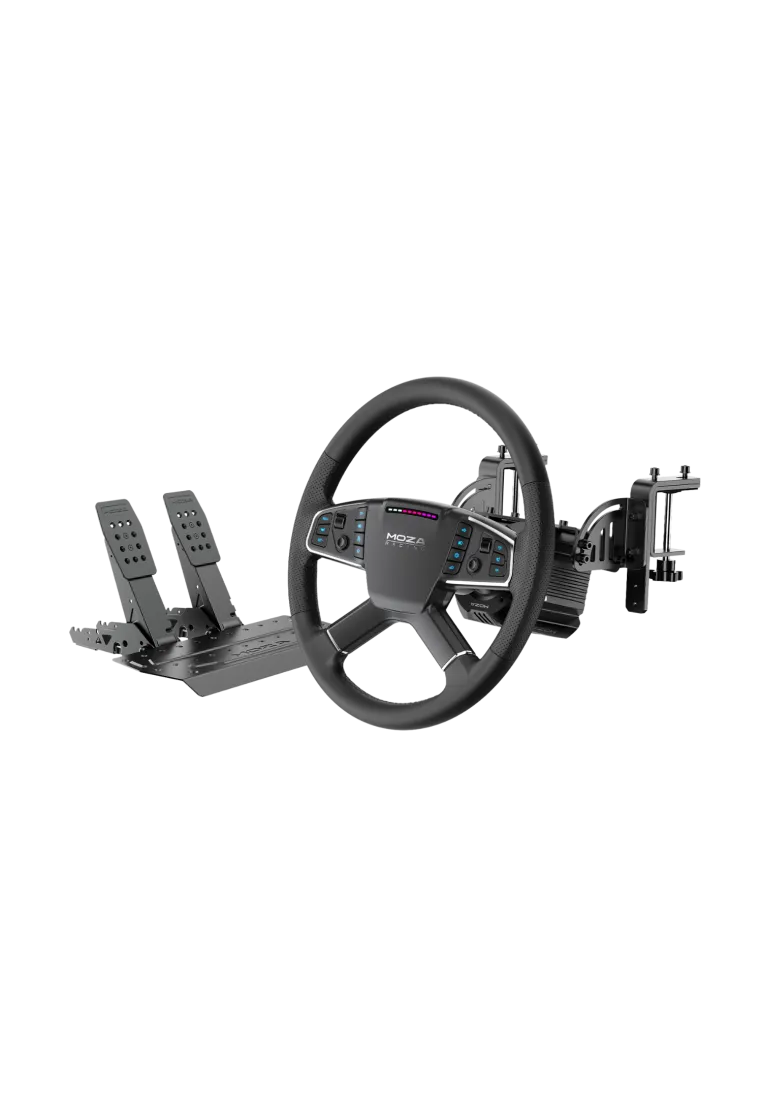

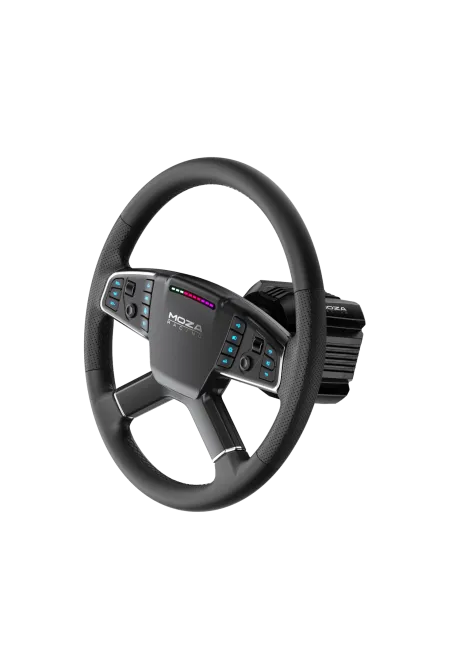

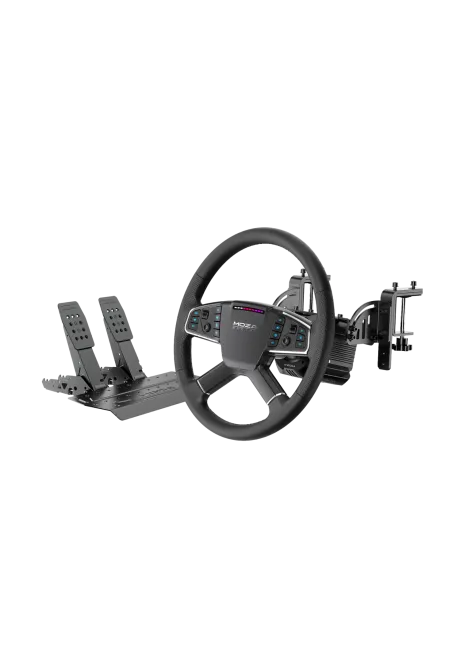

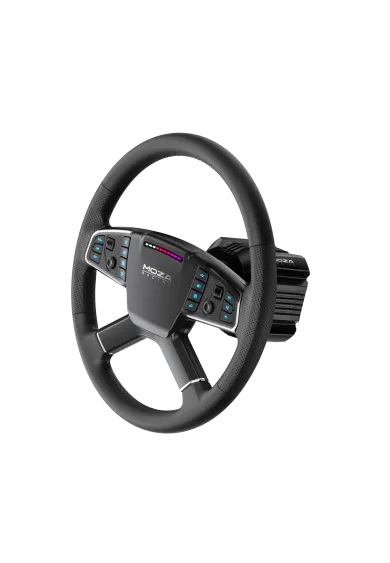

Moza R5 PRO Truck Bundle front view steering wheel and wheelbase

Moza R5 PRO Truck Bundle pedals front view

Moza R5 PRO Truck Bundle

Name: Moza R5 PRO Truck Bundle
Brand: Moza Racing
SKU: RS112
Price: 1852.85 PLN
Availability: BackOrder

Reference RS112

1,852.85zł

PREORDER

Available from: 2026-10-01

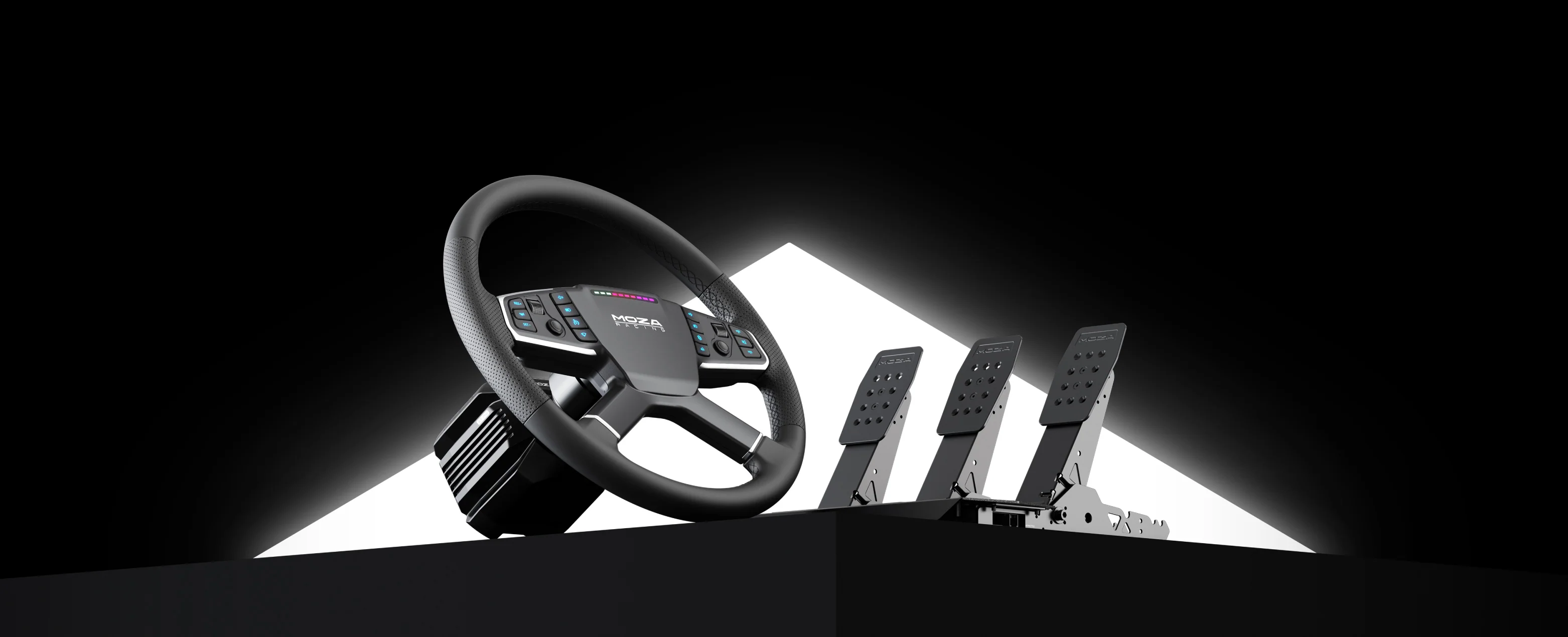

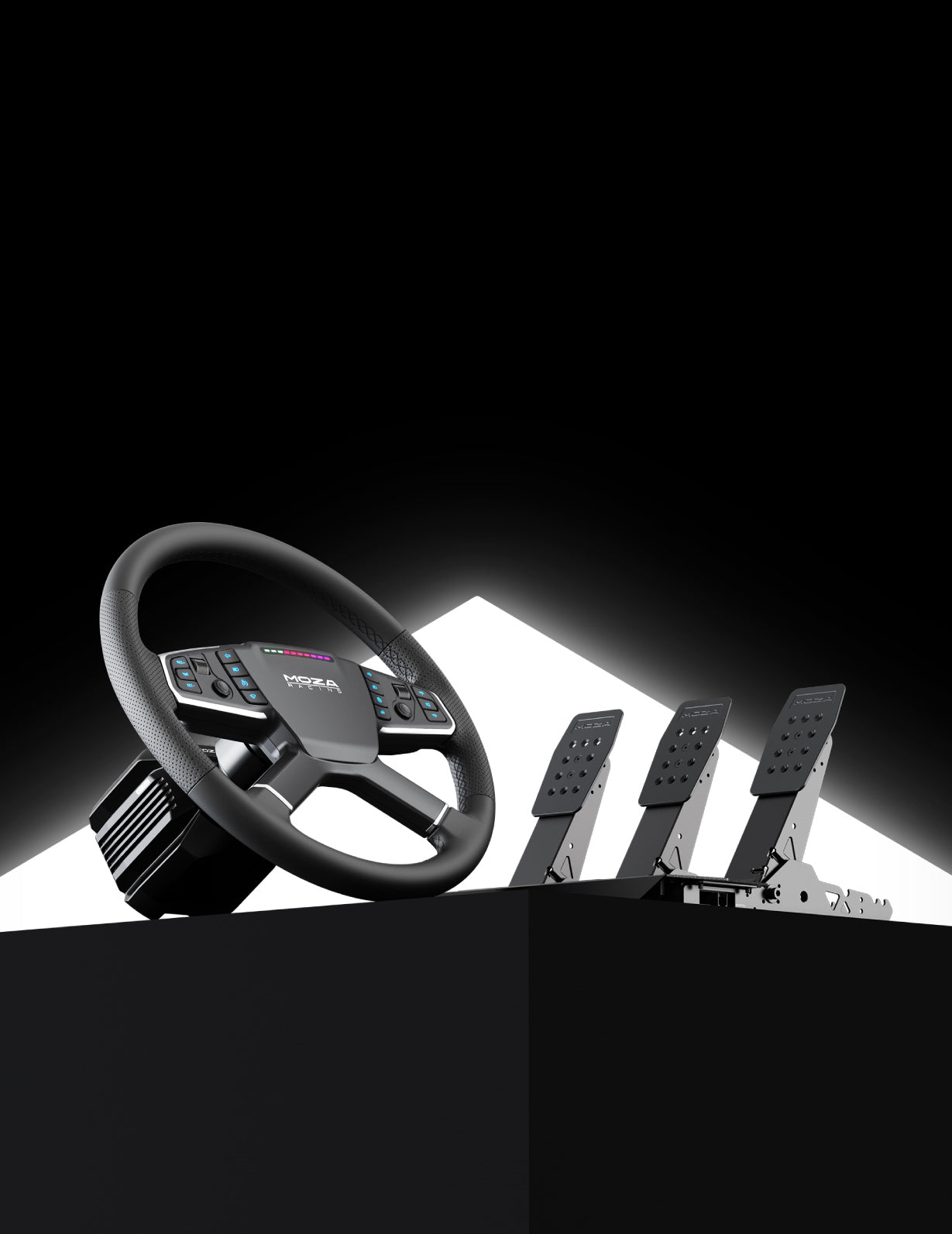

Moza R5 PRO Truck Bundle combines a 6 Nm Direct Drive base, 400 mm TSW truck wheel, SRP Lite2 pedals and a desk clamp. Its 21-bit encoder and NexGen FFB 5.0 deliver smooth, detailed steering for ETS2, ATS and machinery simulators. R5 PRO wheelbase and SRP Lite2 pedals are new generation peripherials of Truck bundle.

Ask about product

You will receive an 18.53zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Plug and Play Accessories

MOZA Multi-function Stalks

747.15zł

Moza SGP Sequential Shifter

486.99zł

Moza TSW Truck

860.98zł

Moza HGP H-Shifter

552.03zł

Moza HBP Handbrake

381.30zł

MOZA R3 bundle XBOX/PC

1 Reviews

1,243.09zł

MOZA Multi-function Stalks

747.15zł

Moza R5 Truck Bundle

1 Reviews

1,739.03zł

MOZA R3 bundle PC

2 Reviews

1,031.71zł

MOZA CM2 HD RACING DASH

763.41zł

A desk clamp is included, so the bundle can be used before a full cockpit is available. The 2.9 kg base also supports bottom and front mounting. Rear connections cover pedals, a dashboard, shifter, handbrake and emergency stop. An all-aluminium quick release makes the truck rim easy to remove when the rig needs a smaller racing wheel.

As a truck simulator bundle, the Moza R5 PRO Truck Bundle is an obvious match for Euro Truck Simulator 2 and American Truck Simulator. MOZA also lists Farming Simulator 22/25 and a broad selection of racing games. A MOZA HGP H-Shifter can complete a manual layout. Available FFB and telemetry functions still depend on the individual title and its configuration.

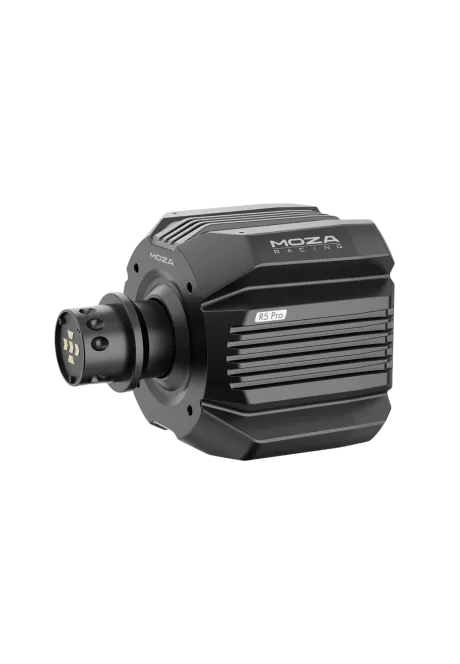

The R5 Pro wheelbase produces 6 Nm through a Direct Drive motor, without a belt or gear stage between the motor and steering shaft. In a truck simulator, that design is less about fighting the wheel and more about clean self-centring, readable road texture and consistent resistance through the wide movements of a 400 mm rim.

A 21-bit magnetic encoder tracks more than two million positions. The 600 MHz processor runs NexGen Force Feedback 5.0, and USB updates at 1000 Hz. This lets the Moza R5 PRO Truck Bundle use separate MOZA Pit House controls for force, damping, friction and steering range, whether it is set up for a tractor unit, farm machine, road car or rally stage.

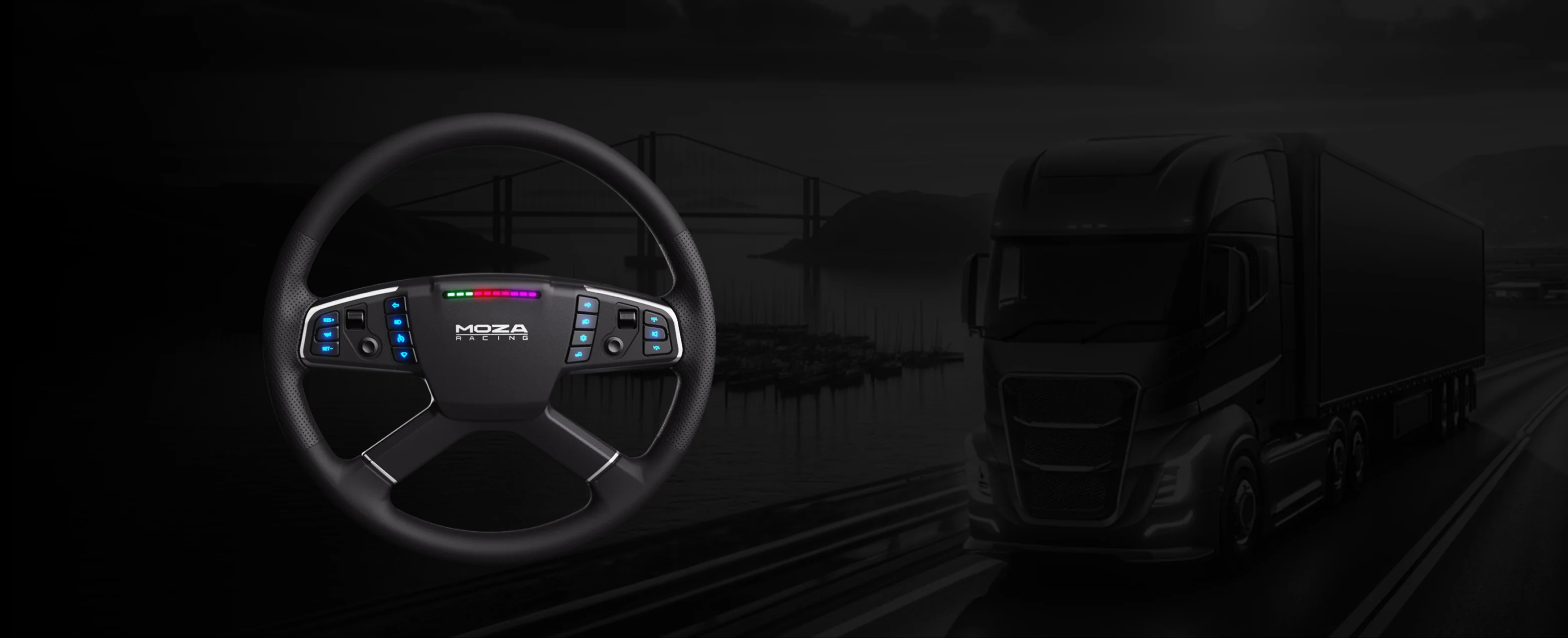

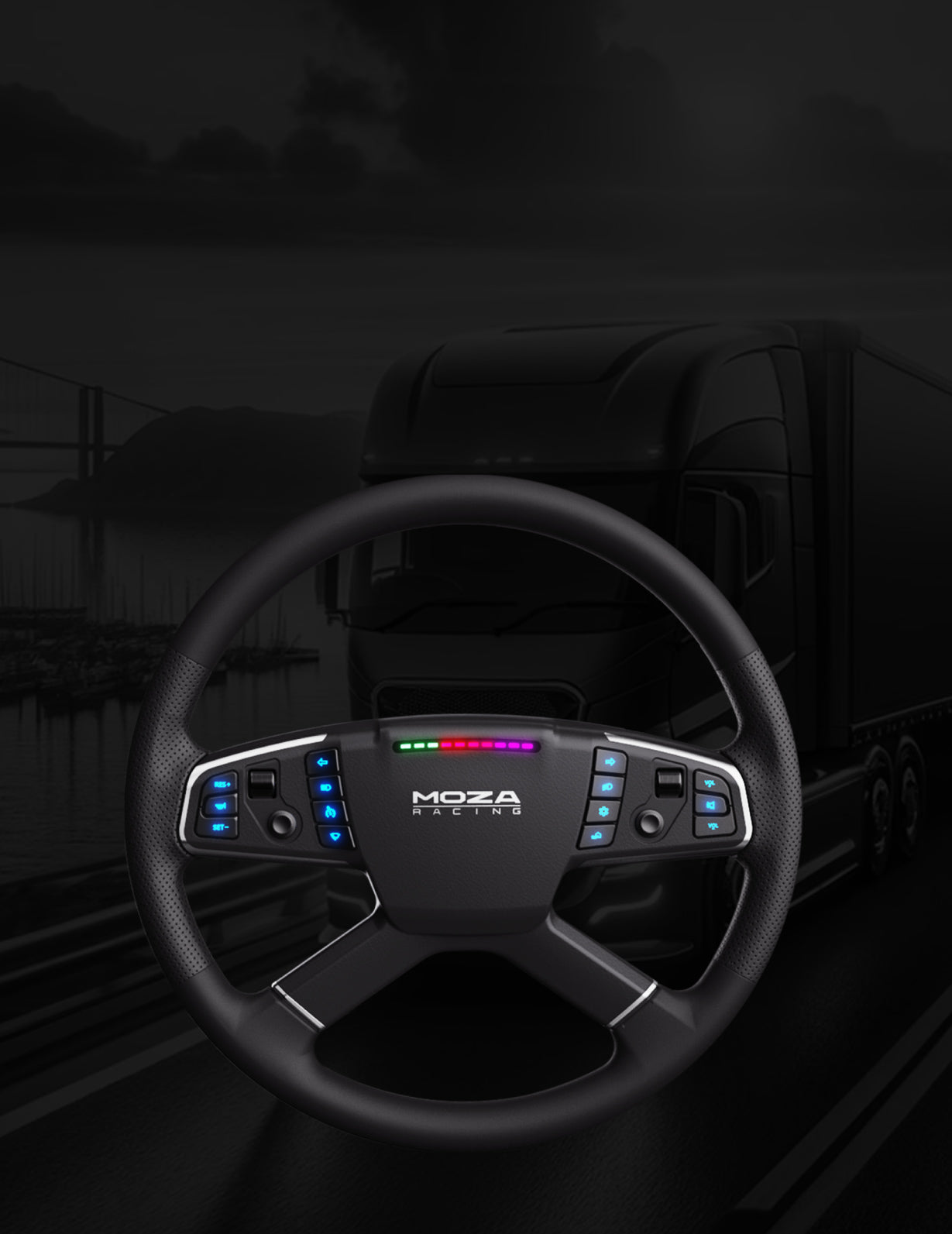

The defining part of the Moza R5 PRO Truck Bundle is its wheel. At 400 mm, the MOZA TSW Truck gives your hands more travel than a compact racing rim. Slow corrections feel calmer, reversing a trailer becomes easier to judge, and the seating position makes more sense in a truck, bus or agricultural-vehicle simulator.

Its aerospace-grade aluminium frame is wrapped in hand-stitched microfiber leather. Fourteen buttons keep common cabin controls within reach, while aluminium paddles and ten bright RGB LEDs remain useful when the same setup is used for road cars or racing titles.

The supplied SRP Lite2 set uses a two-pedal throttle-and-brake layout. High-strength steel is used for the pedal faces and bases, while contactless Hall sensors read movement without a wearing potentiometer. The pedals offer 15 mm of lateral adjustment and 36 mm of pedal-face height adjustment.

Pedal curves and live output can be checked in MOZA Pit House. Drivers who want an H-pattern truck setup can later add the dedicated SRP Lite2 clutch and resistance kits. Current upgrade options are grouped in the MOZA pedal range.

From circuit racing to rally stages and long-haul driving

The Moza R5 PRO Bundle can move between very different styles of driving without rebuilding the rig. Here is a selection of racing, rally and driving titles supported across the MOZA ecosystem.

iRacing
Le Mans Ultimate
Assetto Corsa
Assetto Corsa Competizione
Assetto Corsa EVO
Forza Motorsport
Forza Horizon 4
Forza Horizon 5
Forza Horizon 6
RaceRoom Racing Experience

F1® 2018
F1® 2019
F1® 2020
F1® 2021
F1® 22
F1® 23
F1® 24
F1® 25
KartKraft
rFactor 2

Assetto Corsa Rally
DiRT Rally 2.0
DiRT 4
EA SPORTS™ WRC
WRC 9 FIA World Rally Championship
WRC 10 FIA World Rally Championship
WRC Generations
Richard Burns Rally
Automobilista 2
Live for Speed

Project CARS
Project CARS 2
Project CARS 3
Project Motor Racing
BeamNG.drive
Euro Truck Simulator 2
American Truck Simulator
Farming Simulator 22
Farming Simulator 25
Test Drive Unlimited Solar Crown

This is a selection rather than the complete compatibility list. Force Feedback, telemetry and available settings may vary with the title, game version and current MOZA software.

From circuit racing to rally stages and long-haul driving

The Moza R5 PRO Bundle covers a wide range of driving styles. Here is a selection of racing, rally and driving titles supported across the MOZA ecosystem.

iRacing
Le Mans Ultimate
Assetto Corsa
Assetto Corsa Competizione
Assetto Corsa EVO
Forza Motorsport
Forza Horizon 4
Forza Horizon 5
Forza Horizon 6
RaceRoom Racing Experience

F1® 2018
F1® 2019
F1® 2020
F1® 2021
F1® 22
F1® 23
F1® 24
F1® 25
KartKraft
rFactor 2

Assetto Corsa Rally
DiRT Rally 2.0
DiRT 4
EA SPORTS™ WRC
WRC 9 FIA World Rally Championship
WRC 10 FIA World Rally Championship
WRC Generations
Richard Burns Rally
Automobilista 2
Live for Speed

Project CARS
Project CARS 2
Project CARS 3
Project Motor Racing
BeamNG.drive
Euro Truck Simulator 2
American Truck Simulator
Farming Simulator 22
Farming Simulator 25
Test Drive Unlimited Solar Crown

This is a selection rather than the full compatibility list. Force Feedback, telemetry and available settings may vary with the title, game version and current MOZA software.

UPC 850083320263

EAN13 6973137271633

Technical specifications – Moza R5 PRO Truck Bundle
R5 Pro Direct Drive wheelbase
Drive system	Direct Drive
Peak torque	6 Nm
Steering angle	90–2700°
Encoder	21-bit magnetic encoder
Processor	600 MHz
Force Feedback algorithm	NexGen Force Feedback 5.0
USB refresh rate	1000 Hz
Peak power	100 W
Input voltage	110–220 V AC → 12 V DC
Housing material	Aluminium alloy
Wheelbase weight	2.9 kg
Connection ports	Power, USB, pedals, dash, shifter, handbrake, E-stop
Mounting options	Desktop, bottom or front mounting
Online firmware updates	Supported
TSW Truck Wheel
Diameter	400 mm
Grip material	Hand-stitched microfiber leather
Wheel frame material	Aerospace-grade aluminium
Paddle material	Aluminium alloy
Buttons	14
Telemetry LEDs	10 bright RGB LEDs, configurable in MOZA Pit House
Release method	All-aluminium quick release
SRP Lite2 pedals
Supplied layout	Throttle and brake
Pedal face and base material	High-strength steel
Sensors	Contactless Hall sensors
Left/right adjustment	15 mm
Pedal face height adjustment	36 mm
Pedal curve adjustment	Supported
Live output display	Supported
Bundle and compatibility
Primary platform	PC
Configuration software	MOZA Pit House
Example simulators	Euro Truck Simulator 2, American Truck Simulator, Farming Simulator 22 and 25
Desk clamp	Included
Main items	R5 Pro wheelbase, TSW Truck Wheel, SRP Lite2 pedals, desk clamp, power adapter, cables, tool kit and manual

Moza R5 PRO Truck Bundle – questions and answers

1. What is included with the Moza R5 PRO Truck Bundle?

The bundle contains an R5 Pro Direct Drive wheelbase, 400 mm TSW Truck Wheel, two-pedal SRP Lite2 set, desk clamp, power adapter, cables, basic tools and documentation.

2. How does the Truck Bundle differ from the regular R5 Pro set?

The Truck version replaces the compact racing rim with a full-size 400 mm TSW wheel. Its slower hand movement and commercial-vehicle layout are better suited to trucks, buses, tractors and machinery.

3. How much torque does the R5 Pro wheelbase produce?

Peak torque is 6 Nm. The motor drives the steering shaft directly, while the adjustable 90–2700° range can be matched to a truck, passenger car or racing vehicle.

4. Which games suit the Moza R5 PRO Truck Bundle?

Euro Truck Simulator 2 and American Truck Simulator are the most obvious choices. MOZA also lists Farming Simulator 22/25 and a wide range of racing titles. Available telemetry and FFB effects vary by game.

5. Can the bundle be mounted to a desk?

Yes. A desk clamp is supplied. The wheelbase also supports bottom and front mounting, which makes a later move to a compatible cockpit or aluminium-profile frame possible.

6. Do the SRP Lite2 pedals include a clutch?

The supplied layout consists of throttle and brake. A dedicated SRP Lite2 clutch is available separately; check the full generation name because older SR-P and SR-P Lite parts should not be assumed compatible.

7. Can an H-pattern shifter be added?

Yes. The wheelbase has a dedicated shifter port, and the MOZA HGP H-Shifter can complete a manual truck layout. Add the SRP Lite2 clutch if you want a conventional three-pedal setup.

8. Where are Force Feedback and pedal settings adjusted?

MOZA Pit House provides wheel force, damping, friction and steering-range controls. It also handles pedal curves, dead zones, live input readings and telemetry-light behaviour.

9. Is the TSW Truck Wheel removable?

Yes. The all-aluminium quick release removes the wheel without unbolting the base. This is useful for storage or when swapping to another compatible MOZA rim for racing.

10. Does the Moza R5 PRO Truck Bundle support consoles?

PC is the primary platform for this configuration. Do not assume console support from the USB connection alone; the current requirements of the complete MOZA ecosystem should be checked before a console purchase.
