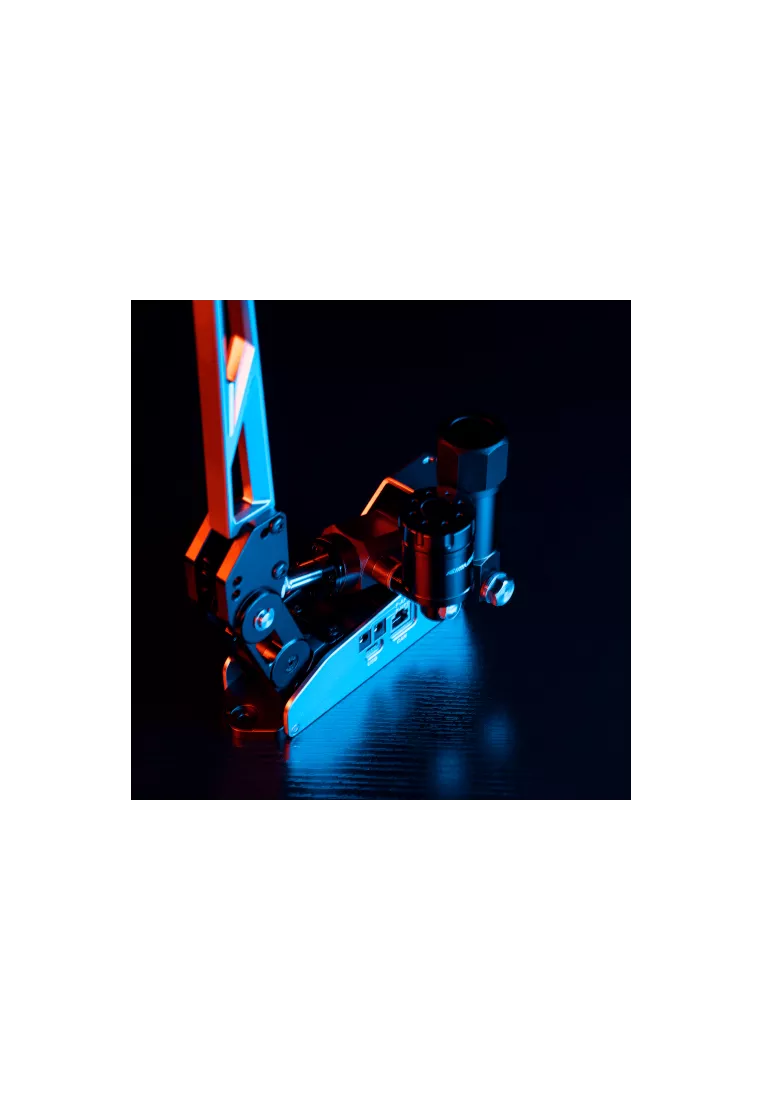

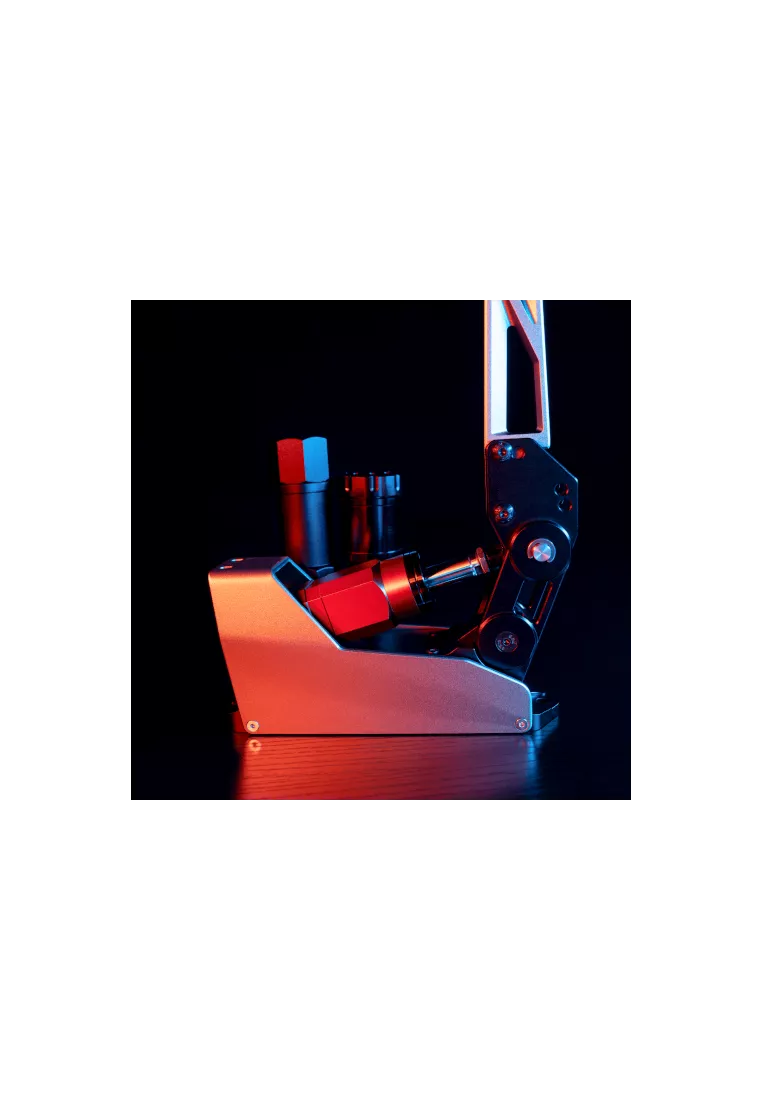

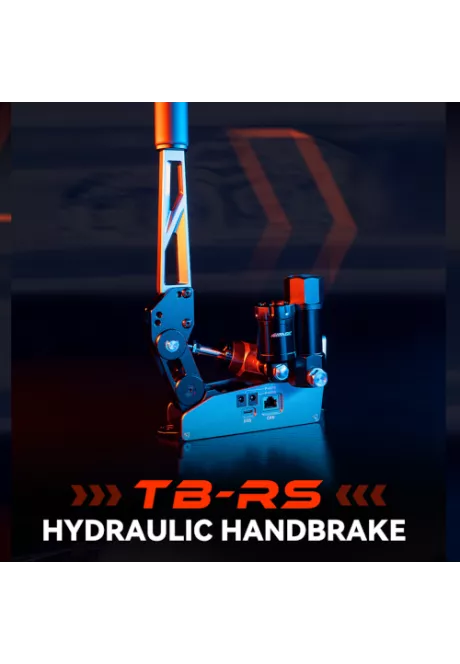

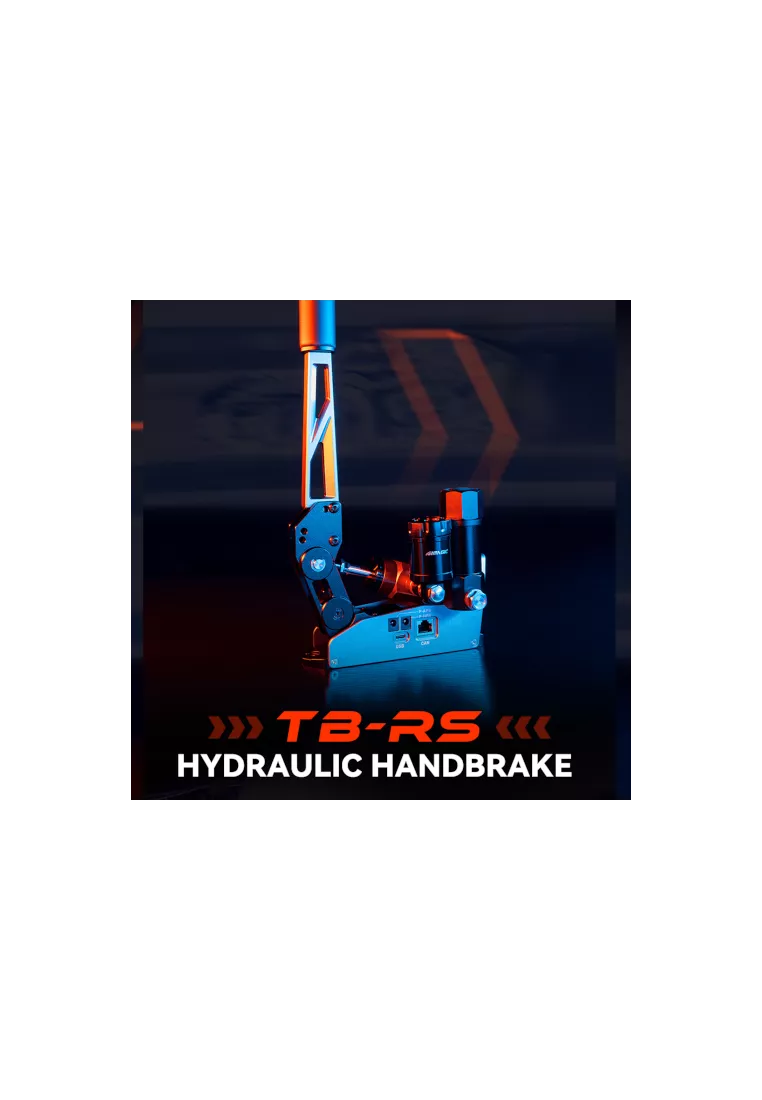

Unmached in tight corners.
Hydraulic breaking system replicates a real driving experience 1:1.

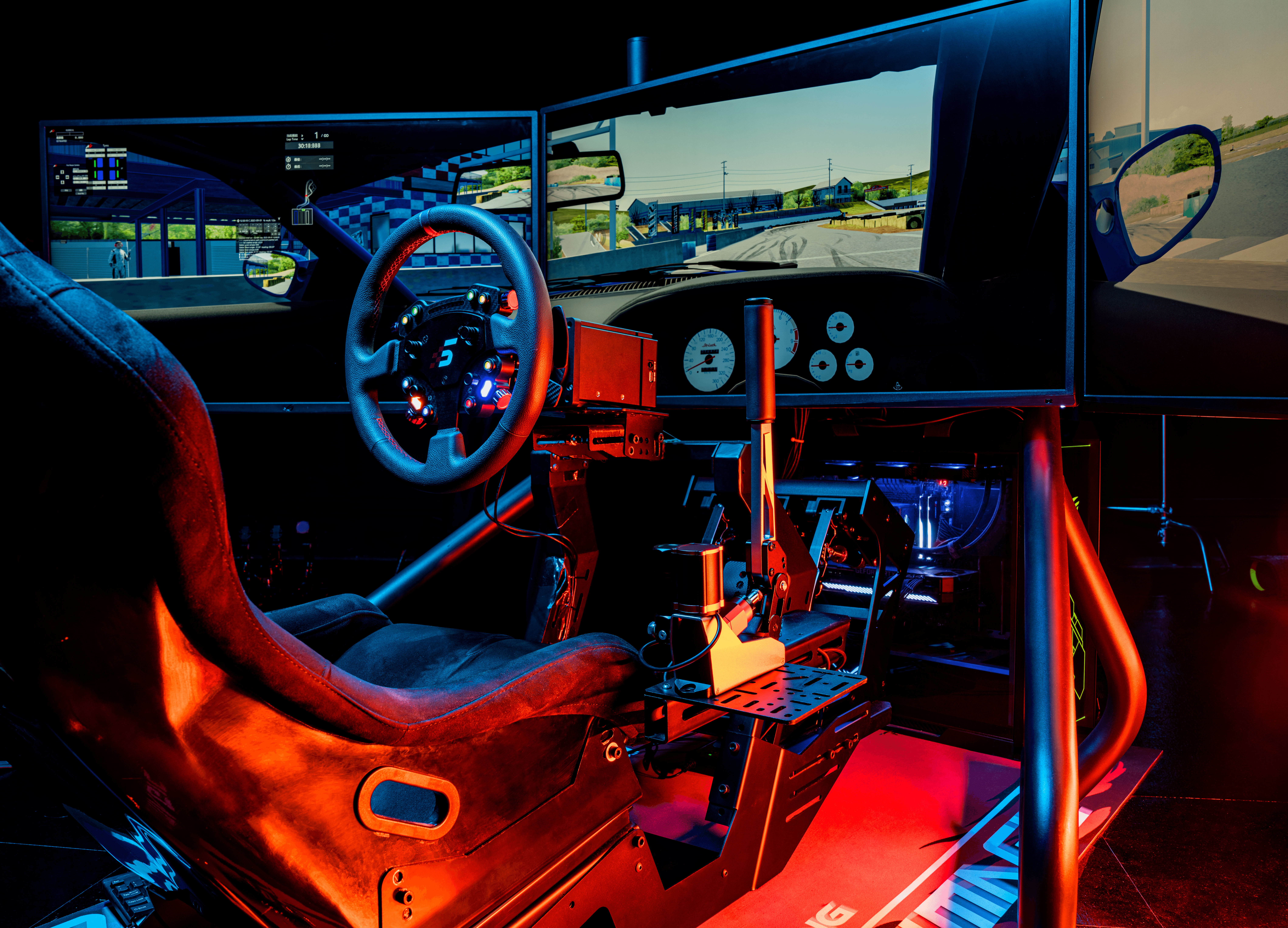

Thanks to TB-RS you will complete the most perfect sim racing rig.
Optional module allows for never before seen replication of a tire lock feel.
Adjustable handle for perfect customisation.
High grade alluminum alloy ensures the best quality.
New generation simagic drivers with
automatic updates and equipment detection.
| Technical Specifications – Simagic TB-RS Hydraulic Handbrake | |
|---|---|
| Model | TB-RS (HBTBRS) |
| Brake type | Full hydraulic (1:1 real braking feel reproduction) |
| Elastomers | 9 pcs included | 4 stiffness levels |
| Resistance adjustment | Yes – adjustable hydraulic damping |
| Lever position | 4 angle settings | horizontal and vertical lever mount |

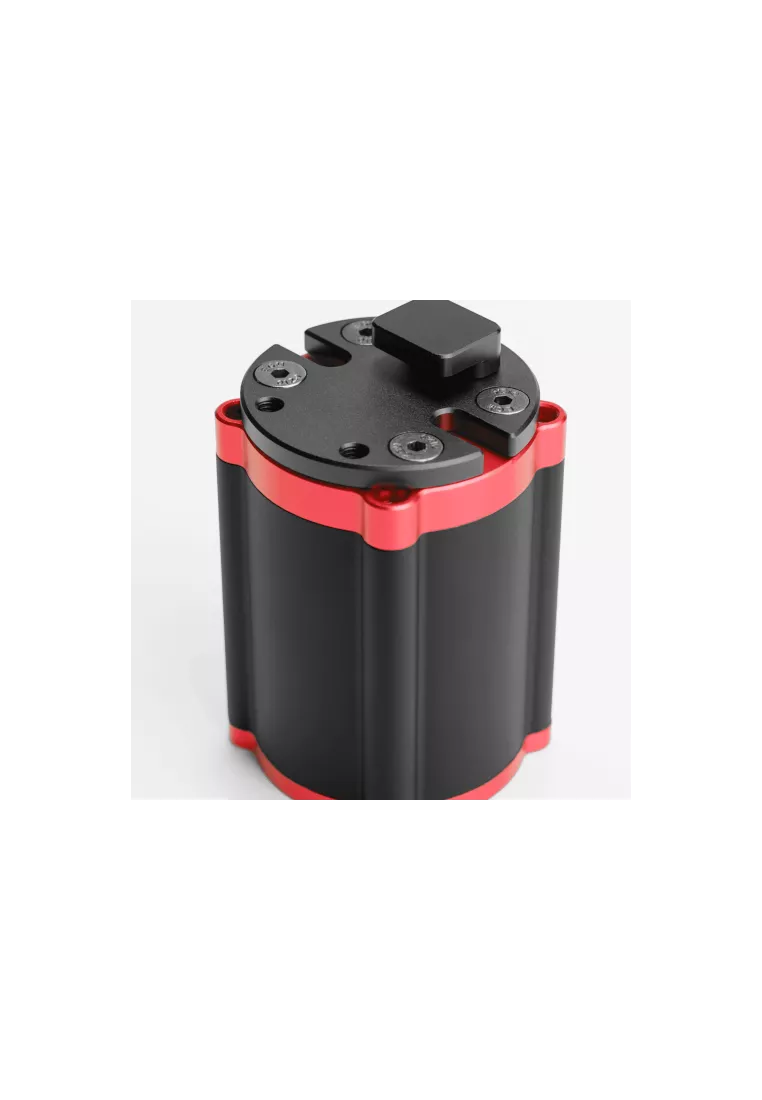

| Oil reservoir | Rotating – adapts to mounting orientation |
| Grip handles | Interchangeable (multiple colour and style variants) |
| Haptic Feedback Module | Optional (SIMAGIC P-HPR) – tactile wheel-lock sensation |
| Material | High-grade aluminium alloy |
| Dimensions | 178 × 95 × 387 mm |
| Weight | 1.35 kg |

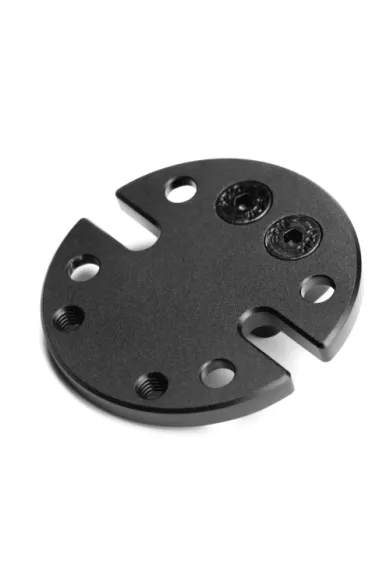

| Mounting holes | M6 threaded |
| Connection | USB (plug & play) | direct Simagic wheelbase port |
| Software | SimPro Manager 2.0 (auto-detection, auto-install, updates, configuration) |
| Platform | PC | Simagic WheelBase |
| Manufacturer | Simagic (WSJ Product Ltd) |

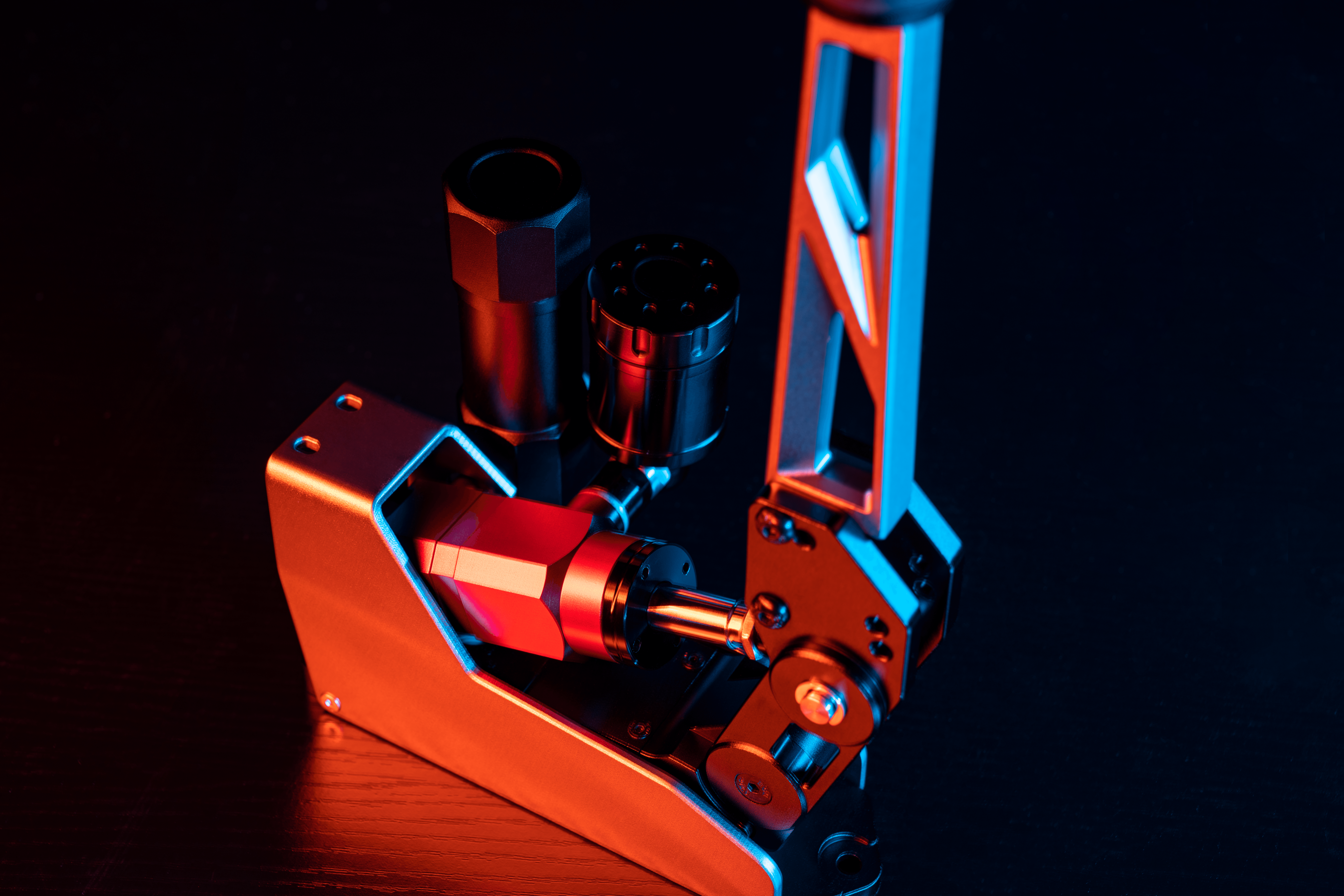

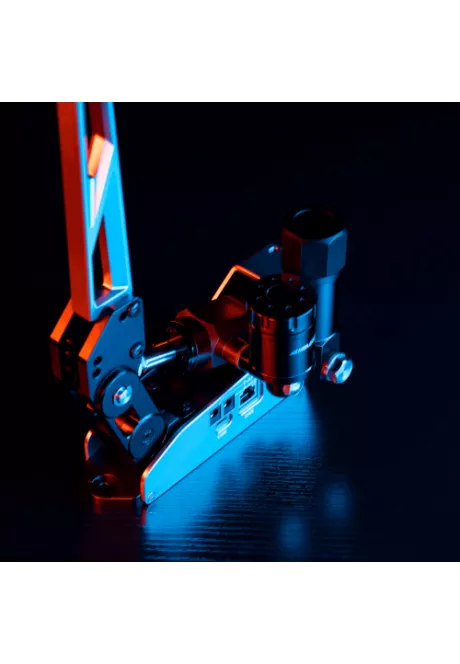

The TB-RS uses a full hydraulic system — just like a real handbrake in a racing car. Lever force is transmitted through hydraulic fluid, delivering a linear, natural and highly precise braking feel at a 1:1 ratio. Hydraulic damping is adjustable, so you can tune the lever resistance to suit your personal preference and driving style.
The TB-RS ships with 9 elastomers that enable 4 stiffness levels for the lever resistance. Elastomers swap in seconds without tools, allowing you to instantly change the handbrake feel for rally, drift or circuit driving. Different combinations produce either progressive or more linear resistance, giving you precise control over the handbrake's character.
The SIMAGIC P-HPR (Haptic Pedal Reactor) is an optional add-on that delivers tactile vibration feedback through the handbrake lever. It allows you to physically feel the moment of wheel lock with exceptional clarity — providing information that would otherwise only be visible on a telemetry screen. The module is sold separately and is fully compatible with the TB-RS.

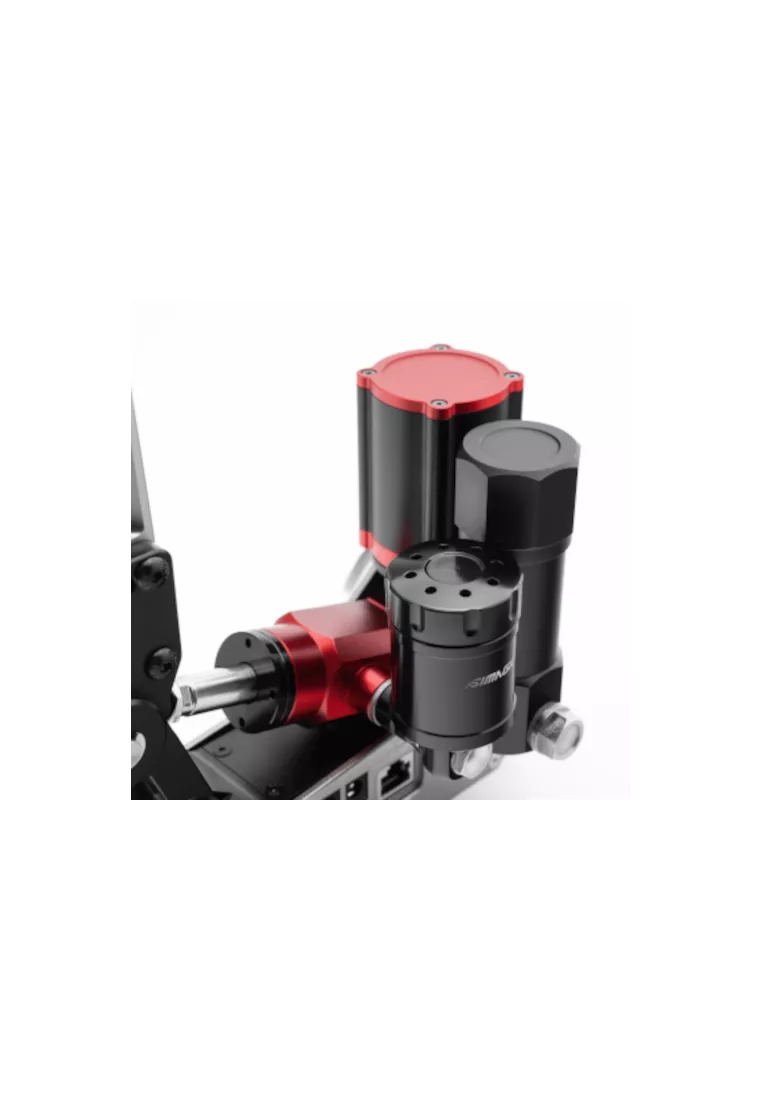

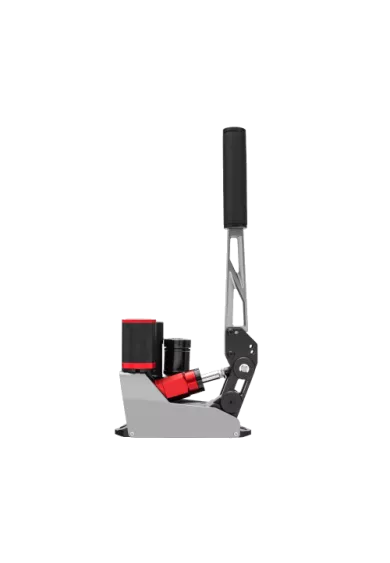

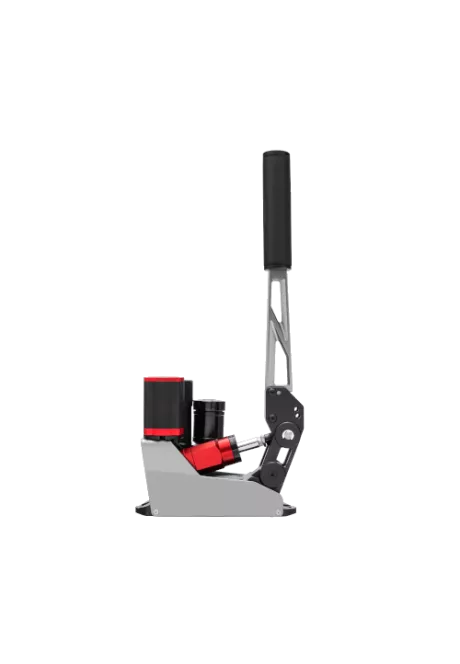

The TB-RS lever can be set to four different angles in both horizontal and vertical orientations. The rotating oil reservoir automatically adapts to the selected mounting position, ensuring correct hydraulic function regardless of lever angle. Interchangeable grip handles let you match the handbrake's appearance to the rest of your rig.

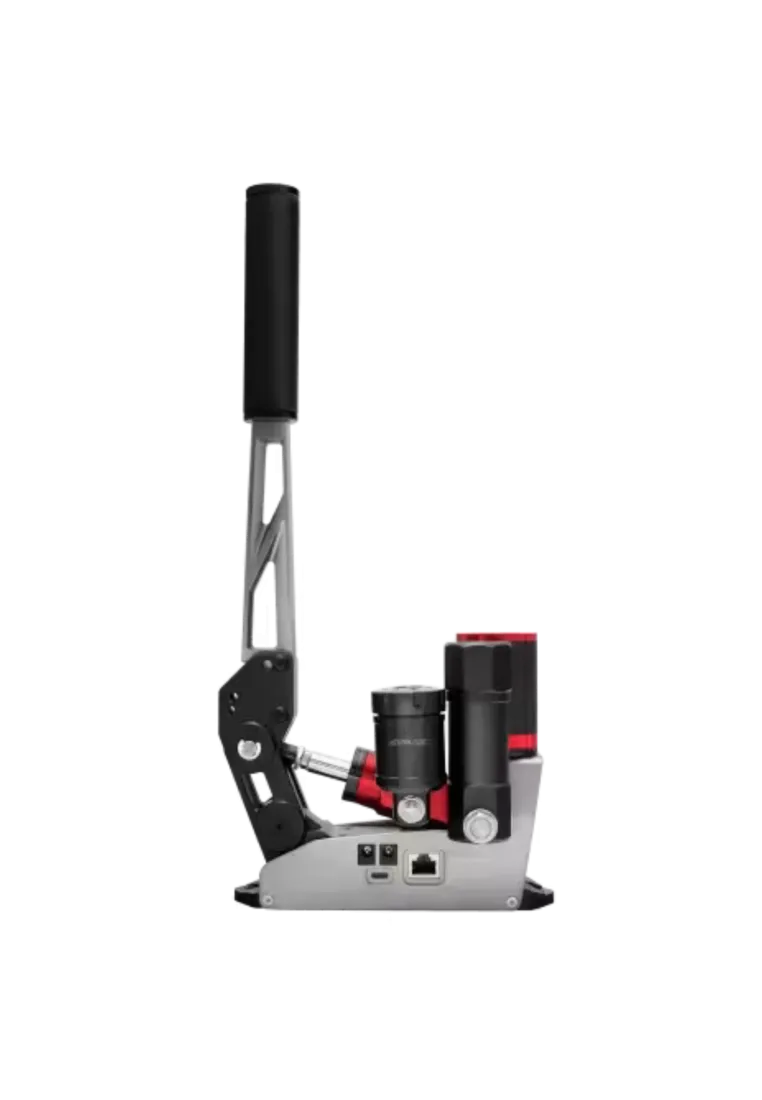

The TB-RS supports two connection modes: direct USB to PC (plug & play) or via a dedicated port to Simagic wheelbases. Connecting through a Simagic wheelbase simplifies cockpit cabling and enables deeper hardware integration with SimPro Manager 2.0.
The TB-RS is configured via SimPro Manager 2.0. The software features automatic device detection, automatic driver installation and continuous firmware updates. It also allows fine-tuning of output curves and sensitivity ranges for precise control over how the handbrake behaves in-game.
The TB-RS features M6 threaded mounting holes that allow direct attachment to aluminium profile rigs and most popular sim racing cockpits. The unit measures 178 × 95 × 387 mm and weighs 1.35 kg, making it compact and lightweight even in more complex rig configurations.
