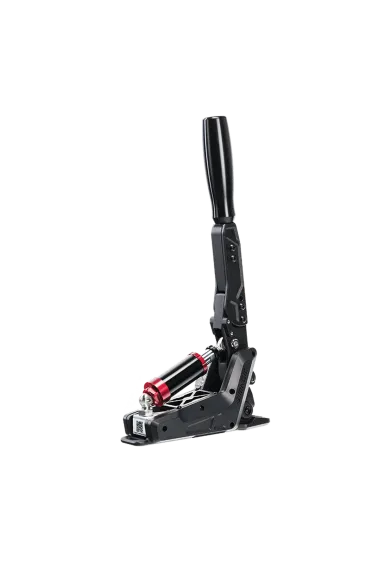

Simagic TB-NEO rear right side view
Simagic TB-NEO rear side view

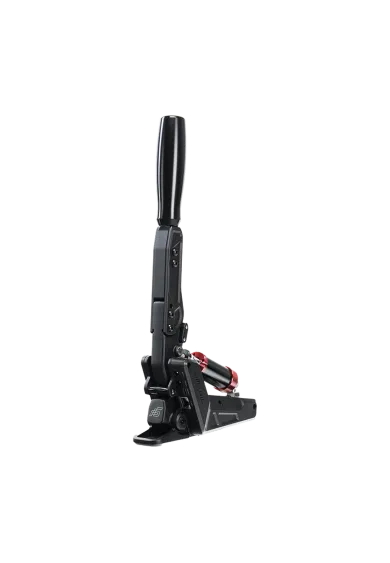

Simagic TB-NEO front left side view
Simagic TB-NEO left side view
  • New

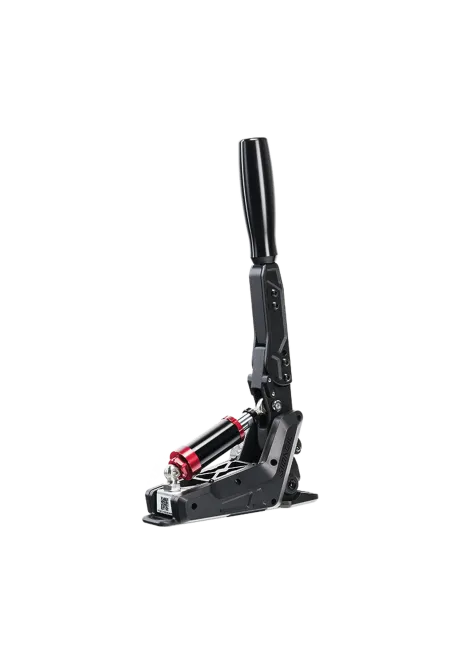

Simagic TB-NEO rear right side view

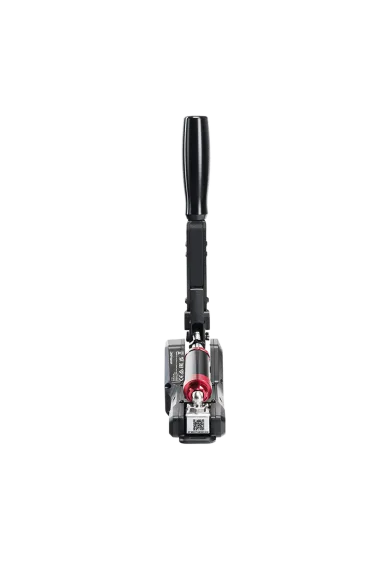

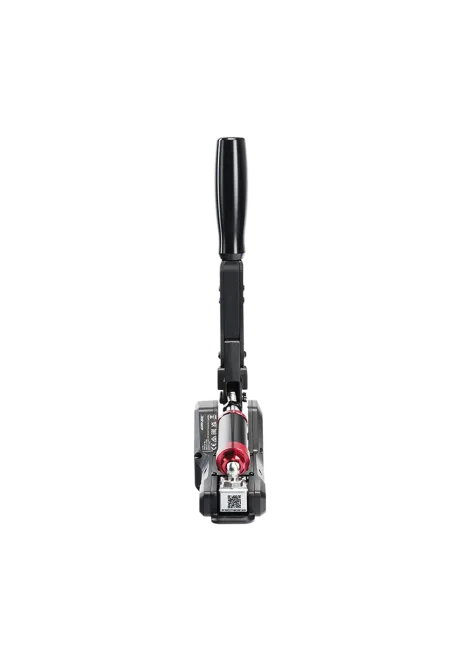

Simagic TB-NEO rear side view

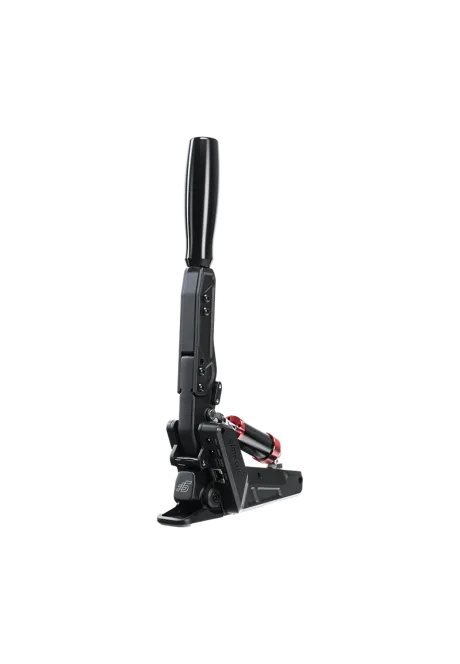

Simagic TB-NEO front left side view

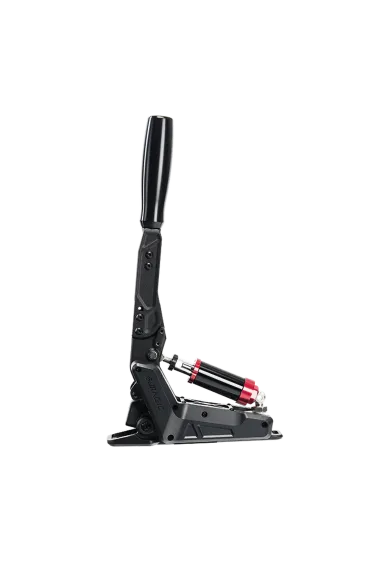

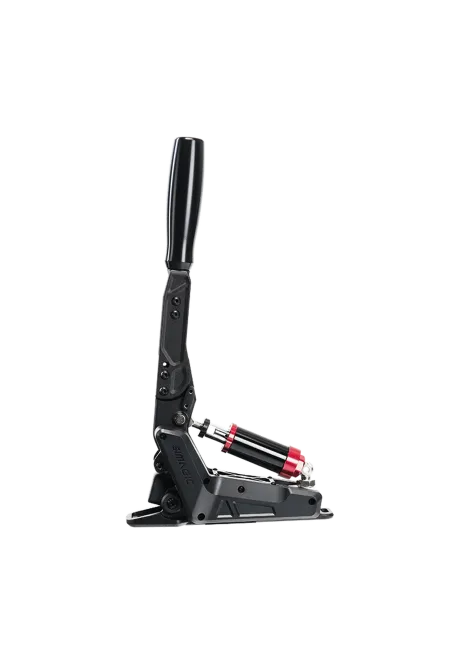

Simagic TB-NEO left side view

Simagic TB-NEO

TB-NEO
698.37zł

698.37zł
PREORDER

Simagic TB-NEO is a sim racing handbrake with a 100 kg load cell and 12-bit input. It has interchangeable elastomers, five angle settings and vertical or horizontal lever configurations. Connect it to a PC through USB or to a compatible Simagic wheelbase. Cables, mounting hardware and elastomers are included; hydraulic and haptic modules are sold separately.


Ask about product
Zapytanie dotyczy produktu: Simagic TB-NEO
* - pola obowiązkowe
Send
You will receive an 6.98zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Plug and Play Accessories

SIMAGIC P-HYS Hydraulic Breaking System For P1000

SIMAGIC P-HYS Hydraulic Breaking System For P1000

584.55zł
SIMAGIC P-HPR Haptic

SIMAGIC P-HPR Haptic

207.32zł
Simagic P-HPR GT

Simagic P-HPR GT

138.21zł
SIMAGIC P-APS Power Supply

SIMAGIC P-APS Power Supply

84.55zł

You might also like



Control braking through the force of your pull

TB-NEO measures force at the load cell rather than just lever position. In rally or drifting, you can vary braking input instead of relying on a simple on/off signal. The sensor has a 100 kg range, and the electronics provide 12-bit resolution with 4096 input levels. That rating does not mean you need to pull the handle with 100 kg of force.

Full-Range Adaptive Sensing adjusts signal amplification to the load. SimPro Manager lets you set the response curve and dead zones, while calibration matches the input range to your mechanical setup. Recalibrate after changing the elastomers.

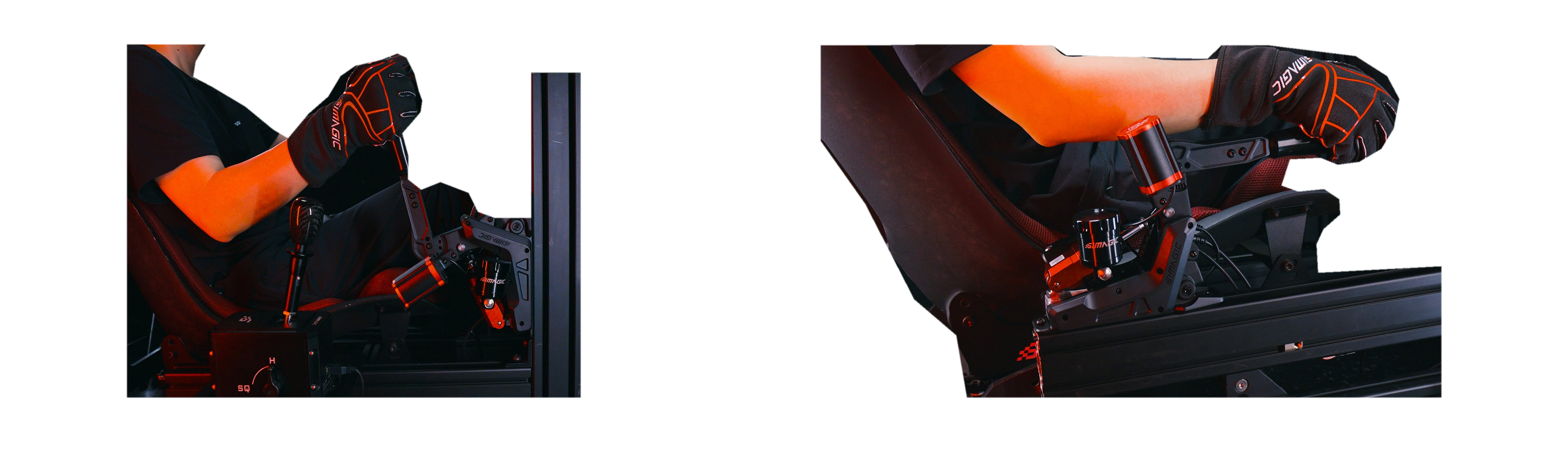

Simagic TB-NEO change to any position

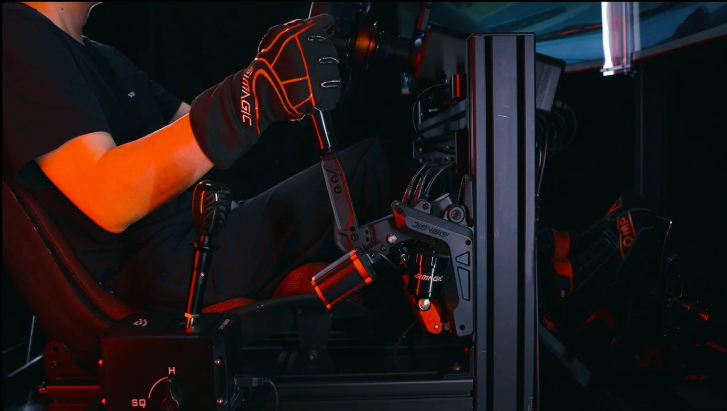

Simagic TB-NEO choose resistance and hydraulic option

Choose the resistance and add hydraulics later

The standard mechanism uses springs and elastomers for resistance. The box includes additional black and green rings plus green T-type elements. Configure a lighter pull with more travel, a short stroke with a firm stop, or resistance that builds in two stages. Simagic specifies the green T-type elements for the optional hydraulic module.

TB-NEO accepts Simagic P-HYS or P-HYSi upgrades, but neither is included in the standard set. The manual rules out mounting the entire handbrake vertically with P-HYS. With P-HYSi, keep the reservoir upright relative to the ground, as instructed.

Place the lever where your hand reaches naturally

Choose a vertical or horizontal lever configuration and one of five angle positions. Lever height is adjustable too. Match the handle to the space beside your seat and steering wheel, then check that nothing obstructs your hand through the full pull.

The base bolts to a mounting plate or aluminium profile. M6 fasteners, nuts and M6 slot nuts for 40-series profiles are included. The body uses aluminium alloy with ABS and PC parts, while the grip is POM. A desk clamp is not included.

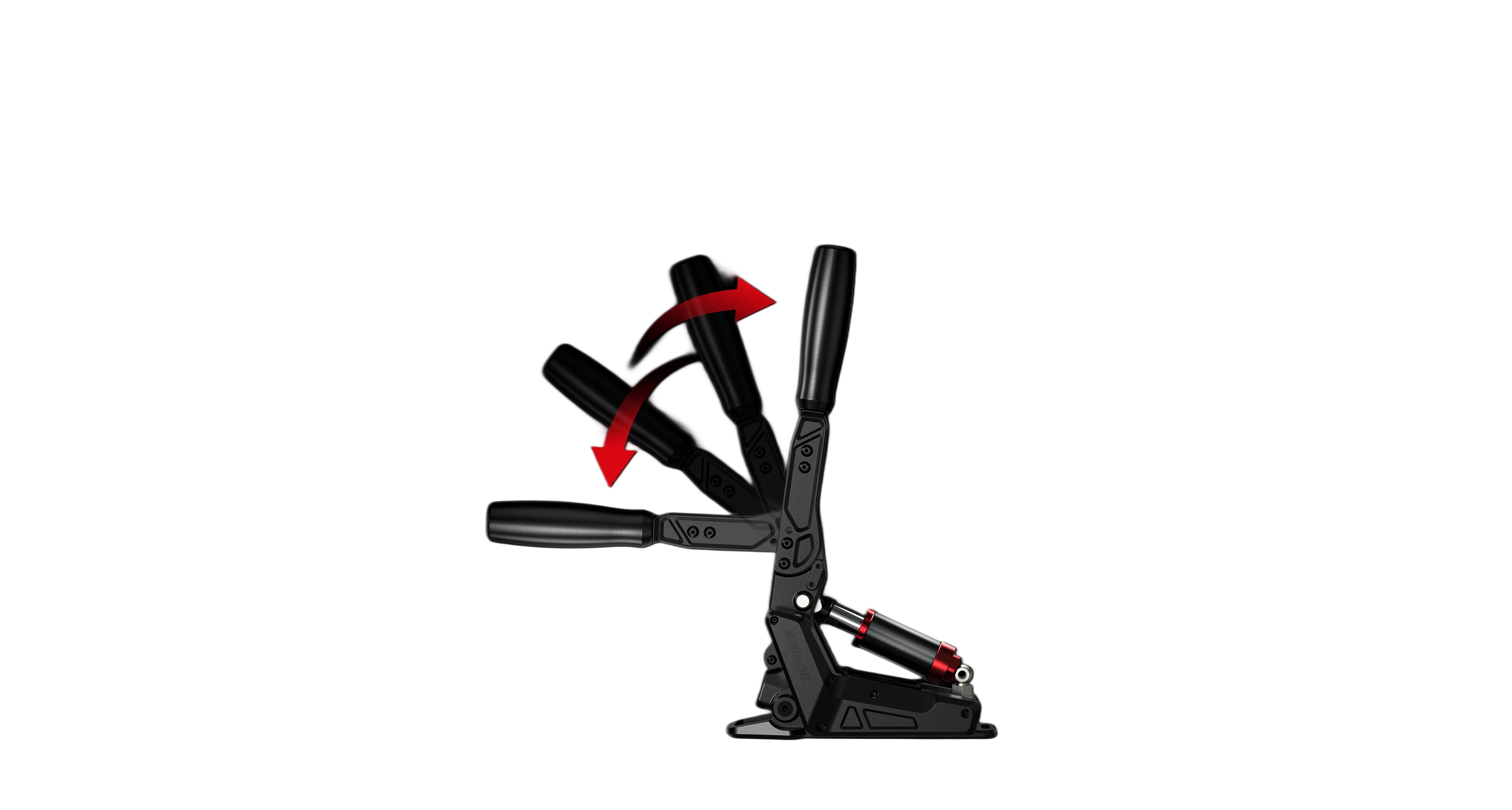

Simagic TB-NEO lever regulation

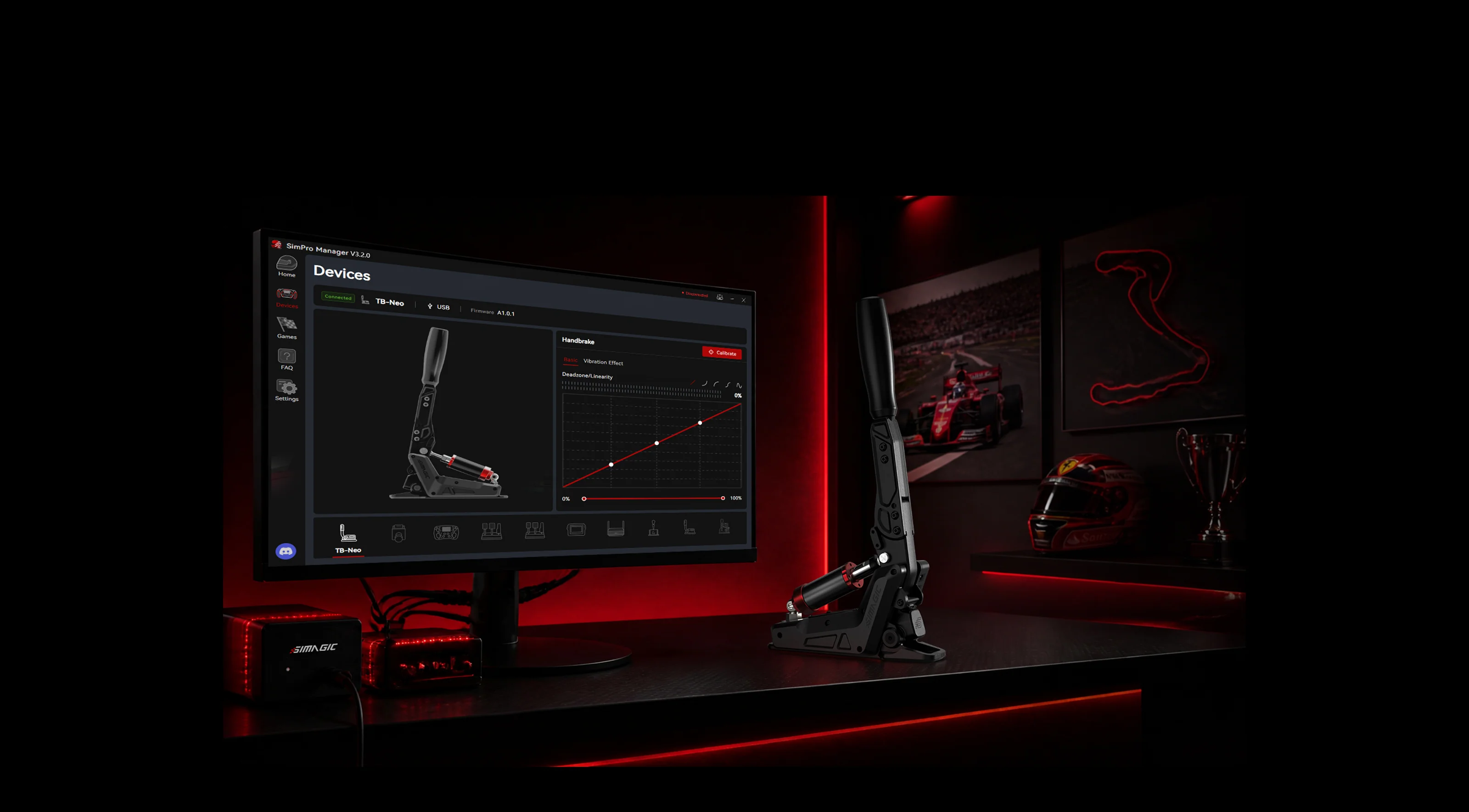

Simagic TB-NEO haptics compatible

USB, CAN and CANFD with optional haptic feedback

On PC, connect TB-NEO directly through USB regardless of your wheelbase brand. The handbrake's USB-C port also supports a CAN connection to Alpha Mini, Alpha and Alpha Ultimate bases. Alpha EVO models use RJ45 to the wheelbase CANFD port. Both cables are included.

A Simagic P-HPR or P-HPR GT adds telemetry-driven vibration. The haptic module and additional power supply are separate purchases. Configure effects in SimPro Manager; Simagic also provides SimHub support with compatible haptic hardware. Available signals depend on the game's telemetry.

Parameter Details
Manufacturer Simagic
Model TB-NEO
Type Analogue sim racing handbrake
Sensor Load cell with a 100 kg range in the standard configuration
Input resolution 12-bit, 4096 levels
Sensing technology Full-Range Adaptive Sensing
Body materials Aluminium alloy, ABS and PC; die-cast aluminium with CNC machining
Grip material POM
Lever configuration Vertical or horizontal; 5 angle settings and height adjustment
Mechanical adjustment Travel, spring tension and resistance through the choice of spring and elastomer components
Software adjustment Response curve, dead zones and range calibration
Preset response curves Linear, Exponent, Logarithm, S-Curve
PC connection USB; USB-C port on the handbrake
Simagic wheelbase connection CAN for Alpha Mini, Alpha and Alpha Ultimate; CANFD through RJ45 for the Alpha EVO series
Expansion ports 2 DC connectors: vibration module and additional power supply
Handbrake electrical specifications DC 5 V / 1 A, 5 W maximum; not the rating for the optional haptic power supply
Software SimPro Manager; SimHub for compatible haptic modules
Product dimensions 209.5 x 73.5 x 382.5 mm, length x width x height in the manufacturer's illustrated configuration
Net weight Approximately 1.36 kg
Warranty stated in the TB-NEO manual 24 months from purchase, subject to warranty terms
Shipping package dimensions and weight Not published in the manufacturer's documentation
Device or application Connection and conditions
PC Direct USB connection. A Simagic wheelbase is not required.
Simagic Alpha Mini, Alpha, Alpha Ultimate Connect the handbrake's USB-C port to the compatible wheelbase CAN port as shown in the manual.
Simagic Alpha EVO series RJ45 cable to the wheelbase CANFD port.
Setup with another wheelbase brand On PC, the handbrake operates as a separate USB device. Do not connect it to another wheelbase's peripheral port without confirmed compatibility.
Simagic P-HPR / P-HPR GT Optional haptic modules requiring additional power, such as a compatible Simagic P-APS supply. Module and power supply are sold separately.
Simagic P-HYS Optional hydraulic module. The manual prohibits mounting the entire handbrake vertically with this module.
Simagic P-HYSi Optional hydraulic module. Keep the reservoir upright relative to the ground when changing the handbrake configuration.
Simagic P-ORP / P-ORP(H) Optional resistance-component kits listed on the TB-NEO page. Select the version for the standard or hydraulic module.
SimHub Telemetry effects with compatible haptic hardware. TB-NEO does not generate vibration without an additional haptic module.
Mounting plates and aluminium profiles M6 bolt mounting after checking holes, profile slots and clearance for lever movement.
PlayStation / Xbox Direct console support is not confirmed in the TB-NEO documentation.
  • 1 x Simagic TB-NEO handbrake
  • 1 x USB-C data cable
  • 1 x RJ45 cable
  • 2 x M6 lock nut
  • 2 x M6 ball-retained slot nut for 40-series profiles
  • 4 x M6x16 pan-head hex-socket screw
  • 4 x M6x12 pan-head hex-socket screw
  • 1 x 4 mm hex key
  • 1 x 3 mm hex key
  • 2 x yellow spring and 3 x resistance-barrel spacer, pre-installed
  • 8 x black O-ring elastomer
  • 8 x green O-ring elastomer
  • 9 x green T-type elastomer
  • 1 x quick guide
  • 1 x transparent SIMAGIC logo sticker

P-HPR, P-HPR GT, P-HYS and P-HYSi modules, an additional power supply and a desk clamp are not included in the standard set.

1. Which sensor does Simagic TB-NEO use?

A load cell with a 100 kg range in the standard configuration. The electronics read the signal at 12-bit resolution, providing 4096 levels.

2. Do I need to pull the handle with 100 kg of force?

No. The 100 kg rating describes the sensor range, not the required hand force. Resistance depends on the spring and elastomer setup; calibration adjusts the input range.

3. Is TB-NEO a hydraulic handbrake?

Not in its standard configuration. The stock mechanism uses springs and elastomers. Simagic P-HYS and P-HYSi hydraulic modules are optional upgrades.

4. Can the lever be positioned horizontally?

Yes. Vertical and horizontal configurations are available, with five angle positions and lever-height adjustment.

5. Does TB-NEO work on PC without a Simagic wheelbase?

Yes. Connect it directly to the computer through USB. Your wheelbase does not have to be a Simagic model.

6. How does TB-NEO connect to Alpha and Alpha EVO bases?

Alpha Mini, Alpha and Alpha Ultimate use CAN through the handbrake's USB-C port. The Alpha EVO series uses RJ45 and CANFD. Use the wheelbase port identified in the manual.

7. Are a haptic module and power supply included?

No. Purchase P-HPR or P-HPR GT and the additional power supply separately. TB-NEO does not produce telemetry vibration without a haptic module.

8. Is calibration needed after changing elastomers?

Yes. The manual recommends recalibrating in SimPro Manager after an elastomer change to match the minimum and maximum readings to the new setup.

9. Can the whole handbrake be mounted vertically with P-HYS?

No. Simagic rules out that mounting orientation with P-HYS. For P-HYSi, follow the separate requirement to keep the reservoir upright relative to the ground.

10. Is a desk clamp included?

No. The included hardware is for bolt mounting, including installation on a compatible aluminium profile. A desk clamp must be selected separately.

11. How long is the Simagic TB-NEO warranty?

The TB-NEO manual specifies a 24-month warranty from purchase, subject to SIMAGIC warranty terms. Simline.eu is an authorised distributor in Poland and accepts claims for equipment purchased from us.

12. How is the warranty handled for a product bought from Simline.eu?

Simline.eu acts as an intermediary in the warranty process and manages the case from receipt of documentation. After reviewing the issue, we provide further instructions for handling the claim.

13. How do I submit a claim for Simagic TB-NEO?

Email support@simline.eu with a fault description, photos or a video showing the issue and proof of purchase. Further instructions will follow after review.
