6,893.50zł
7,590.24zł -9.18%Instead of 7,367.48zł

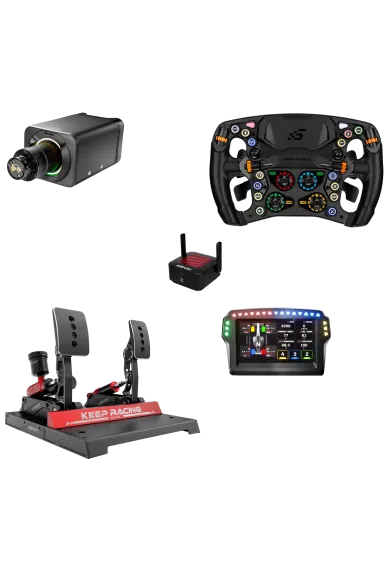

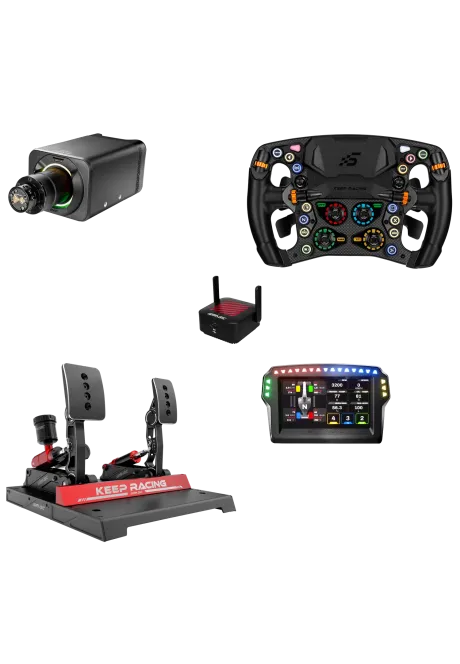

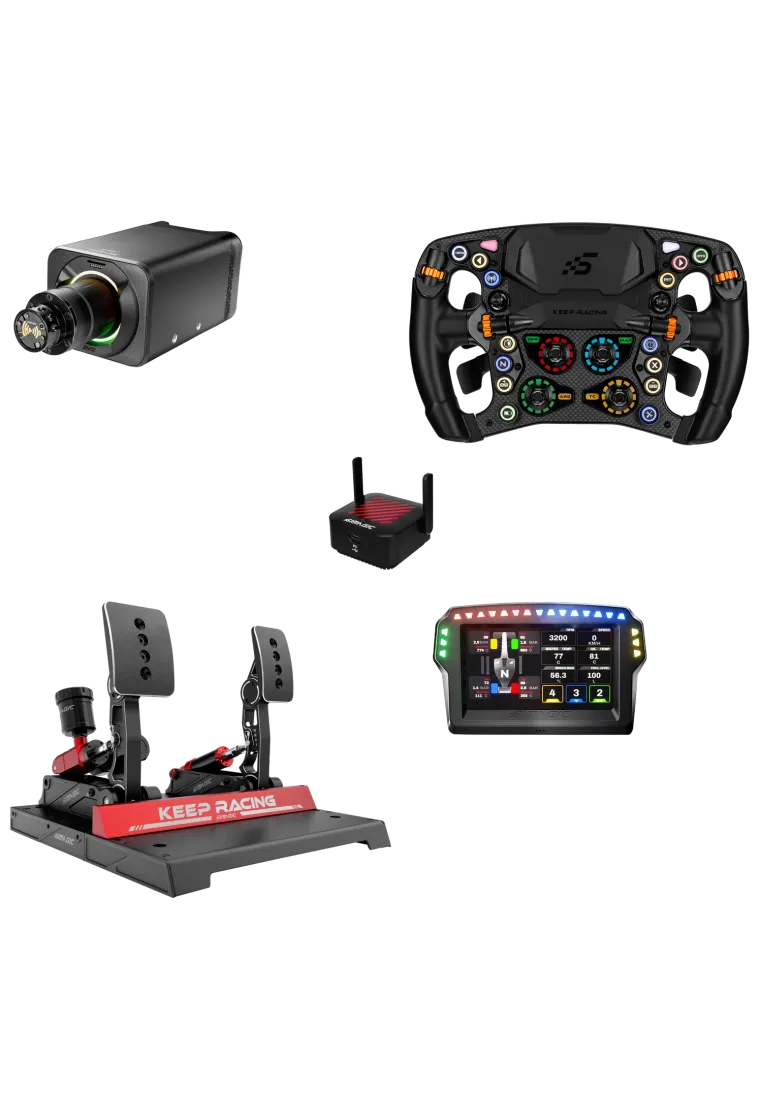

The Simagic Alpha EVO Pro + P1000-FRS + Zeus Formula + MagicDash 4 bundle combines an 18 Nm Direct Drive wheelbase, a 280 mm Formula steering wheel, a touchscreen telemetry display, and a two-pedal set with a hydraulic brake for PC sim racing. MagicDash 4 attaches directly to Zeus Formula, and the AirLink required for telemetry is included free of charge.
You might also like

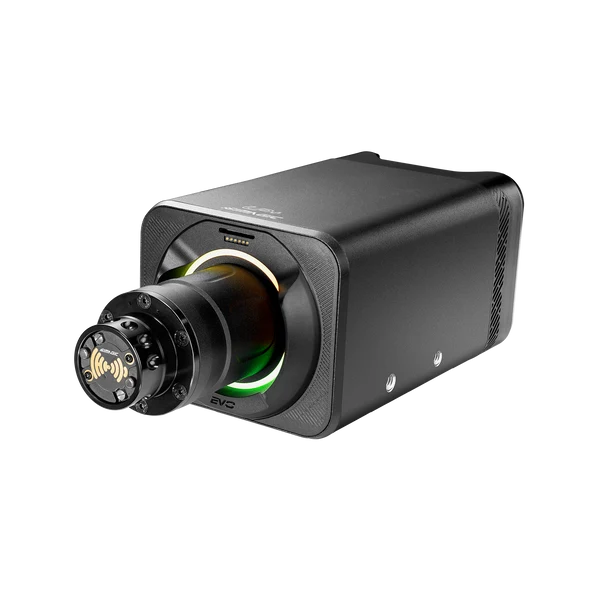

Alpha EVO Pro delivers up to 18 Nm of torque. Its low-inertia servo motor reacts quickly to changes in force direction, while Zero-Cogging technology reduces stepped sensations during slow steering movements. Shaft position is read by a 21-bit encoder, and the control system operates at a 20 kHz response rate.
Active cooling keeps the temperature stable during longer sessions. Factory mounting points are provided underneath the housing, while optional brackets support side, front, or desk installation. Zeus Formula uses QR50, so it connects to the wheelbase without an additional quick-release adapter.

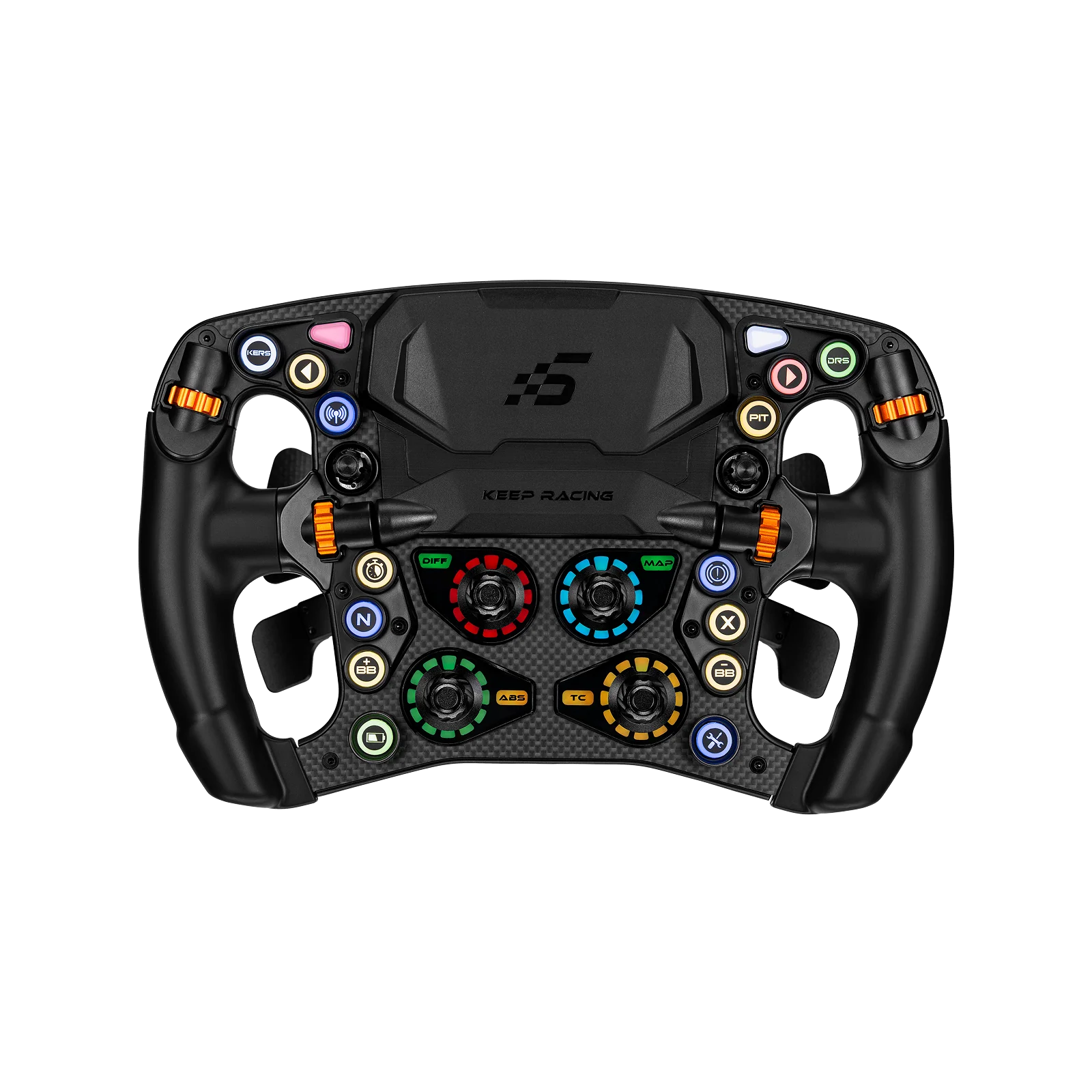

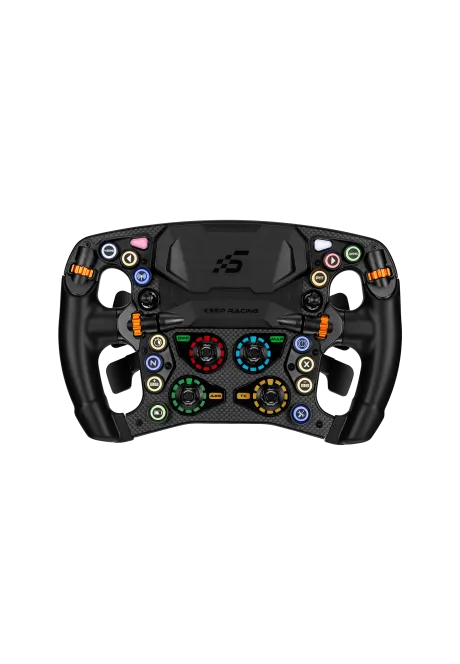

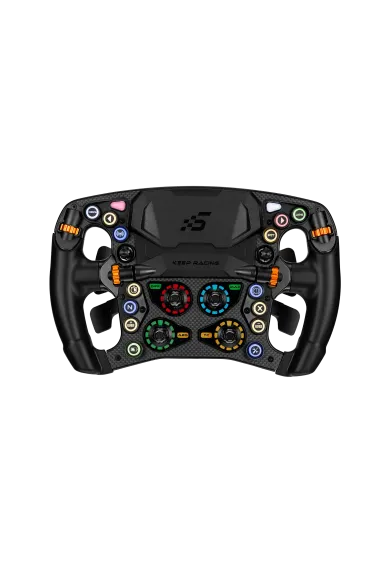

The 280 mm diameter matches the layout used by Formula steering wheels. Sixteen RGB buttons, two seven-way switches, four rotary encoders, and four thumb encoders allow car settings to be adjusted without removing a hand from the grips. The standard dual-paddle module uses Hall sensors.
The front plate is made from 5 mm solid carbon fibre, while the rear section is CNC-machined aluminium. Three-layer silicone grips are designed to provide a stable hold without gloves. Alpha EVO Pro communicates natively with the wheel through CAN FD, so MagLink Pro is not required.

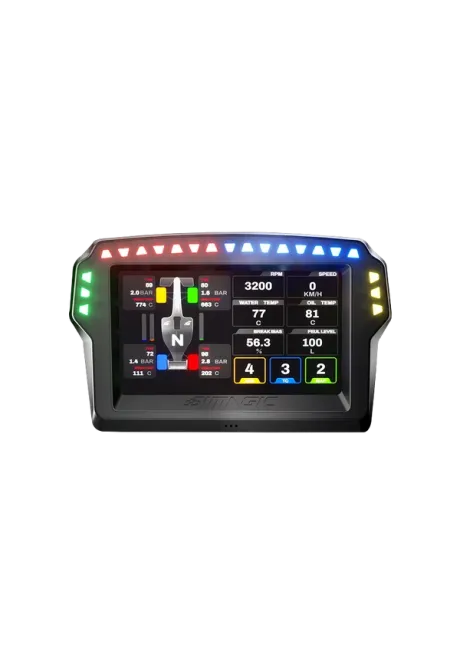

MagicDash 4 takes the central position on Zeus Formula after the factory cover is removed. Its 800 × 480 touchscreen can show lap data, the selected gear, engine speed, temperatures, pressures, and other telemetry supplied by the simulation. Fifteen LEDs above the display can work as shift lights, while six side LEDs indicate selected events.
The display supports ready-made layouts in SimPro Manager V3 and dashboards created for SimHub. Its built-in touchpad function can control the PC cursor directly from the screen. Telemetry is transferred through AirLink, which is included free with MagicDash 4.

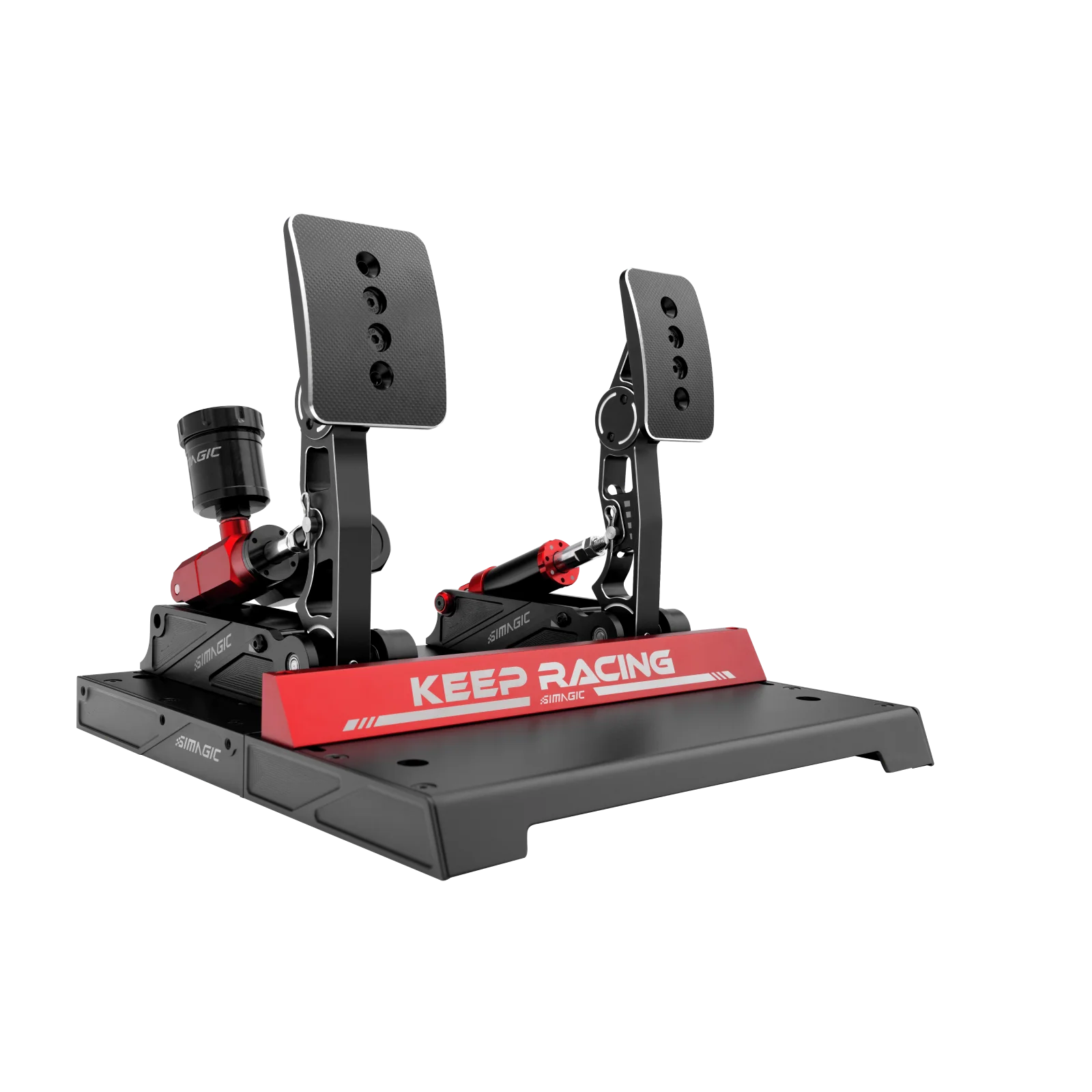

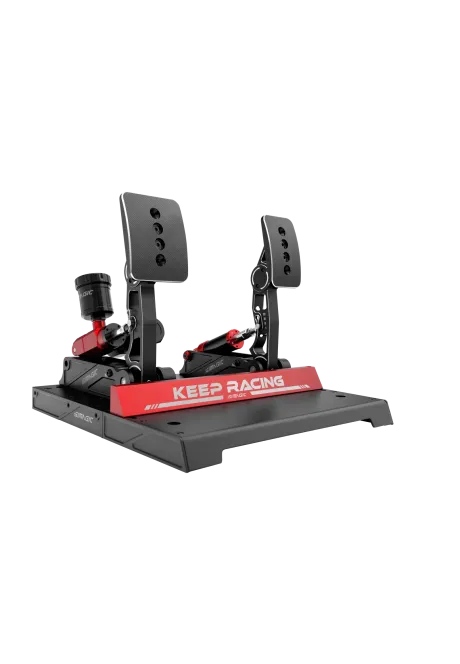

P1000-FRS combines brake and throttle pedals on a shared base. The brake includes the factory P-HYS hydraulic system and a 100 kg load cell, allowing the input to be measured by pressure. An additional Hall sensor reads brake angle, while the throttle uses its own Hall angle sensor.
Adjustment covers pedal position and angle, travel, brake resistance, the force needed for full output, dead zones, and response curves. The set can connect through the wheelbase CAN-Bus port or directly to the PC through USB. P-HPR haptic modules and a clutch pedal remain optional upgrades.
| Parameter | Data |
|---|---|
| Product type | Formula-class Direct Drive bundle for PC |
| Main components | Alpha EVO Pro 18 Nm, P1000-FRS, Zeus Formula, and MagicDash 4 |
| Platform | Windows PC |
| Alpha EVO Pro maximum torque | 18 Nm |
| Wheelbase motor | Ultra-low-inertia servo motor with Zero-Cogging technology |
| Wheelbase encoder | 21-bit |
| Processor / response rate | 180 MHz / 20 kHz |
| Wheelbase cooling | Active, temperature-controlled cooling |
| Alpha EVO Pro housing | CNC-machined die-cast aluminium |
| Wheelbase dimensions / weight | 317 × 130 × 110 mm / 8.627 kg |
| Supported wheelbase quick releases | SIMAGIC QR50, QR70, and QR-A |
| Zeus Formula diameter | 280 mm |
| Steering wheel construction | 5 mm solid carbon-fibre front plate, CNC-machined aluminium rear, three-layer silicone grips |
| Zeus Formula buttons | 16 customizable RGB buttons |
| Switches and encoders | 2 seven-way switches, 4 rotary encoders, and 4 thumb encoders |
| Inputs / RGB zones | Up to 92 physical inputs / up to 91 RGB zones with MagicDash 4 attached |
| Steering wheel paddles | Standard dual-paddle module with Hall sensors |
| Zeus Formula connection / quick release | CAN FD or USB / QR50 |
| MagicDash 4 screen | 4-inch touchscreen, 800 × 480 resolution |
| MagicDash 4 LEDs | 15 top shift LEDs and 6 side function LEDs |
| Additional display function | Built-in touchpad function for PC cursor control |
| MagicDash 4 dimensions / weight | 124.80 × 83.85 × 19.80 mm / 185.6 g |
| Display connection | AirLink included free with MagicDash 4 |
| P1000-FRS configuration | 2 pedals in a standard layout: brake and throttle |
| Brake system | Factory-installed P-HYS hydraulic system |
| P1000-FRS sensors | Brake: 100 kg load cell and Hall angle sensor; throttle: Hall angle sensor |
| Pedal resolution | 12-bit / 4096 levels |
| Pedal adjustment | Travel, brake resistance, pedal angle and position, linearity, braking force, and dead zones |
| P1000-FRS connection | USB to PC or CAN-Bus to a SIMAGIC wheelbase |
| Pedal material | CNC-machined aluminium with an anodized pedal plate |
| P1000-FRS dimensions / weight | 334.8 × 336 × 267 mm / 5.00 kg |
| Software | SIMAGIC SimPro Manager V3; Zeus Formula and MagicDash 4 also support SimHub |
| Connection or platform | Requirements |
|---|---|
| Alpha EVO Pro + Zeus Formula | Native compatibility through QR50 and CAN FD; MagLink Pro is not required |
| Zeus Formula + MagicDash 4 | The display attaches to the central wheel mount after the cover is removed; a separate MagDock is not required |
| MagicDash 4 + AirLink | AirLink is required for telemetry transfer and is included free with the display |
| Alpha EVO Pro + P1000-FRS | The pedals can connect to the wheelbase CAN-Bus port |
| P1000-FRS + Windows PC | A direct USB pedal connection is also supported |
| SimPro Manager V3 | Configuration of FFB, steering wheel inputs, lighting, display layouts, and pedal response |
| SimHub | Supports MagicDash 4 layouts and Zeus Formula input and RGB functions |
| Alpha EVO Pro mounting | Factory bottom mounting points; side, front, and desk mounts are sold separately |
| P1000-FRS upgrades | Compatible with optional P-HPR modules, a hydraulic throttle module, and inverted installation hardware |
| Consoles | The manufacturer does not claim native console support for this bundle |
The bundle includes an Alpha EVO Pro 18 Nm wheelbase, Zeus Formula steering wheel, MagicDash 4 display, P1000-FRS pedals, and an AirLink supplied free with the display.
Yes. P1000-FRS includes the factory-installed P-HYS hydraulic system and a 100 kg load cell.
No. It is a two-pedal Formula set in the standard position. Inverted mounting hardware is optional.
No. P1000-FRS contains brake and throttle pedals. A clutch can be purchased as a separate module.
Yes. The display occupies the central position after the factory cover is removed and uses the prepared magnetic mount.
AirLink is required for MagicDash 4 telemetry. It is included free in this bundle, so no separate purchase is needed.
No. Zeus Formula communicates natively with Alpha EVO Pro through CAN FD.
No. MagDock is not required for attaching MagicDash 4 to Zeus Formula and is not included.
Yes. P1000-FRS can use a direct USB connection to the PC or the CAN-Bus port on Alpha EVO Pro.
No. P-HPR modules are optional pedal upgrades and are sold separately.
MagDock, MagLink Pro, a clutch pedal, P-HPR modules, the hydraulic throttle module, inverted pedal hardware, and optional wheelbase mounts are not included.
