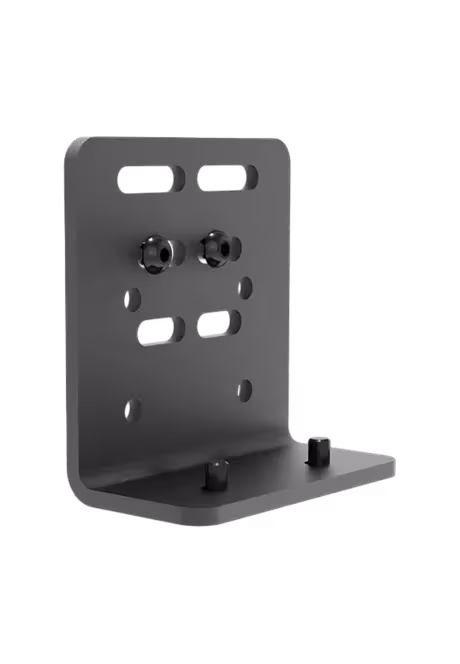

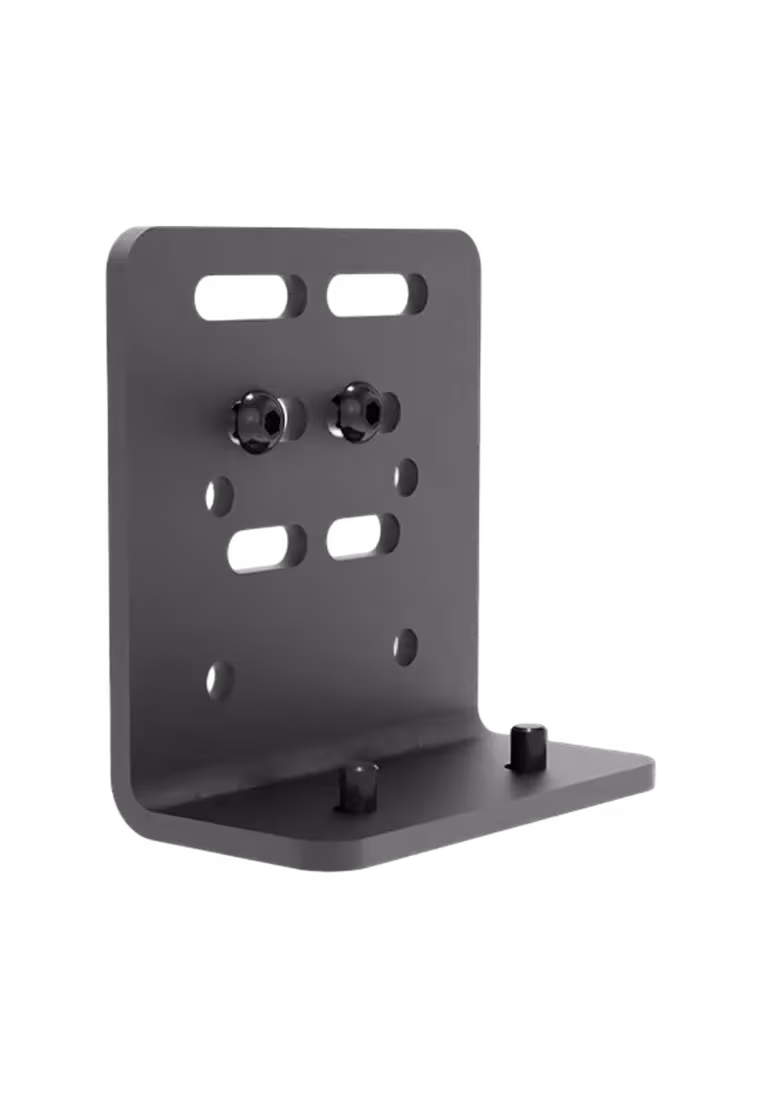

Simgasm Motion System Mounts front side view

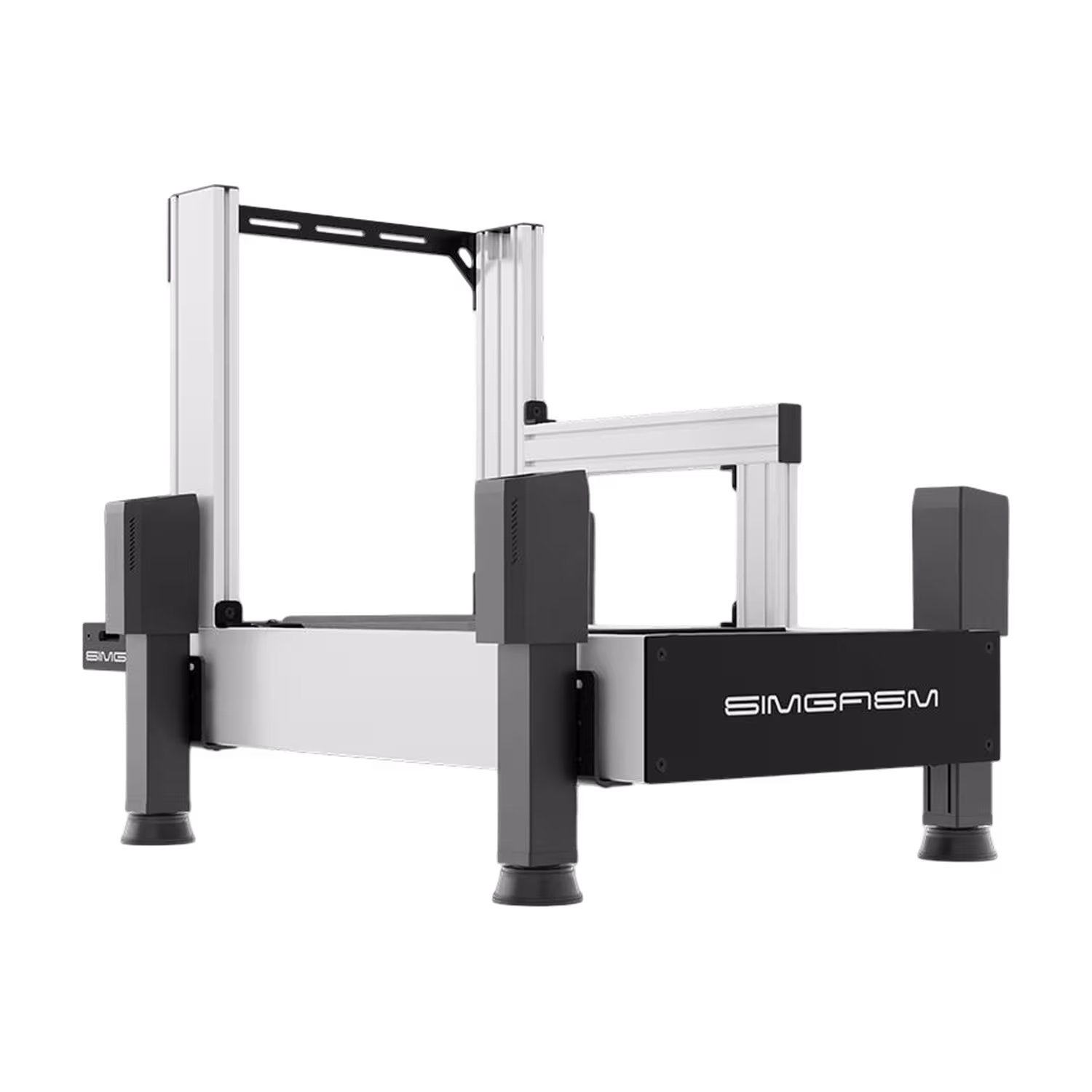

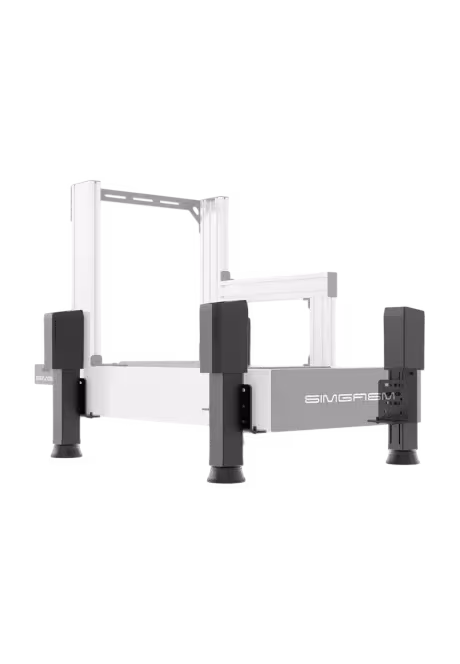

Simgasm Motion System Mounts motion system mounted

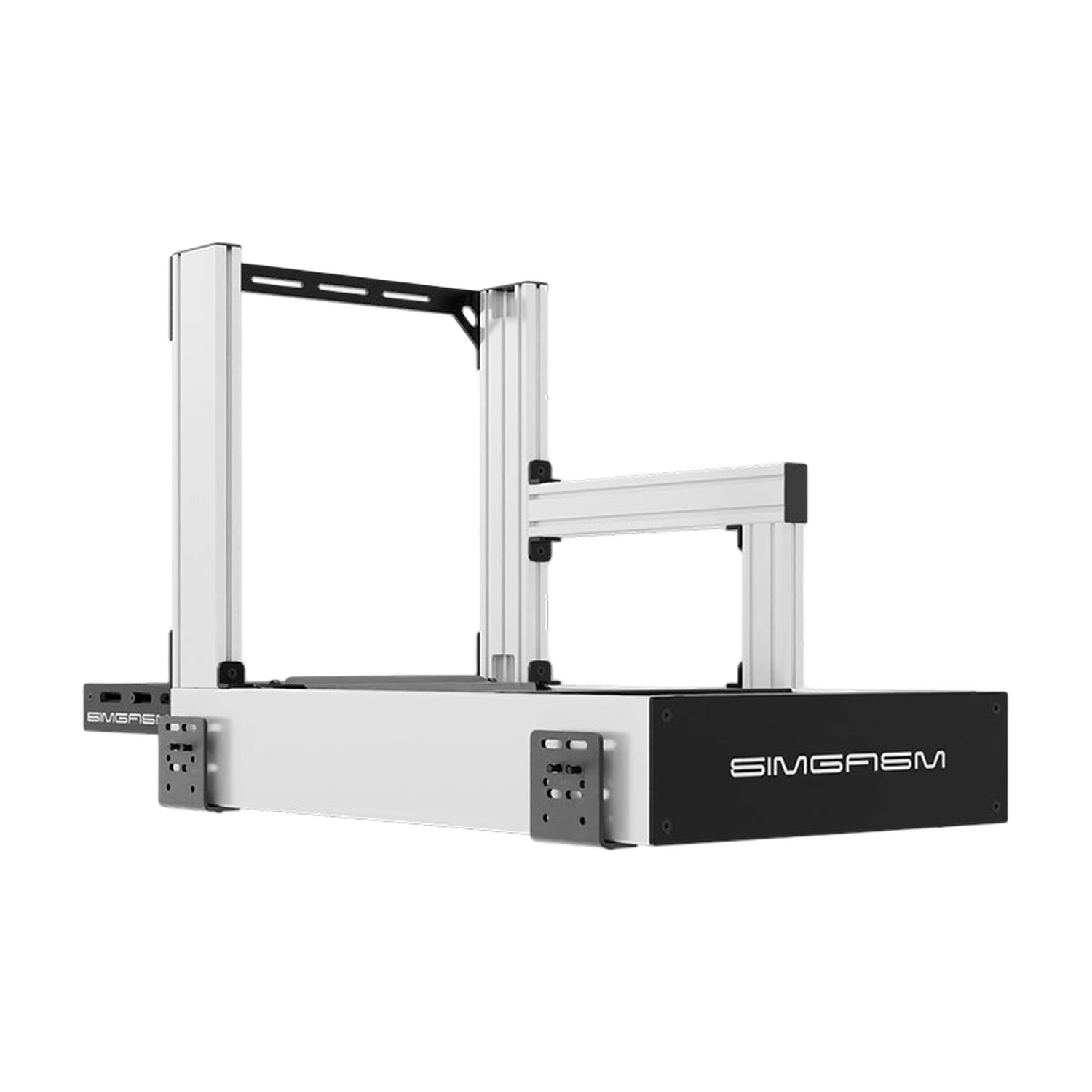

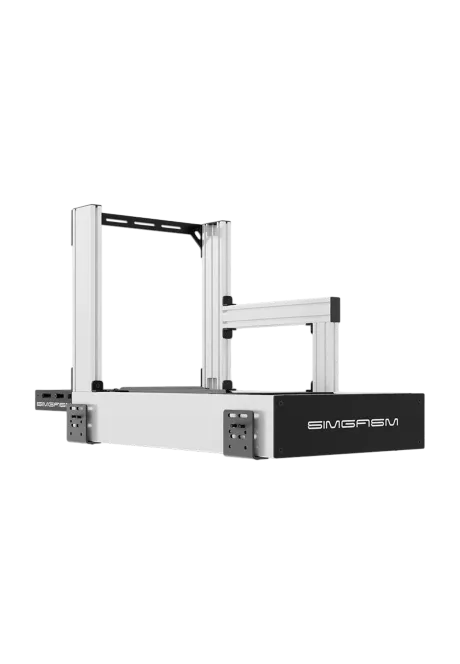

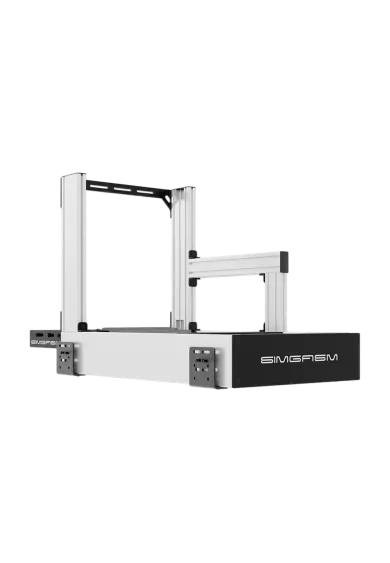

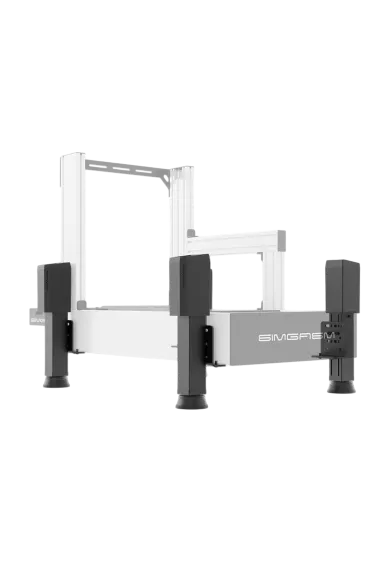

Simgasm Motion System Mounts how its mounted to simrig

Simgasm Motion System Mounts

Name: Simgasm Motion System Mounts
Brand: SIMGASM
SKU: BS-MA
Price: 254.47 PLN
Availability: BackOrder

Reference BS-MA

254.47zł

Shipping in 3-5 days

The Simgasm Universal Motion Actuator Brackets set contains four 6 mm carbon-steel mounts for Hobby, Club, Sport and Pro frames. Each bracket uses four bolted mounting points. The set connects a cockpit to compatible motion actuators but includes no drives or controller. Some systems also require their original manufacturer's brackets.

Ask about product

You will receive an 2.54zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 30 days

Delivery from PLN 0

Available accessories

Motion Systems

Moza HMA150 Motion System PREORDER

11,186.18zł

Four brackets for the four frame corners

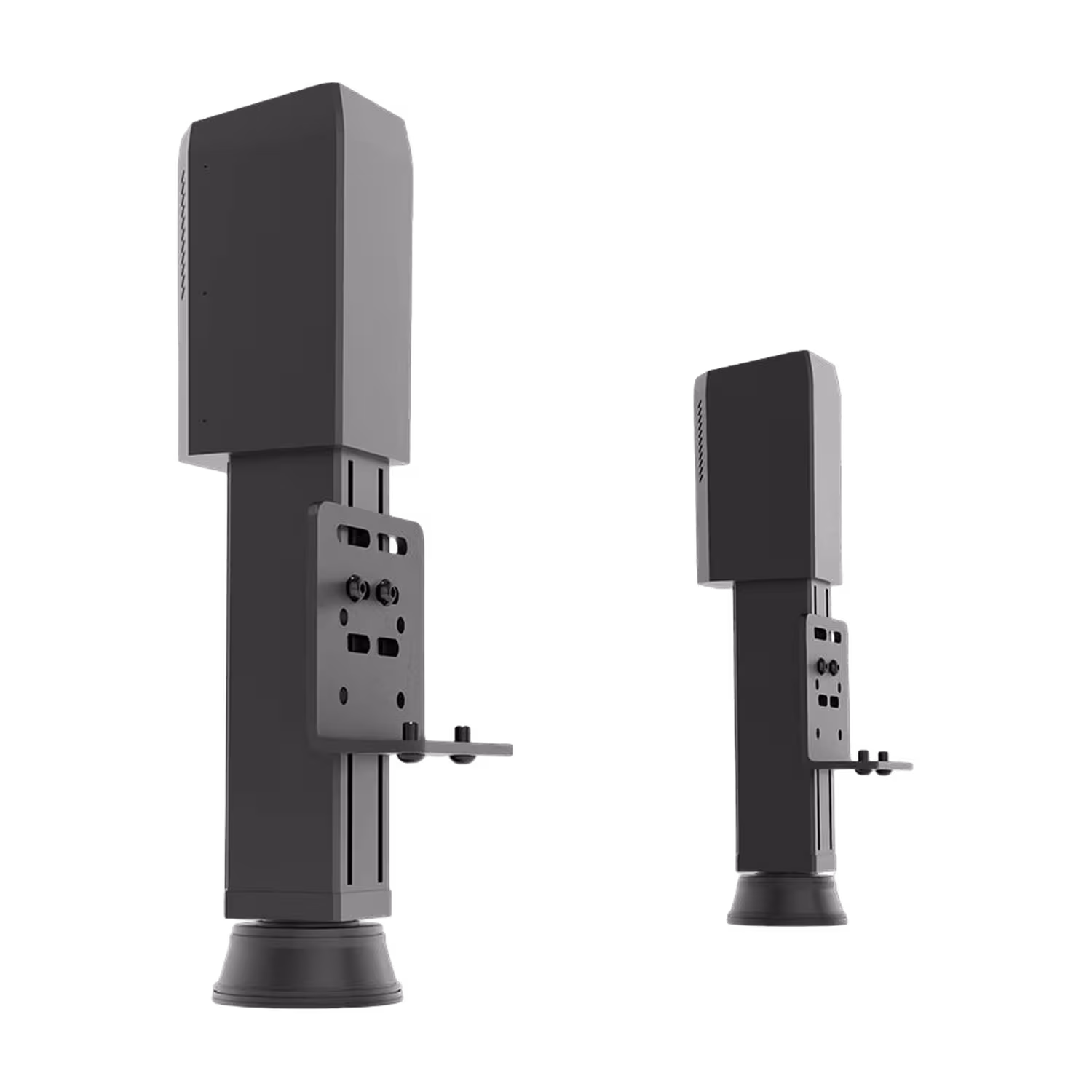

This set connects compatible motion actuators to a Simgasm aluminium-profile cockpit. Four brackets are supplied, one for each corner of the frame. They are mounting components, not a complete motion system. Actuators, controller, power equipment and cockpit are selected separately. Images showing fitted actuators illustrate how the brackets are used, rather than what is included in the box.

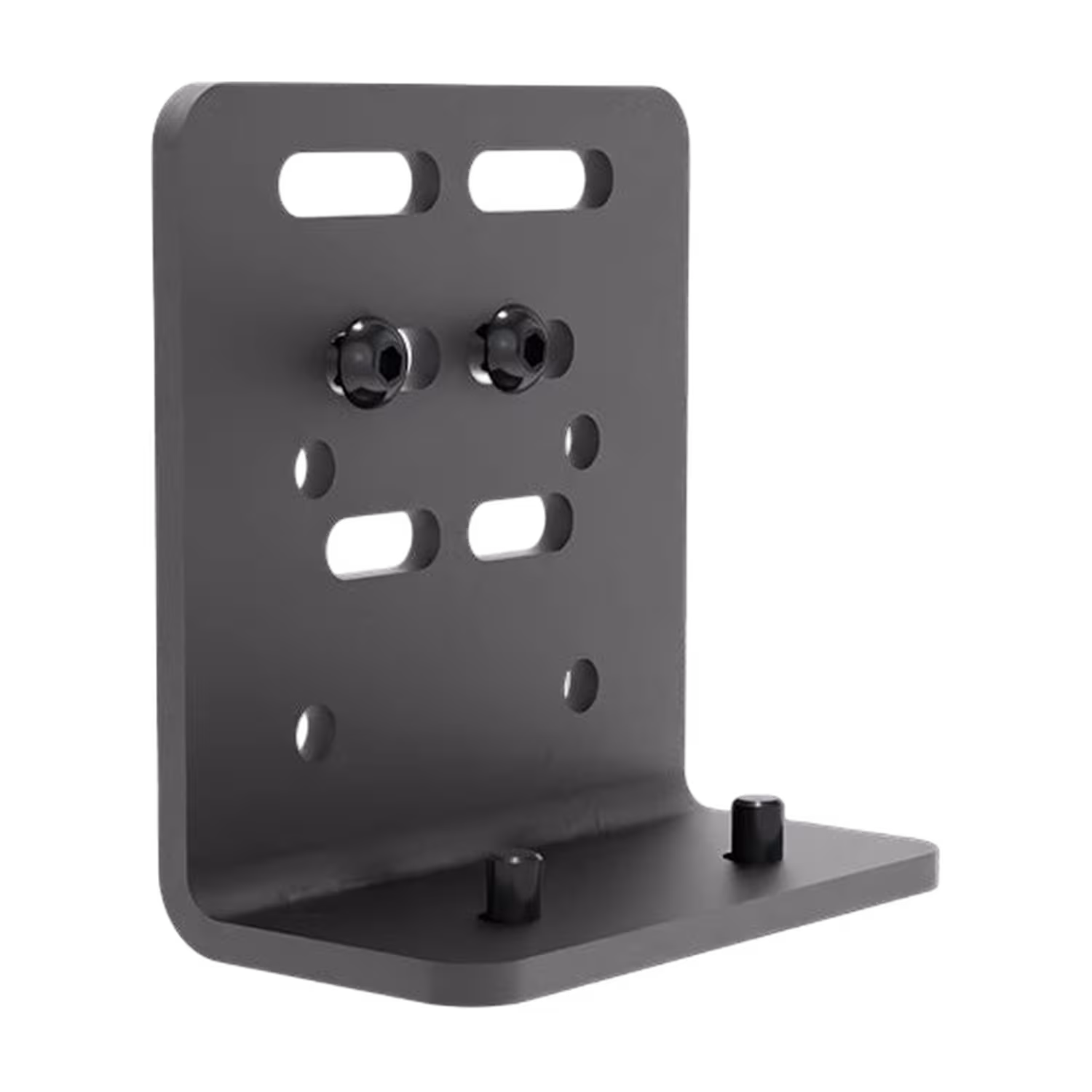

6 mm steel and four bolted mounting points

Each bracket is made from 6 mm carbon steel and uses four bolted mounting points. Installation needs to account for the bracket thickness and the attachment requirements of the selected actuator. Do not choose bolt length from the appearance of a photo alone. Simgasm states that the required mounting hardware can vary with the motion system being installed.

One set for several motion systems

The compatibility list includes Qubic QS-210 and QS-220, MOZA HMA150, selected PT Actuator and Sigma Integrale models, plus SFX-100 and SFX-150. However, “universal” does not mean every actuator will fit. D-BOX G3/G5, ProSimu PRS200, CAMMUS RDS4 and SIMRIG SR1/SR2 also require their original manufacturer's mounting bracket. Those additional brackets are not included in the Simgasm set.

Frame fit is only part of the check

The brackets fit Simgasm Hobby, Club, Sport and Pro cockpits, but the complete setup must also meet the actuator system's requirements. For example, Simgasm states that the MOZA HMA150 requires 40 × 80 mm profiles or larger. Hobby uses 40 × 40 mm profiles, so bracket fit alone does not confirm that combination. Check frame requirements and the selected motion system's load limits before upgrading.

Warranty: 24 months
Fixing method: Side

Parameter	Details
Manufacturer	SIMGASM
Product type	Brackets for attaching motion actuators to a cockpit
Number of brackets	4 pieces
Layout	One bracket at each of the four frame corners
Material	Carbon steel
Material thickness	6 mm
Bolted mounting points	4 per bracket
Compatible Simgasm frames	Hobby, Club, Sport and Pro; complete motion-system requirements must be checked separately
Colour	Black
Bolts and additional mounts	Depend on the actuator system; some configurations also require the actuator manufacturer's original brackets

Frame or motion system	Compatibility and conditions
Simgasm Hobby, Club, Sport and Pro	Bracket-to-frame compatibility is confirmed. This does not automatically approve every frame and motion-system combination
Qubic System QS-210 / QS-220	Listed as compatible by Simgasm
MOZA HMA150	Listed as compatible. Simgasm specifies 40 × 80 mm profiles or larger; the Hobby's 40 × 40 mm frame does not meet that condition
PT Actuator Champion GT	Listed as compatible by Simgasm
PT Actuator Scorpion C / E / S	Listed as compatible by Simgasm
Sigma Integrale DK2 / DK2+ / DK6+	Listed as compatible by Simgasm
eRacing-Lab T-slot	The claim covers T-slot actuators, not every product from the brand
VNM T-slot	The claim covers T-slot actuators, not every product from the brand
SFX-100 / SFX-150	Listed as compatible by Simgasm
D-BOX G3 / G5	Also requires the original D-BOX bracket, which is not included in the Simgasm set
ProSimu PRS200	Also requires the original ProSimu bracket, which is not included in the Simgasm set
CAMMUS RDS4	Also requires the original CAMMUS bracket, which is not included in the Simgasm set
SIMRIG SR1 / SR2	Also requires the original SIMRIG bracket, which is not included in the Simgasm set
Other cockpits and actuators	No general compatibility claim. Compare geometry, mounting points and the motion system's requirements

4 Simgasm universal motion actuator mounting brackets.

Actuators, cockpit, original motion-system manufacturer brackets and other pictured accessories are not included. Required bolts and additional mounting components depend on the selected actuators; no single complete hardware list is published for every configuration.

1. Are motion actuators included?

No. This product contains mounting brackets only. Actuators, controller and power equipment are selected separately.

2. How many brackets are supplied?

Four, one for each frame corner in a four-actuator layout.

3. What are the brackets made from?

6 mm carbon steel. Simgasm does not specify the process used for the black finish on this product page.

4. How many bolted mounting points does each bracket use?

Simgasm specifies four per bracket. Bolt size and length must suit the particular installation.

5. Which Simgasm cockpits fit the brackets?

Hobby, Club, Sport and Pro. This confirms bracket-to-frame fit; the selected actuators' requirements must also be checked.

6. Does the set support Qubic QS-210 and QS-220?

Yes. Both systems appear on Simgasm's official compatibility list.

7. Is the Simgasm set sufficient on its own for D-BOX, ProSimu, CAMMUS and SIMRIG?

No. D-BOX G3/G5, ProSimu PRS200, CAMMUS RDS4 and SIMRIG SR1/SR2 also require their original manufacturer's mounting bracket. Those brackets are not included.

8. Do these brackets confirm that MOZA HMA150 fits a Simgasm Hobby?

No. Simgasm specifies profiles of at least 40 × 80 mm for the HMA150, while Hobby uses 40 × 40 mm profiles. Bracket fit does not override frame requirements.

9. Does VNM and eRacing-Lab compatibility cover every product from those brands?

No. Simgasm lists their T-slot actuators. SFX-100 and SFX-150 systems are also listed separately.

10. Is a complete bolt and adapter kit included?

The confirmed contents are four brackets. Additional mounting hardware depends on the actuators. Do not assume that every component needed for every installation is included.

11. How long is the warranty on Simgasm products?

Simline.eu is an authorised Simgasm partner. Products from this brand are covered by full warranty protection for up to 2 years within the European Union, in accordance with Simgasm warranty terms.

12. How are Simgasm warranty claims handled?

Simline.eu acts as an intermediary in the warranty process and handles the case after receiving the documentation. Once the issue has been reviewed, we provide further instructions.

13. How do I submit a Simgasm warranty claim?

Email support@simline.eu or simgasm@simline.eu with a description of the fault, photos or a video showing the issue and proof of purchase. We will provide further instructions after reviewing the claim.
