1,554.19zł

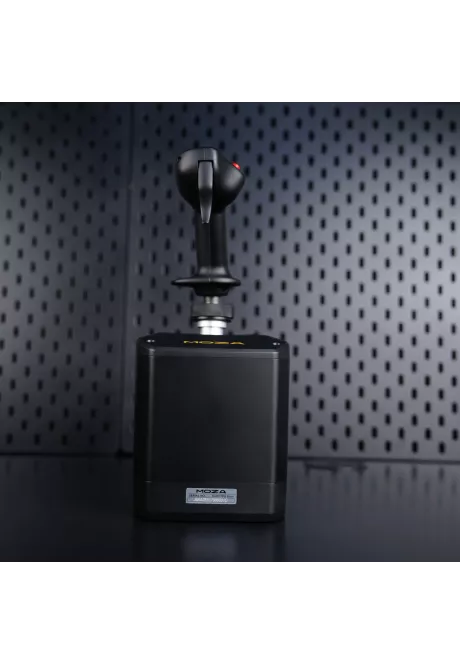

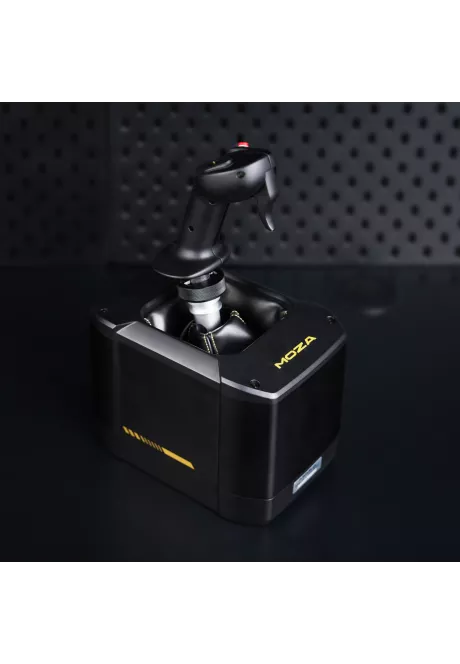

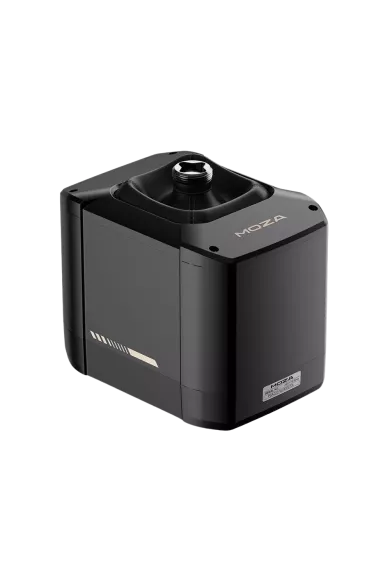

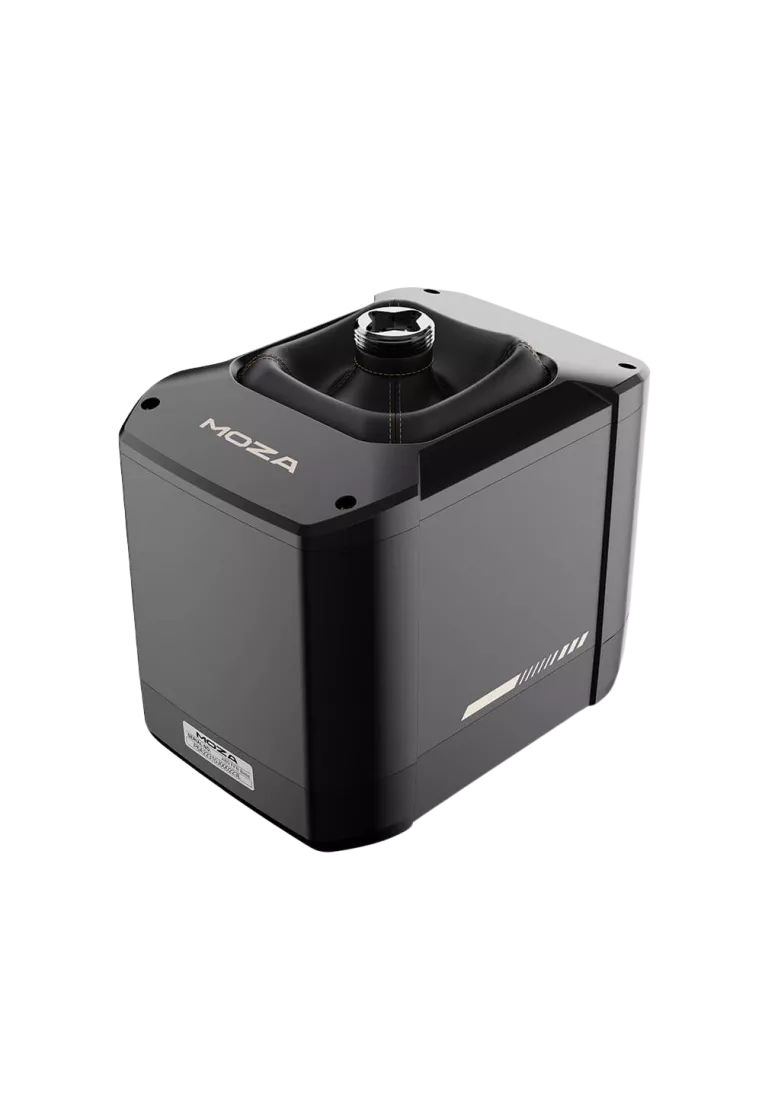

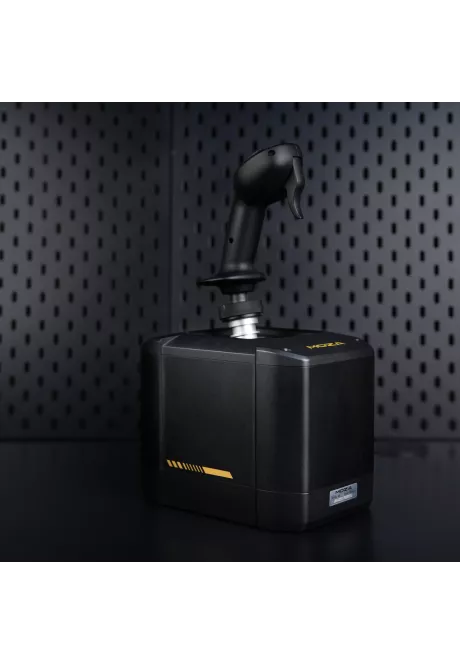

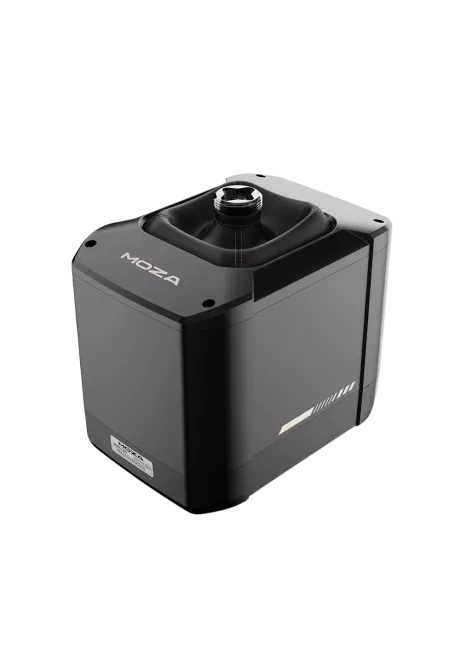

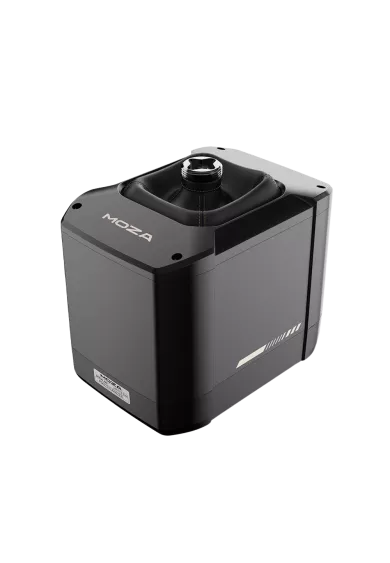

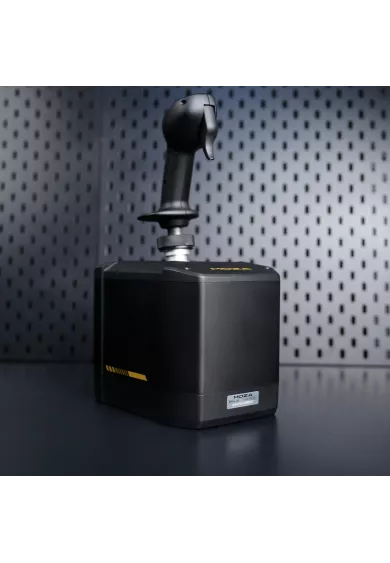

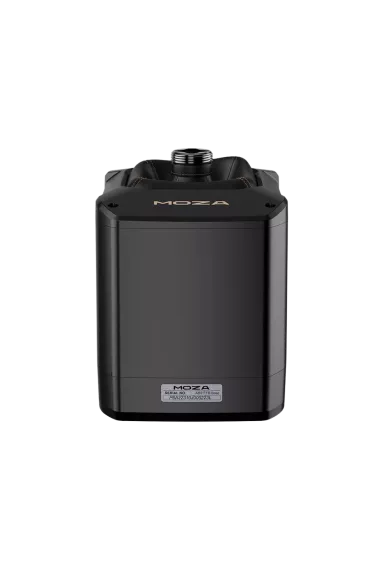

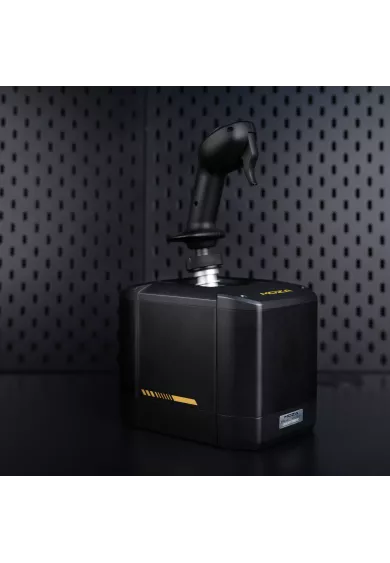

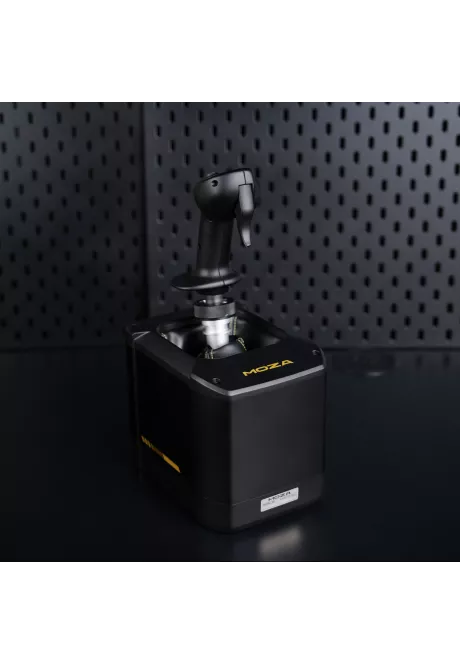

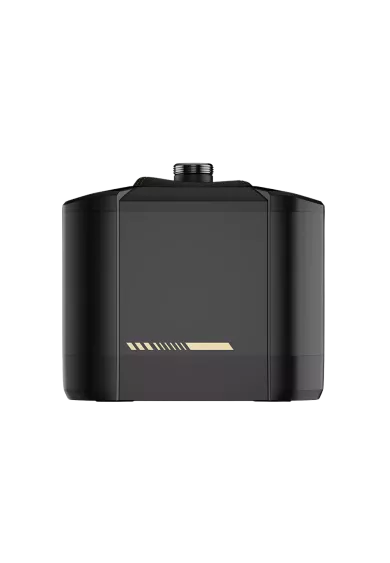

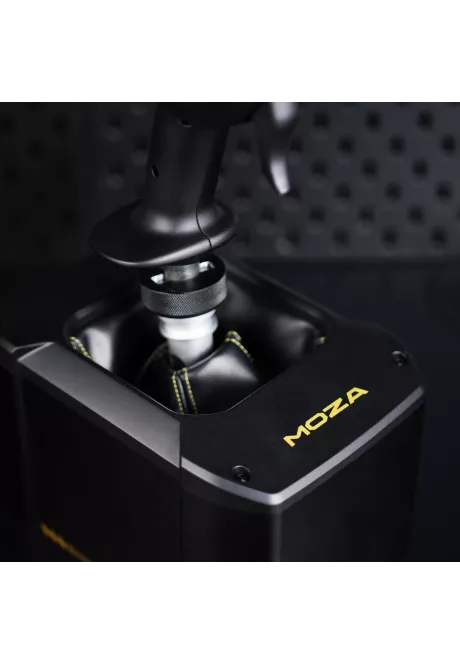

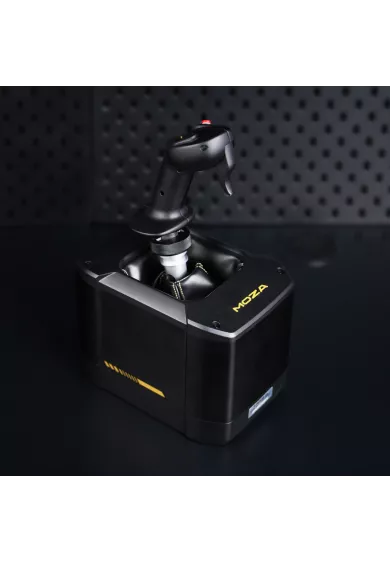

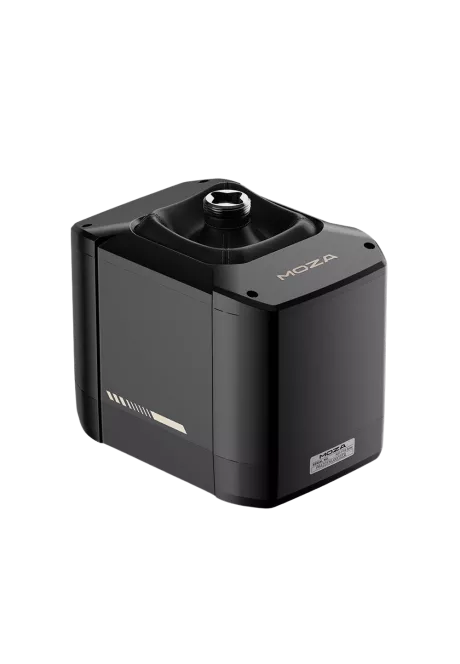

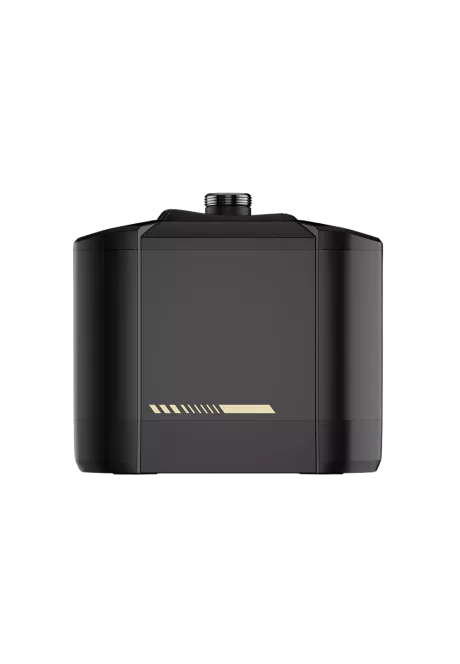

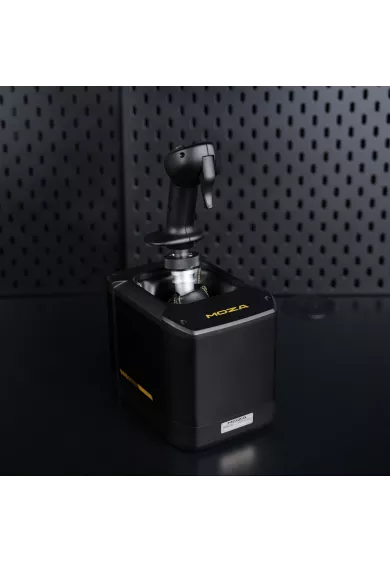

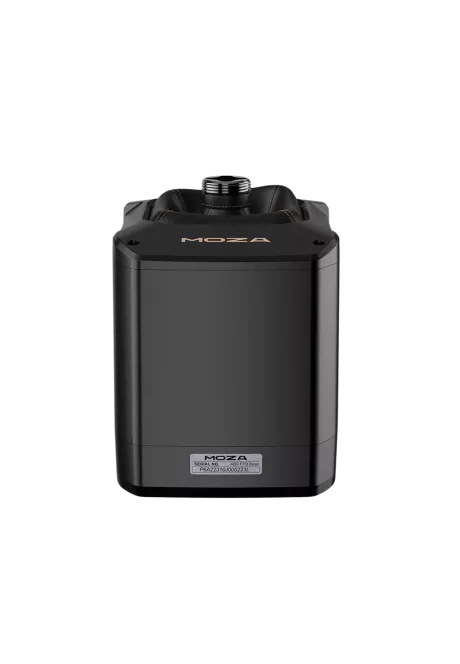

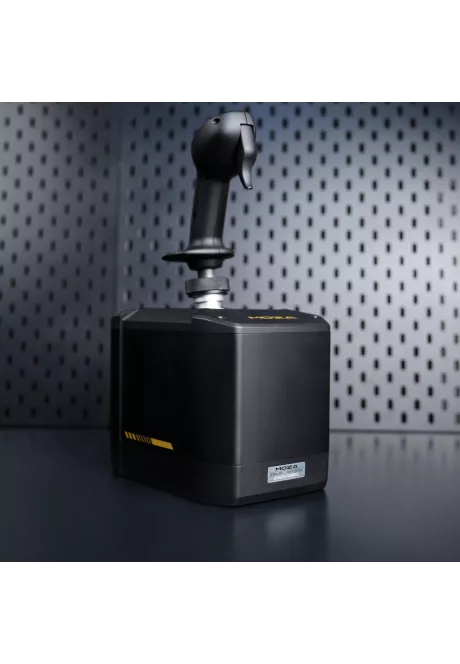

1,828.46zł -15%OUTLET MOZA AB9 Base is a flight simulator base with dual servo motors delivering peak torque of 12Nm. Featuring MCLS Force Feedback and a high-resolution encoder, it provides precise flight conditions. Made from aviation-grade aluminum, it operates quietly without a fan. The MOZA Cockpit Control software allows full customization. Compatible with leading flight simulators and third-party joysticks.
You might also like
Our system seamlessly integrates with popular flight simulation titles like MSFS2020, X-plane 12/11/10, DCS, IL-2, War Thunder, and more, ensuring an immersive experience across a wide range of platforms.
| Parameter | Details |
|---|---|
| Manufacturer | MOZA |
| Model | AB9 FFB Base |
| Device type | Flight joystick base with active Force Feedback |
| Drive system | Dual servo motors |
| Force Feedback technology | MCLS, or MOZA Control Loading System |
| System peak torque | 12 Nm |
| Continuous torque in a single direction | 9 Nm |
| Maximum deflection angle | ±20°; software-adjustable limits |
| Housing material | Aviation-grade aluminium alloy |
| Cooling | Fanless design |
| Platform | PC |
| Computer connection | USB; USB-B on the base, USB-A at the computer |
| USB refresh rate | 1000 Hz |
| Software | MOZA Cockpit |
| Software settings | Force Feedback strength and response, axis range, sensitivity, dead zones, calibration and firmware updates |

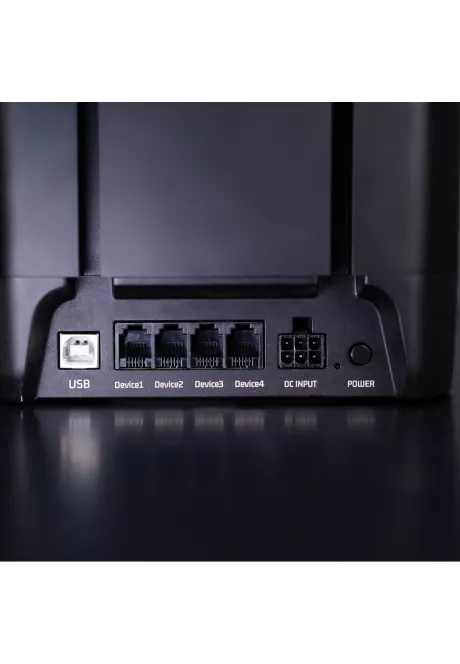

| Connections | Power, USB, grip, throttle, rudder pedals, control panel and display |
| Power supply specifications | 110-220 V AC through the original power supply; 36 V DC, 6 A at the base |
| Rated power | 216 W |
| Mounting | Compatible cockpit, or desk mounting with the optional MOZA Flight Base Table Clamp |
| Status indicator | Base status LED |
| Device or platform | Compatibility and notes |
|---|---|
| PC | Yes. USB connection, configured in MOZA Cockpit. |
| Xbox and PlayStation | No. The AB9 does not support these consoles. |
| MOZA MH16 Flightstick | Yes. Grip sold separately. |
| MOZA MA3X Side Stick | Yes. Grip sold separately. |
| MOZA MHG Flightstick | Yes. Grip sold separately. |
| Third-party grips | Selected models, using an appropriate adapter where required. Check the exact grip and its connection to the AB9 before purchase. |
| Microsoft Flight Simulator 2020 and 2024 | Yes. Available effects depend on the simulator, aircraft and software configuration. |
| X-Plane 10, 11 and 12 | Yes. Configure the axes and effects for the version you use. |
| DCS World, IL-2 Sturmovik and War Thunder | Listed as supported by MOZA. The range of Force Feedback effects may differ between games. |
| MOZA Z-Axis Module | Yes. Optional module adding grip twist for rudder control. |
| Desk or flight cockpit | Desk mounting requires a separately purchased mount. Check the mounting-hole pattern when fitting to a cockpit. |
The joystick grip, desk clamp, third-party grip adapters and MOZA Z-Axis Module are not included.
No. This is the Force Feedback base. Choose a grip such as the MOZA MH16, MA3X or MHG separately.
No. 12 Nm is the system's peak torque. MOZA also specifies 9 Nm of continuous torque in a single direction. These figures are not interchangeable.
No. The MOZA AB9 is designed for PC and does not support Xbox or PlayStation consoles.
MOZA lists Microsoft Flight Simulator 2020 and 2024, X-Plane 10, 11 and 12, DCS World, IL-2 Sturmovik and War Thunder, among others. The available effects are not identical in every game or aircraft.
In MOZA Cockpit. The software lets you adjust feedback strength and response, axis range, sensitivity and dead zones. It also handles calibration and firmware updates.
Yes, but compatibility applies to selected models. A separate adapter may be needed. Check the mounting interface, connector and support for your exact grip rather than assuming an entire brand is compatible.
No. The MOZA Flight Base Table Clamp is sold separately. You can also bolt the base to a compatible cockpit after checking the mounting-hole pattern.
The base alone does not add a twist axis. You can add this using the separately sold MOZA Z-Axis Module. Run calibration after installing it.
No. The base has a fanless design. This does not mean the motors and mechanism make no sound while Force Feedback is operating.
Connect the original power supply and USB cable: USB-B to the base and USB-A to the computer. Power on, select the AB9 in MOZA Cockpit and calibrate it with enough clearance for the grip to move freely in every direction.
Simline.eu is an authorised MOZA partner. The AB9's main body is covered by the manufacturer's warranty for up to 2 years within the European Union, in accordance with MOZA warranty terms. Coverage for other components is defined by the manufacturer's terms.
Simline.eu acts as an intermediary in the warranty process and manages your claim from receipt of the documentation. After reviewing the issue, we provide further instructions.
Email support@simline.eu or moza@simline.eu with a fault description, photos or a video showing the issue, and your purchase details. We will review the report and provide further instructions.
Outlet products are usually items returned by customers or products whose packaging was damaged during transport. Before shipping, each item is checked by us, remains complete, works properly and comes with a full warranty.
Outlet items are shipped randomly from the available stock. This means that one unit may only have a slightly damaged box, while another may show small signs of being unpacked or used before. These details do not affect the product’s operation or warranty.
Important: by choosing an outlet product, the customer accepts the conditions described above. Claims based only on damaged or replacement packaging, minor signs of use, or replaced accessory bags will not be treated as a product defect.
If you prefer a product in standard packaging condition, without possible signs of previous use, please choose the regular product version instead of the outlet one.
The product can be viewed at our company premises by prior appointment.
