4,592.68zł
5,176.43zł -11.28%Instead of 4,836.58zł

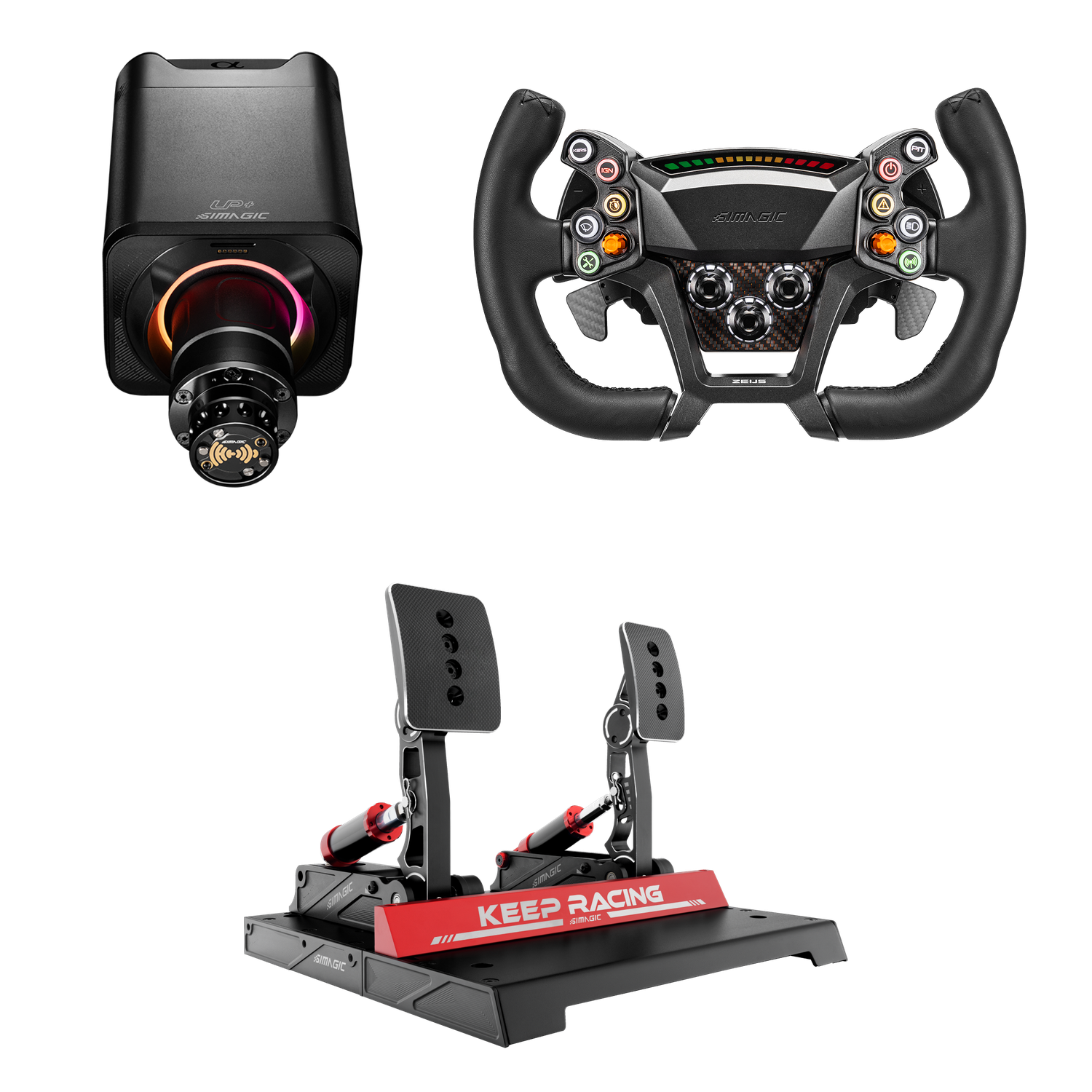

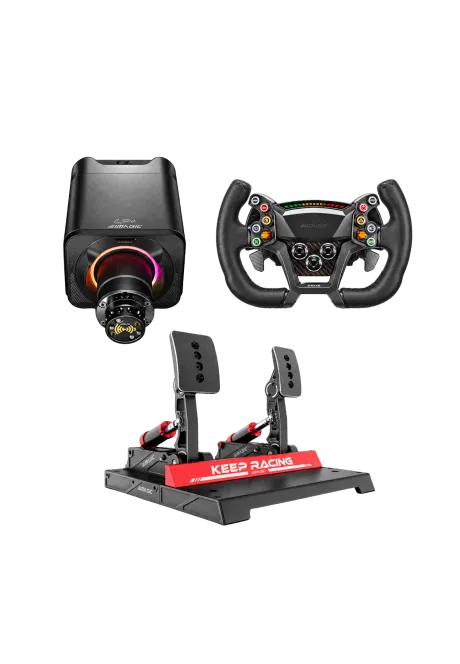

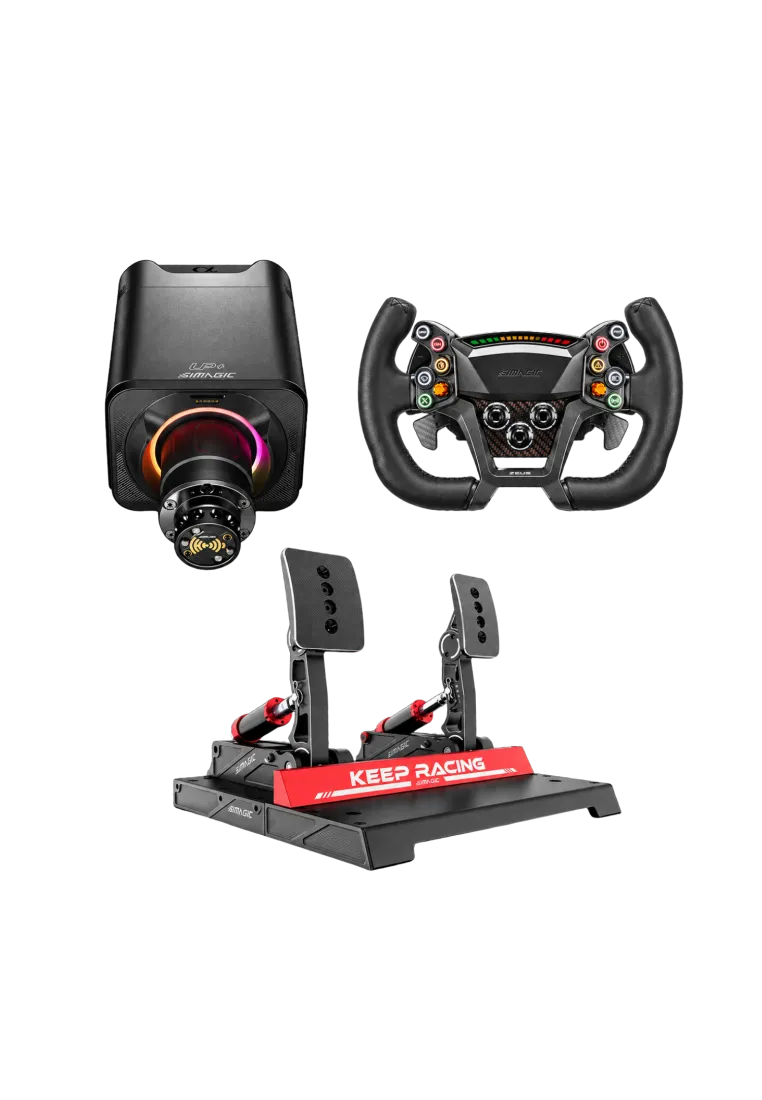

The Simagic Alpha EVO + P1000-F + Zeus GT bundle combines a 12 Nm Direct Drive wheelbase, a 300 mm GT steering wheel, and a two-pedal Formula set with a 100 kg load-cell brake for PC sim racing. Zeus GT connects natively to Alpha EVO, while P1000-F can use the wheelbase CAN-Bus port or a direct USB connection to the PC.
You might also like
Alpha EVO, Zeus GT, and P1000-F can be configured through SimPro Manager V3. Wheelbase settings cover FFB strength and filtering, steering-wheel settings control inputs and lighting, and the pedals provide adjustable brake force, dead zones, and output curves.
Zeus GT communicates natively with Alpha EVO through CAN FD. P1000-F can use the wheelbase CAN-Bus port or a separate USB cable connected directly to the PC, allowing the pedal connection to match the cable routing used on the rig.

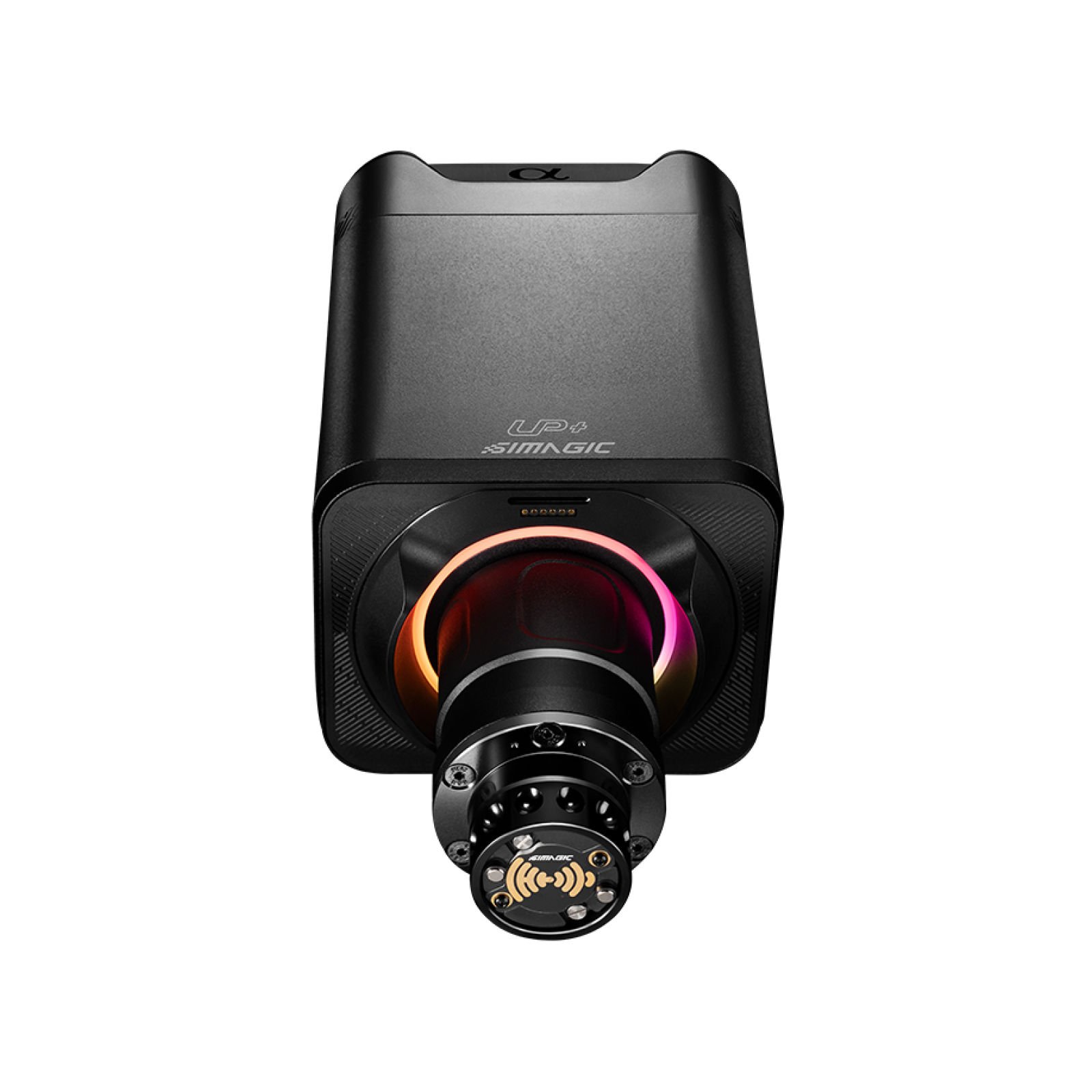

Alpha EVO delivers up to 12 Nm of torque to the steering wheel. Its low-inertia servo motor reacts quickly to changes in force direction, while Zero-Cogging technology reduces the stepped sensation that can be felt during slow steering movements. A 21-bit encoder and the DFDF algorithm support detailed force-feedback output.
Active cooling manages wheelbase temperature during long sessions. The die-cast aluminium housing provides bottom, side, and front mounting points; side, front, and desktop brackets are optional accessories.

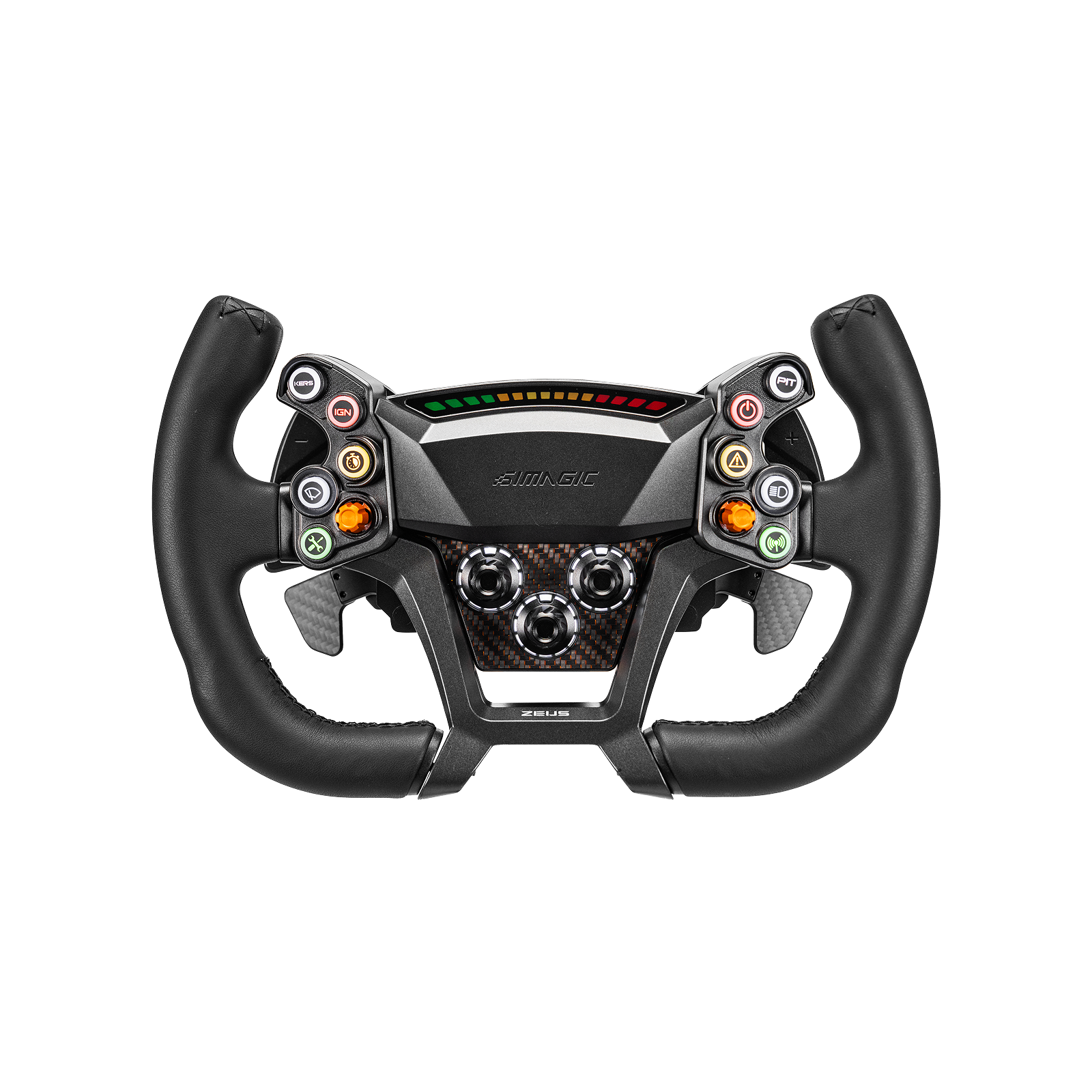

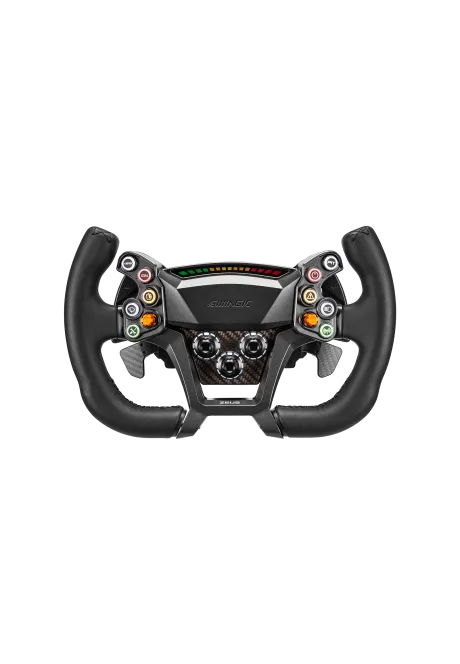

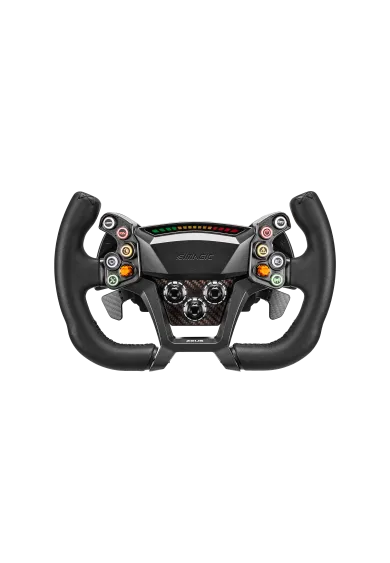

Zeus GT has a 300 mm diameter and leather grips in its standard configuration. Ten RGB buttons, two seven-way switches, and three rotary encoders keep commonly used functions within reach. Fifteen RGB LEDs can display engine speed or telemetry-driven alerts.
The standard dual-paddle module uses Hall sensors. Zeus GT communicates natively with Alpha EVO through CAN FD, so Maglink Pro is not required in this bundle. SimPro Manager V3 provides input and lighting settings, while SimHub integration expands control of the LEDs and wheel inputs.

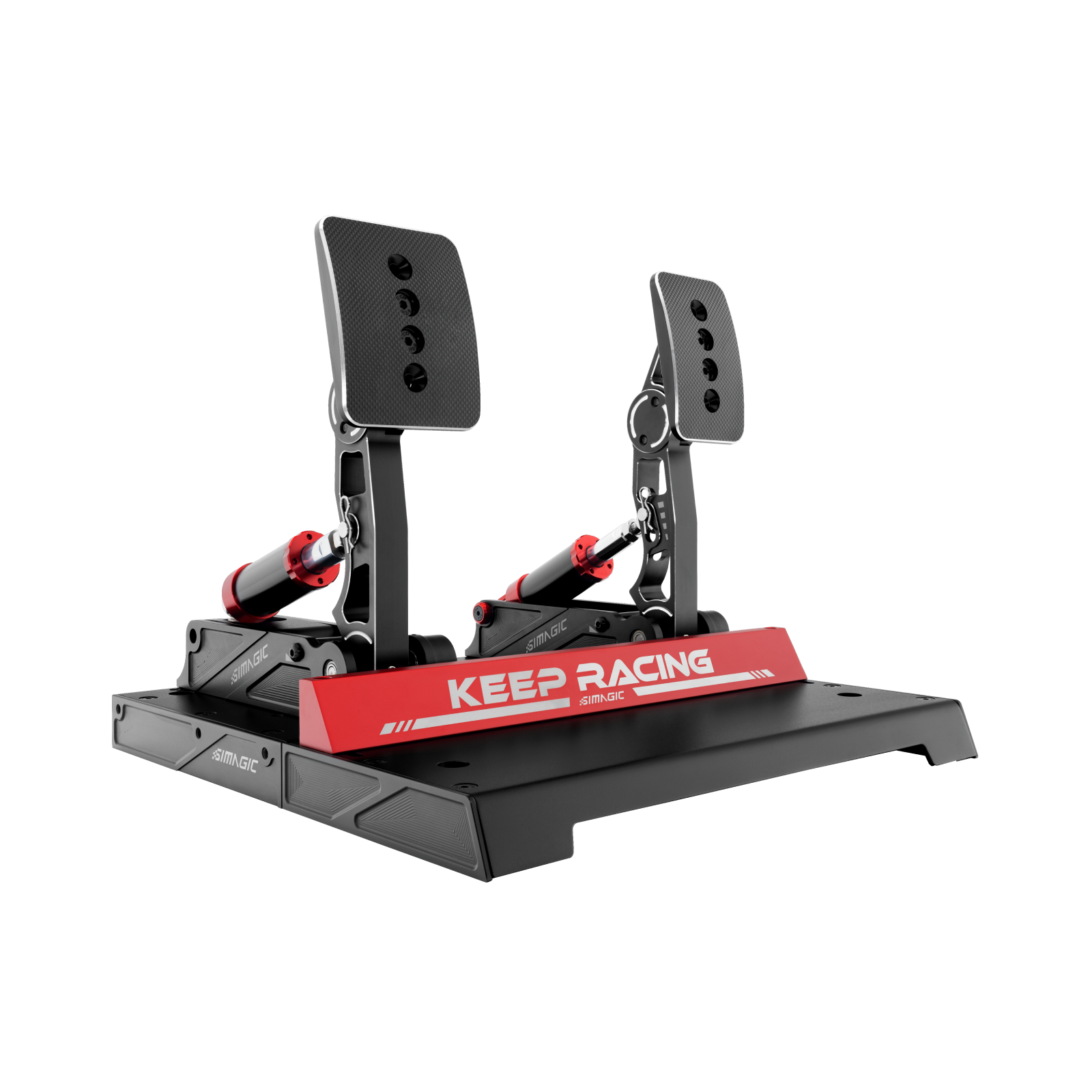

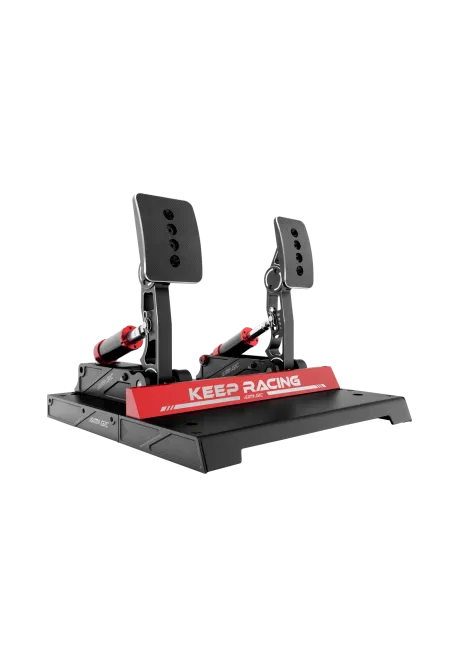

P1000-F combines brake and throttle on a shared pedal plate. The brake measures pressure through a 100 kg load cell and also uses a Hall angle sensor, while the throttle is read by a Hall angle sensor. Its 12-bit resolution provides 4096 signal levels.
The mechanism allows pedal position and angle, travel, brake resistance, dead zones, and output curves to be adjusted. P1000-F connects to Alpha EVO through CAN-Bus or directly to the PC through USB. P-HPR haptic modules, hydraulics, and inverted-mounting hardware are optional upgrades.
| Parameter | Data |
|---|---|
| Product type | Direct Drive sim racing bundle for PC |
| Bundle components | Alpha EVO 12 Nm, Zeus GT, and P1000-F |
| Alpha EVO maximum torque | 12 Nm |
| Wheelbase motor | Ultra-low-inertia servo motor with Zero-Cogging technology |
| Wheelbase encoder | 21-bit |
| Wheelbase frequency / response rate | 180 MHz / 20 kHz |
| Wheelbase cooling | Active cooling with temperature regulation |
| Alpha EVO housing | CNC-machined die-cast aluminium |
| Alpha EVO dimensions / net weight | 130 × 110 × 281 mm / 6.236 kg |
| Zeus GT type / diameter | GT steering wheel / 300 mm in standard configuration |
| Zeus GT controls | 10 RGB buttons, 2 seven-way multi-position rotary switches, 3 rotary encoders |
| Zeus GT shift lights | 15 customizable RGB LEDs |
| Zeus GT paddles | Standard dual-paddle Hall sensor module |
| Zeus GT connection / quick release | CAN FD or USB / 50 mm QR |
| Zeus GT materials | Injection-moulded carbon-fibre-reinforced front, CNC-machined die-cast aluminium rear, standard leather grips |
| Zeus GT net weight | 1.41 kg excluding QR, measured by the manufacturer with MagicDash 4 |
| P1000-F configuration | 2 pedals: brake and throttle |
| P1000-F resolution | 12-bit / 4096 levels |
| P1000-F brake sensor | 100 kg load cell and Hall angle sensor |
| P1000-F throttle sensor | Hall angle sensor |
| P1000-F connection | USB to PC or CAN-Bus to a SIMAGIC wheelbase |
| P1000-F dimensions / net weight | 334.8 × 336 × 267 mm / 4.65 kg |
| Software | SIMAGIC SimPro Manager V3; Zeus GT also supports SimHub |
| Connection or platform | Requirements |
|---|---|
| Alpha EVO + Zeus GT | Native compatibility through the 50 mm quick release and CAN FD interface; Maglink Pro is not required in this bundle |
| Alpha EVO + P1000-F | The pedals connect to the wheelbase CAN-Bus port or directly to the PC through USB |
| Windows PC | Target platform; the manufacturer does not claim native console support |
| SimPro Manager V3 | Configuration of FFB strength and filters, wheel inputs and lighting, and pedal response |
| SimHub | Supports Zeus GT buttons, encoders, and lighting |
| Alpha EVO mounting | Bottom mounting is built into the housing; side, front, and desktop mounts are sold separately |
| P1000-F upgrades | Compatible with the optional P-HPR haptic module, hydraulic system, and inverted installation hardware; upgrades are not included |
The bundle includes an Alpha EVO 12 Nm wheelbase, Zeus GT steering wheel, and two-pedal P1000-F set.
This bundle uses the mid-range Alpha EVO model with a maximum torque of 12 Nm.
No. Zeus GT connects natively to Alpha EVO. Maglink Pro is required with selected older SIMAGIC bases or third-party hardware.
P1000-F is a two-pedal Formula set with brake and throttle. A clutch pedal is not part of this configuration.
The brake uses a 100 kg load cell together with a Hall angle sensor. Brake force, dead zones, and output response can be adjusted in the software.
Yes. SimHub can control Zeus GT buttons, encoders, and lighting.
Yes. P1000-F can use a direct USB connection to the PC or the CAN-Bus port on the Alpha EVO wheelbase.
No. MagicDash 4, P-HPR modules, the hydraulic pedal system, and the separate MagDock for mounting the display on the Alpha EVO wheelbase are sold separately. The wheel includes only the Zeus GT MagDock intended to attach the optional display directly to the Zeus GT.
MagicDash 4, the separate MagDock for mounting the display on the Alpha EVO wheelbase, additional paddle modules, P-HPR, pedal hydraulics, and optional wheelbase mounts are not included.
