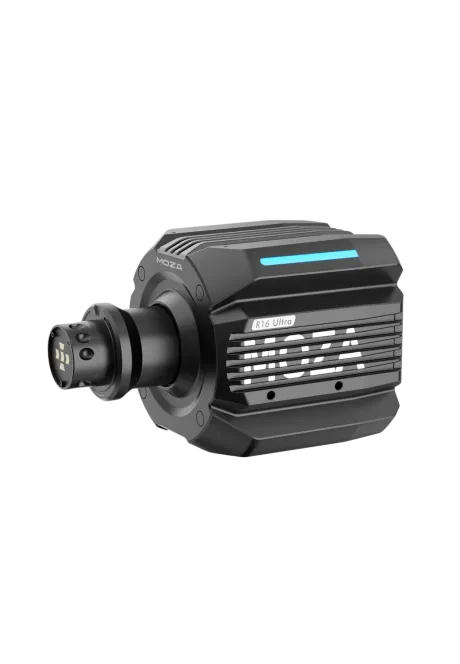

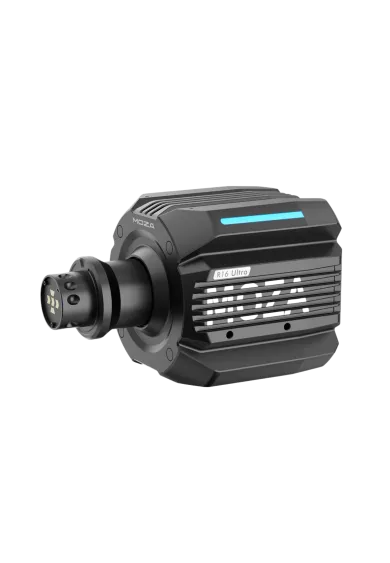

Moza R16 ULTRA front view right side

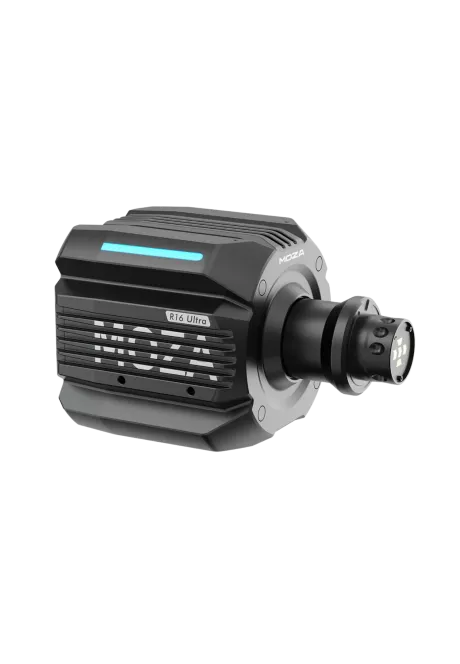

Moza R16 ULTRA front view left side

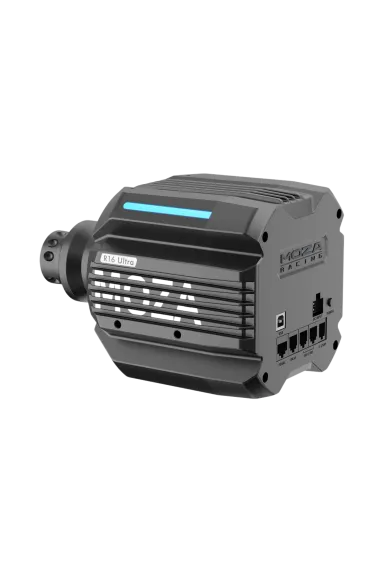

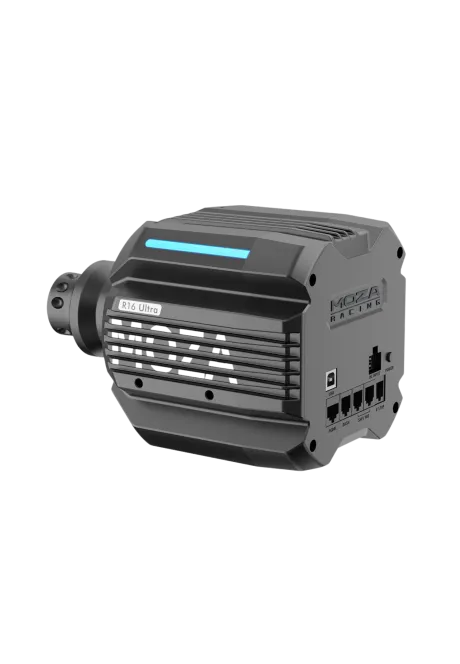

Moza R16 ULTRA rear view right side

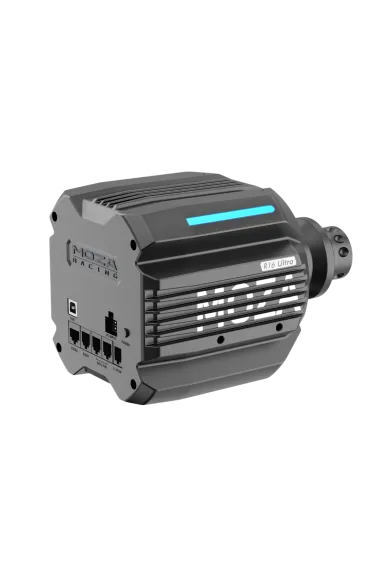

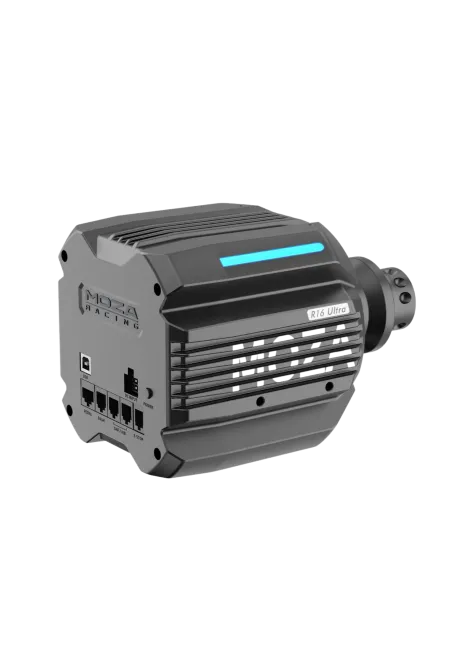

Moza R16 ULTRA rear view left side
  • New
Moza R16 ULTRA front view right side
Moza R16 ULTRA front view left side
Moza R16 ULTRA rear view right side
Moza R16 ULTRA rear view left side

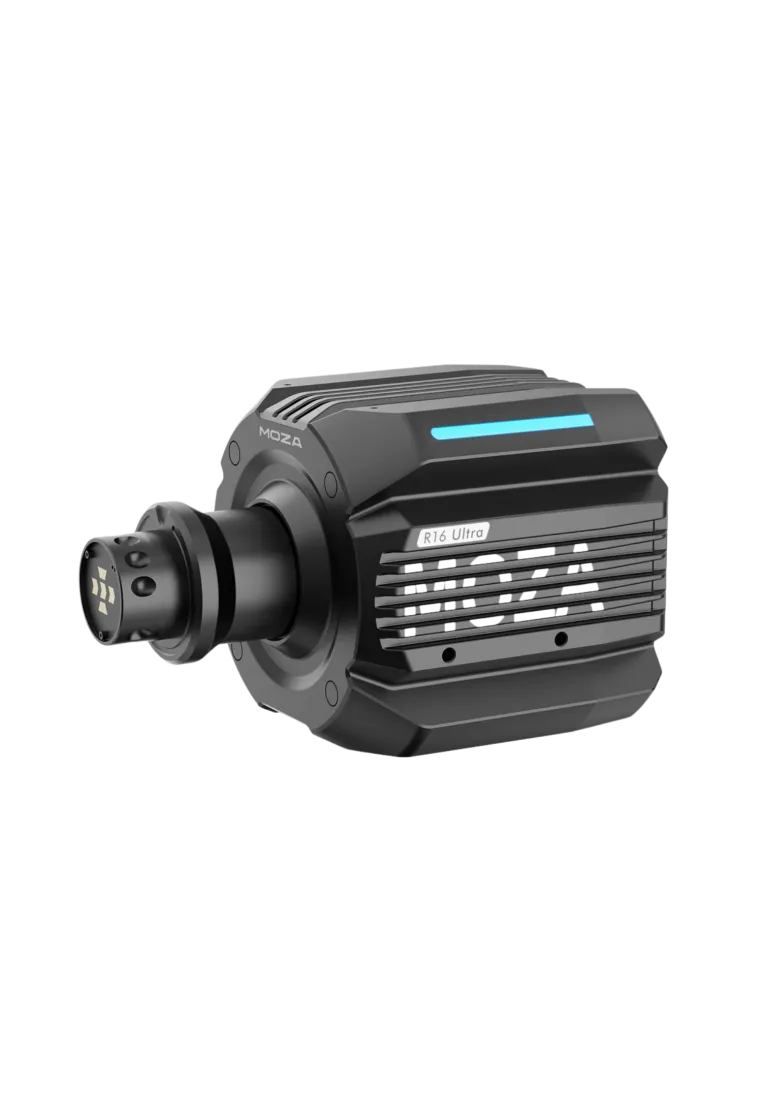

Moza R16 ULTRA

RS101
1,917.89zł

1,917.89zł
PREORDER

Available from: 2026-10-01

Moza R16 ULTRA is a 16 Nm wheelbase with a flat-wire motor, 21-bit encoder and 600 MHz processor. Smooth, responsive feedback and a rigid CNC-machined housing suit GT cars, prototypes and single-seaters. Pair it with the Moza KS Pro wheel and Moza SRP2 pedals.

Ask about product
Zapytanie dotyczy produktu: Moza R16 ULTRA
* - pola obowiązkowe
Send
You will receive an 19.18zł for each item of this product to use on your next purchase.
Close
Shipping within 24 hours
Secure payments
Return within 30 days
Delivery from PLN 0

Available accessories

- Pedals

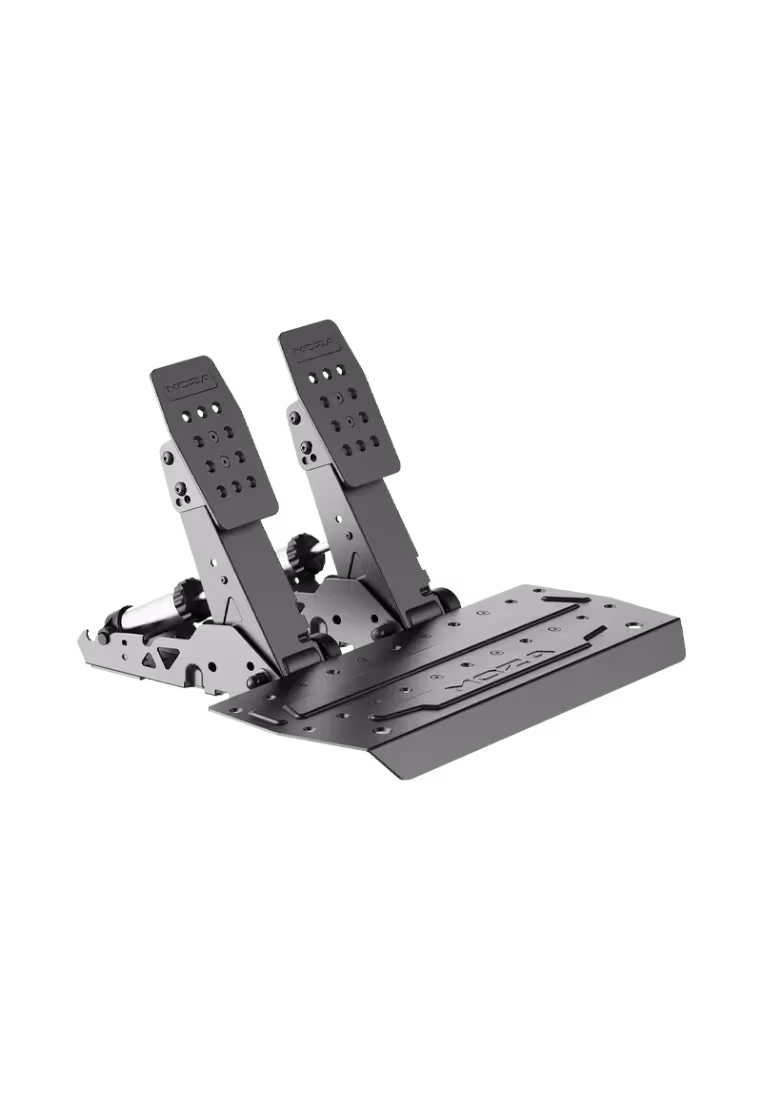

MOZA SRP2

MOZA SRP2

552.03zł

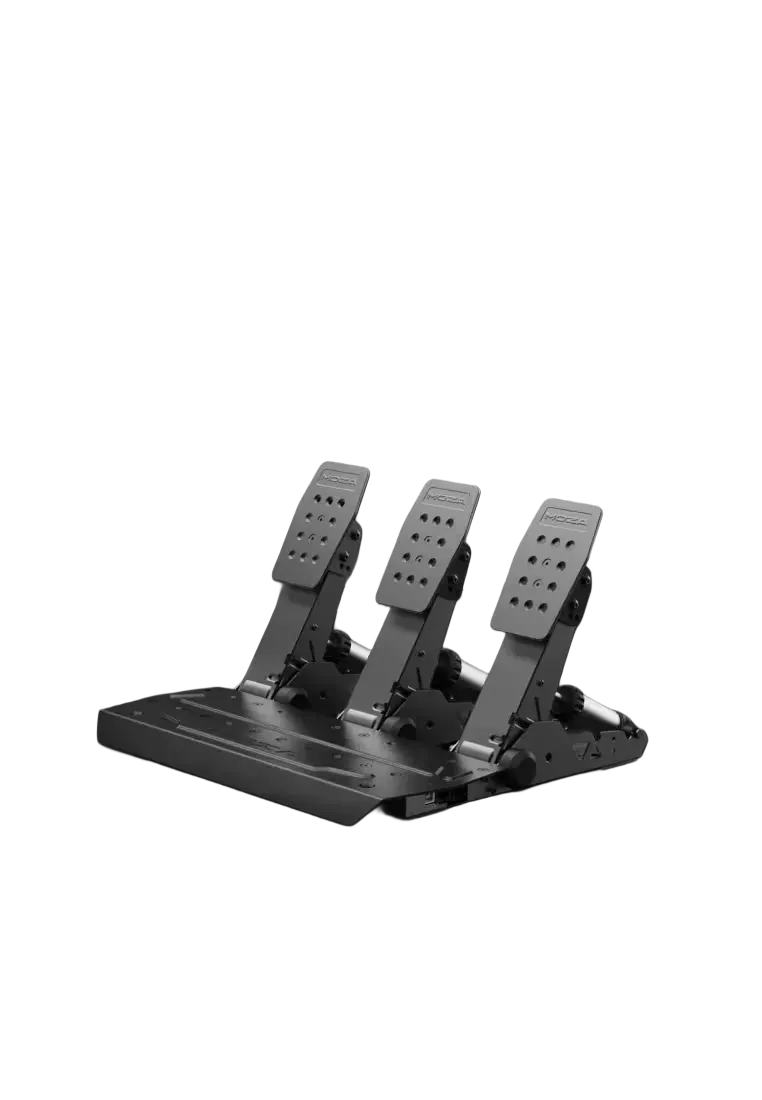

MOZA SRP2 3 Pedals Set

MOZA SRP2 3 Pedals Set

730.08zł Pack content
MOZA CRP2

MOZA CRP2

1,381.30zł
MOZA CRP2 3 Pedal Set

MOZA CRP2 3 Pedal Set

1,762.60zł Pack content
MOZA mBooster Active Pedal

MOZA mBooster Active Pedal

2,779.67zł
MOZA mBooster Active Pedal Set

MOZA mBooster Active Pedal Set

3,478.86zł

You might also like

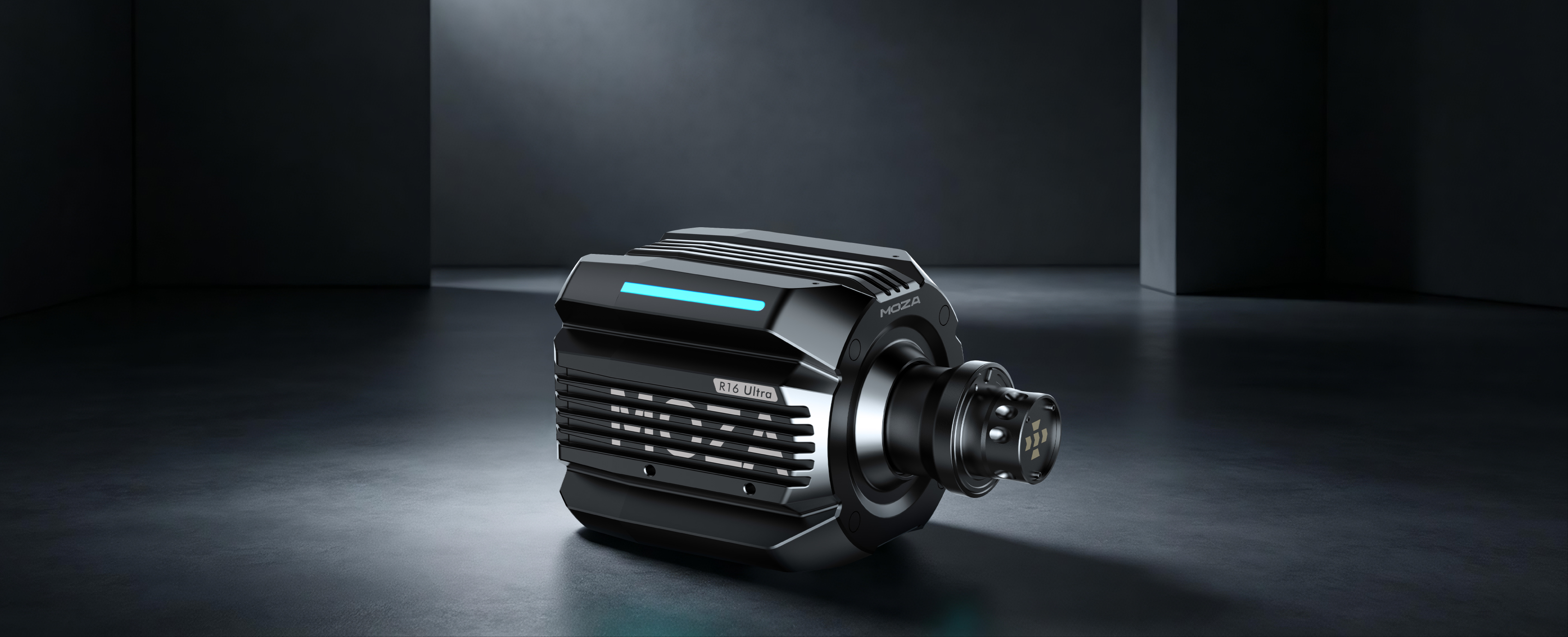

Moza R16 ULTRA - main banner

MOZA R16 ULTRA

Moza R16 ULTRA delivers a sustained 16 Nm, so its character is not built around one brief jolt. There is enough headroom for a hard kerb strike, a loaded high-speed corner and the quieter messages that reveal what the tyres are doing. Progressive understeer, rear-axle movement and the first hint of a slide can remain distinct instead of being compressed into the same heavy response.

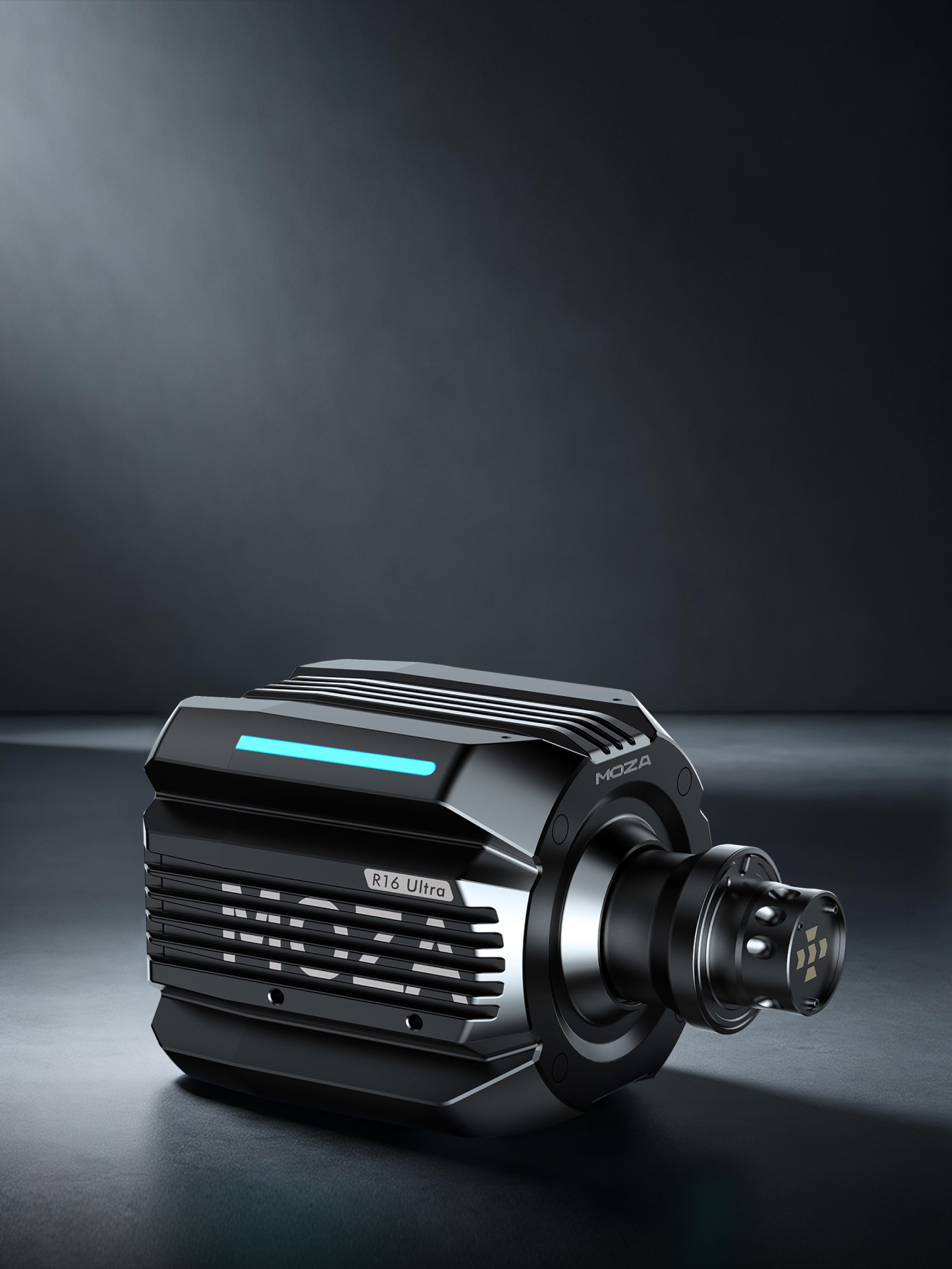

Moza R16 ULTRA - main photo

MOZA R16 ULTRA

Moza R16 ULTRA delivers a sustained 16 Nm, so its character is not built around one brief jolt. There is enough headroom for a hard kerb strike, a loaded high-speed corner and the quieter messages that reveal what the tyres are doing. Progressive understeer, rear-axle movement and the first hint of a slide can remain distinct instead of being compressed into the same heavy response.

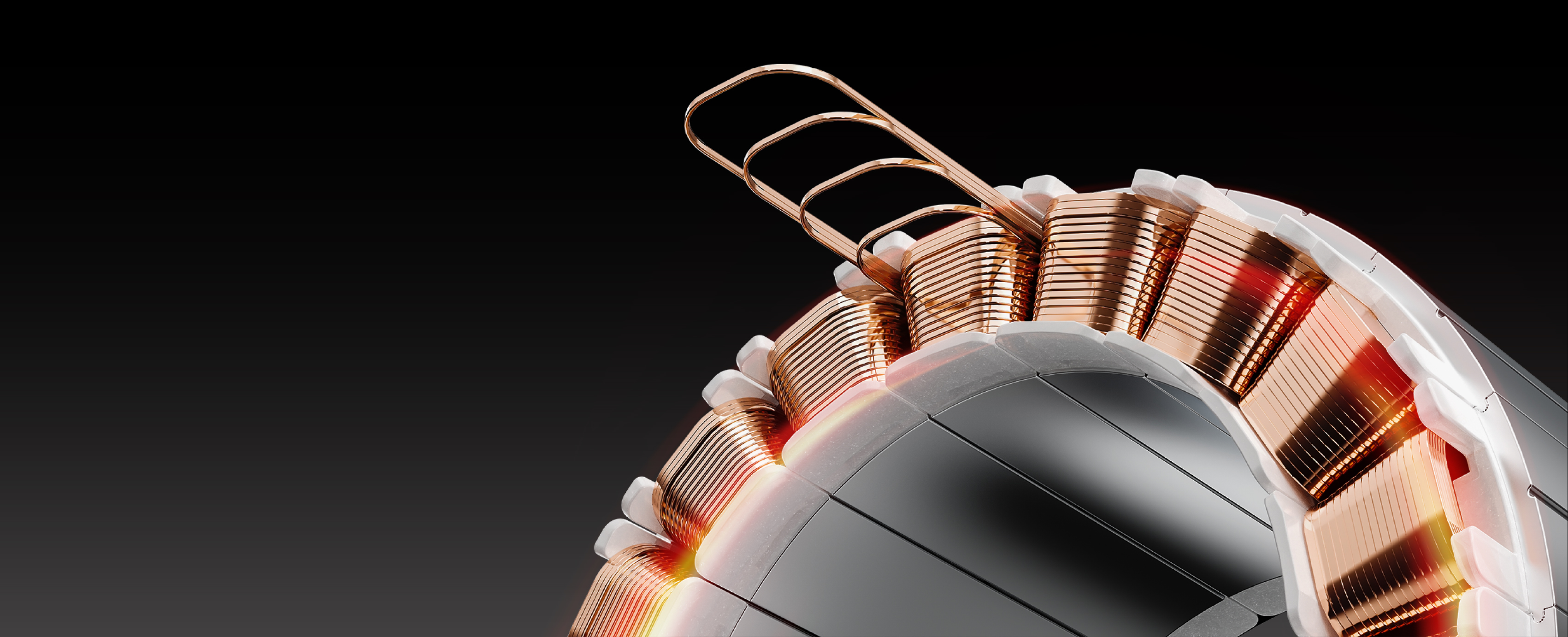

Moza R16 ULTRA - flat wire

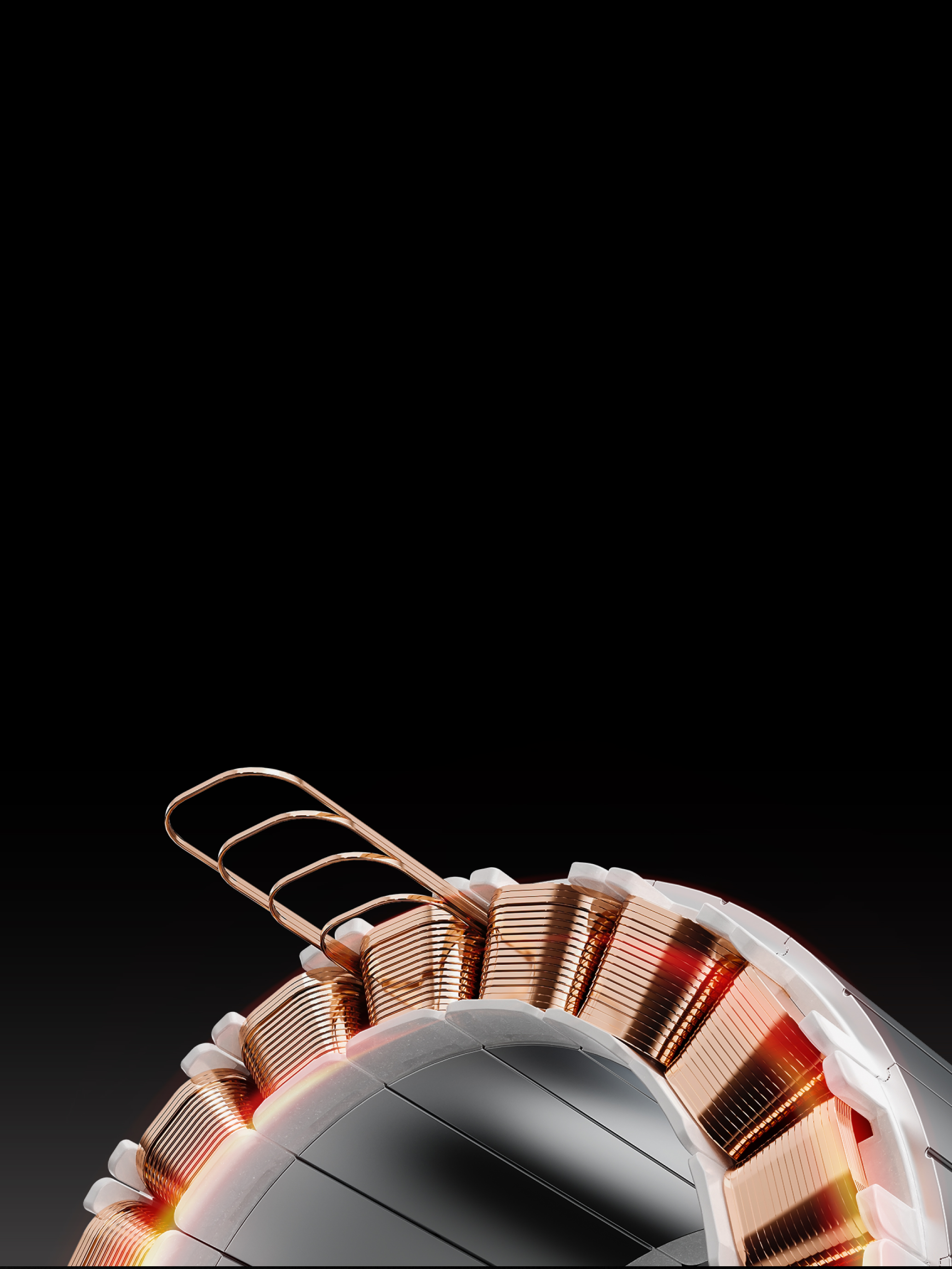

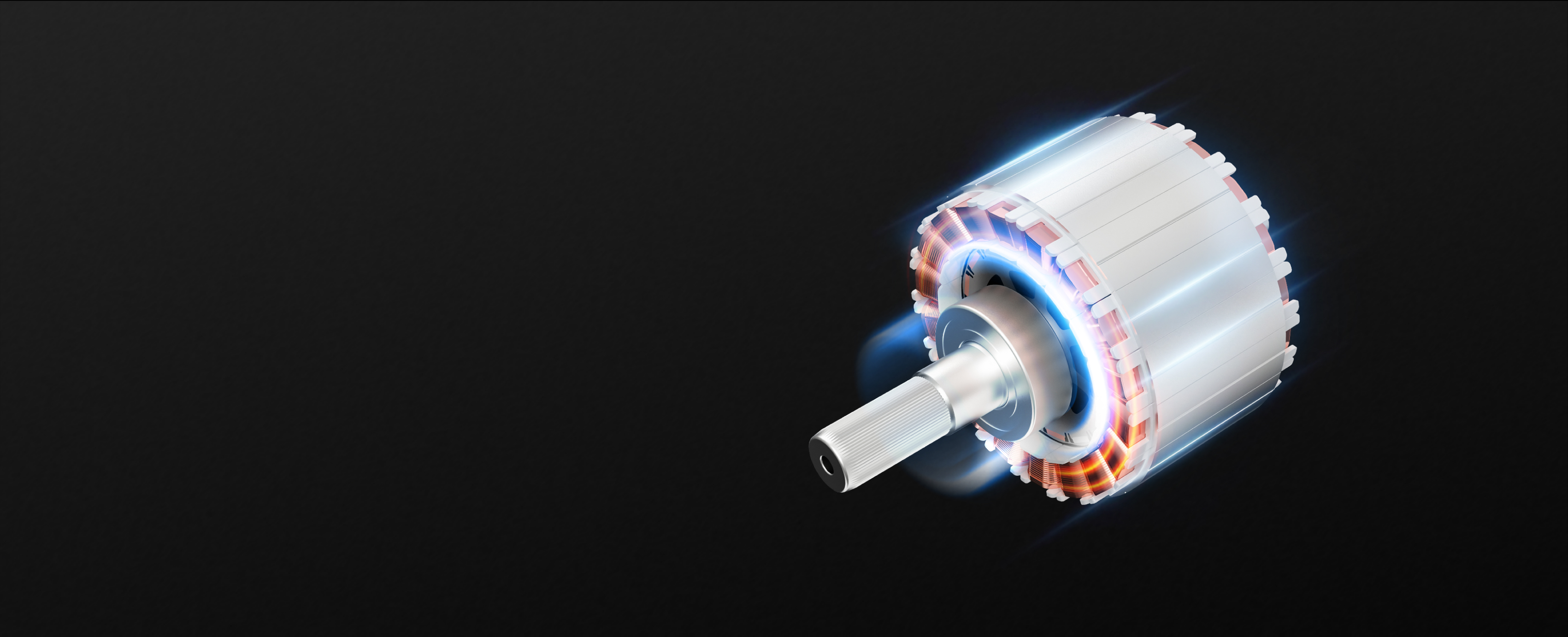

A flat-wire motor with greater torque density

The custom flat-wire winding makes better use of the space inside the motor. MOZA states that torque density is 12% higher than similarly sized competing designs. That allows the R16 Ultra to respond with authority without requiring an oversized enclosure. The compact format also leaves useful room around a dashboard or a monitor positioned low over the wheel shaft.

Moza R16 ULTRA - flat-wire motor

A flat-wire motor with greater torque density

The custom flat-wire winding makes better use of the space inside the motor. MOZA states that torque density is 12% higher than similarly sized competing designs. That allows the R16 Ultra to respond with authority without requiring an oversized enclosure. The compact format also leaves useful room around a dashboard or a monitor positioned low over the wheel shaft.

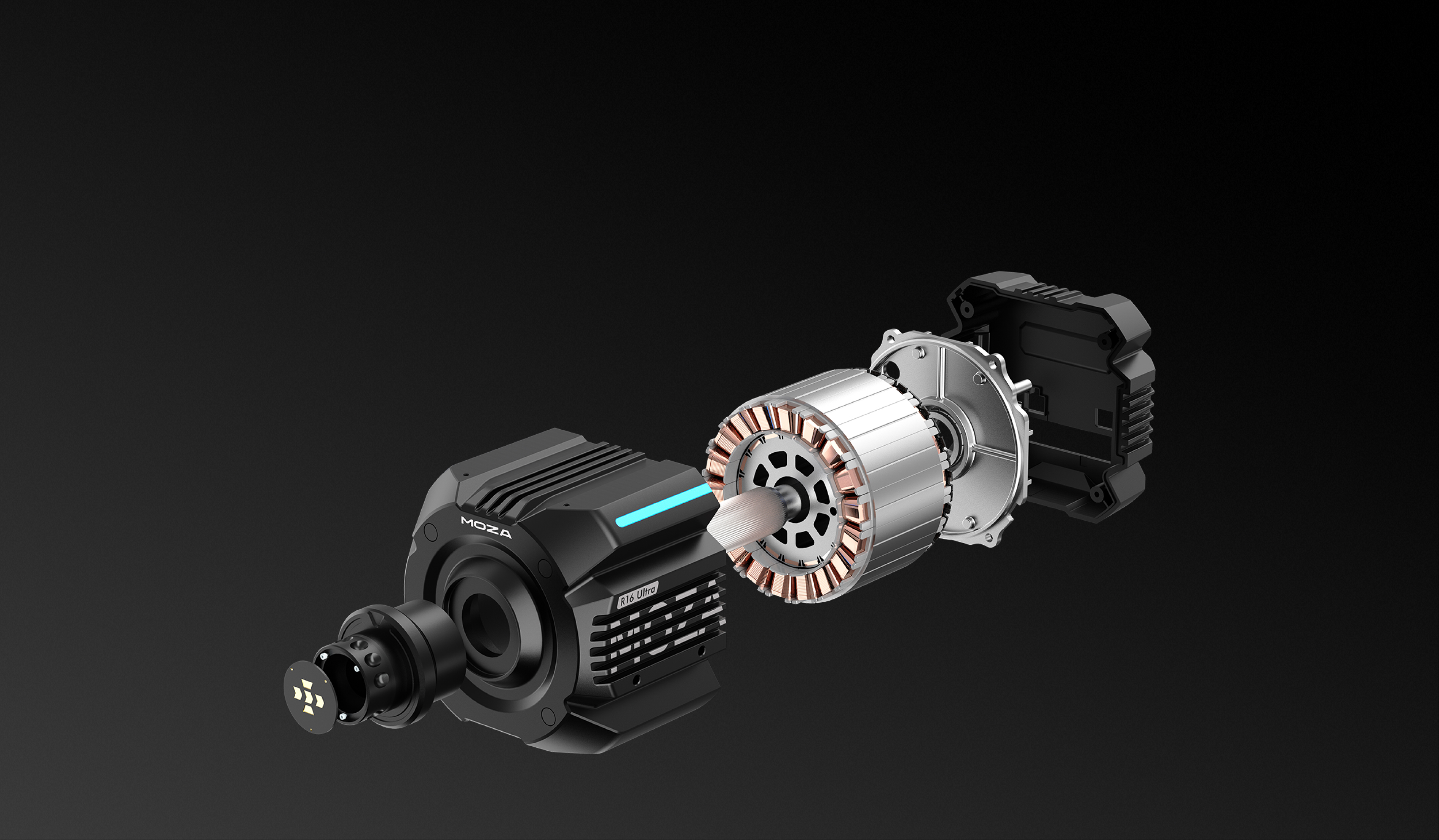

Moza R16 ULTRA - no cogging

Almost no cogging at low steering speeds

Very low cogging reduces the notched sensation sometimes felt when a wheel is turned slowly. Small corrections around the centre are smoother, and the rim does not seem to hop from one motor position to the next. This becomes particularly noticeable through a long loaded corner, in a slow hairpin or during quick rally counter-steering, where free and predictable rotation matters as much as raw torque.

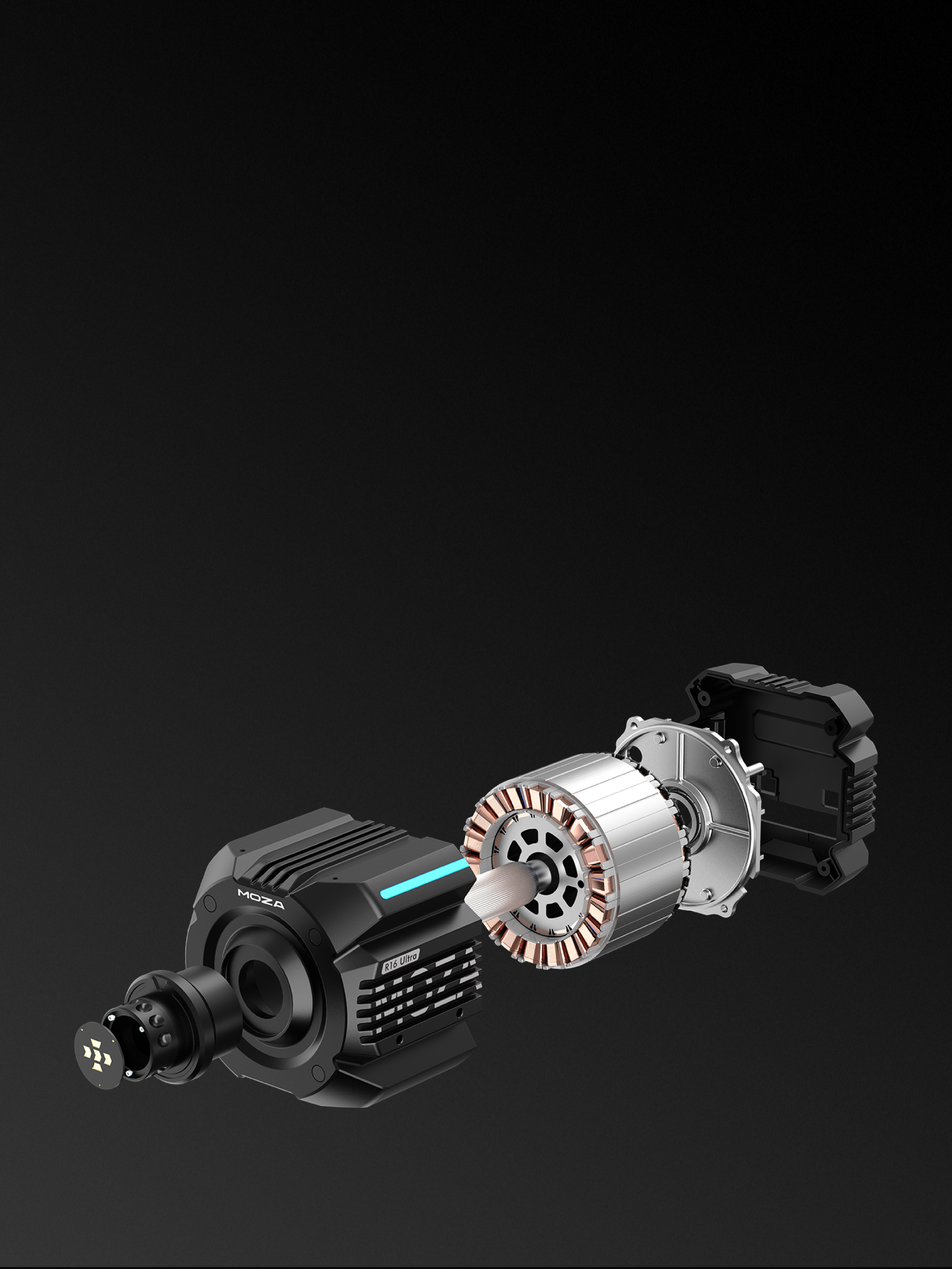

Moza R16 ULTRA - no cogging at low speeds

Almost no cogging at low steering speeds

Very low cogging reduces the notched sensation sometimes felt when a wheel is turned slowly. Small corrections around the centre are smoother, and the rim does not seem to hop from one motor position to the next. This becomes particularly noticeable through a long loaded corner, in a slow hairpin or during quick rally counter-steering, where free and predictable rotation matters as much as raw torque.

Moza R16 ULTRA - 21 bit encoder

A 21-bit encoder for tiny steering corrections

The magnetic 21-bit encoder reads 2,097,152 shaft positions. That figure translates into calm behaviour near the centre and a more exact record of the small inputs made through fast corners. The wheelbase receives a detailed view of the steering angle, helping it connect the driver's movement with the Force Feedback response instead of treating a series of fine corrections as one broad step.

Moza R16 ULTRA - new technology encoder 21-bit

A 21-bit encoder for tiny steering corrections

The magnetic 21-bit encoder reads 2,097,152 shaft positions. That figure translates into calm behaviour near the centre and a more exact record of the small inputs made through fast corners. The wheelbase receives a detailed view of the steering angle, helping it connect the driver's movement with the Force Feedback response instead of treating a series of fine corrections as one broad step.

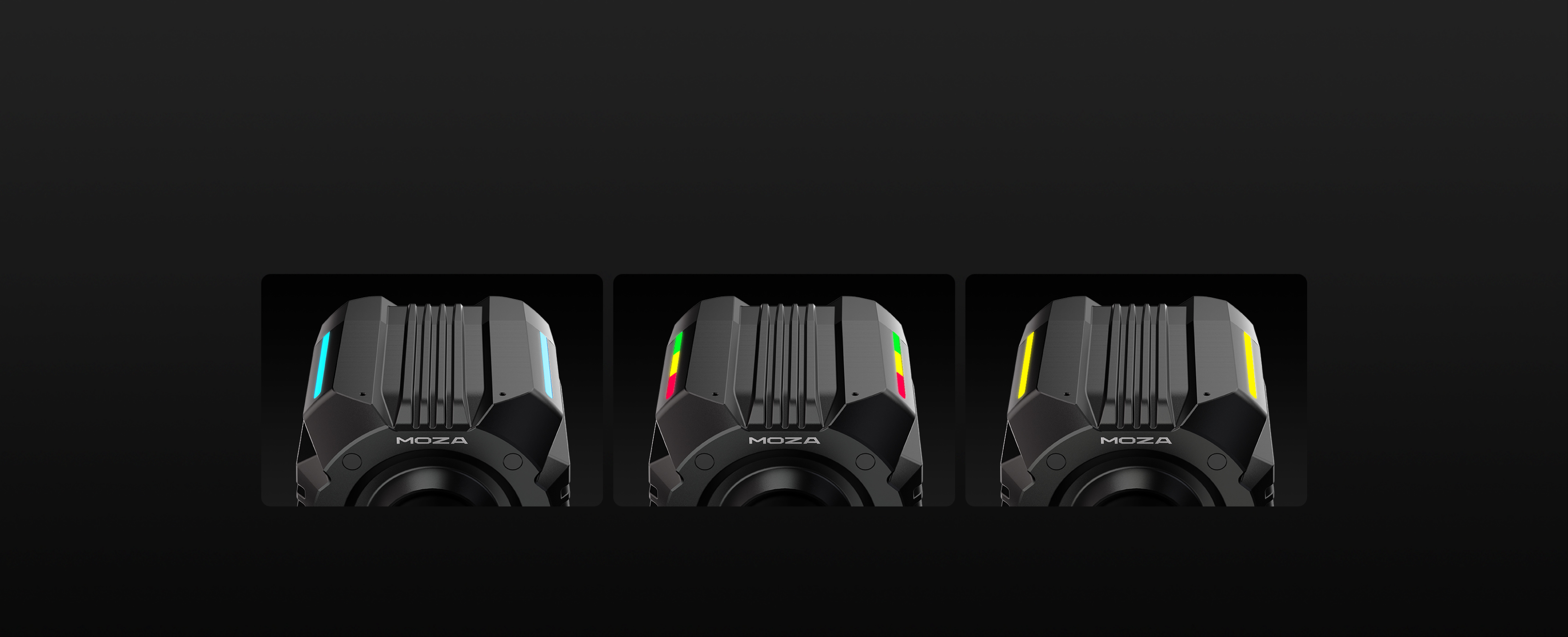

Moza R16 ULTRA - rgb functions

Twin RGB strips with a restrained shape

Two side-mounted RGB strips offer a palette of 16.7 million colours. They can match the rest of the cockpit lighting or be kept subtle when the display and track need all the attention. Lighting does not change the driving performance, but the narrow strips give the base a finished appearance without placing another bright screen directly in front of the driver.

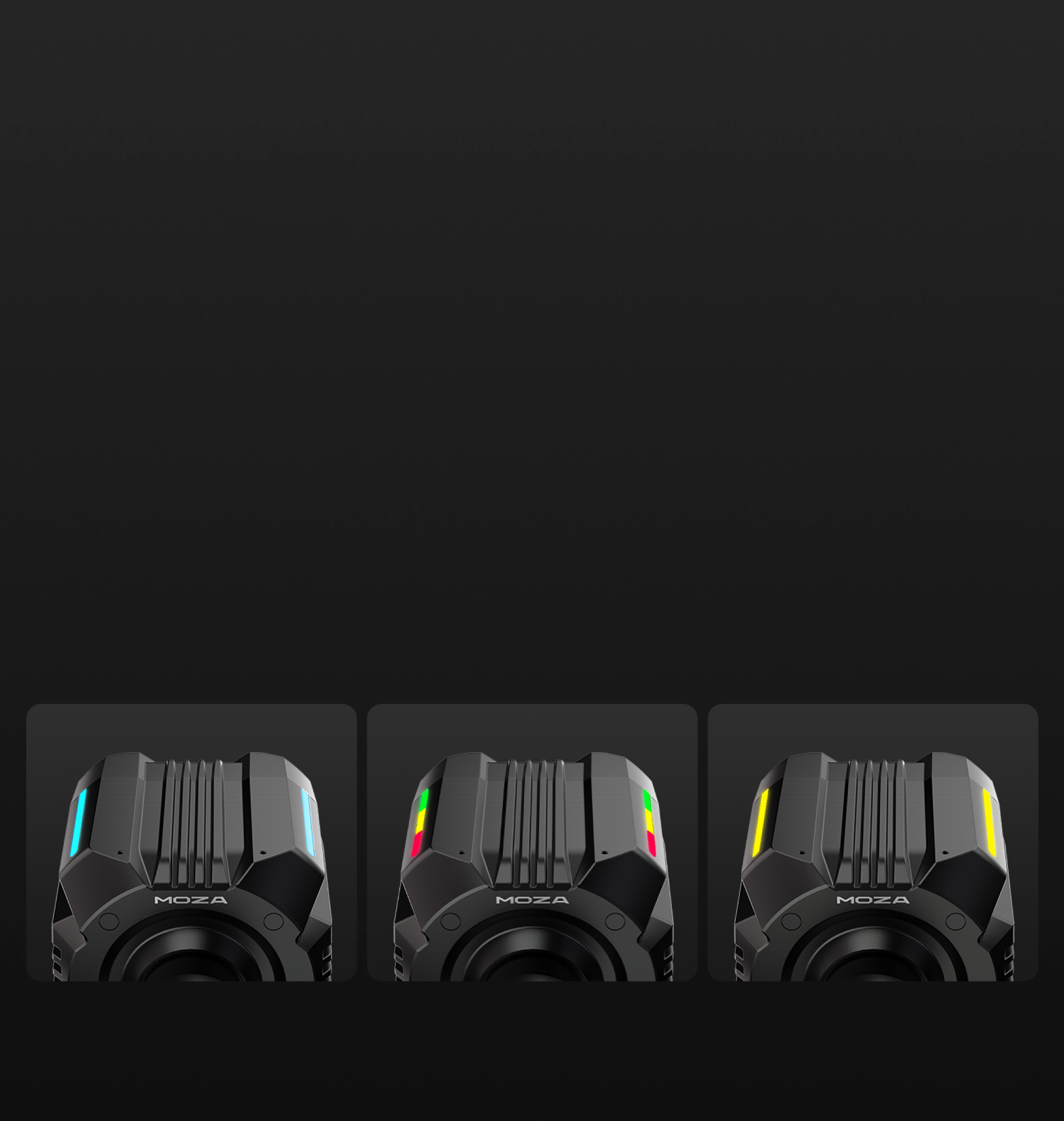

Moza R16 ULTRA - rgb lighting

Twin RGB strips with a restrained shape

Two side-mounted RGB strips offer a palette of 16.7 million colours. They can match the rest of the cockpit lighting or be kept subtle when the display and track need all the attention. Lighting does not change the driving performance, but the narrow strips give the base a finished appearance without placing another bright screen directly in front of the driver.

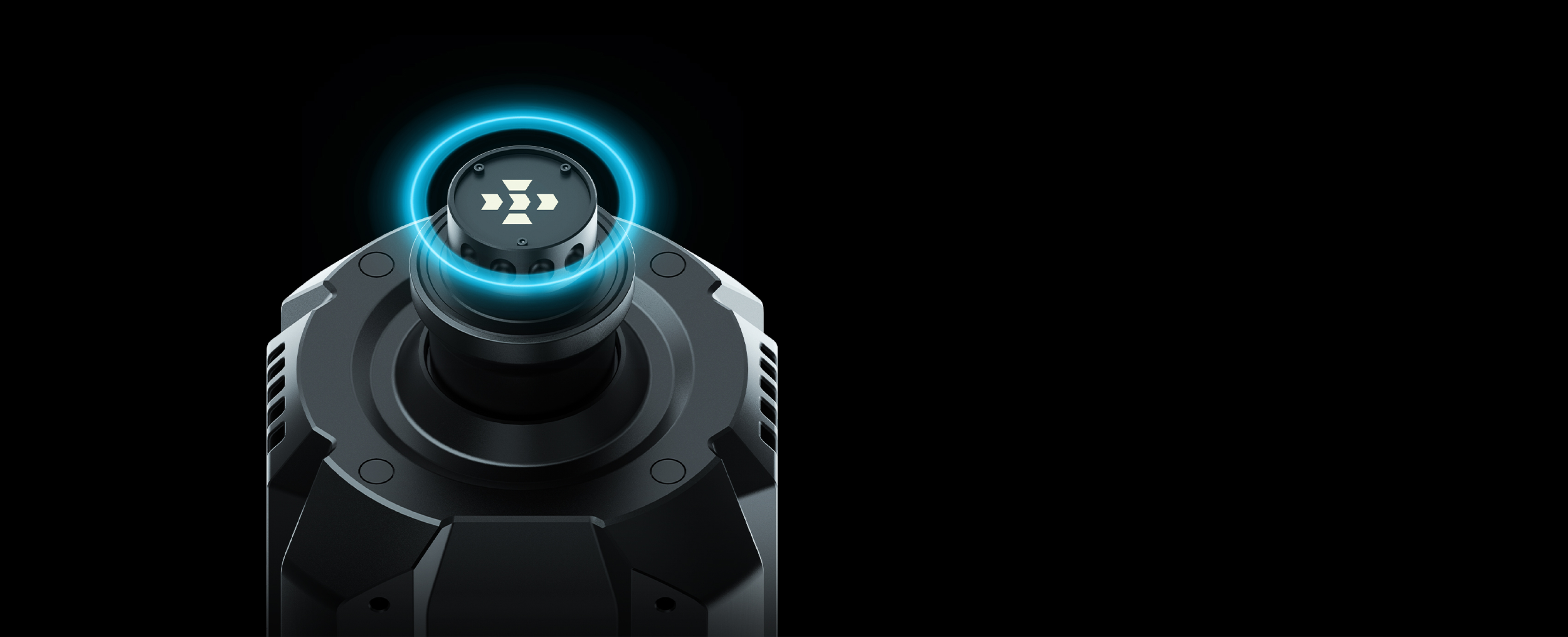

Moza R16 ULTRA - new technology forcefeedback

NexGen FFB 4.0 separates force from information

NexGen FFB 4.0 converts vehicle data into steering behaviour that is easier to interpret. A sensible profile can keep steering weight, front-end scrub and a short suspension impact as separate cues. The R16 Ultra has sufficient range to express each one without relying on constant heaviness. Different cars can therefore use different profiles rather than sharing one compromised setting.

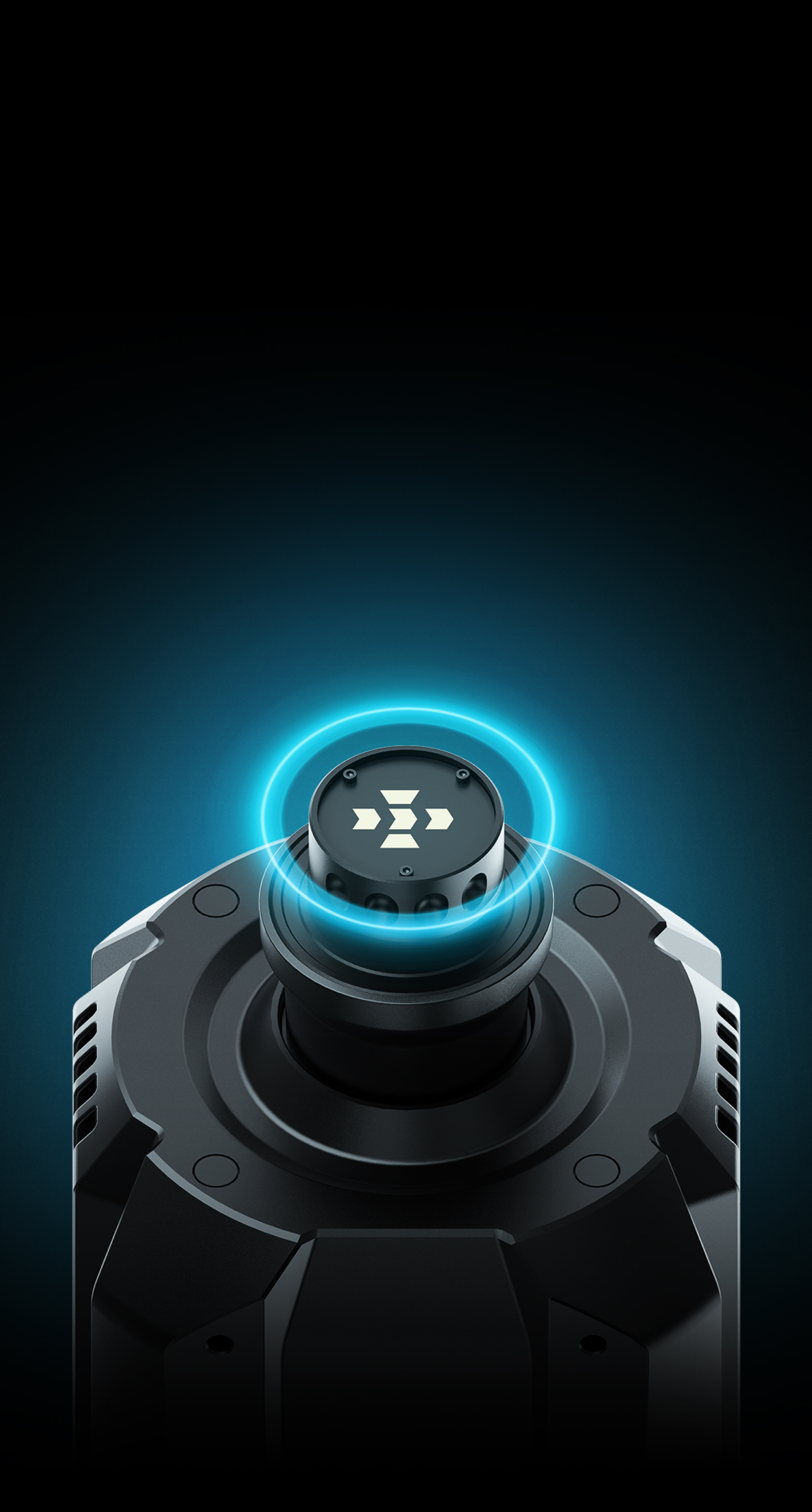

Moza R16 ULTRA - new force feedback

NexGen FFB 4.0 separates force from information

NexGen FFB 4.0 converts vehicle data into steering behaviour that is easier to interpret. A sensible profile can keep steering weight, front-end scrub and a short suspension impact as separate cues. The R16 Ultra has sufficient range to express each one without relying on constant heaviness. Different cars can therefore use different profiles rather than sharing one compromised setting.

Moza R16 ULTRA - iracing support

Native iRacing Support

MOZA R16 ULTRA supports 360hz force feedback frequency for finest feeling at steering in iRacing
Moza R16 ULTRA - interpolacja ffb wygładza nierówne przejścia

Native iRacing Support

MOZA R16 ULTRA supports 360hz force feedback frequency for finest feeling at steering in iRacing
Moza R16 ULTRA - ffb interpolation

Force Feedback interpolation removes rough steps

Some games deliver Force Feedback in samples that can feel like a row of small steps. Interpolation smooths the gap between them and reduces artificial grain or sudden jolts. It is not intended to turn every surface into the same soft signal. Its job is to tidy the delivery so the driver feels the road and the tyre load, rather than the spacing between individual data updates.

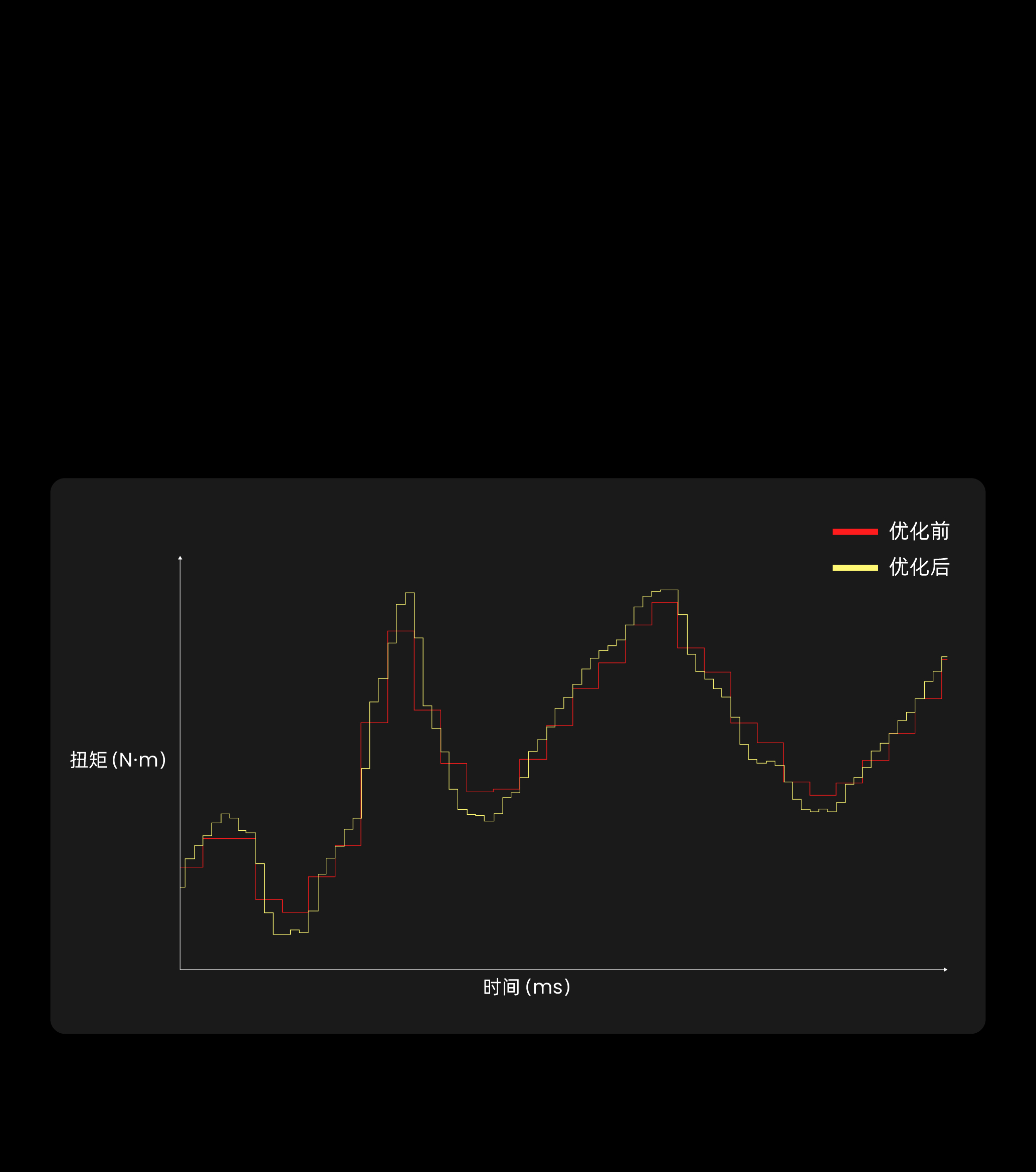

Moza R16 ULTRA - force feedback interpolation

Force Feedback interpolation removes rough steps

Some games deliver Force Feedback in samples that can feel like a row of small steps. Interpolation smooths the gap between them and reduces artificial grain or sudden jolts. It is not intended to turn every surface into the same soft signal. Its job is to tidy the delivery so the driver feels the road and the tyre load, rather than the spacing between individual data updates.

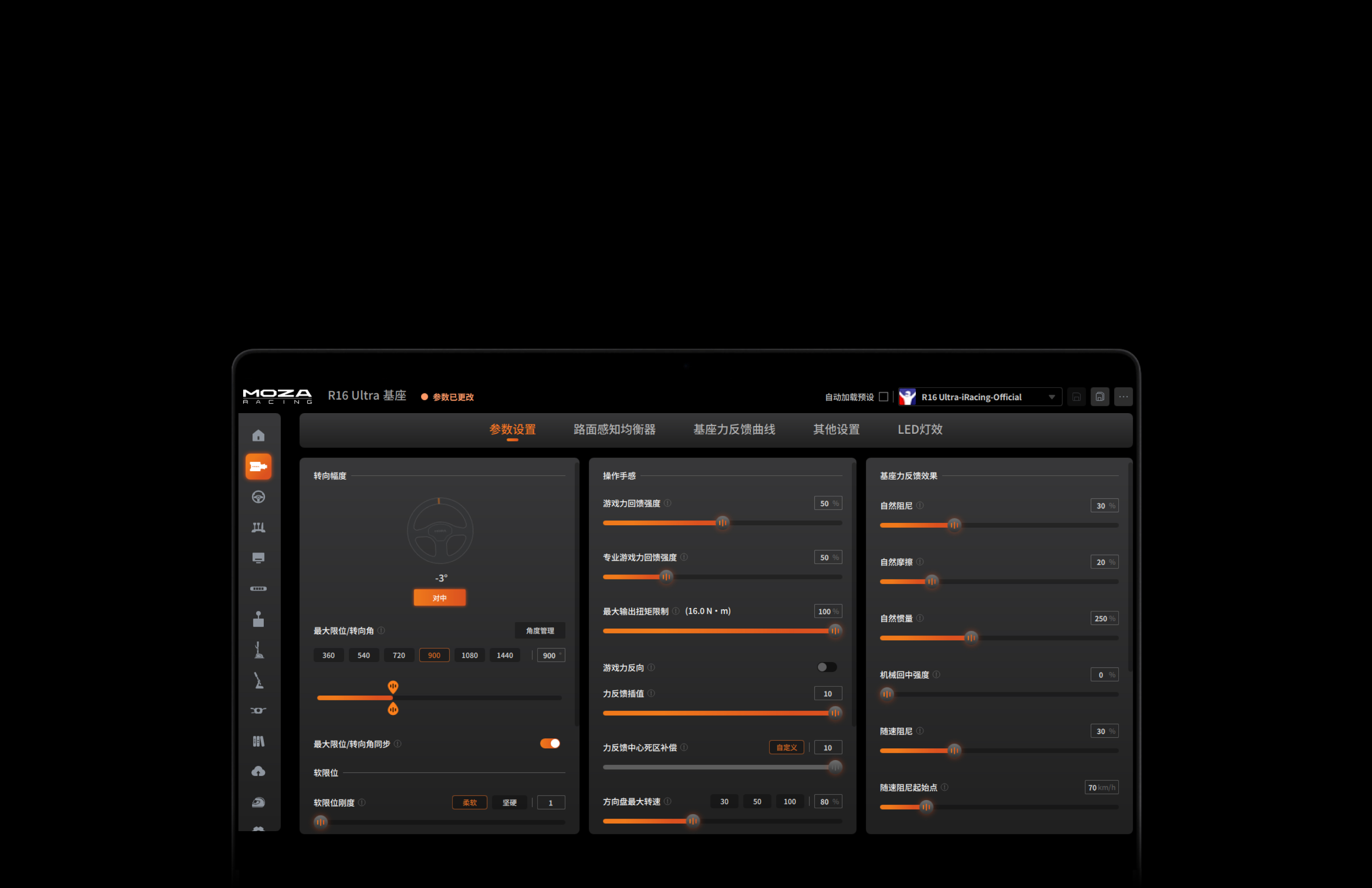

Moza R16 ULTRA - moza pithouse compatible

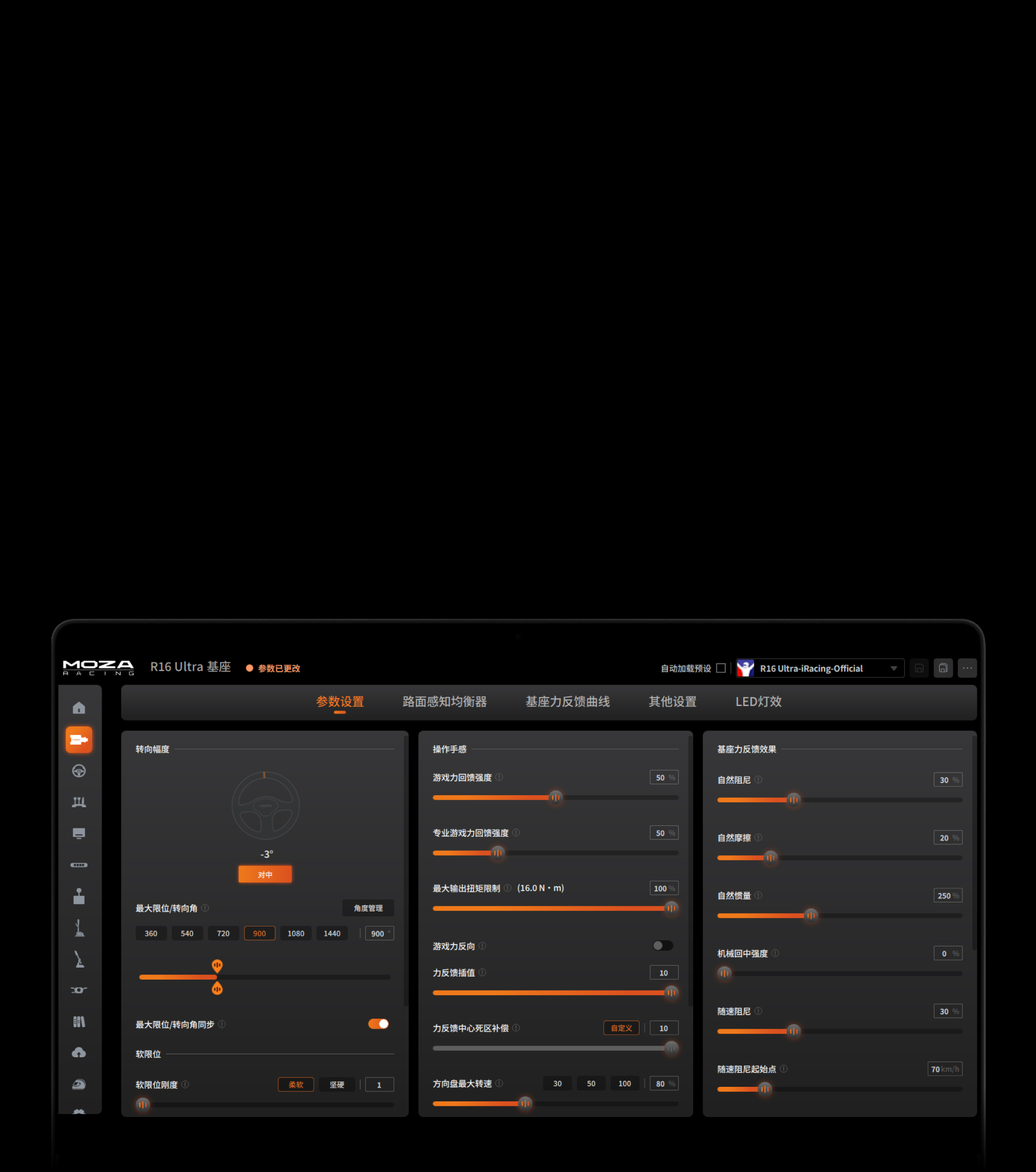

Tuning through MOZA Pit House and the mobile app

Strength, response, damping and the other key parameters are adjusted in MOZA Pit House. Separate profiles make it practical to prepare the wheelbase for a formula car, GT machine or rally stage, while mobile app support allows a quick correction from the seat. The Moza KS Pro wheel is a natural track-focused partner, whereas the round Moza CS Pro suits road and rally cars.

Moza R16 ULTRA - moza pithouse software

Tuning through MOZA Pit House and the mobile app

Strength, response, damping and the other key parameters are adjusted in MOZA Pit House. Separate profiles make it practical to prepare the wheelbase for a formula car, GT machine or rally stage, while mobile app support allows a quick correction from the seat. The Moza KS Pro wheel is a natural track-focused partner, whereas the round Moza CS Pro suits road and rally cars.

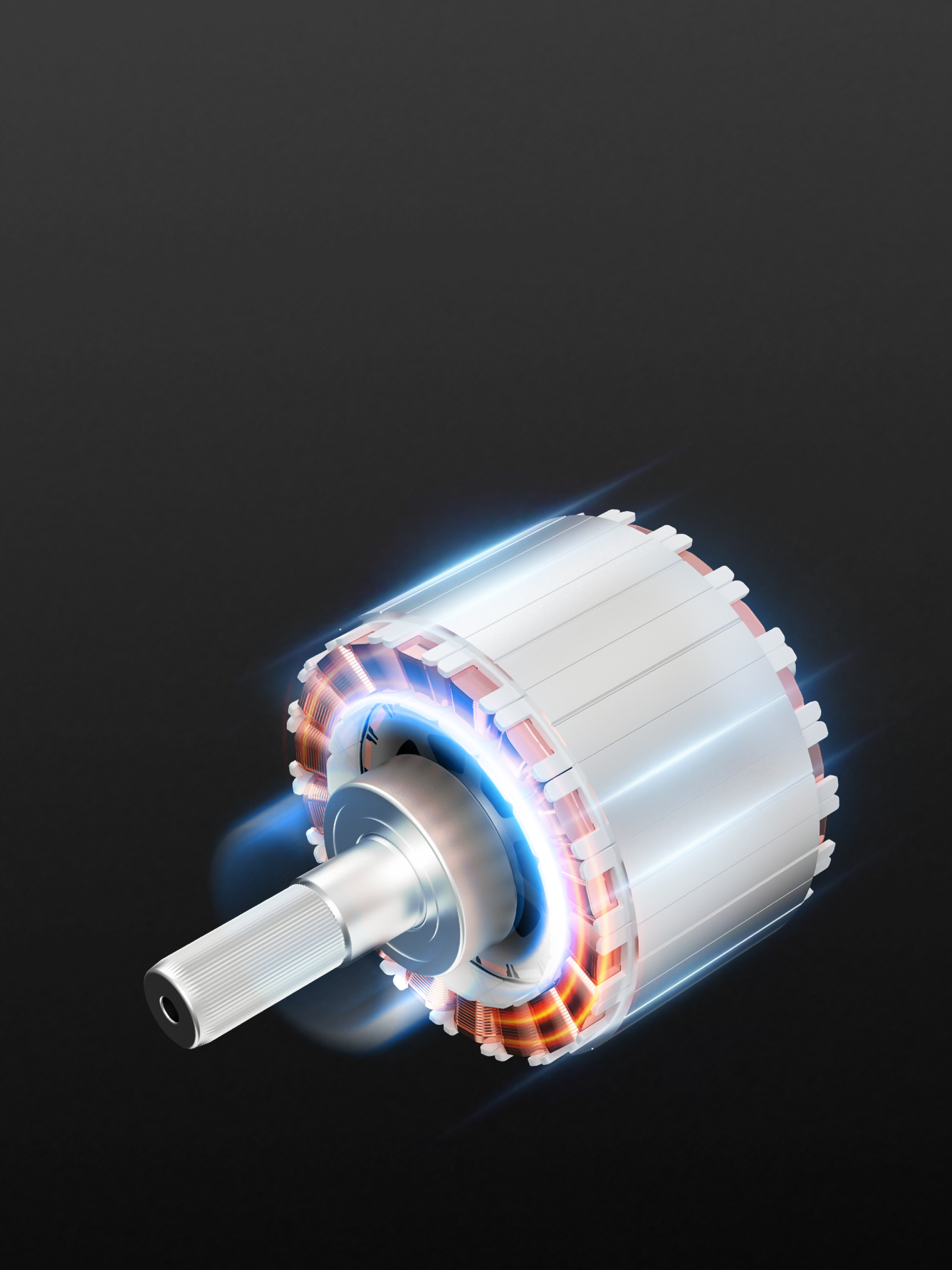

Moza R16 ULTRA - intelligent cooling

Intelligent cooling for longer sessions

An upgraded intelligent cooling system manages heat when the wheelbase is used for longer periods. Its purpose is to preserve stable motor behaviour even when a larger share of the available torque is called upon repeatedly. That consistency matters during league races, uninterrupted practice and endurance events, where Force Feedback should feel familiar at the finish rather than changing character halfway through the stint.

Moza R16 ULTRA - ultra cooling

Intelligent cooling for longer sessions

An upgraded intelligent cooling system manages heat when the wheelbase is used for longer periods. Its purpose is to preserve stable motor behaviour even when a larger share of the available torque is called upon repeatedly. That consistency matters during league races, uninterrupted practice and endurance events, where Force Feedback should feel familiar at the finish rather than changing character halfway through the stint.

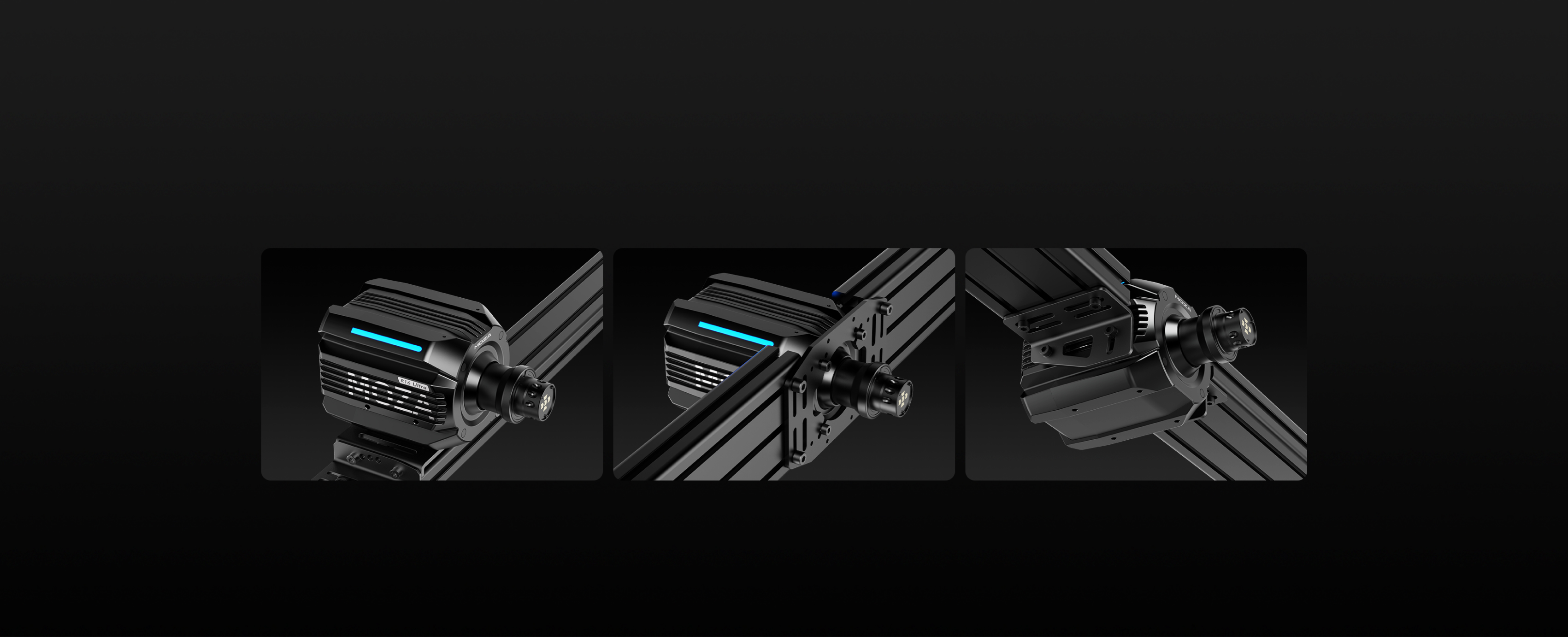

Moza R16 ULTRA - bottom,front or side mounting

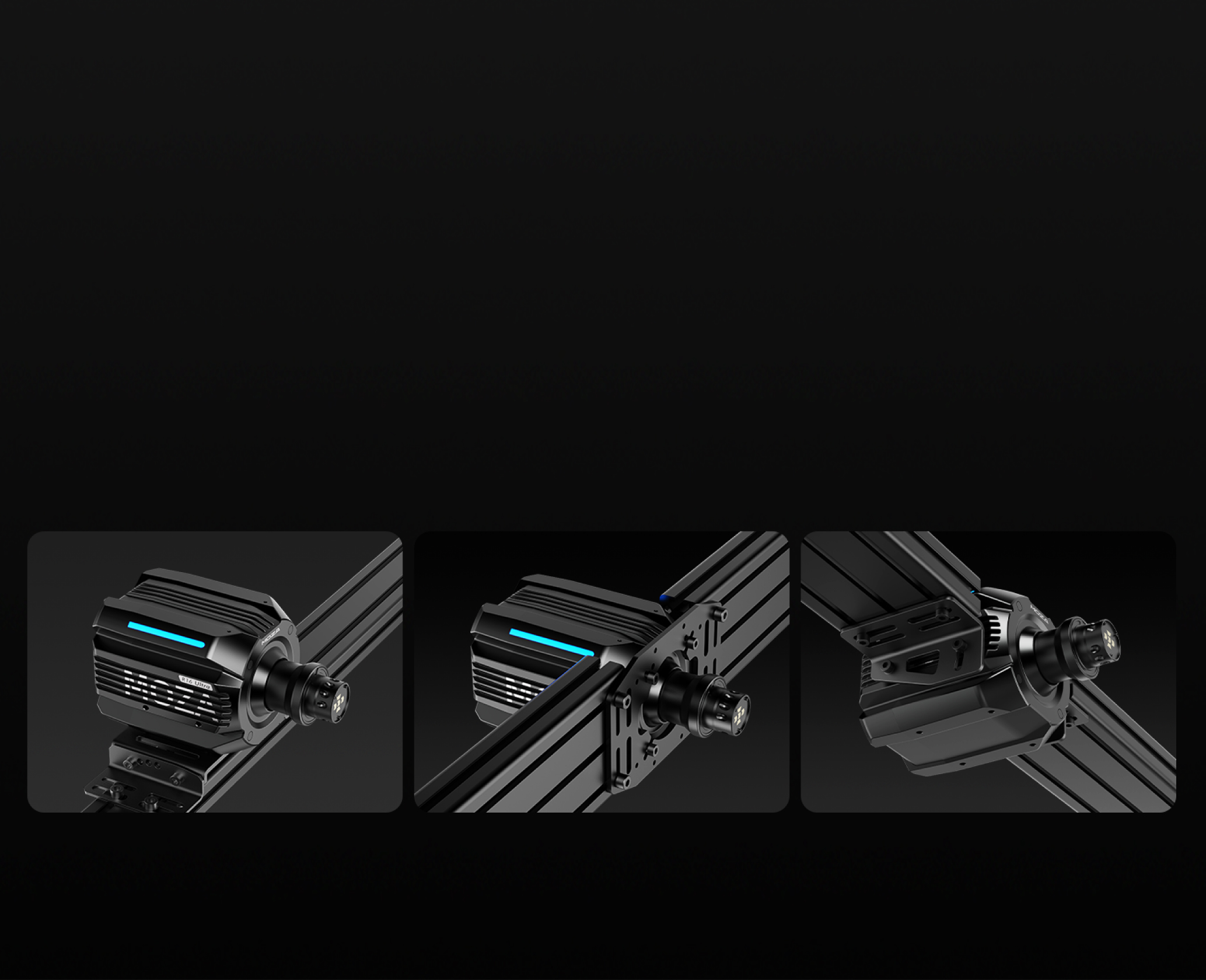

Bottom, front or side mounting

The R16 Ultra supports bottom, front and side mounting, making it easier to integrate into a purpose-built cockpit or an aluminium-profile frame. Rear connections cover power, PC, pedals, a dashboard, shifter, handbrake and emergency stop switch. The system can grow without routing every accessory in a different direction. A complete setup can also be paired with the Moza SRP2 pedals.

Moza R16 ULTRA - bottom, front or side mounting

Bottom, front or side mounting

The R16 Ultra supports bottom, front and side mounting, making it easier to integrate into a purpose-built cockpit or an aluminium-profile frame. Rear connections cover power, PC, pedals, a dashboard, shifter, handbrake and emergency stop switch. The system can grow without routing every accessory in a different direction. A complete setup can also be paired with the Moza SRP2 pedals.

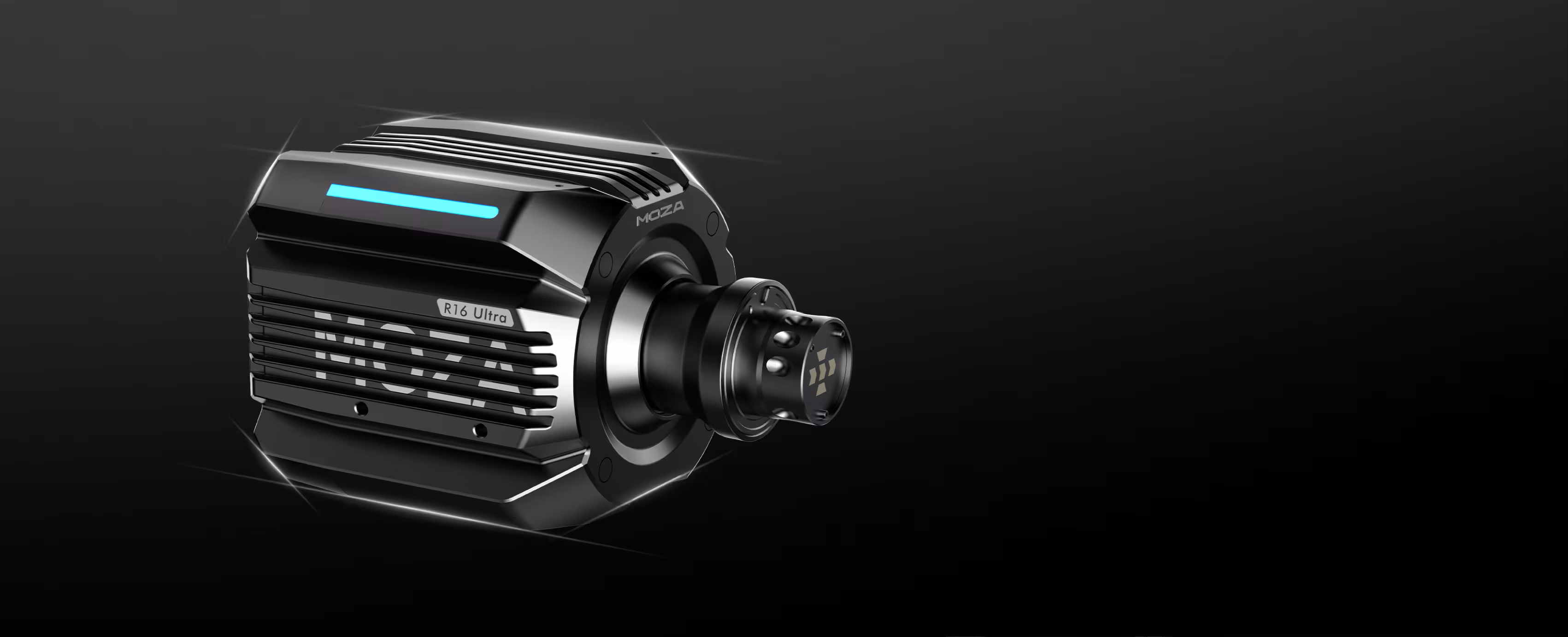

Moza R16 ULTRA - cnc machined aluminium housing

A compact CNC-machined aluminium housing

The 206 × 140 × 135 mm housing is made from aluminium alloy and CNC-machined for a rigid, precise fit. It leaves space around a low-mounted display while supporting the forces generated by the motor. A solid cockpit is still important: a flexible wheel deck can absorb useful detail and turn it into movement of the frame rather than information at the driver's hands.

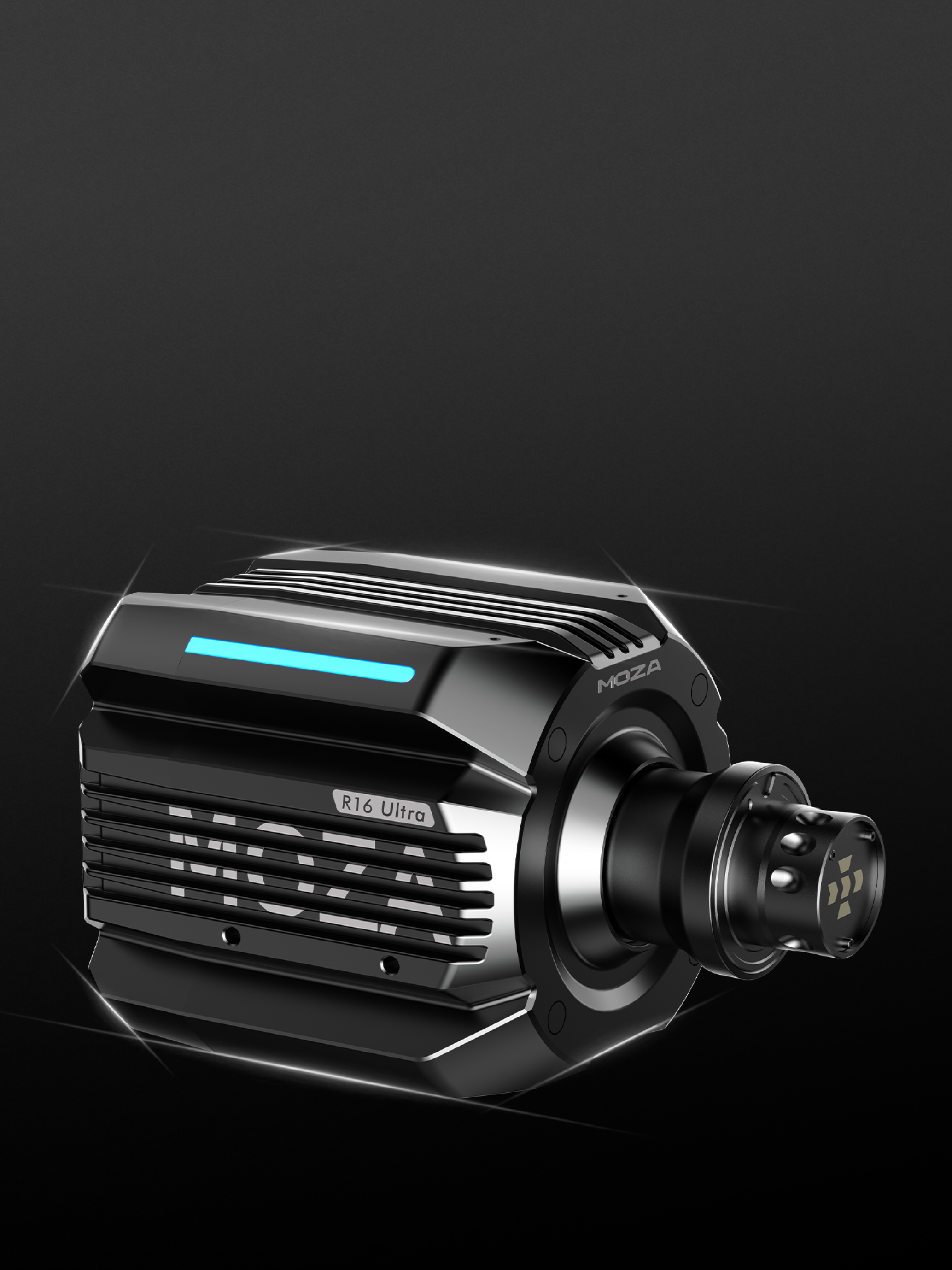

Moza R16 ULTRA - aluminium housing made on cnc

A compact CNC-machined aluminium housing

The 206 × 140 × 135 mm housing is made from aluminium alloy and CNC-machined for a rigid, precise fit. It leaves space around a low-mounted display while supporting the forces generated by the motor. A solid cockpit is still important: a flexible wheel deck can absorb useful detail and turn it into movement of the frame rather than information at the driver's hands.

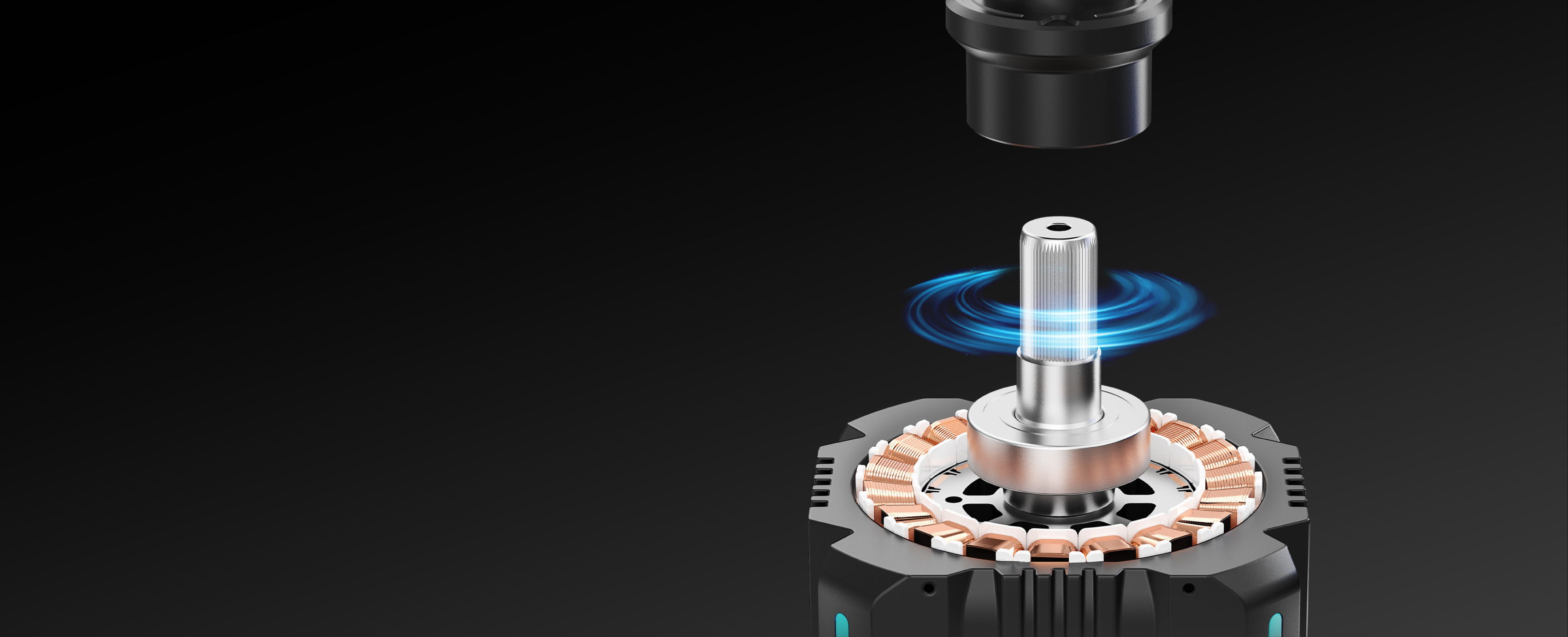

Moza R16 ULTRA - extreme durability

Extreme Durability

Designed for long-term reliability and heavy use, the integrated MOZA slip ring supports more than 10 million full rotations. Operating at a high-speed data transfer rate of 2M/s, it ensures an uninterrupted connection and zero latency between your steering wheel and base.

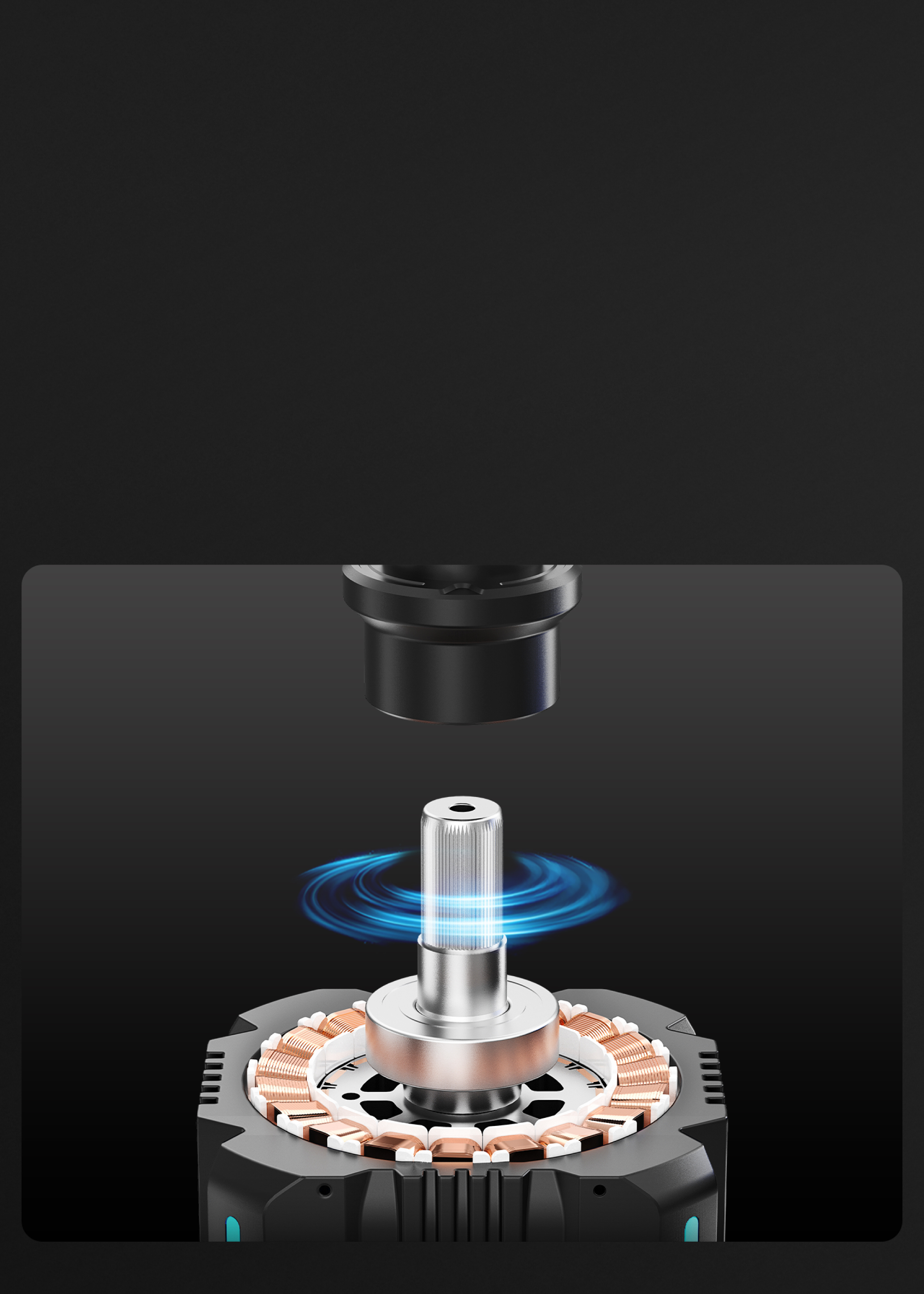

Moza R16 ULTRA - extremely rigid

Extreme Durability

Designed for long-term reliability and heavy use, the integrated MOZA slip ring supports more than 10 million full rotations. Operating at a high-speed data transfer rate of 2M/s, it ensures an uninterrupted connection and zero latency between your steering wheel and base.

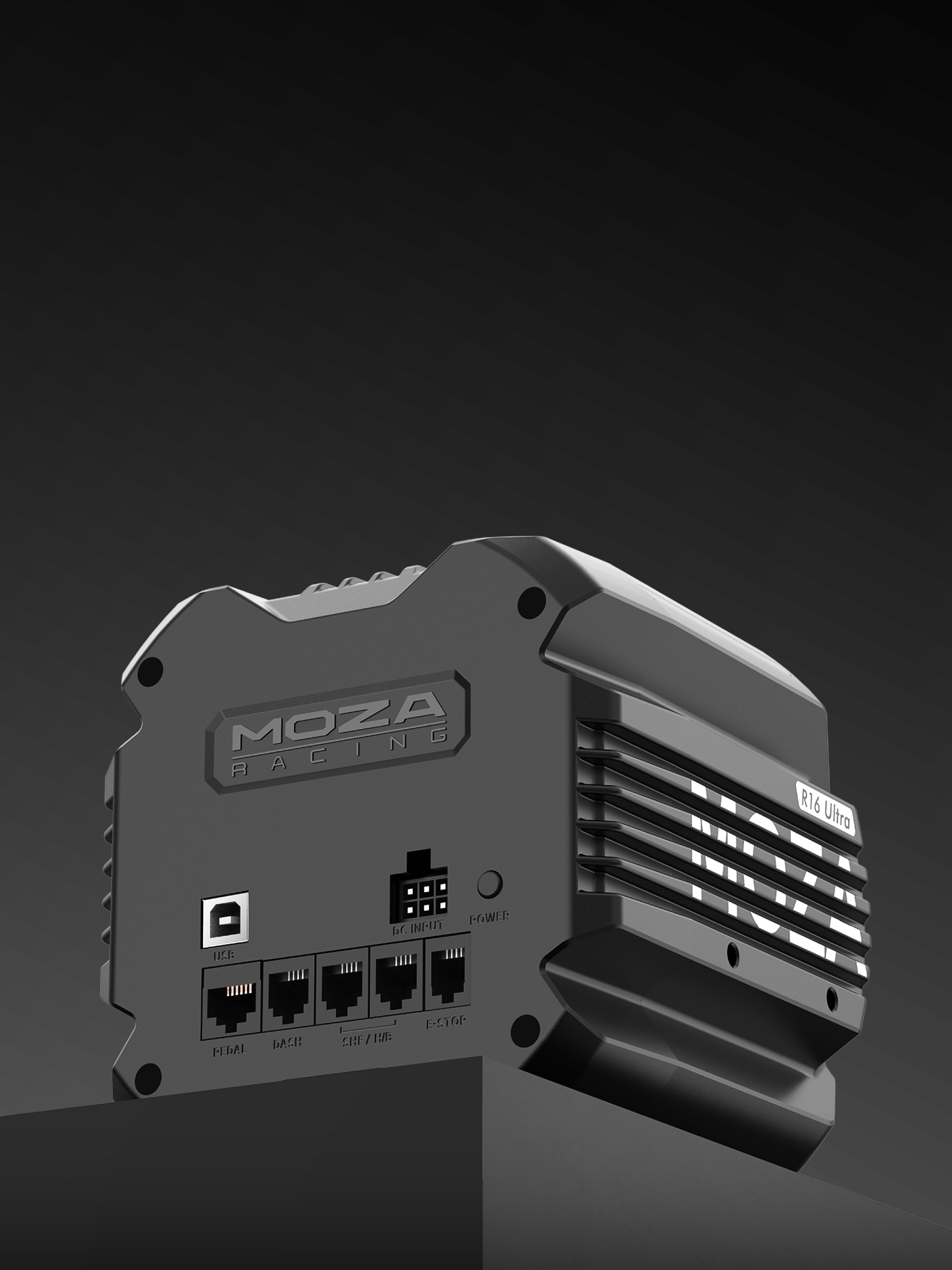

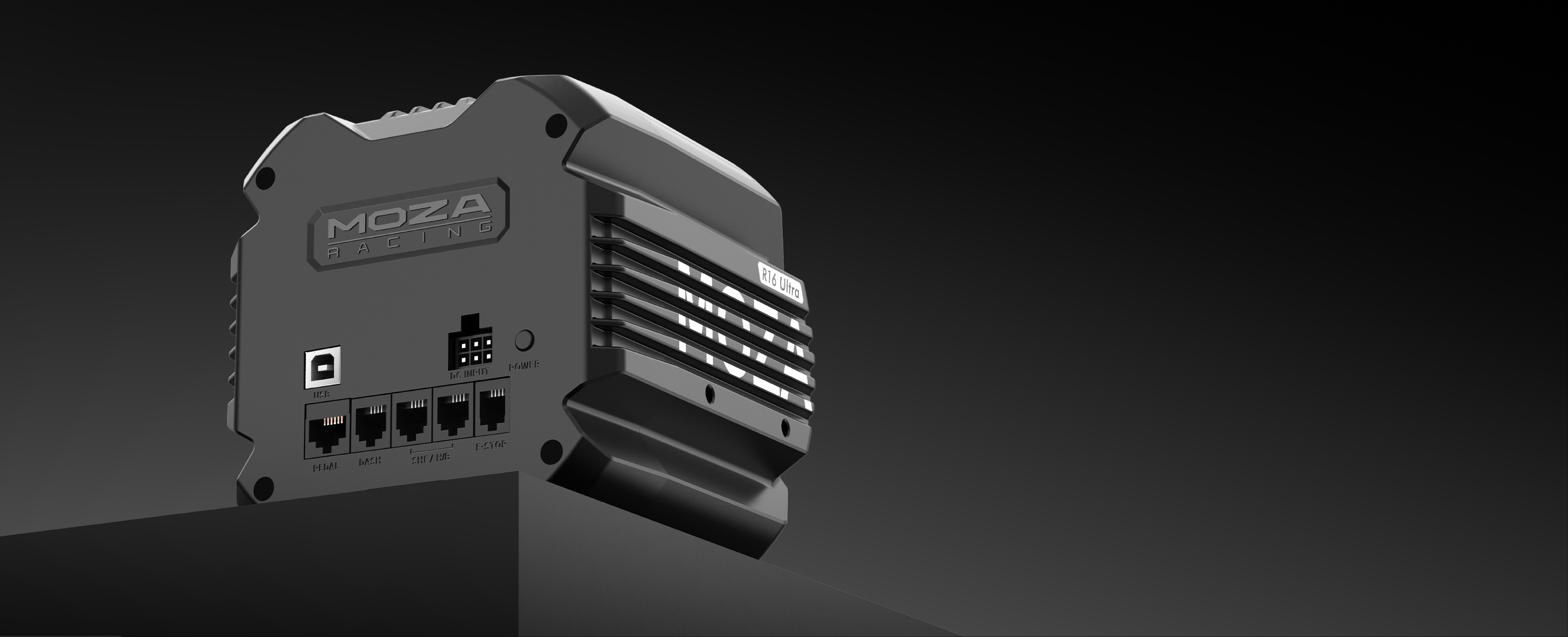

Moza R16 ULTRA - moza ecosystem

Moza ecosystem

Designed for long-term reliability and heavy use, the integrated MOZA slip ring supports more than 10 million full rotations. Operating at a high-speed data transfer rate of 2M/s, it ensures an uninterrupted connection and zero latency between your steering wheel and base.
Moza R16 ULTRA - moza ecosystem

Moza ecosystem

Designed for long-term reliability and heavy use, the integrated MOZA slip ring supports more than 10 million full rotations. Operating at a high-speed data transfer rate of 2M/s, it ensures an uninterrupted connection and zero latency between your steering wheel and base.

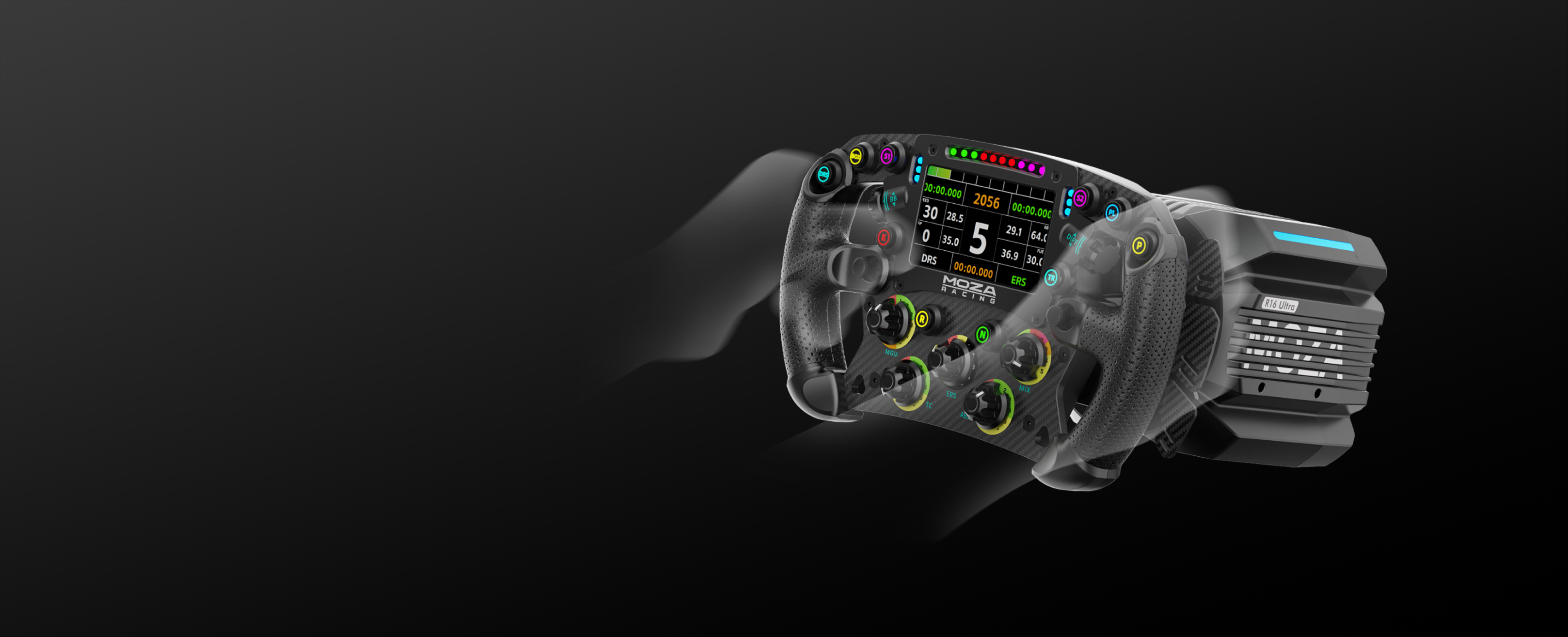

Moza R16 ULTRA - hands-off protection

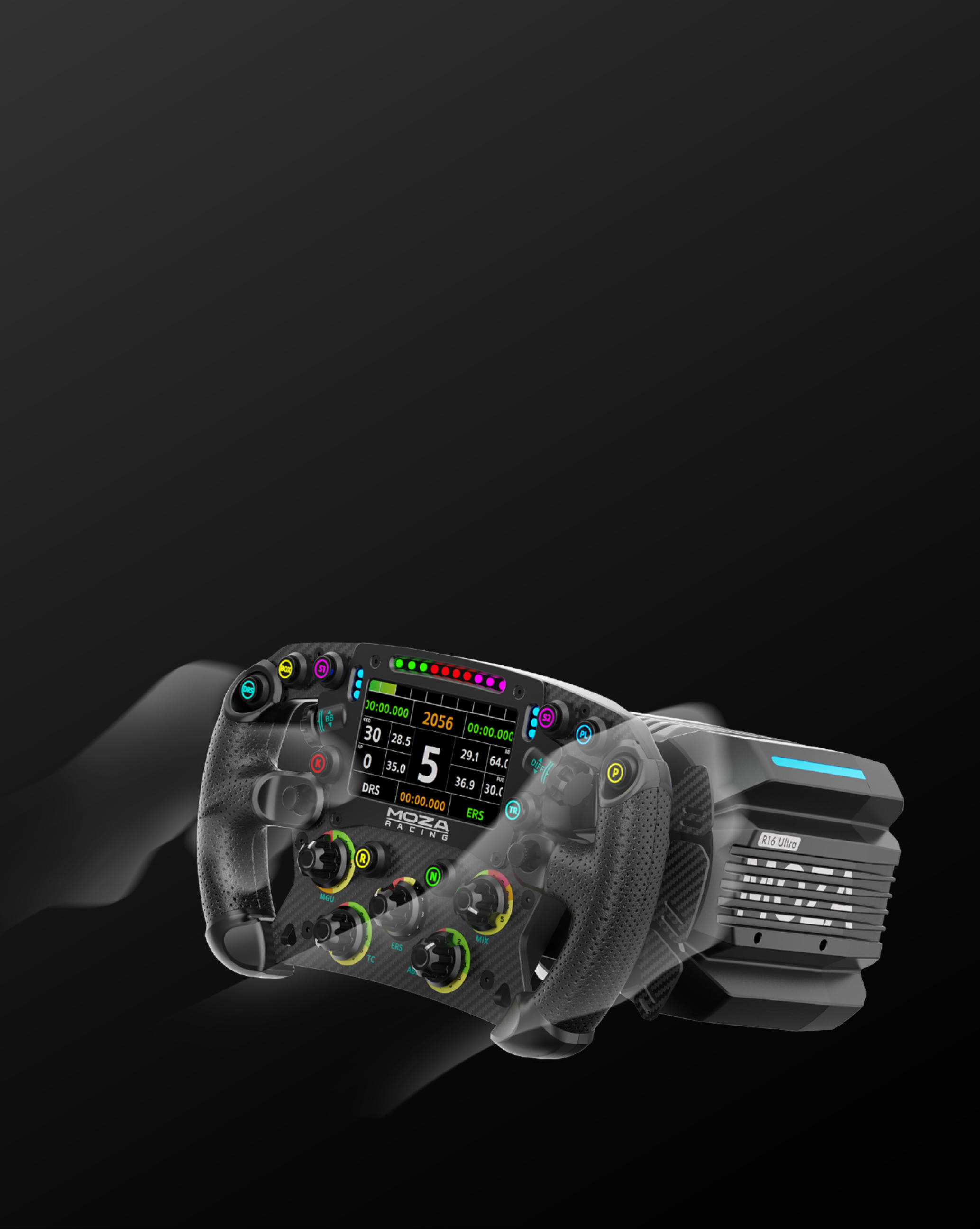

Hands-off protection

Built to minimize injury risks, the Hands-off Protection system helps drivers regain control during aggressive force feedback spikes. By detecting when your hands leave the rim, it instantly dampens wheel oscillations and brings the steering wheel back to a safe, neutral center position.
Moza R16 ULTRA - hands off protection system

Hands-off protection

Built to minimize injury risks, the Hands-off Protection system helps drivers regain control during aggressive force feedback spikes. By detecting when your hands leave the rim, it instantly dampens wheel oscillations and brings the steering wheel back to a safe, neutral center position.

Race Your Favorite Titles

A selection of PC games compatible with the Moza R16 ULTRA. Available features may vary depending on the game version and control configuration.

iRacing
F1 2018
Le Mans Ultimate
F1 2019
Assetto Corsa
F1 2020
Assetto Corsa Competizione
F1 2021
Assetto Corsa EVO
F1 22
Forza Motorsport
F1 23
Forza Horizon 4
F1 24
Forza Horizon 5
F1 25
Forza Horizon 6
KartKraft
RaceRoom Racing Experience
rFactor 2
Assetto Corsa Rally
Project CARS
DiRT Rally 2.0
Project CARS 2
DiRT 4
Project CARS 3
EA SPORTS WRC
Project Motor Racing
WRC 9
BeamNG.drive
WRC 10
Euro Truck Simulator 2
WRC Generations
American Truck Simulator
Richard Burns Rally
Farming Simulator 22
Automobilista 2
Farming Simulator 25
Live for Speed
Test Drive Unlimited Solar Crown

Race Your Favorite Titles

A selection of PC games compatible with the Moza R16 ULTRA. Available features may vary depending on the game version and control configuration.

iRacing
F1 2018
Le Mans Ultimate
F1 2019
Assetto Corsa
F1 2020
Assetto Corsa Competizione
F1 2021
Assetto Corsa EVO
F1 22
Forza Motorsport
F1 23
Forza Horizon 4
F1 24
Forza Horizon 5
F1 25
Forza Horizon 6
KartKraft
RaceRoom Racing Experience
rFactor 2
Assetto Corsa Rally
Project CARS
DiRT Rally 2.0
Project CARS 2
DiRT 4
Project CARS 3
EA SPORTS WRC
Project Motor Racing
WRC 9
BeamNG.drive
WRC 10
Euro Truck Simulator 2
WRC Generations
American Truck Simulator
Richard Burns Rally
Farming Simulator 22
Automobilista 2
Farming Simulator 25
Live for Speed
Test Drive Unlimited Solar Crown
850083320171
6973137271596
Technical specification – Moza R16 ULTRA
Drive and Force Feedback
Drive type Direct Drive
Maximum / sustained torque 16 Nm
Motor High-torque-density flat-wire motor with exceptionally low cogging
Encoder 21-bit magnetic encoder
Encoder resolution 2,097,152 PPR
Processor 600 MHz
Force Feedback algorithm NexGen FFB 4.0
FFB interpolation Supported
Construction
Housing material CNC-machined aluminium
Coupler material Aluminium alloy
Dimensions 206 × 140 × 135 mm
Lighting Two RGB strips, 16.7 million colours
Cooling Intelligent cooling system
Connections, mounting and platforms
Ports Power, PC, pedals, dashboard, shifter, handbrake, E-stop
Quick Release Supported; steering wheel not included with the base
Mounting options Bottom, front or side mounting
Software MOZA Pit House; mobile app support
Platform PC; Xbox when used with the Moza ESX wheel

Moza R16 ULTRA – questions and answers

1. What is the Moza R16 ULTRA?

It is a standalone Direct Drive base for a racing simulator. The motor delivers sustained 16 Nm torque, and the base is intended primarily for a rigid PC cockpit.

2. How much Force Feedback does the R16 Ultra produce?

It provides 16 Nm of sustained torque rather than treating that figure as a momentary peak. Strength can still be reduced in software while keeping headroom for fast effects.

3. Why does the flat-wire motor matter?

Its design combines high torque density with exceptionally low cogging. Small steering corrections feel smoother, while the motor can still respond firmly to a sudden slide or impact.

4. How precise is the Moza R16 ULTRA encoder?

The 21-bit magnetic encoder reads 2,097,152 shaft positions. This allows the base to register very small steering movements.

5. What does FFB interpolation do?

It smooths the transition between neighbouring signal samples. This can reduce grain, abrupt steps and artificial jolts without removing useful road detail when tuned sensibly.

6. Where are the wheelbase settings adjusted?

MOZA Pit House is the main PC software for strength, response, damping and other settings. Mobile app support also makes quick adjustments possible from the cockpit.

7. How can the R16 Ultra be mounted?

The housing supports bottom, front and side mounting. A rigid cockpit or aluminium-profile frame is the most suitable match for 16 Nm torque.

8. Are a steering wheel and pedals included?

No. This product is the wheelbase only. A steering wheel, pedals and other cockpit hardware need to be selected separately.

9. Which components make a sensible pairing?

The Moza KS Pro suits GT racing, while the round Moza CS Pro works well for road and rally cars. The setup can be completed with Moza SRP2 pedals.

10. Does the Moza R16 ULTRA work with Xbox?

Yes, but Xbox compatibility requires the Moza ESX wheel. Without it, PC is the base's primary platform.
