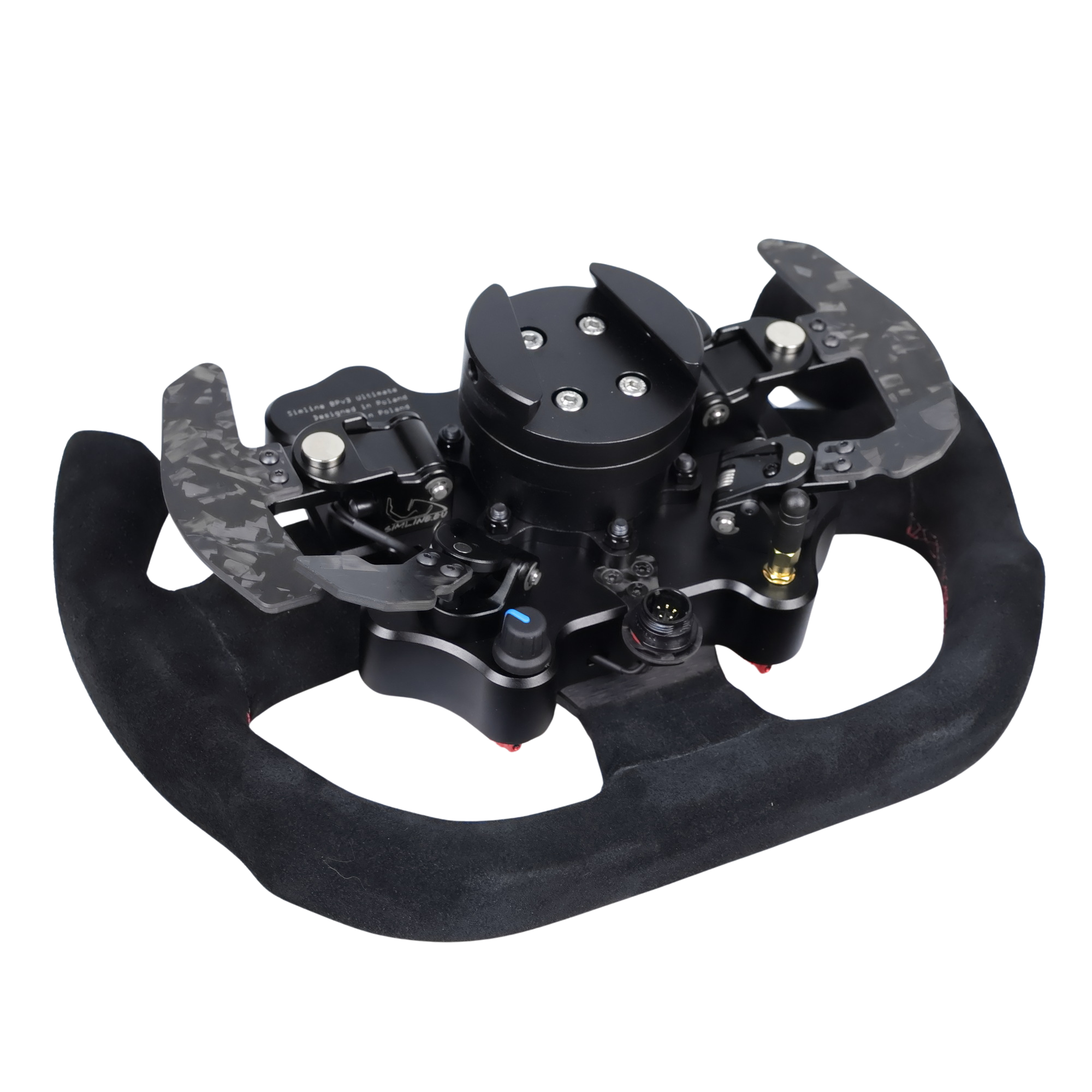

BPv3 Ultimate is our newest, most advanced product distinguished by its versatility. It even fits on some 28cm rims!

The most important features:

Design and ergonomics:
Compact and ergonomic design, so it fits most rims available on the market, the compatibility list is long, but if you are not sure if it will fit your rim, write to us, we will check it for you so that you do not have to worry about it: simline.gt@gmail.com
You can also print the template for our new BPv3 Ult provided by us, but remember that you have to do it in 100% scale !!!

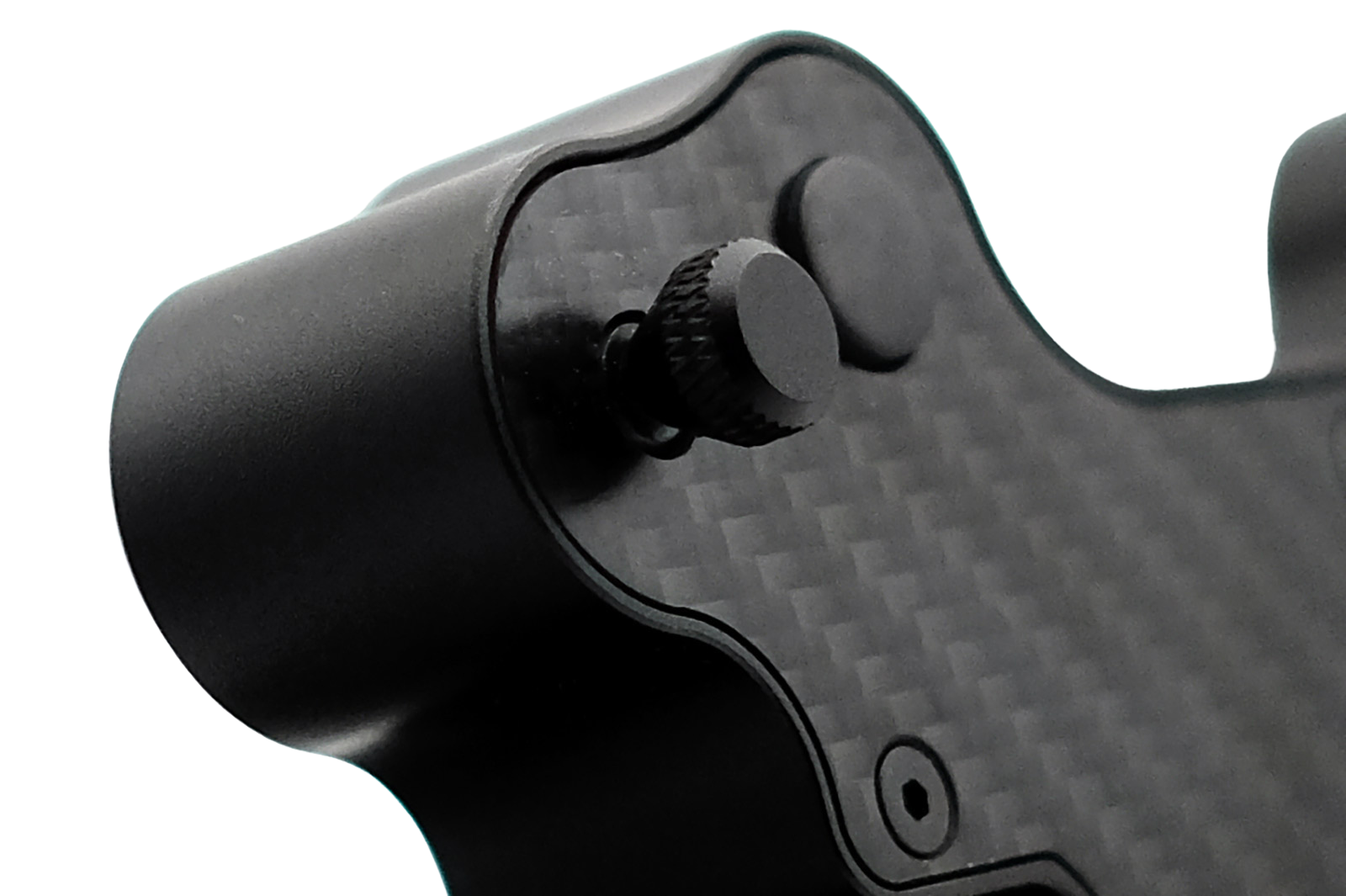

We placed the funky switches on purpose, not symmetrically so that one of them is easier to access and the other is more difficult, at the same time making it easier to access the button.
The buttons we used are very high-quality MEC switches with a high resistance of 6.5 Nm to prevent accidental pressing and with large matte caps so that they do not tire your fingers.



Functionality:
BPv3 Ult has been equipped with 29 functions that can be extended by another 6 (special places on the PCB):
- 6x ALPS / MEC push buttons
- 2x funky switch (D-Pad + Encoder + Push button) we made a special circuit to prevent problems with the push button

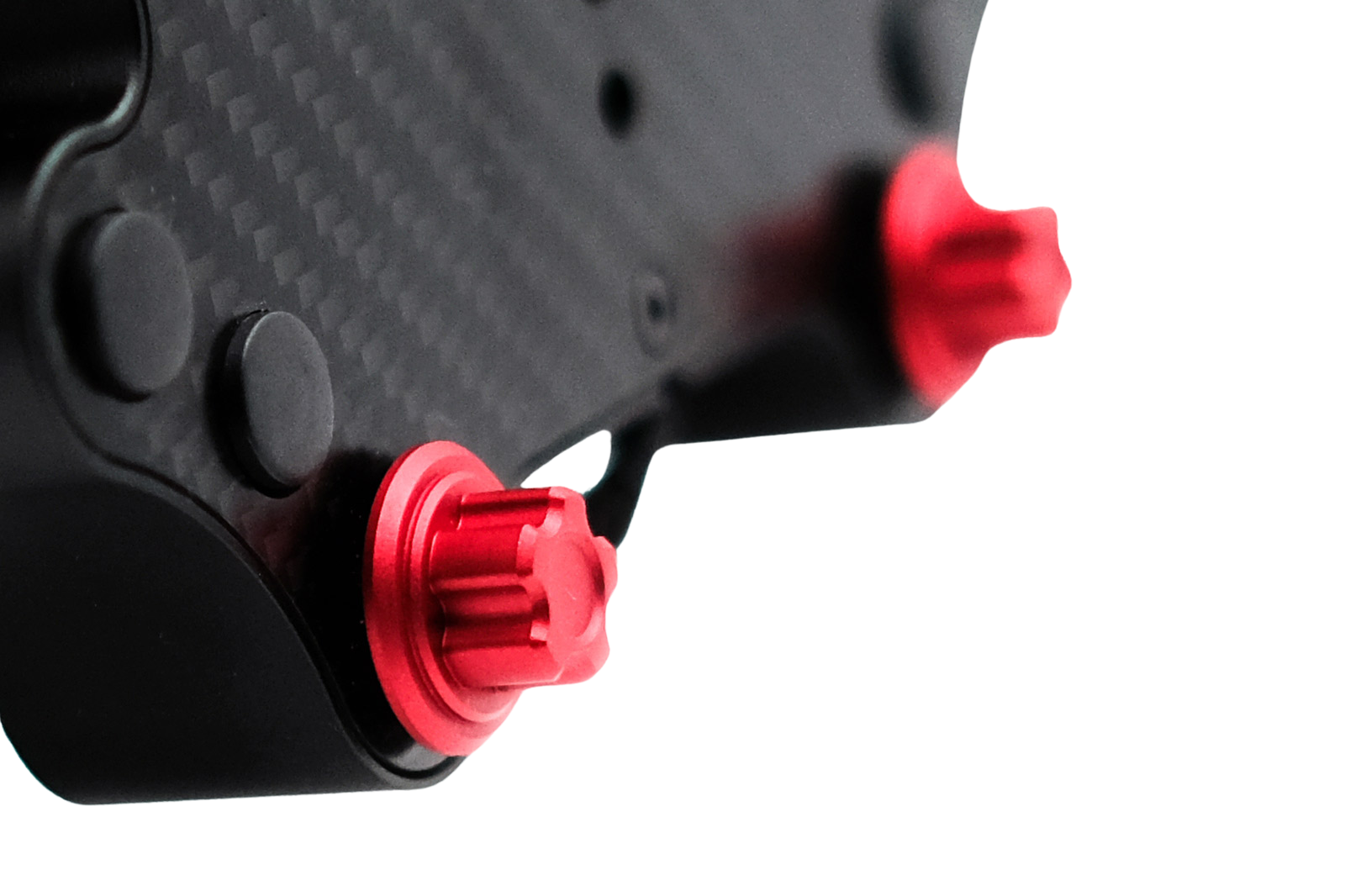

- 2x Bourns Encoders with 16 positions and a push button, they have a very pleasant feeling, even when wearing gloves

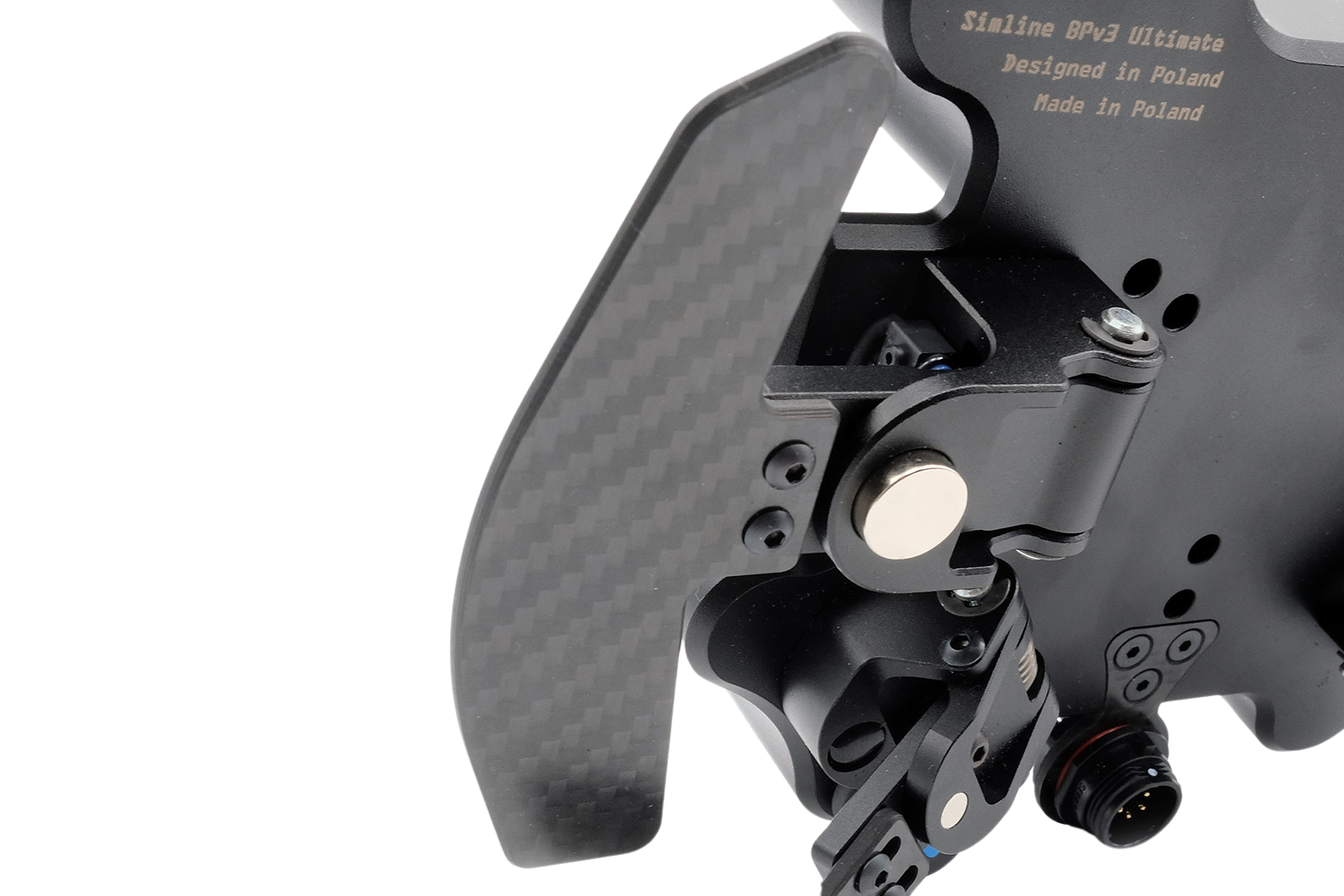

- 2x adjustable magnetic alluminium shifters

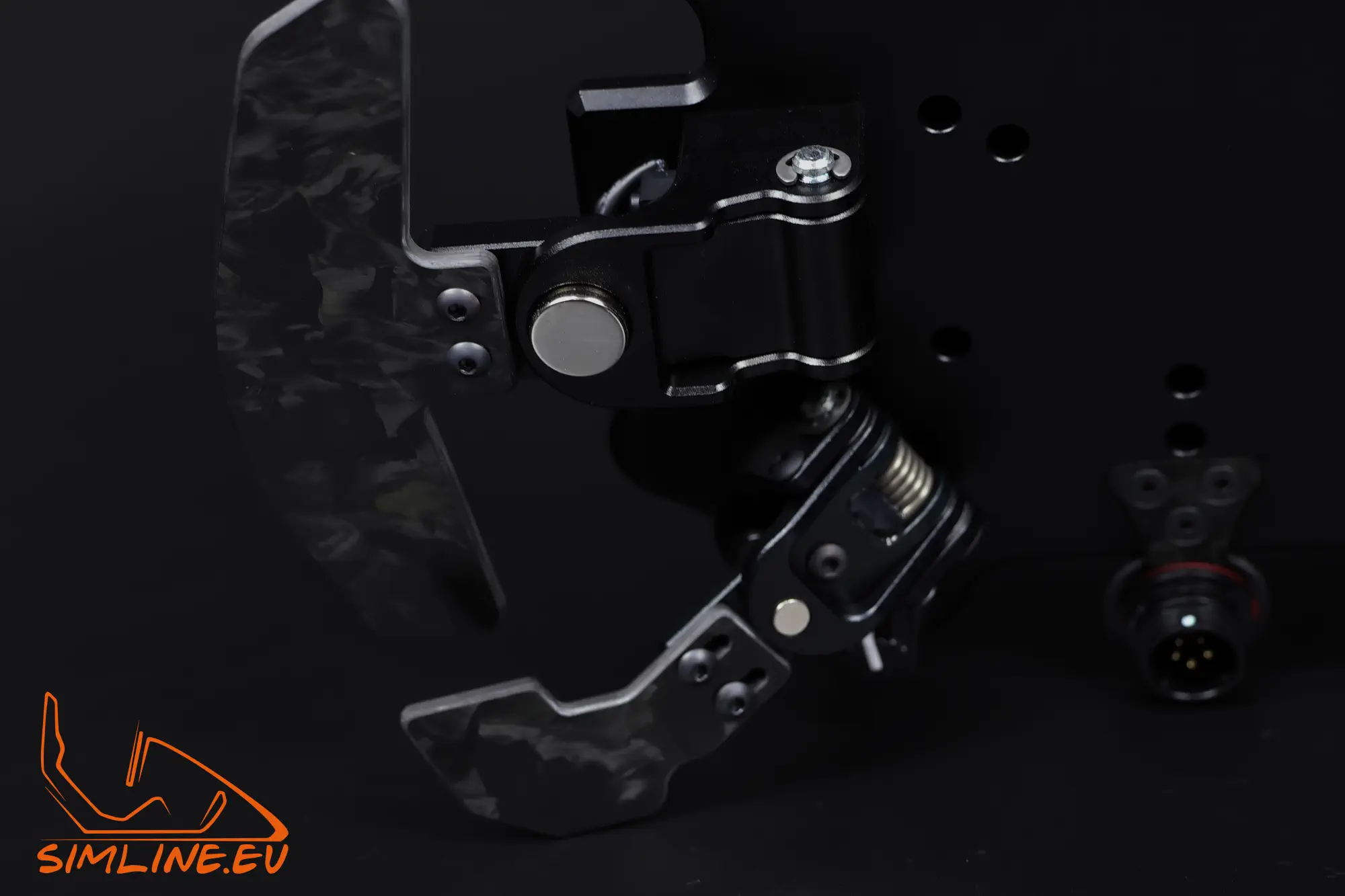

- DUAL CLUTCH SYSTEM with Bite Point Potentiometer on back based on our alluminium clutches with high precission hall sensors (yes, Simucube2 can use analog clutches wireless)
- Optional pads on PCB for external buttons (like mounted on Sparco P310 rim)



Materials used:

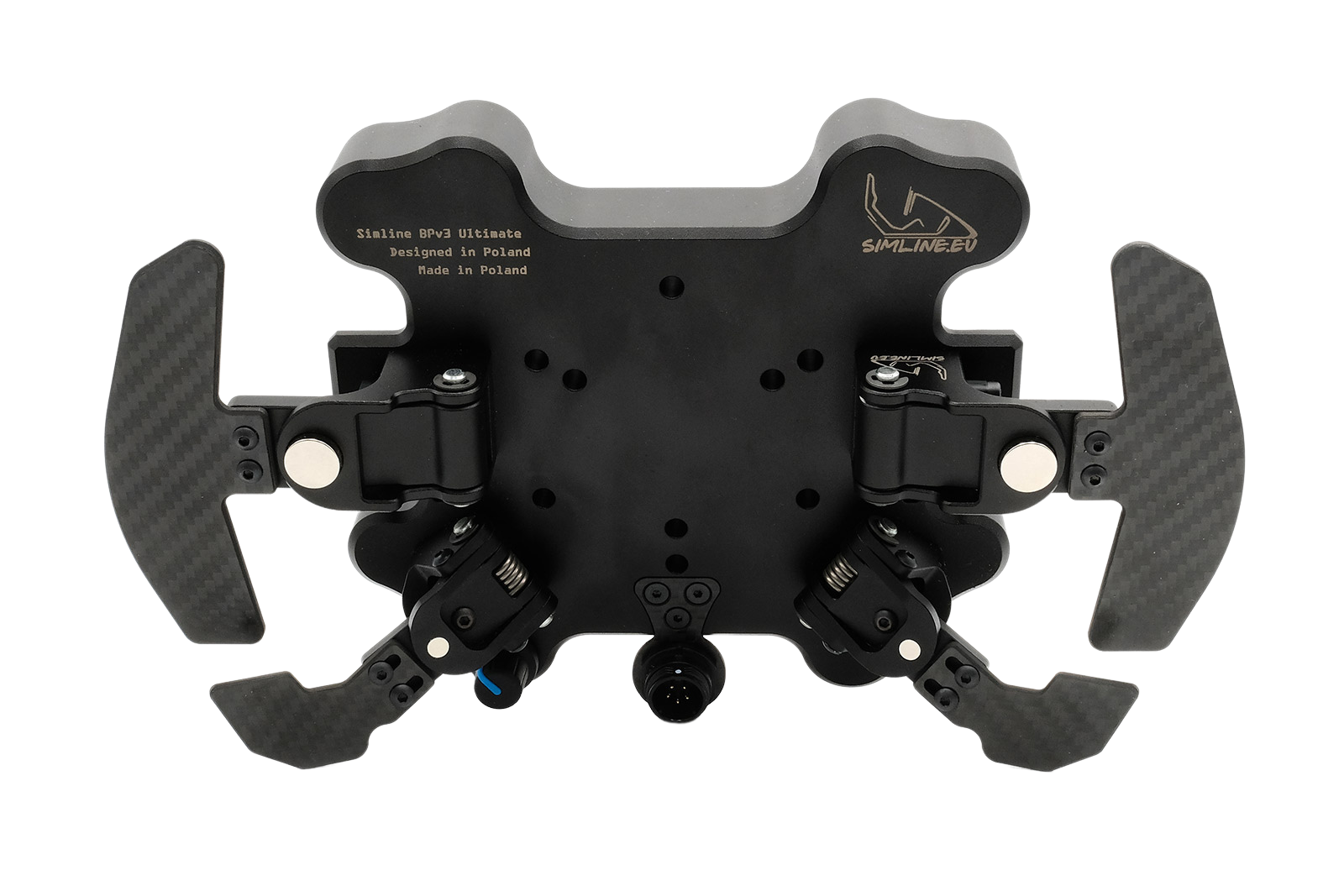

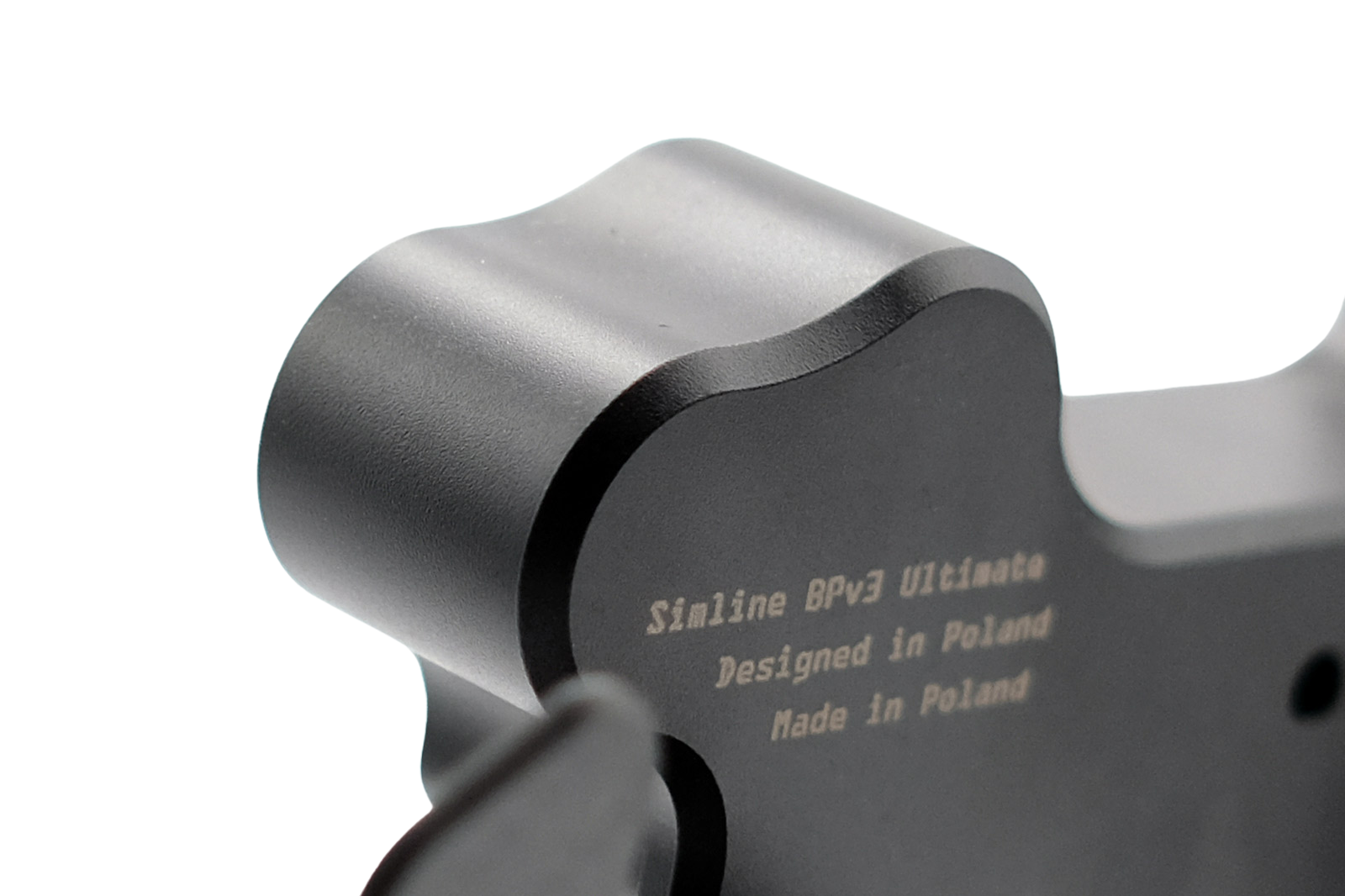

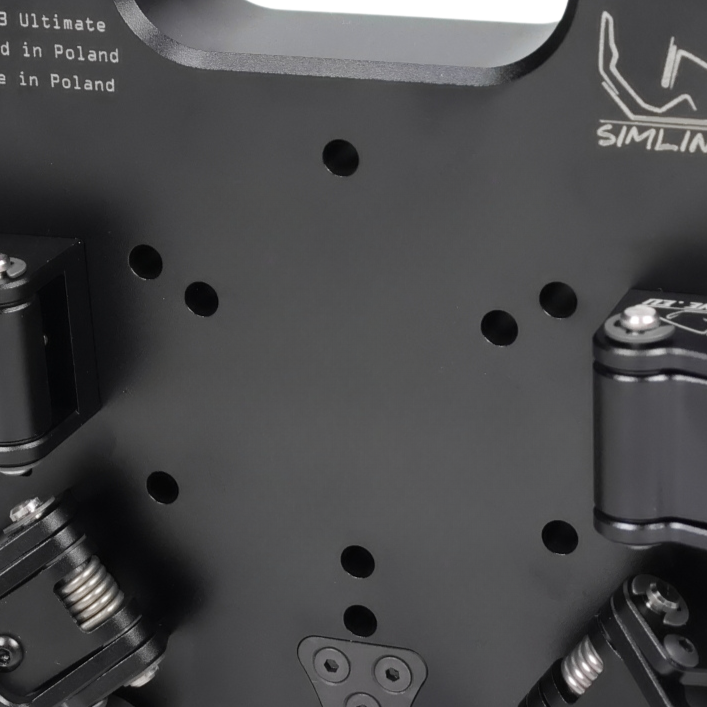

The back cover is made of one piece of alluminium on a precise CNC machine, it has also been sandblasted and oxidized, thanks to which the coating is very scratch-resistant and does not get dirty so easily.

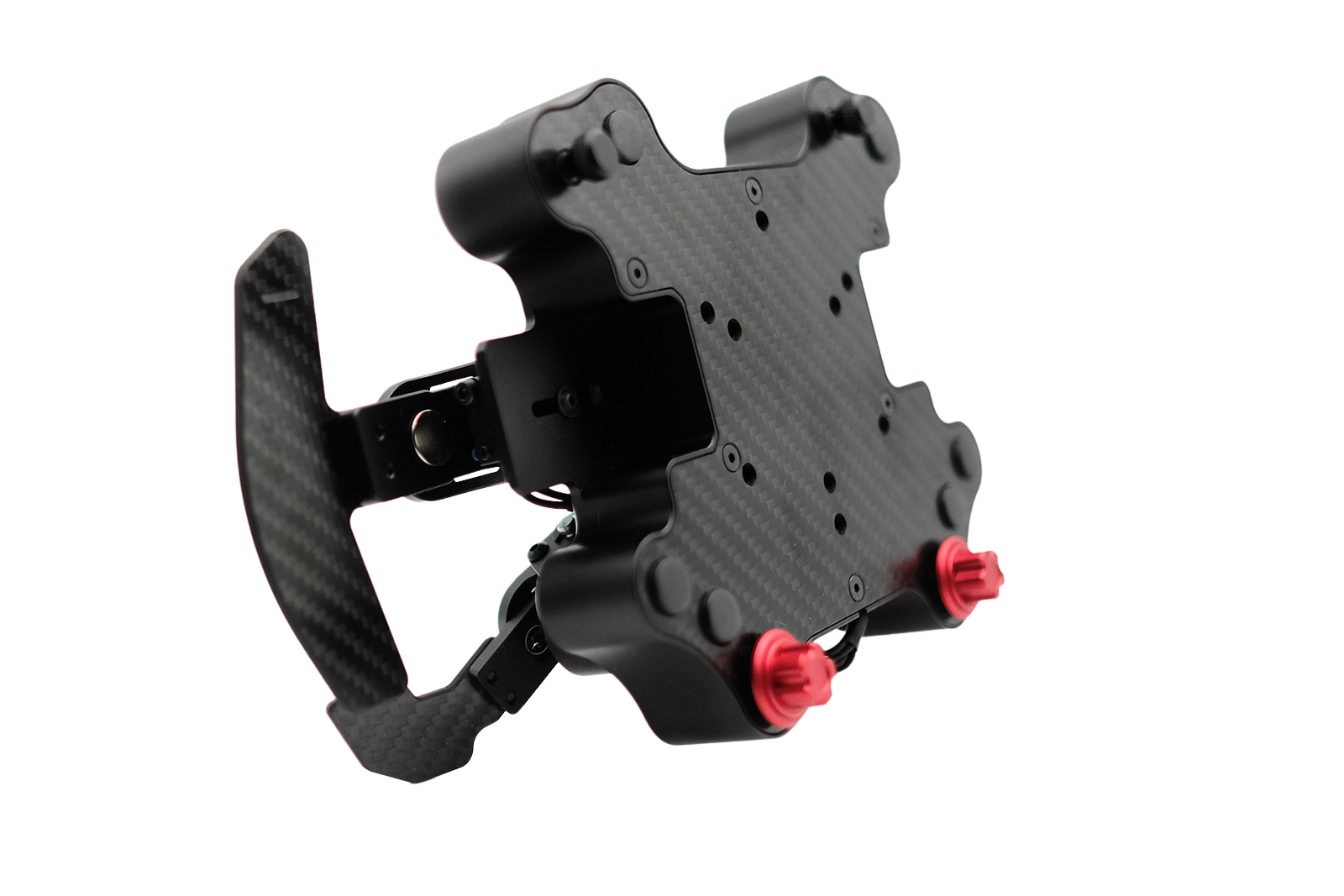

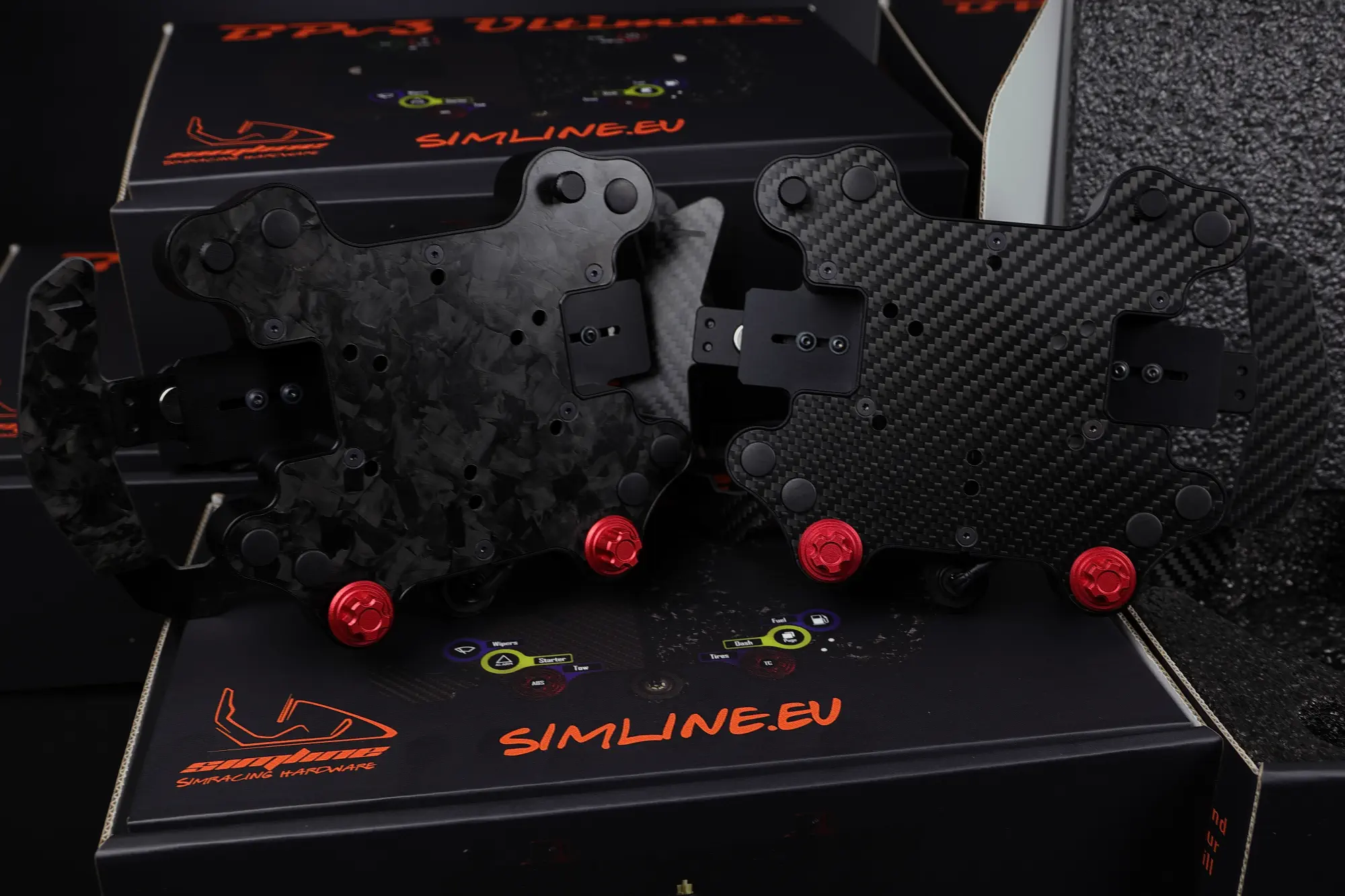

The front is genuine carbon fiber, as is the Twill option and the Forged Carbon option

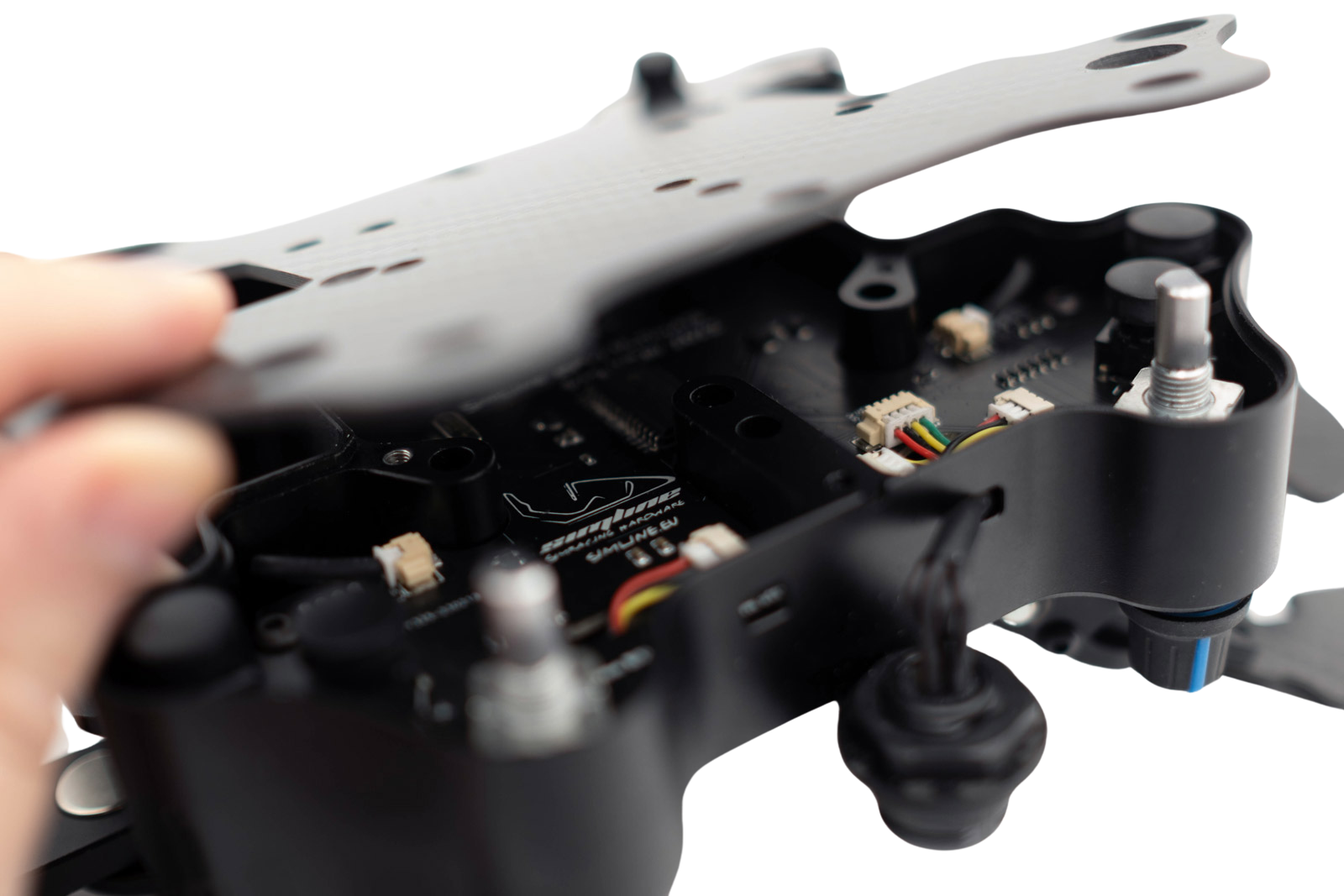

Inside there is a specially designed PCB with an original Simucube controller, we encourage you to look inside, we are not afraid of it!

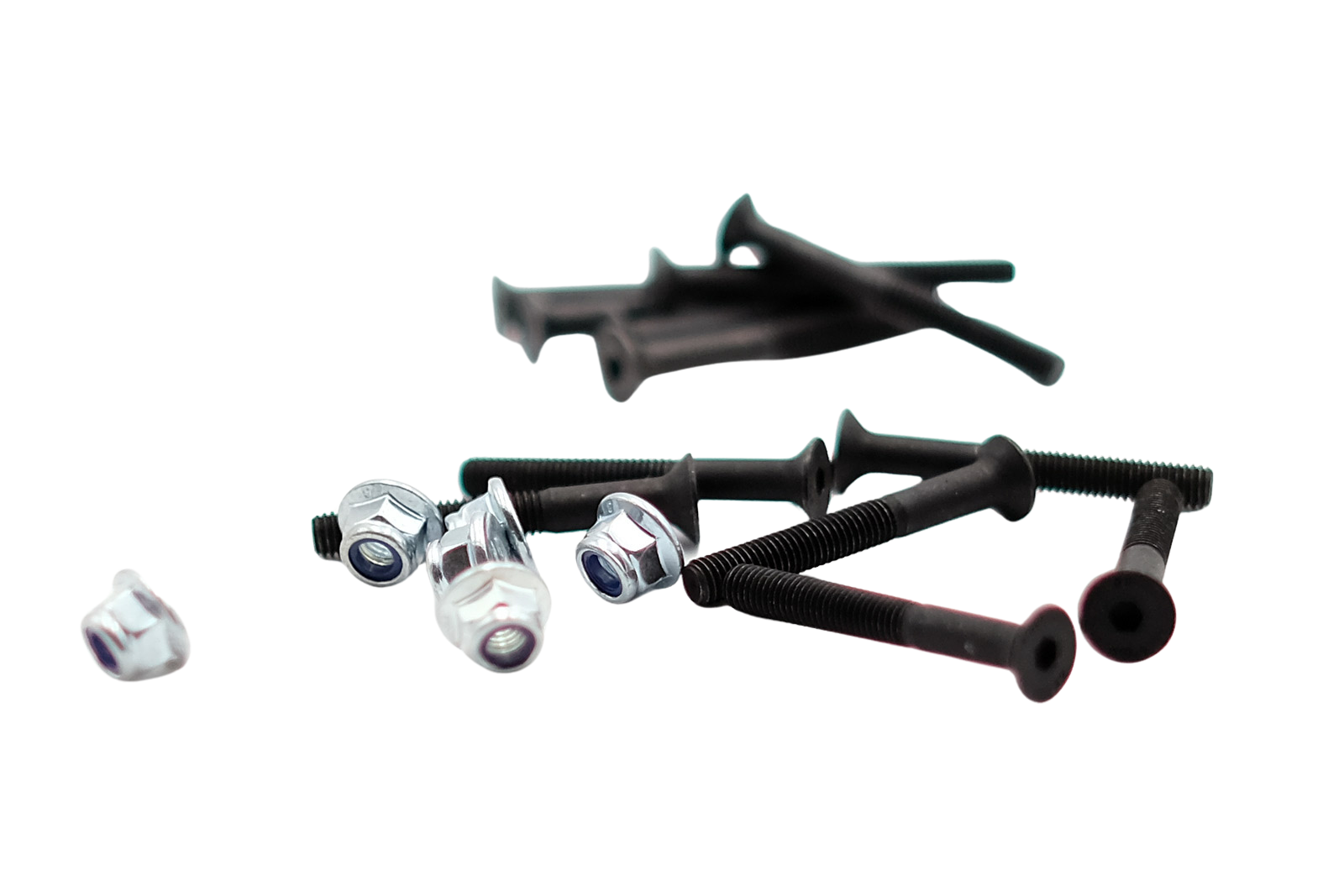

However, remember that you must have good quality Allen wrenches 0.9, 1.3, 2.0 and 2.5 mm for this.
All knobs are made of aluminum, specially made for us, they are also sandblasted and oxidized.

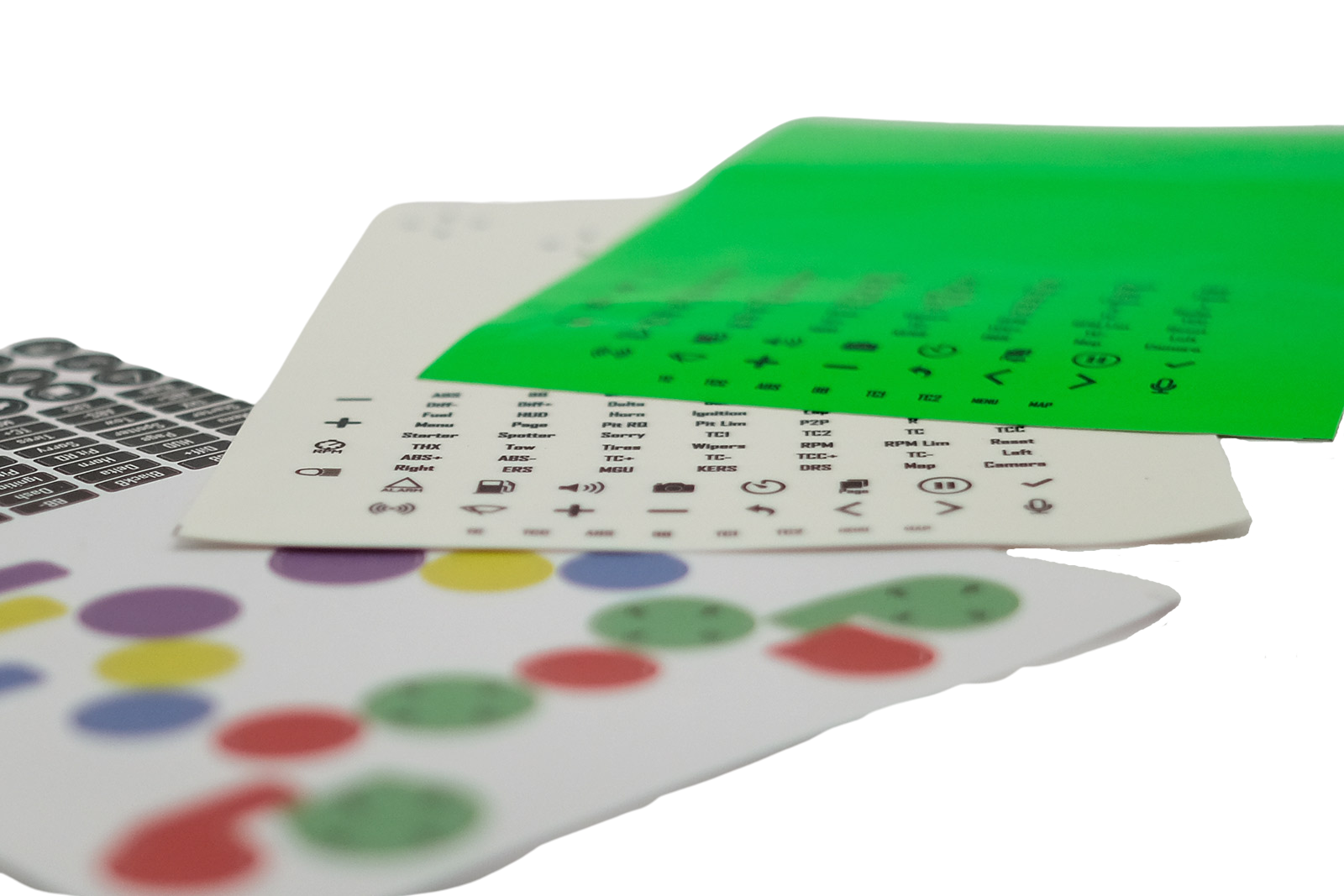

The stickers added to the kit are high-quality stickers in three versions:
- standard color
- fluorescent green
- beige, glowing light green in the dark



Power supply:

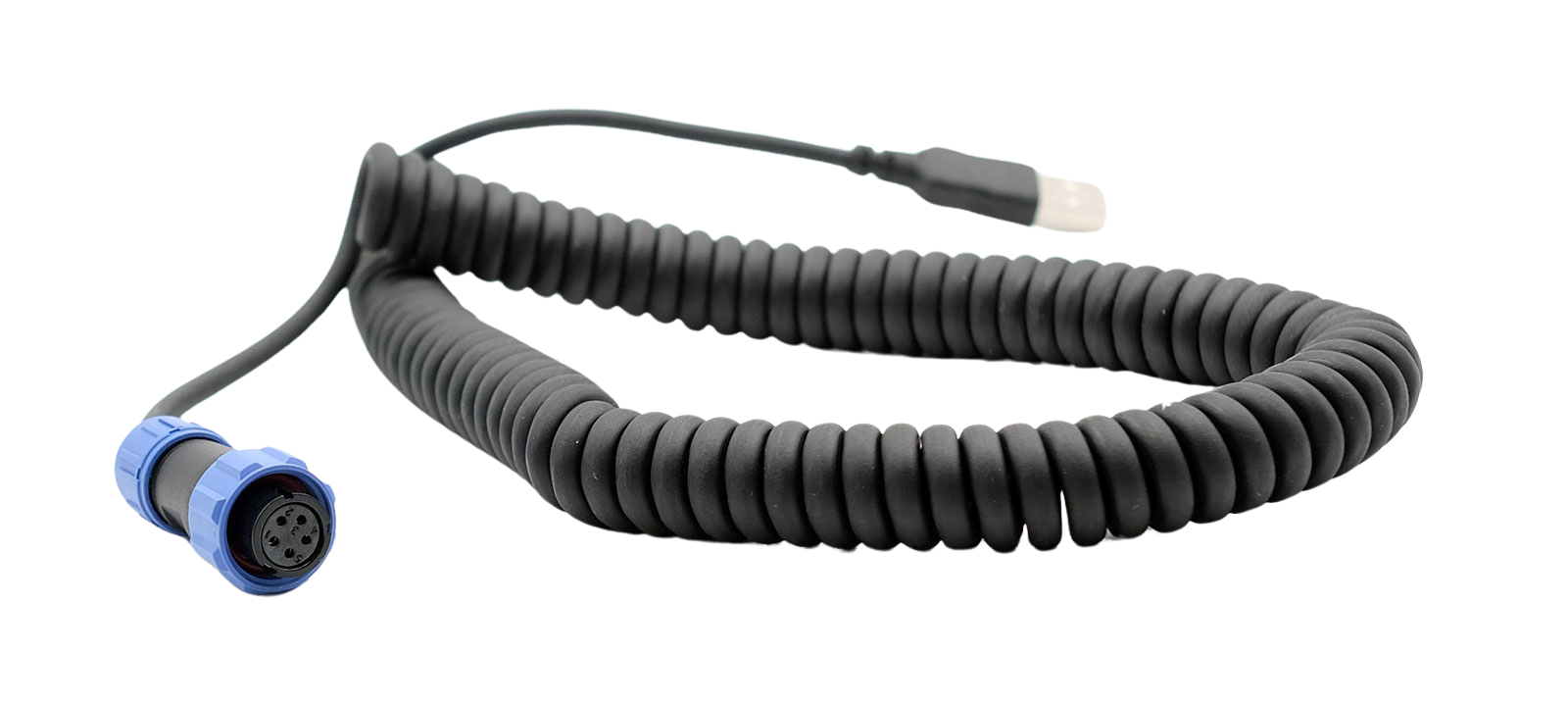

We used a large battery to power the steering wheel, which in our Sim-Center in Poland has no problems for 4 weeks, after this time it is enough to connect the steering wheel to the USB port and charge for 2 hours. It can still be used while it is charging.



Simucube2 wireless connectivity:
In BPv3 Ult we used the latest SC2 Wireless controller with support for analog signals and an external antenna, thanks to which the connection is very stable. In the True Drive software you can decide whether you want to use the axis separately or in a Dual Clutch system with BPP (bite point potentiometer).



If you have any questions (we prefer questions about our activities and our products, but if we are able to answer other questions, we will also answer them) feel free to send us an email at simline.gt@gmail.com or write to us on our FB / Meta

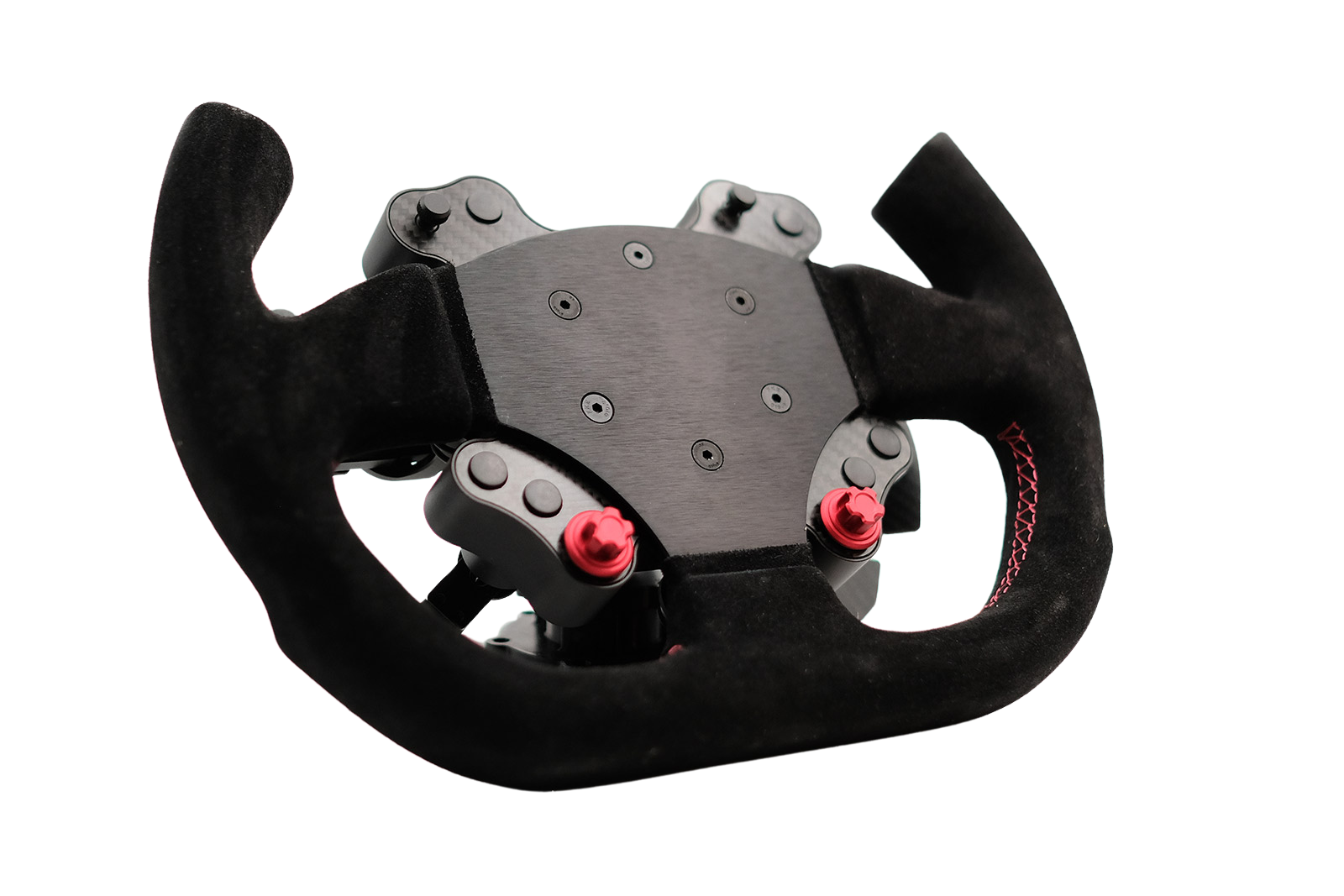

Below is the compatibility list that we have personally checked, if your rim is not on the list, please contact us at simline.gt@gmail.com, we will check it:

Fanatec GT, R300, GT3 Cup
DimSim F320, RMD 320, Porsche GT3 Cup OEM
Momo Jet32, Mod 30, Team 30, Tuner Black, Motamec, Mazda MPI, MPI GT13
OMP Alu S, Superquadro, Targa, Asso, Kubic, Superleggerro, Supertourismo, Trecento, Velocita
Sportline D320, R320, R350, U300, Competition, Imola

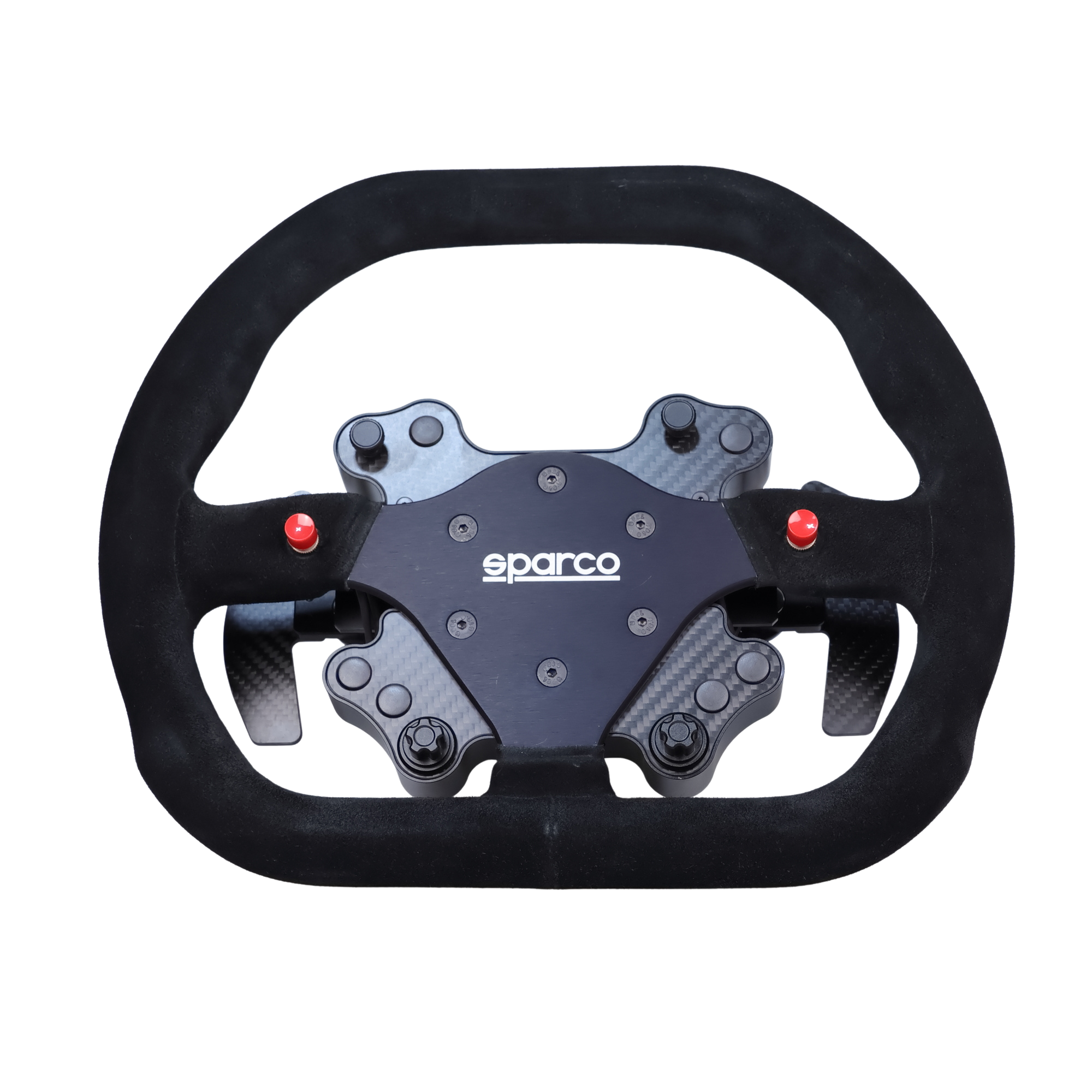

Sabelt SW733, Sparco P300, P310, P323, L360, L999, Lap5, P353, R383

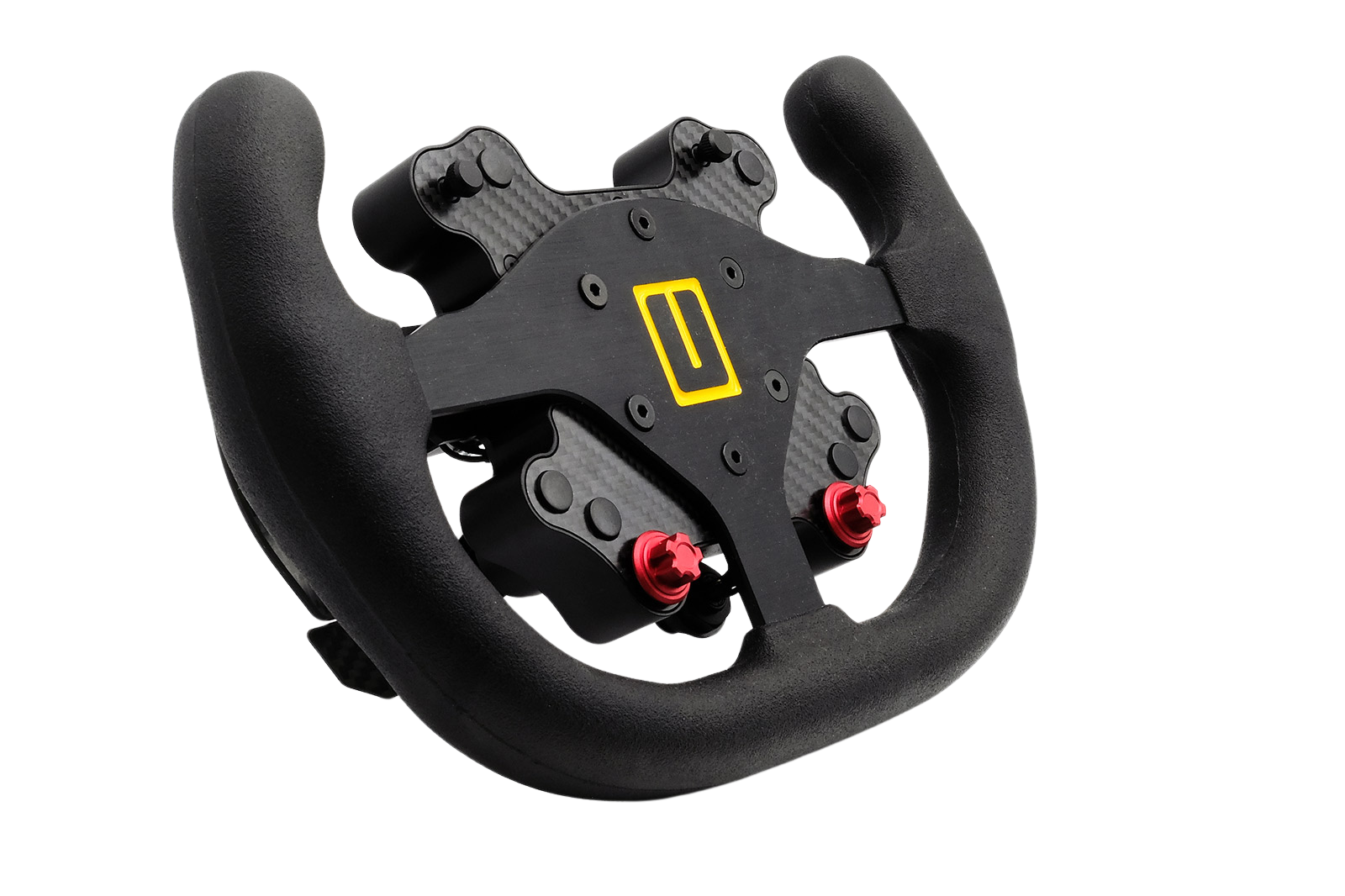

Turn R305, R20, Cube Controls, SRB and many more.
